Τελικά μια χαρά είναι η συγκεκριμένη Samsung. Έγινε αγορά και έχει κρεμαστεί στον τοίχο με μια βάση της brateck η οποία μου έβγαλε την ψυχή μέχρι να να βάλω πάνω την τηλεόραση...δύο ερωτήσεις παιδιά, στην βάση μέσα είχε 4 βίδες με τα ουπα τους που αυτά χρησιμοποίησα, λέτε να αντέξουν ή θα χρειαστεί να βάλω και άλλες βιδες στον τοίχο; Και οι βίδες που έβαλα πίσω στην tv είναι 3μιση εκατοστά με ένα πλαστικό που είχε μαζί και μπήκε πριν την βάση και μετά η βάση γιατί οι πιο μεγάλες βίδες που είχε ήταν τεράστιες 5μιση εκατοστά και περίσσευαν. Δεν θα έχει θέμα έτσι;
---------------------------------------------------------------
65":VA
58":VA
55":VA

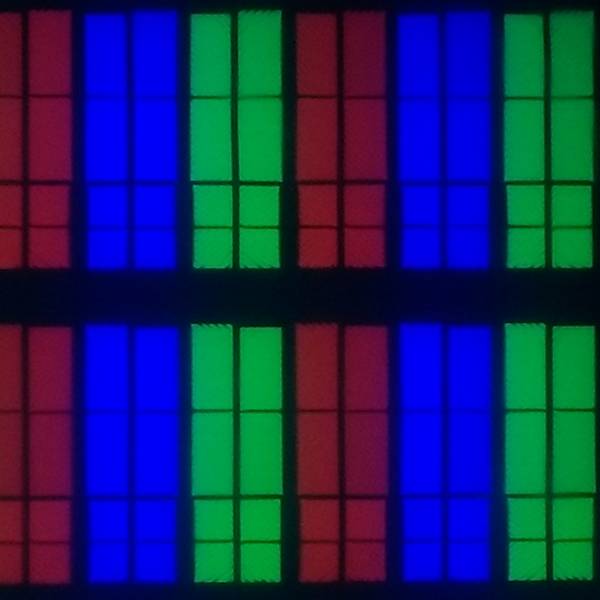

50":VA (Ψευτό-4K. Ανάβουν τα μισά πίξελ σε οποιαδήποτε άλλο τόνο εκτός του λευκού σε video signal.)
43":VA (Ψευτό-4K. Ανάβουν τα μισά πίξελ σε οποιαδήποτε άλλο τόνο εκτός του λευκού σε video signal.)
50/60Hz,
LCD,Direct LED,
no WCG
HDR10,HLG ,HDR10 +
DTS tracks are not played
Tizen 5.5

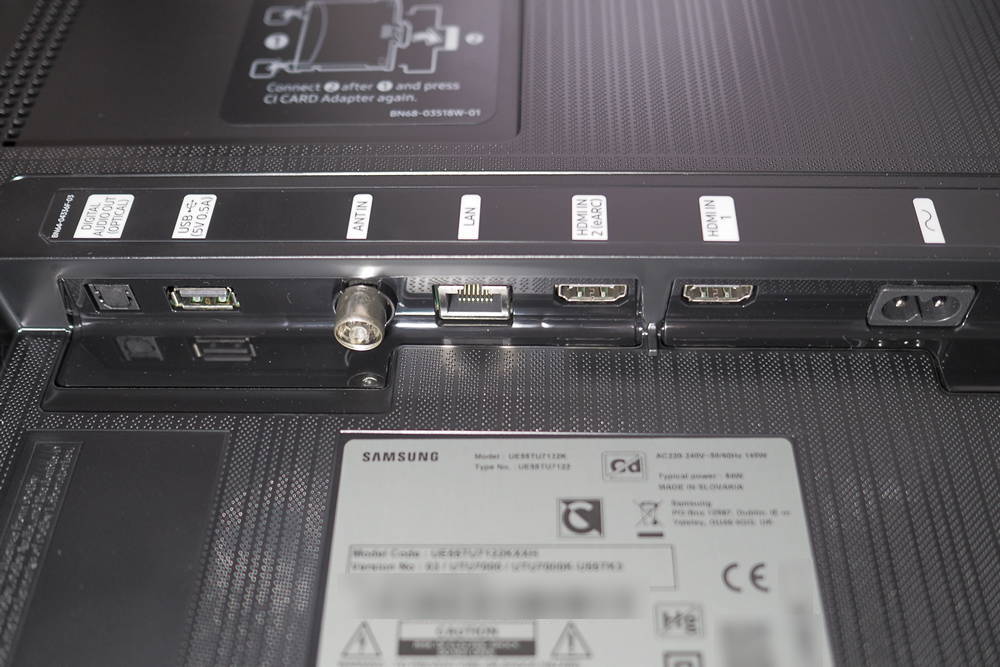

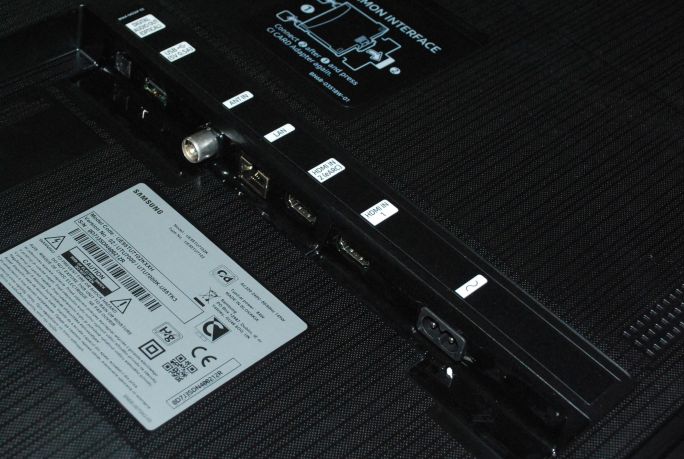

HDMI : 2
USB : 1
Ethernet : 1
Optical - 1
Headphone : 0
Bluetooth : yes
Wi-Fi : yes
Reviews - test:
65"...[geex.x-kom.pl]...Samsung UE65TU7102 review...https://geex.x-kom.pl/recenzje/duzy-i-tani-test-i-recenzja-telewizora-samsung-65tu7102/

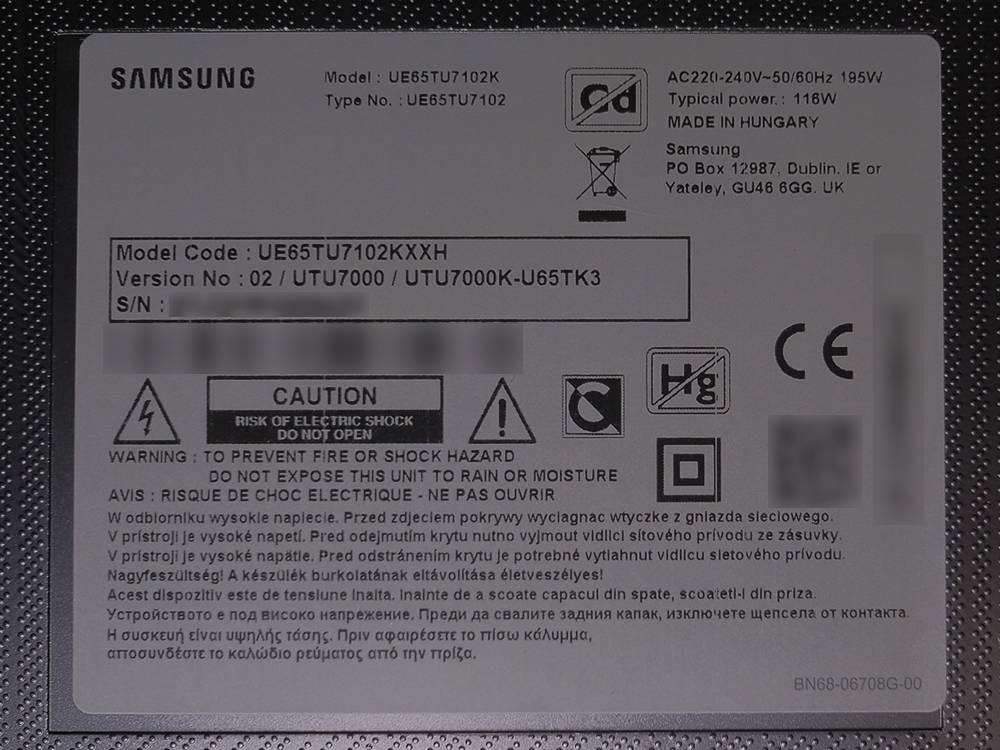

version No:2
UE65TU7102:VA panel
UE65TU7102: Direct LED

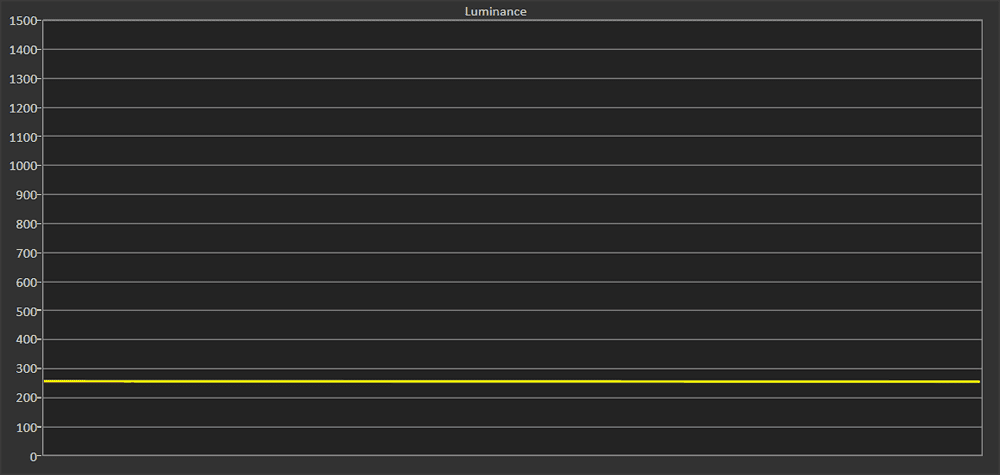

Already in the factory settings, the backlight was set to the maximum (i.e. 50/50), and the measurement showed that in this setting (i.e. to the maximum) on the full screen display the luminance was only 245 cd / m ^ 2.
The screen brightness level suitable for home theater (approx. 120 cd / m ^ 2) sets the brightness option to 28/50.
HDR

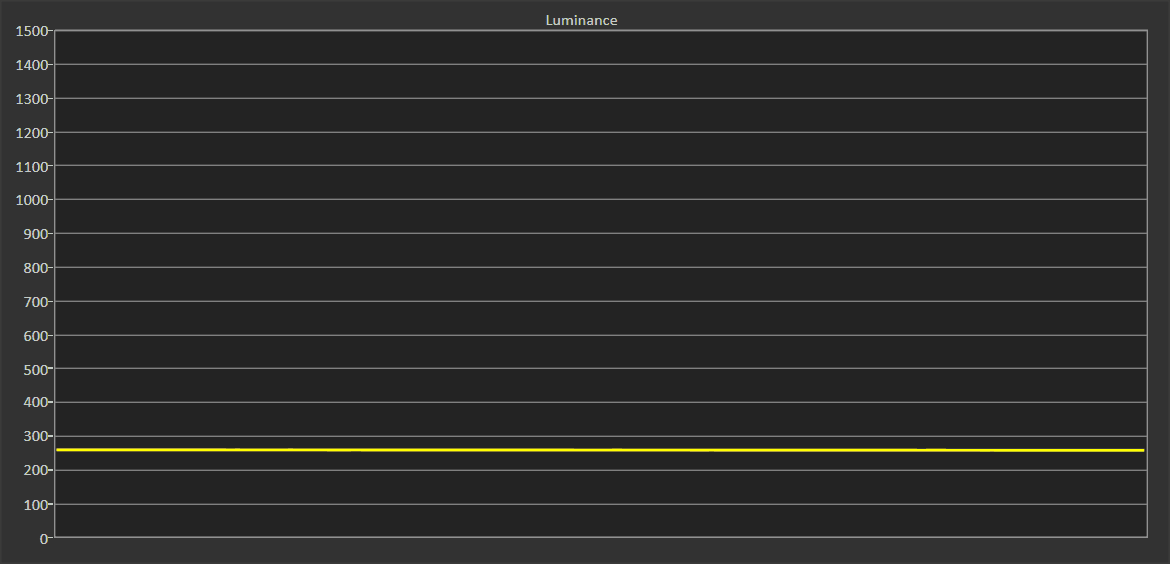

In HDR mode on a 10% board, the maximum luminance after three minutes of measurement was only 253 cd / m ^ 2.
Since the maximum brightness is very low, the Samsung 65TU7102 is well suited to SDR content rather than HDR content. I would like to add that we will notice a significant difference only in the models from the Q6xT series.
For Tizen OS ,the problem is that the same system works differently in higher-end Samsung TVs, such as QLEDs, and differently in budget-class TVs, which is undoubtedly the 65TU7102. I would like to point out that due to the use of a weaker processor and less RAM, the TV works relatively slowly, often sluggishly responding to commands from the remote control. It turns on quickly, but when it is turned on, it loads a lot of data in the background and for some time either does not respond to commands at all or reacts with a long delay.
From a potential user, the 65TU7102 and other models in this series will require a lot of patience, just like many other televisions of this class from competing brands.
Summary
The 65-inch model from the TU7102 series is another successful budget-class TV of the Korean manufacturer. Its main advantages are dark blacks, very good contrast, good color reproduction and a sound better than the average in this class. Although it will not work well in very bright rooms, and will require a certain amount of patience from the user, taking into account what the competition offers, I cannot recommend it. For viewing SDR content, of course, not HDR.
-----------------
55"...[geex.x-kom.pl]...Samsung UE55TU7102 test...https://avclub.gr/forum/showthread....p-2020?p=1058517248&viewfull=1#post1058517248
55"...[rtings.com]...Samsung UN55TU7000 review...https://avclub.gr/forum/showthread....p-2020?p=1058526404&viewfull=1#post1058526404
55"...[lesnumeriques.com]...Samsung UE55TU7125 test...https://www.lesnumeriques.com/tv-televiseur/samsung-tv-led-samsung-ue55tu7125-2020-p56963/test.html
55"...[prohardver.hu]...Samsung UE55TU7102K review...https://prohardver.hu/teszt/samsung_tu7100_olcso_teve_teszt/samsung_tu7100.html
-55"...[tweakers.net]...Samsung UE55TU7020 vs Hisense 55A7500F vs Sony KD-55X7055 vs LG 55NANO816...https://tweakers.net/reviews/8510/b...de-populairste-maat-voor-zeshonderd-euro.html
Samsung UE55TU7020 : VA panel,50/60Hz,no Wide Color Gamut
Hisense 55A7500F:VA panel,50/60Hz,no Wide Color Gamut
Sony KD-55X7055:VA panel,50/60Hz, Wide Color Gamut
LG 55NANO816: IPS panel,50/60Hz, Wide Color Gamut
Samsung UE55TU7020
55"...[geex.x-kom.pl]...Samsung UE55TU7122 test...https://geex.x-kom.pl/recenzje/klasa-budzetowa-test-i-recenzja-telewizora-samsung-55tu7122/
UE55TU7122: 55L6AUAGT panel (service menu)
I suspect that the 55TU7122 (v3) had a panel from the Chinese company CSOT, while the 55TU7102 (v2) had a panel from Samsung Display.
The ANSI contrast ratio was 3701: 1, which is a good result. Contrary to the 55TU7102, the 55TU7122 movie mode is factory set to not lose shadow detail. It is worth noting that the black level was well set at the factory.
Unfortunately, the TV uses a fairly strong global dimming (so-called frame dimming ) - it seems to me even noticeably stronger than in the 55TU7102 (unless it's the same, and my eyesight only sharpened with time ). I realize that many consumers will not see it at all, but as they say, once someone sees global dimming, unfortunately it will not be possible to "depict" it. Can it be turned off? From the level of the generally available consumer menu, unfortunately not.
The maximum brightness in the full screen mode was not high and amounted to only 241 cd / m ^ 2. Now you know why the TV in the factory settings of the movie mode has the backlight slider set to "maximum" (50/50).
50"...[geex.x-kom.pl]...Samsung UE50TU7102 review...https://avclub.gr/forum/showthread....p-2020?p=1058528551&viewfull=1#post1058528551
50"...[hdtelevizija.com]...Samsung UE50TU7002K review...https://avclub.gr/forum/showthread....p-2020?p=1058530862&viewfull=1#post1058530862
43"...[ixbt.com]...Samsung UE43TU7100UXRU review...https://www.ixbt.com/tv/samsung-ue43tu7100uxru-review.html
43"...[geex.x-kom.pl]...Samsung 43TU7102 TV test...https://geex.x-kom.pl/recenzje/maluch-test-i-recenzja-telewizora-samsung-43tu7102/
-----------------
Samsung UN55TU7000 εσωτερικό-teardown
πηγή:[tvpartstoday]
---------------------------------------------------------------
65":VA
58":VA
55":VA
50":VA (Ψευτό-4K. Ανάβουν τα μισά πίξελ σε οποιαδήποτε άλλο τόνο εκτός του λευκού σε video signal.)
43":VA (Ψευτό-4K. Ανάβουν τα μισά πίξελ σε οποιαδήποτε άλλο τόνο εκτός του λευκού σε video signal.)
50/60Hz,
LCD,Direct LED,
no WCG
HDR10,HLG ,HDR10 +
DTS tracks are not played
Tizen 5.5
HDMI : 2
USB : 1
Ethernet : 1
Optical - 1
Headphone : 0
Bluetooth : yes
Wi-Fi : yes
Reviews - test:
65"...[geex.x-kom.pl]...Samsung UE65TU7102 review...https://geex.x-kom.pl/recenzje/duzy-i-tani-test-i-recenzja-telewizora-samsung-65tu7102/
version No:2
UE65TU7102:VA panel
UE65TU7102: Direct LED
Already in the factory settings, the backlight was set to the maximum (i.e. 50/50), and the measurement showed that in this setting (i.e. to the maximum) on the full screen display the luminance was only 245 cd / m ^ 2.
The screen brightness level suitable for home theater (approx. 120 cd / m ^ 2) sets the brightness option to 28/50.
HDR
In HDR mode on a 10% board, the maximum luminance after three minutes of measurement was only 253 cd / m ^ 2.
Since the maximum brightness is very low, the Samsung 65TU7102 is well suited to SDR content rather than HDR content. I would like to add that we will notice a significant difference only in the models from the Q6xT series.
For Tizen OS ,the problem is that the same system works differently in higher-end Samsung TVs, such as QLEDs, and differently in budget-class TVs, which is undoubtedly the 65TU7102. I would like to point out that due to the use of a weaker processor and less RAM, the TV works relatively slowly, often sluggishly responding to commands from the remote control. It turns on quickly, but when it is turned on, it loads a lot of data in the background and for some time either does not respond to commands at all or reacts with a long delay.
From a potential user, the 65TU7102 and other models in this series will require a lot of patience, just like many other televisions of this class from competing brands.
Summary
The 65-inch model from the TU7102 series is another successful budget-class TV of the Korean manufacturer. Its main advantages are dark blacks, very good contrast, good color reproduction and a sound better than the average in this class. Although it will not work well in very bright rooms, and will require a certain amount of patience from the user, taking into account what the competition offers, I cannot recommend it. For viewing SDR content, of course, not HDR.
-----------------
55"...[geex.x-kom.pl]...Samsung UE55TU7102 test...https://avclub.gr/forum/showthread....p-2020?p=1058517248&viewfull=1#post1058517248
55"...[rtings.com]...Samsung UN55TU7000 review...https://avclub.gr/forum/showthread....p-2020?p=1058526404&viewfull=1#post1058526404
55"...[lesnumeriques.com]...Samsung UE55TU7125 test...https://www.lesnumeriques.com/tv-televiseur/samsung-tv-led-samsung-ue55tu7125-2020-p56963/test.html
55"...[prohardver.hu]...Samsung UE55TU7102K review...https://prohardver.hu/teszt/samsung_tu7100_olcso_teve_teszt/samsung_tu7100.html
-55"...[tweakers.net]...Samsung UE55TU7020 vs Hisense 55A7500F vs Sony KD-55X7055 vs LG 55NANO816...https://tweakers.net/reviews/8510/b...de-populairste-maat-voor-zeshonderd-euro.html
Samsung UE55TU7020 : VA panel,50/60Hz,no Wide Color Gamut
Hisense 55A7500F:VA panel,50/60Hz,no Wide Color Gamut
Sony KD-55X7055:VA panel,50/60Hz, Wide Color Gamut
LG 55NANO816: IPS panel,50/60Hz, Wide Color Gamut
Samsung UE55TU7020
55"...[geex.x-kom.pl]...Samsung UE55TU7122 test...https://geex.x-kom.pl/recenzje/klasa-budzetowa-test-i-recenzja-telewizora-samsung-55tu7122/
UE55TU7122: 55L6AUAGT panel (service menu)
I suspect that the 55TU7122 (v3) had a panel from the Chinese company CSOT, while the 55TU7102 (v2) had a panel from Samsung Display.
The ANSI contrast ratio was 3701: 1, which is a good result. Contrary to the 55TU7102, the 55TU7122 movie mode is factory set to not lose shadow detail. It is worth noting that the black level was well set at the factory.
Unfortunately, the TV uses a fairly strong global dimming (so-called frame dimming ) - it seems to me even noticeably stronger than in the 55TU7102 (unless it's the same, and my eyesight only sharpened with time ). I realize that many consumers will not see it at all, but as they say, once someone sees global dimming, unfortunately it will not be possible to "depict" it. Can it be turned off? From the level of the generally available consumer menu, unfortunately not.
The maximum brightness in the full screen mode was not high and amounted to only 241 cd / m ^ 2. Now you know why the TV in the factory settings of the movie mode has the backlight slider set to "maximum" (50/50).
50"...[geex.x-kom.pl]...Samsung UE50TU7102 review...https://avclub.gr/forum/showthread....p-2020?p=1058528551&viewfull=1#post1058528551
50"...[hdtelevizija.com]...Samsung UE50TU7002K review...https://avclub.gr/forum/showthread....p-2020?p=1058530862&viewfull=1#post1058530862
43"...[ixbt.com]...Samsung UE43TU7100UXRU review...https://www.ixbt.com/tv/samsung-ue43tu7100uxru-review.html
43"...[geex.x-kom.pl]...Samsung 43TU7102 TV test...https://geex.x-kom.pl/recenzje/maluch-test-i-recenzja-telewizora-samsung-43tu7102/
-----------------
Samsung UN55TU7000 εσωτερικό-teardown
