-Sharp TV Line-Up 2016-

For the First Time, Sharp AQUOS 4K Line-Up Includes Quantum Dot Technology and a Curved Screen
LAS VEGAS β€” Today at 2016 International CES, the curtain was pulled back on the 2016 Sharp TV line-up unveiling cutting-edge technology and, for the first time, curved screens and quantum dot technology. In total, the Sharp line-up will include 25 new televisions across HD and UHD in screen sizes ranging from 32” to 75”, including the flagship N9000 series, four new Sharp Roku TVβ„’ models and nine big screen models (60” and larger)......

http://www.hughsnews.ca/latest-sharp-tvs-launch-at-ces-2016-0051684



​

gzoun
what you posted, is about US models

For Europe

How to read model suffix ?
Example - LC-60CUF8682E

LC - display technology
60 - Screen size diagonally - in inches
CU - resolution
  • XU - 4K Extra Slim
  • CU - UltraHD
  • CF - FullHD
  • CH - HD Ready
  • SC - 3D Curved
  • SU - 3D UHD
  • SF - 3D FHD
F - model year
  • F - 2016
  • E - Π³ΠΎΠ´ΠΈΠ½Π° 2015
8 - series and class
  • 8 - 4K UltraHD
  • 7 - 3D Smart
  • 6 - 2D Smart
  • 5 - 2D
  • 4 - Tactikal
  • 3 - budget series
  • 2 - basic series
6 - Design
  • 6 - Aluminium finish/Small led white with aluminium decoration/Scorpion stand
  • 4 - Aluminium finish/Slim led light with aluminium decoration/Trapezoid metal stand
  • 3 - Slim & mat bezel/Aluminium decoration/Long Led light with aluminium decorationDolphine metal Chrome stand
  • 2 - Slim bezel/Slim led light with decoration/
  • 1 - Slim Bezel/Slim Led white light/Brushed & mat surface/Trapezoid metal stand
8 - Features package/equipment
  • -
  • -
  • -
2 - Tuner
  • 0 - T/C
  • 1 - T/T2/C
  • 2 - T/T2/C/S2
E - Sales Region







https://scontent-frt3-1.xx.fbcdn.ne...=d625e593d0ac765211fce8f581c49abd&oe=56F4B241
https://scontent-frt3-1.xx.fbcdn.ne...=9a8e9a443d16d6ae862b38f45240718c&oe=56DB5AEF
https://scontent-frt3-1.xx.fbcdn.ne...=bcf1dbc5cc71d4253d39cffbf34e187d&oe=56AD6B97
https://scontent-frt3-1.xx.fbcdn.ne...=e0559b363e9a101ecaed60847d39f74d&oe=56E4FC56
https://scontent-frt3-1.xx.fbcdn.ne...=ef219d5a38ddb591bf4a961b6e9f05ee&oe=56D8C185
https://scontent-frt3-1.xx.fbcdn.ne...=154052ccc17c86342f565cf13b249924&oe=56F6B27F
https://scontent-frt3-1.xx.fbcdn.ne...=1007291a65e2c09013484406a668bba9&oe=56EC41E0
https://scontent-frt3-1.xx.fbcdn.ne...=4b86a96456310248c2a3436c13c640d4&oe=56EC40F8


https://scontent-frt3-1.xx.fbcdn.ne...=b9e8d5f392a685abb9eec5c15f329932&oe=56EA69D2

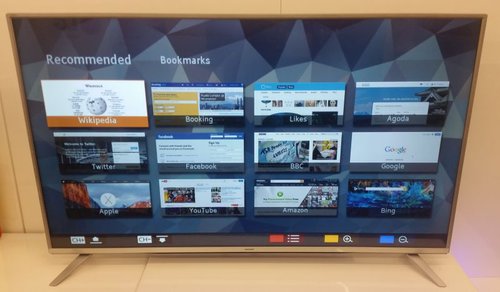

UltraHD
https://scontent-frt3-1.xx.fbcdn.ne...=b76d25c19047f6031b02697759f04678&oe=56F5B818
https://scontent-frt3-1.xx.fbcdn.ne...=efabd05c09324d80404cdb0b17f0f512&oe=56F6B037
https://scontent-frt3-1.xx.fbcdn.ne...=2d60e5a90ce31bb1d9dce8979184316b&oe=56EAEDB6
https://scontent-frt3-1.xx.fbcdn.ne...=6fe06c47b72780d6a3d155b1fd858b5d&oe=56E17C01
https://scontent-frt3-1.xx.fbcdn.ne...=b114af1f10264fc6e364936bb83b41d8&oe=56ACDBB2
https://scontent-frt3-1.xx.fbcdn.ne...=e52a69f67ee369ae435a305c6119d6a1&oe=56F073AD
https://scontent-frt3-1.xx.fbcdn.ne...=aae5a0a7c5ee93204cecbfb465f7dc22&oe=56AEC573
https://scontent-frt3-1.xx.fbcdn.ne...=c96ac42337d44b44b29dc61f16e9baf6&oe=56DDB867

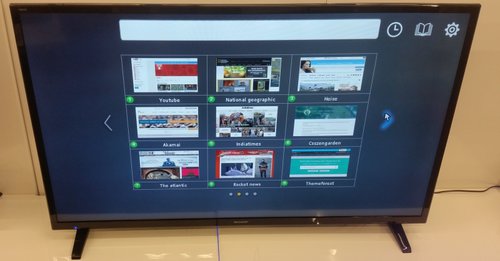

Smart FullHD
https://scontent-frt3-1.xx.fbcdn.ne...=191d126346323bdcac1ca2474c294917&oe=56F0A00C

https://scontent-frt3-1.xx.fbcdn.ne...=273dbfa77ce45385ab45a4540626a57d&oe=56D71684
https://scontent-frt3-1.xx.fbcdn.ne...=f5fa2ef9444de37de375d159d2963861&oe=56EC0C4E
https://scontent-frt3-1.xx.fbcdn.ne...=82991556163962a669e05d0537640ebb&oe=56DBD4C4
https://scontent-frt3-1.xx.fbcdn.ne...=9e49ad231b2e3df949378883e52d8e93&oe=56F95304
https://scontent-frt3-1.xx.fbcdn.ne...=991b84d9d3faf3747421b8bbd1972699&oe=56F4E2B8
https://scontent-frt3-1.xx.fbcdn.ne...=6bedec1687feab9a8202d366a8f6817c&oe=56E905B4
https://scontent-frt3-1.xx.fbcdn.ne...=81e28d8e91fc13977f57b871fa0b2a90&oe=56EE3D5C
https://scontent-frt3-1.xx.fbcdn.ne...=b164ec921b0c8b6c32d650dc44afc012&oe=56AECE45


https://scontent-frt3-1.xx.fbcdn.ne...=d2e118bbed7ab7653b3b453efafa5c96&oe=56EE83AC
https://scontent-frt3-1.xx.fbcdn.ne...=3ce2ce6db3b5a572df06ac7fb7806797&oe=56FA5EF3
https://scontent-frt3-1.xx.fbcdn.ne...=6a527d47c58461aec4ebe496dd418a71&oe=56F24316
https://scontent-frt3-1.xx.fbcdn.ne...=68728fd3677b3b5ace3c6f61657b7276&oe=56EE7BEA
https://scontent-frt3-1.xx.fbcdn.ne...=bfcf7b40220c58929be5a85258697938&oe=56DDABC8
https://scontent-frt3-1.xx.fbcdn.ne...=f48b3065d2e5e93b194c8e752de309ff&oe=56E80858
https://scontent-frt3-1.xx.fbcdn.ne...=21e097d111899a9424bd94916233de57&oe=56E9AEA6
https://scontent-frt3-1.xx.fbcdn.ne...=a99f02fa717626a59cced38147b42a3a&oe=56F085E9
https://scontent-frt3-1.xx.fbcdn.ne...=7ee672fe1695f530fc1b638efb5893e3&oe=56EDFAF1
https://scontent-frt3-1.xx.fbcdn.ne...=a673c344664e1b1681e7dc046a749b6e&oe=56EE1B6B
https://scontent-frt3-1.xx.fbcdn.ne...=f16f95e33e0c217b28b06b7801ecfe67&oe=56F6992A
https://scontent-frt3-1.xx.fbcdn.ne...=f5cd7fd1376f708fa9dc0da3279cdd41&oe=56E376ED
https://scontent-frt3-1.xx.fbcdn.ne...=3595e6d27eb6ed7fd63214ea73bbd1aa&oe=56E810EA
https://scontent-frt3-1.xx.fbcdn.ne...=191d126346323bdcac1ca2474c294917&oe=56F0A00C

https://scontent-frt3-1.xx.fbcdn.ne...=191d126346323bdcac1ca2474c294917&oe=56F0A00C


https://scontent-frt3-1.xx.fbcdn.ne...=2987094e70cefeaf00780bfd0738dedb&oe=56F4729C
https://scontent-frt3-1.xx.fbcdn.ne...=58dfebd5acd174392dfcbba9acc94133&oe=56DE7124
https://scontent-frt3-1.xx.fbcdn.ne...=f94b20abfbc7c4efd524d874758eec1f&oe=56F285CE
https://scontent-frt3-1.xx.fbcdn.ne...=1bde080f4d930dfd588f29d15b23fdf9&oe=56EBE4F8
https://scontent-frt3-1.xx.fbcdn.ne...=0489faa8d85fa1ece56e7dc29141f6ad&oe=56DB2B0C
https://scontent-frt3-1.xx.fbcdn.ne...=6d895c1c7eac992d3409eab76256874a&oe=56DF1352
https://scontent-frt3-1.xx.fbcdn.ne...=28acd7bb5a31268c0f30cb12d3c78709&oe=56F00E27

models without Smart
https://scontent-frt3-1.xx.fbcdn.ne...=d9e396b6acaf8e2fddd3bf88c0bc6747&oe=56E5B746

https://scontent-frt3-1.xx.fbcdn.ne...=37f1041417b78f285ab3bb9699737e7f&oe=56F365F5
https://scontent-frt3-1.xx.fbcdn.ne...=0efd0d3cc1457eaa3c9108522dbc3498&oe=56EC4E3A
https://scontent-frt3-1.xx.fbcdn.ne...=18c38e975ad3dfde8571f84c558dd048&oe=56E2D4CF
https://scontent-frt3-1.xx.fbcdn.ne...=72f7ef0c34ec850bff0c0ca0e18804d9&oe=56E0B5AC
https://scontent-frt3-1.xx.fbcdn.ne...=90458cc33cfabe18cb4cedaa91edd9df&oe=56E95488
https://scontent-frt3-1.xx.fbcdn.ne...=353c2ca7d7fa14660347e6fb76fe6d34&oe=56DB7E0B
https://scontent-frt3-1.xx.fbcdn.ne...=4be986295610eabe53e9e7e5a060606e&oe=56D9FCE8
https://scontent-frt3-1.xx.fbcdn.ne...=bc5d126f11488559f6edb83f4bcdb042&oe=56EE9DCF
https://scontent-frt3-1.xx.fbcdn.ne...=2c91514aee40b7087081ae0ee24f0818&oe=56F50E5F

[TABLE="class: cms_table_cms_table_cms_table_cms_table_cms_table_cms_table"]
[TR="bgcolor: #000099"]
[TD="colspan: 16, align: center"]Sharp LCD UHD TV 2016 - european models[/TD]
[/TR]
[TR="bgcolor: #40e0d0"]
[TD]Product
Serie
_____________________________[/TD]
[TD]UHD
Premium
Certificate
_____[/TD]
[TD]Dolby
Vision
Certificate
__________[/TD]
[TD]
HDR
​
________________[/TD]
[TD]
Videopanel
​
___________________________[/TD]
[TD]Backlight
___________________
Dimming[/TD]
[TD]
Color Space
​
____________________________[/TD]
[TD]Contrast ,
White & Black level
__________________[/TD]
[TD]Viewing Angle
_____________[/TD]
[TD]Input Lag
__________[/TD]
[TD]Audio
____________________[/TD]
[TD]
Networks
​
__________________[/TD]
[TD]
Connectors
​
___________________________[/TD]
[TD]
SoC
Platform
Software
OS
​
_________[/TD]
[TD="class: sortable-pre"]
Tuner
​
__________________[/TD]
[TD]Product
________________________[/TD]
[/TR]
[TR]
[TD="bgcolor: #3333cc"]XUF 8982 E
(2016)

65", 55", 49"

[/TD]
[TD][/TD]
[TD]No[/TD]
[TD]65" -
55" -
49" -
?[/TD]
[TD]65" - AS-IPS, 10-bit, 120/100Hz ?
55" - AS-IPS, 10-bit, 120/100Hz ?
49" - AS-IPS, 10-bit, 120/100Hz ?
(Active Motion-800)
RGBW[/TD]
[TD]65" -
55" -
49" -

[/TD]
[TD]65" -
55" -
49" -
advanced 12-bit color picture processing[/TD]
[TD]65" -
55" -
49" -





[/TD]
[TD]65" -
55" -
49" -

[/TD]
[TD]65"-
55"-
49" -[/TD]
[TD]2x10W (8 ohm)
+15W subwoofer (8 ohm)


Dolby Digital
Dolby Digital+
dts 2.0
DTS TruSurround[/TD]
[TD]Lan - Ethernet RJ45
Wi-Fi
802.11 a
802.11 b
802.11 n
802.11 n 5GHz
802.11 ac
Wi-Fi Direct
WiDi
Miracast
Bluetooth
DLNA[/TD]
[TD]4 x HDMI2.0 (ARC,CEC,MHL)
2 x USB 2.0
1 x USB 3.0
1 x Satelite in(Main:F-type,female)
1 x AV Composite In 3.5mm jack
1 x AV Component in Mini
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF) (Female)
1 x CI+1.3
[/TD]
[TD]-
-
-
-[/TD]
[TD]DVB -T/ T2/C/S/S2
with PVR and PIP function
Analog (PAL,SECAM)


HEVC H.265






[/TD]
[TD="bgcolor: #3333cc"]XUF8982

65", 55", 49"

[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #3333cc"]XUF 8882 E
(2016)

65", 60", 55", 49"

[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]65" -
60" -
55" -
49" -
No[/TD]
[TD]65" - AS-IPS, 10-bit, 120/100Hz ?
60" - AS-IPS, 10-bit, 120/100Hz ?
55" - AS-IPS, 10-bit, 120/100Hz ?
49" - AS-IPS, 10-bit, 120/100Hz /
(Active Motion-800)
RGBW[/TD]
[TD]65" -
60" -
55" -
49" -

[/TD]
[TD]65" -
60" -
55" -
49" -
advanced 12-bit color picture processing[/TD]
[TD]65" -
60" -
55" -
49" -

[/TD]
[TD]65" -
60" -
55" -
49" -

[/TD]
[TD]65" -
60" -
55" -
49" -[/TD]
[TD]-[/TD]
[TD]Lan - Ethernet RJ45
Wi-Fi
802.11 a
802.11 b
802.11 n
802.11 n 5GHz
802.11 ac
Wi-Fi Direct
WiDi
Miracast
DLNA[/TD]
[TD]4 x HDMI2.0 (ARC,CEC,MHL)
2 x USB 2.0
1 x USB 3.0
1 x Satelite in(Main:F-type,female)
1 x AV Composite In 3.5mm jack
1 x AV Component in Mini
1 x Antena (RF) (Female)
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x CI+1.3


[/TD]
[TD]-
-
-
-[/TD]
[TD]DVB - T/T2/C/S/S2
with PVR and PIP function
Analog (PAL,SECAM)


HEVC H.265






[/TD]
[TD="bgcolor: #3333cc"]XUF8882

65", 60", 55", 49"

[/TD]
[/TR]
[TR]
[TD="bgcolor: #3333cc"]XUF 8772 KS/ES
(2016)
KS- UK / ES - Continental Europe


65", 55", 49" , 43"

[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]KS 65" - 400cd/m2
ES 65" - 550cd/m2
55" - 350cd/m2
49" - 350cd/m2
43" - 500cd/m2
No[/TD]
[TD]65" - AS-IPS, 120/100Hz ?
60" - AS-IPS, 120/100Hz ?
55" - AS-IPS, 120/100Hz ?
49" - AS-IPS, 120/100Hz ?
43" - AS-IPS, 120/100Hz ?
(Active Motion-800)
RGBW[/TD]
[TD]65" -
60" -
55" -
49" -
43" -

[/TD]
[TD]65" -
60" -
55" -
49" -
43" -
advanced 12-bit color picture processing[/TD]
[TD]65" -
60" -
55" -
49" -
43" -

[/TD]
[TD]65" -
60" -
55" -
49" -
43" -

[/TD]
[TD]65" -
60" -
55" -
49" -
43" -[/TD]
[TD]2x10W (8 ohm)
+15W subwoofer (8 ohm)


Dolby Digital
Digital+
DTS 2.0
DTS TruSurround HD™[/TD]
[TD]Lan - Ethernet RJ45
Wi-Fi
802.11 a
802.11 b
802.11 n
802.11 n 5GHz
802.11 ac
Wi-Fi Direct
WiDi
Miracast
DLNA[/TD]
[TD]3 x HDMI2.0 (ARC,CEC,MHL)
2 x USB 2.0
1 x USB 3.0
1 x SD Card Slot
1 x Satelite in(Main:F-type,female)
1 x AV Composite In 3.5mm jack
1 x AV Component
1 x Antena (RF) (Female)
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x CI+1.3
[/TD]
[TD]-
-
-
-[/TD]
[TD]DVB-T/T2/C/S/S2
Analog (PAL,SECAM)


HEVC H.265
[/TD]
[TD="bgcolor: #3333cc"]XUF8772 KS/ES

65", 55", 49" , 43"

[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #3333cc"]XUE 8772 ES/ET
(2015)

65", 60", 55", 49" , 43"

[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]65" -
60" -
55" -
49" -
43" -
No[/TD]
[TD]65" - AS-IPS, 120/100Hz ?
60" - AS-IPS, 120/100Hz ?
55" - AS-IPS, 120/100Hz ?
49" - AS-IPS, 120/100Hz ?
43" - AS-IPS, 120/100Hz ?
(Active Motion-800)
RGBW[/TD]
[TD]65" -
60" -
55" -
49" -
43" -

[/TD]
[TD]65" -
60" -
55" -
49" -
43" -
advanced 12-bit color picture processing[/TD]
[TD]65" -
60" -
55" -
49" -
43" -

[/TD]
[TD]65" -
60" -
55" -
49" -
43" -

[/TD]
[TD]65" -
60" -
55" -
49" -
43" -[/TD]
[TD]-[/TD]
[TD]Lan - Ethernet RJ45
Wi-Fi
802.11 a
802.11 b
802.11 n
802.11 n 5GHz
802.11 ac
Wi-Fi Direct
WiDi
Miracast
Bluetooth
DLNA[/TD]
[TD]3 x HDMI2.0 (ARC,CEC,MHL)
2 x USB 2.0
1 x USB 3.0
1 x SD Card Slot
1 x Satelite in(Main:F-type,female)
1 x AV Composite In 3.5mm jack
1 x AV Component
1 x Antena (RF) (Female)
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x CI+1.3
[/TD]
[TD]-
-
-
-[/TD]
[TD]DVB-T/T2/C/S/S2
Analog (PAL,SECAM)


HEVC H.265[/TD]
[TD="bgcolor: #3333cc"]XUE8772 ES/ET

65", 60", 55", 49" , 43"

[/TD]
[/TR]
[TR]
[TD="bgcolor: #3333cc"]CUF 8682 E
(2016)

80", 70", 60"

[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]80" -
70" -
60" -
No[/TD]
[TD]
80" - UV2A, 10-bit, 120/100Hz
panel - LQ800D1....
70" - UV2A, 10-bit, 120/100Hz
panel - LQ700D1...
60" - UV2A, 10-bit, 120/100Hz
panel - LQ695D1...
(Active Motion-1000)[/TD]
[TD]80" - (W-Led)
70" - (W-Led)
60" - (W-Led)

[/TD]
[TD]80" -
70" -
60" -

[/TD]
[TD]80" - 5000:1 /
70" - 4000:1 /
60" -

[/TD]
[TD]80" -
70" -
60" -

[/TD]
[TD]80" -
70" -
60" -[/TD]
[TD]-[/TD]
[TD]Lan - Ethernet RJ45
Wi-Fi
802.11 a
802.11 b
802.11 n
802.11 n 5GHz
802.11 ac
Wi-Fi Direct
WiDi
Miracast
Bluetooth
DLNA[/TD]
[TD]3 x HDMI2.0 (ARC,CEC,MHL)
2 x USB 2.0
1 x USB 3.0
1 x SD Card Slot
1 x Satelite in(Main:F-type,female)
1 x AV Composite In 3.5mm jack
1 x Component in
1 x Antena (RF) (Female)
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x CI+1.3
[/TD]
[TD]-
-
-
-[/TD]
[TD]DVB-T/T2/C/S/S2
Analog (PAL,SECAM)


HEVC H.265




[/TD]
[TD="bgcolor: #3333cc"]CUF8682 E

80", 70", 60"

[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #3333cc"]CUF 8382 ES / KS
(2016)

55", 49", 43"

[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]55" - 350cd/m2
49" - 350cd/m2
43" - 350cd/m2
No[/TD]
[TD]55" - IPS, 8-bit+FRC, 120/100Hz
49" - IPS, 8-bit+FRC, 120/100Hz
43" - IPS, 8-bit+FRC, 120/100Hz
(Active motion-1000)[/TD]
[TD]49"- Led
43"- Led
32"- Led

[/TD]
[TD]55" -
49" -
43" -

[/TD]
[TD]55" -
49" -
43" -

[/TD]
[TD]55" -
49" -
43" -

[/TD]
[TD]55" -
49" -
43" -[/TD]
[TD]2 x 10W (8ohm)


Dolby Digital
Dolby+
DTS 2.0
DTS Tru Surround[/TD]
[TD]Lan - Ethernet RJ45
Wi-Fi
802.11 a
802.11 b
802.11 n
802.11 n 5GHz
802.11 ac
Wi-Fi Direct
WiDi
Miracast
Bluetooth
DLNA[/TD]
[TD]3 x HDMI 2.0 (CEC, ARC, MHL)
2 x USB 2.0
1 x USB 3.0
1 x SD Card Slot
1 x Satelite in(Main:F-type, female)
1 x AV Composite
1 x AV Component
1 x SCART
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF)
1 x CI+ 1.3[/TD]
[TD]-
-
-
-[/TD]
[TD]DVB-T/T2/C/S/S2
Analog (PAL,SECAM)


HEVC H.265[/TD]
[TD="bgcolor: #3333cc"]CUF8382 E

55", 49", 43"

[/TD]
[/TR]
[TR]
[TD="bgcolor: #3333cc"]CUF 8462 KS/ES
(2016)
KS - UK / ES - Continental Europe


55", 49", 43"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]55" - 350cd/m2
49" -
43" -
No
[/TD]
[TD]55" - IPS, 8-bit+FRC, 60/50Hz
49" - IPS, 8-bit+FRC, 60/50Hz
43" -
(Active Motion-600)[/TD]
[TD]55" - Direct Led
49" - Direct Led
43" - Direct Led

[/TD]
[TD]55" -
49" -
43" -

[/TD]
[TD]55" -
49" -
43" -

[/TD]
[TD]55" -
49" -
43" -

[/TD]
[TD]55" -
49" -
43" -[/TD]
[TD]2 x 10W (8ohm)


Dolby Digital
Digital+
DTS 2.0
DTS TruSurround™[/TD]
[TD]Lan - Ethernet RJ45
Wi-Fi
802.11 a
802.11 b
802.11 n
802.11 n 5GHz
802.11 ac
Wi-Fi Direct
WiDi
Miracast
Bluetooth
DLNA[/TD]
[TD]3 x HDMI 2.0 (CEC, ARC, MHL)
2 x USB 2.0
1 x USB 3.0
1 x SD Card Slot
1 x Satelite In(Main:F-type, female)
1 x AV Composite
1 x AV Component
1 x SCART
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF)
1 x CI+ 1.3[/TD]
[TD]-
-
-
-[/TD]
[TD]DVB- T/T2/C/S/S2
Analog (PAL,SECAM)


HEVC H.265[/TD]
[TD="bgcolor: #3333cc"]CUF8462 E

55", 49", 43"[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #3333cc"]CUE 8462 E
(2015)

55", 49", 43"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]55" - 350cd/m2
49" -
43" -
No[/TD]
[TD]55" - IPS, 8-bit+FRC, 60/50Hz
49" - IPS, 8-bit+FRC, 60/50Hz
43" - IPS, 8-bit+FRC, 60/50Hz
(Active Motion-600)[/TD]
[TD]55"-
49"-
43" -

[/TD]
[TD]55" -
49" -
43" -

[/TD]
[TD]55" -
49" -
43" -

[/TD]
[TD]55" -
49" -
43" -

[/TD]
[TD]55" -
49" -
43" -[/TD]
[TD]-[/TD]
[TD]Lan - Ethernet RJ45
Wi-Fi
802.11 a
802.11 b
802.11 n
802.11 n 5GHz
802.11 ac
Wi-Fi Direct
WiDi
Miracast
DLNA[/TD]
[TD]3 x HDMI 2.0 (CEC, ARC, MHL)
3 x USB 2.0
1 x Satelite In(Main:F-type, female)
1 x AV Composite
1 x AV Component
1 x SCART
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF) (Female)
1 x CI+ 1.3[/TD]
[TD]-
-
-
-[/TD]
[TD]DVB- T2/C[/TD]
[TD="bgcolor: #3333cc"]CUE8462 E

55", 49", 43"[/TD]
[/TR]
[TR="bgcolor: #000099"]
[TD="colspan: 16, align: center"]Sharp LCD FullHD TV 2016 - european models[/TD]
[/TR]
[TR="bgcolor: #40e0d0"]
[TD]Product
___________________________________[/TD]
[TD]UHD
Premium
_____[/TD]
[TD]Dolby
Vision
_____[/TD]
[TD]HDR
_____________[/TD]
[TD]Videopanel
______________________[/TD]
[TD]Backlight
___________________
Dimming[/TD]
[TD]Color Space
____________________________[/TD]
[TD]Contrast &
Black level
_______________[/TD]
[TD]Viewing Angle
____________[/TD]
[TD]Input Lag
_____[/TD]
[TD]Audio
__________[/TD]
[TD]Networks
__________________[/TD]
[TD]Connectors
____________________________[/TD]
[TD]SoC
Platform
Software
OS
_____[/TD]
[TD]Tuner
__________________[/TD]
[TD]Product[/TD]
[/TR]
[TR]
[TD="bgcolor: #3333cc"]SFE 7450 / 7451 / 7452 K/E
(2015)

K -UK /E - Continental Europe
55", 49", 43"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]55" - 300cd/m2
49" - 300cd/m2
43" - 300cd/m2
No[/TD]
[TD]55" - IPS, 8-bit, 120/100Hz
49" - IPS, 8-bit, 120/100Hz
43" - IPS, 8-bit, 120/100Hz
(Active Motion-400)[/TD]
[TD]55" - Direct Led
49" - Direct Led
43" - Direct Led

[/TD]
[TD]55" -
49" -
43" -

[/TD]
[TD]55" -
49" -
43" -

[/TD]
[TD]55" -
49" -
43" -

[/TD]
[TD]55" -
49" -
43" -

[/TD]
[TD]2 x 8W (8ohm)


Dolby Digital
Dolby+
DTS 2.0
DTS Tru Surround[/TD]
[TD]Lan - Ethernet RJ45
Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
Bluetooth
Wi-Fi Direct
WiDi
Miracast
DLNA[/TD]
[TD]3 x HDMI 1.4 (ARC,CEC,MHL)
1 x Ethernet RJ45
2 x USB 2.0
1 x D-Sub
1 x Satelite in(Main:F-type,female)->
1 x SCART
1 x AV Composite In (Video + L/R)
1 x AV Component in (YPbPr + L/R)
1 x Optical Audio Out
1 x 3.5mm Audio In
1 x 3.5mm Audio Out
1 x Antena (RF) (Female)
1 x CI+1.3
[/TD]
[TD]-
-
-
-[/TD]
[TD]7452-DVB-T/T2/C/S/S2
7451-DVB-T/T2/C
7450-DVB-T/C


Analog (PAL,SECAM)


PVR


[/TD]
[TD="bgcolor: #3333cc"]SFE7450/ 7451/ 7452

55", 49", 43"[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #3333cc"]SFE 7330 / 7331 / 7332 K/E
(2015)

K - UK / E - Continental Europe
55", 49", 43"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]55" - 300cd/m2
49" - 300cd/m2
43" - 300cd/m2
No[/TD]
[TD]55" - IPS, 8-bit, 60/50Hz
49" - IPS, 8-bit, 60/50Hz
43" - IPS, 8-bit, 60/50Hz
(Active Motion-200)[/TD]
[TD]55" - Direct Led
49" - Direct Led
43" - Direct Led

[/TD]
[TD]55" -
49" -
43" -

[/TD]
[TD]55" -
49" -
43" -

[/TD]
[TD]55" -
49" -
43" -

[/TD]
[TD]55" -
49" -
43" -

[/TD]
[TD]2 x 8W (8ohm)


Dolby Digital
Dolby+
DTS 2.0
DTS Tru Surround[/TD]
[TD]Lan - Ethernet RJ45
Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
Bluetooth
Wi-Fi Direct
WiDi
Miracast
DLNA[/TD]
[TD]3 x HDMI 1.4 (ARC,CEC,MHL)
1 x Ethernet RJ45
2 x USB 2.0
1 x D-Sub
1 x Satelite in(Main:F-type,female)->
1 x SCART
1 x AV Composite In (Video + L/R)
1 x AV Component in (YPbPr + L/R)
1 x Optical Audio Out
1 x 3.5mm Audio In
1 x 3.5mm Audio Out
1 x Antena (RF) (Female)
1 x CI+1.3
[/TD]
[TD]2 Core
-
-
-[/TD]
[TD]7332-DVB-T/T2/C/S/S2
7331-DVB-T/T2/C
7330-DVB-T/C


Analog (PAL,SECAM)


PVR
[/TD]
[TD="bgcolor: #3333cc"]SFE7330/ 7332

55", 49", 43"[/TD]
[/TR]
[TR]
[TD="bgcolor: #3333cc"]CFE 6450 / 6452 E
(2015)


55", 49", 43", 40", 32"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]55" - 300cd/m2
49" - 300cd/m2
43" - 300cd/m2
40" - 280cd/m2
32" - 280cd/m2
No[/TD]
[TD]55" - IPS, 8-bit, 60/50Hz
49" - IPS, 8-bit, 60/50Hz
43" - IPS, 8-bit, 60/50Hz
40" - 8-bit, 60/50Hz
32" - IPS, 8-bit, 60/50Hz
(Active Motion-400)[/TD]
[TD]55" - Direct Led
49" - Direct Led
43" - Direct Led
40" -
32" -

[/TD]
[TD]55" -
49" -
43" -
40" -
32" -

[/TD]
[TD]55" -
49" -
43" -
40" -
32" -

[/TD]
[TD]55" -
49" -
43" -
40" -
32" -

[/TD]
[TD]55" -
49" -
43" -
40" -
32" -

[/TD]
[TD]2 x 8W (8ohm)


Dolby Digital
Dolby+
DTS 2.0
DTS Tru Serround[/TD]
[TD]Lan - Ethernet RJ45
Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
Bluetooth
Wi-Fi Direct
WiDi
Miracast
DLNA[/TD]
[TD]3 x HDMI 1.4 (ARC,CEC,MHL)
1 x Ethernet RJ45
2 x USB 2.0
1 x D-Sub
1 x Satelite in(Main:F-type,female)->
1 x SCART
1 x AV Composite In (Video + L/R)
1 x AV Component In (YPbPr + L/R)
1 x Antena (RF) (Female)
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x CI+1.3
[/TD]
[TD]-
-
-
-[/TD]
[TD]6425-DVB-T/T2/C/S/S2
6450-DVB-T/C


Analog (PAL,SECAM)


PVR






[/TD]
[TD="bgcolor: #3333cc"]CFE6450

55", 49", 43", 40", 32"[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #3333cc"]CFE 6350 / 6352 E
(2015)

55", 49", 43", 40", 32"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]65" -
55" - 300cd/m2
49" - 300cd/m2
43" -
No[/TD]
[TD]55" - 8-bit, 60/50Hz
49" - 8-bit, 60/50Hz
43" - 8-bit, 60/50Hz
40" - 8-bit, 60/50Hz
32" - 8-bit, 60/50Hz
(Active Motion-400)
[/TD]
[TD]55" - Direct Led
49" - Direct Led
43" - Direct Led
40" -
32" -

[/TD]
[TD]55" -
49" -
43" -
40" -
32" -

[/TD]
[TD]55" -
49" -
43" -
40" -
32" -

[/TD]
[TD]55" -
49" -
43" -
40" -
32" -

[/TD]
[TD]55" -
49" -
43" -
40" -
32" -

[/TD]
[TD]2 x 8W (8ohm)


Dolby Digital
Dolby+
DTS 2.0
DTS Tru Surround[/TD]
[TD]Lan - Ethernet RJ45
Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
Bluetooth
Wi-Fi Direct
WiDi
Miracast
DLNA[/TD]
[TD]3 x HDMI 1.4 (ARC,CEC,MHL)
2 x USB 2.0
1 x D-Sub
1 x Satelite in(Main:F-type,female)
1 x SCART
1 x AV Composite In (Video + L/R)
1 x Component in
1 x Antena (RF) (Female)
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x CI+ 1.3
[/TD]
[TD]-
-
-
-[/TD]
[TD]DVB-T/T2/C/S/S2


Analog (PAL,SECAM)


PVR


[/TD]
[TD="bgcolor: #3333cc"]CFE6350

55", 49", 43", 40", 32"[/TD]
[/TR]
[TR]
[TD="bgcolor: #3333cc"]CFE 6250 White
(2015)

49", 43", 40", 32"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]49" -
43" -
40" -
32" -
No[/TD]
[TD]49" - 8-bit, 60/50Hz
43" - 8-bit, 60/50Hz
40" - 8-bit, 60/50Hz
32" - 8-bit, 60/50Hz
(Active Motion-)
[/TD]
[TD]49" -
43" -
40" -
32" -

[/TD]
[TD]49"-
43" -
40" -
32" -

[/TD]
[TD]49" -
43" -
40" -
32" -

[/TD]
[TD]49" -
43" -
40" -
32" -

[/TD]
[TD]49" -
43" -
40" -
32" -

[/TD]
[TD]-[/TD]
[TD]Lan - Ethernet RJ45
Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
Bluetooth
Wi-Fi Direct
DLNA[/TD]
[TD]3 x HDMI 1.4 (ARC,CEC,MHL)
2 x USB 2.0
1 x Satelite in(Main:F-type,female)
1 x SCART
1 x AV Composite In
1 x Component in
1 x Antena (RF) (Female)
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x CI+1.3
[/TD]
[TD]-
-
-
-[/TD]
[TD]DVB-T/T2/C/S/S2


Analog (PAL,SECAM)


PVR
[/TD]
[TD="bgcolor: #3333cc"]CFE6250 white

49", 43", 40", 32"[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #3333cc"]CFE 6240 / 6241 / 6242
(2015)

55", 49", 43", 40", 32"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]55" - 300cd/m2
43" -
40" -
32" -
No[/TD]
[TD]55" - 8-bit, 60/50Hz
49" - 8-bit, 60/50Hz
43" - 8-bit, 60/50Hz
40" - 8-bit, 60/50Hz
32" - 8-bit, 60/50Hz
(Active Motion-400)
[/TD]
[TD]55" - Direct Led
49" - Direct Led
43" -
40" -
32" -

[/TD]
[TD]55" -
49" -
43" -
40" -
32" -

[/TD]
[TD]55" -
49" -
43" -
40" -
32" -

[/TD]
[TD]55" -
49" -
43" -
40" -
32" -

[/TD]
[TD]55" -
49" -
43" -
40" -
32" -

[/TD]
[TD]2 x 8W (8ohm)


Dolby Digital
Dolby+
DTS 2.0
DTS Tru surround[/TD]
[TD]Lan - Ethernet RJ45
Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
Bluetooth
Wi-Fi Direct
DLNA[/TD]
[TD]3 x HDMI 1.4 (ARC,CEC,MHL)
2 x USB 2.0
1 x Satelite in(Main:F-type,female)
1 x SCART
1 x AV Composite In
1 x Component in
1 x Antena (RF) (Female)
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x CI+1.3
[/TD]
[TD]-
-
-
-[/TD]
[TD]6452-DVB-T/T2/C/S/S2
6451-DVB-T/T2/C
6450-DVB-T/C


Analog (PAL,SECAM)


PVR[/TD]
[TD="bgcolor: #3333cc"]CFE6240 / 6241/ 6242

55", 49", 43", 40", 32"[/TD]
[/TR]
[TR]
[TD="bgcolor: #3333cc"]CFE 6230 Titanium
(2015)

55", 49", 43", 40", 32"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]55" -
49" -
43" -
40" -
32" -
No[/TD]
[TD]55"- 8-bit, 60/50Hz
49"- 8-bit, 60/50Hz
43"- 8-bit, 60/50Hz
40"- 8-bit, 60/50Hz
32"- 8-bit, 60/50Hz
(Active Motion-200)

[/TD]
[TD]55" -
49" -
43" -
40" -
32" -

[/TD]
[TD]55"-
49"-
43"-
40"-
32"-

[/TD]
[TD]55" -
49" -
43" -
40" -
43" -

[/TD]
[TD]55" -
49" -
43" -
40" -
43" -

[/TD]
[TD]55" -
49" -
43" -
40" -
32" -

[/TD]
[TD]-[/TD]
[TD]Lan - Ethernet RJ45
Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
DLNA
[/TD]
[TD]3 x НDМІ2.0 (ARC,CEC,MHL)
2 x USB 2.0
1 x SCART
1 x AV Соmроnеnt In
1 x AV Composite In
1 x Antena (RF)
1 x CI+ 1.3[/TD]
[TD]-
-
-
-[/TD]
[TD]DVB-T/T2/C/S/S2


Analog (PAL,SECAM)


PVR[/TD]
[TD="bgcolor: #3333cc"]CFE6230 Titanium

55", 49", 43", 40", 32"[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #3333cc"]CFE 6140 White
(2015)

49", 43", 32"
[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]49" - 300cd/m2
43" - 300cd/m2
32" -
No
[/TD]
[TD]49"- 8-bit, 60/50Hz
43"- 8-bit, 60/50Hz
32"- 8-bit, 60/50Hz
(Active Motion-400)
[/TD]
[TD]49" - Direct Led
43" - Direct Led
32" - Direct Led

[/TD]
[TD]49" -
43" -
40" -

[/TD]
[TD]49" -
43" -
32" -

[/TD]
[TD]49" -
43" -
32" -

[/TD]
[TD]49" -
43" -
32" -

[/TD]
[TD]-[/TD]
[TD]Lan - Ethernet RJ45
Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
DLNA
[/TD]
[TD]3 x НDМІ 1.4 (ARC,CEC,MHL)
2 x USB 2.0
1 x SCART
1 x AV Соmроnеnt In
1 x AV Composite In
1 x Antena (RF)
1 x CI+ 1.3[/TD]
[TD]-
-
-
-[/TD]
[TD]DVB-T/T2/C/S/S2
Analog (PAL,SECAM)
PVR[/TD]
[TD="bgcolor: #3333cc"]CFE6140 White
49", 43", 32"
[/TD]
[/TR]
[TR]
[TD="bgcolor: #3333cc"]CHE/CFE 6130 / 6130 / 6132
(2015)

50", 43", 40", 32"
(CHE 1366x768 / CFE 1920x1080)[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]50" - 300cd/m2
43" - 300cd/m2
40" - 280cd/m2
32" - 300cd/m2
No[/TD]
[TD]50"- 8-bit, 60/50Hz
43"- 8-bit, 60/50Hz
40"- 8-bit, 60/50Hz
32"- 8-bit, 60/50Hz
(Active Motion-200)[/TD]
[TD]50" - Direct Led
43" - Direct Led
40" - Direct Led
32" - Direct Led

[/TD]
[TD]50" -
43" -
40" -
32" -

[/TD]
[TD]50" -
43" -
40" -
32" -

[/TD]
[TD]50" -
43" -
40" -
32" -

[/TD]
[TD]50" -
43" -
40" -
32" -

[/TD]
[TD]2 x 8W (8ohm)


Dolby Digital
Dolby+
DTS 2.0
DTS Tru Surround[/TD]
[TD]Lan - Ethernet RJ45
Wi-Fi
802.11 d
802.11 b
802.11 g
802.11 n
WiFi Direct
DLNA[/TD]
[TD]3 x HDMI 1.4 (ARC, CEC)
2 x USB 2.0
1 x SCART
1 x Satelite In (Main:F-type,female)
1 x AV Component In
1 x AV Composite In
1 x Audio Optical Out
1 x 3.5mm Audio
1 x CI+ 1.3
[/TD]
[TD]-
-
-
-


[/TD]
[TD]6132-DVB-T/T2/C/S/S2
6131-DVB-T/T2/C
6130-DVB-T/C


Analog (PAL,SECAM)


PVR

[/TD]
[TD="bgcolor: #3333cc"]CFE 6130 / 6130/ 6132
50", 43", 40", 32"[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #3333cc"]CFE 6032 E
(2015)

49"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]49" - 300cd/m2
No[/TD]
[TD]49"- IPS, 8-bit, 60/50Hz

(Active Motion-200)[/TD]
[TD]49" - Direct Led

[/TD]
[TD]49" -



[/TD]
[TD]49" -



[/TD]
[TD]49" -

[/TD]
[TD]49" -

[/TD]
[TD]-[/TD]
[TD]Lan - Ethernet RJ45
Wi-Fi
802.11 b
802.11 g
802.11.n
WiDi / Miracast
DLNA[/TD]
[TD]3 x НDМІ 1.4 (ARC,CEC,MHL)
2 x USB 2.0
1 x SCART
1 x AV Component In
1 x AV Composite In
1 x Antena (RF)
1 x CI+ 1.3[/TD]
[TD]-
-
-
-[/TD]
[TD]3032-DVB-T/T2/C/S/S2
6031-DVB-T/T2/C
Analog (PAL,SECAM)
PVR






[/TD]
[TD="bgcolor: #3333cc"]CFE 6032 E

49"[/TD]
[/TR]
[TR]
[TD="bgcolor: #3333cc"]CFF 6001 / 6002 K/E
(2016)

49", 48", 43", 40", 32"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]49" - 300cd/m2
48" - 300cd/m2
43" - 300cd/m2
40" - 280cd/m2
32" - 300cd/m2
No[/TD]
[TD]49" - IPS, 8-bit, 60/50Hz
48" - 8-bit, 60/50Hz
43" - 8-bit, 60/50Hz
40" - 8-bit, 60/50Hz
32" - 8-bit, 60/50Hz
(Active motion-100)[/TD]
[TD]49" - Direct Led
48" - Direct Led
43" - Direct Led
40" - Direct Led
32" - Direct Led

[/TD]
[TD]49" -
48" -
43" -
40" -
32" -

[/TD]
[TD]49" -
48" -
43" -
40" -
32" -

[/TD]
[TD]49" -
48" -
43" -
40" -
32" -

[/TD]
[TD]49" -
48" -
43" -
40" -
32" -

[/TD]
[TD]2 x 8W (8ohm)


Dolby Audio[/TD]
[TD]Lan - Ethernet RJ45
Wi-Fi
802.11 b
802.11 g
802.11.n
WiDi / Miracast
DLNA[/TD]
[TD]3 x НDМІ 1.4 (ARC,CEC,MHL)
2 x USB 2.0
1 x SCART
1 x AV Component In
1 x AV Composite In
1 x Antena (RF)
1 x CI+ 1.3[/TD]
[TD]-
-
-
-[/TD]
[TD]DVB-T/T2/C
Analog (PAL,SECAM)
PVR






[/TD]
[TD="bgcolor: #3333cc"]CFF 6001 / 6002 E

49"[/TD]
[/TR]
[TR="bgcolor: #000099"]
[TD="colspan: 16, align: center"]Sharp FHD & HDReady TV 2016 - european models[/TD]
[/TR]
[TR="bgcolor: #40e0d0"]
[TD]Product[/TD]
[TD]UHD
Premium
_____[/TD]
[TD]Dolby
Vision
__________[/TD]
[TD]HDR
________________[/TD]
[TD]Videopanel
___________________[/TD]
[TD]Backlight
___________________
Dimming[/TD]
[TD]Color Space
_______________[/TD]
[TD]Contrast &
Black level
_______________[/TD]
[TD]Viewing Angle
_____________[/TD]
[TD]Input Lag
_____[/TD]
[TD]Audio
_____[/TD]
[TD]Networks
__________________[/TD]
[TD]Ports
___________________________[/TD]
[TD]SoC
Platform
Software
OS
_________[/TD]
[TD="class: sortable-pre"]Tuner
__________________[/TD]
[TD]Product[/TD]
[/TR]
[TR]
[TD="bgcolor: #3333cc"]CHE / CFE 5220
CHE / CFE 5221
(2015)

49", 43", 40", 32"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]49" - 8-bit, 60/50Hz
43" - 8-bit, 60/50hz
40" - 8-bit, 60/50Hz
32" - 8-bit, 60/50hz
(Active Motion-200)[/TD]
[TD]49" -
43" -
40" -
32" -

[/TD]
[TD]49" -
43" -
40" -
32" -

[/TD]
[TD]49" -
43" -
40" -
32" -

[/TD]
[TD]49" -
43" -
40" -
32" -

[/TD]
[TD]49" -
43" -
40" -
32" -

[/TD]
[TD][/TD]
[TD]Lan
Wi-Fi
802.11 b
802.11 g
802.11.n
WiDi / Miracast
DLNA[/TD]
[TD]x HDMI 1.4
2 x USB 2.0
1 x SCART
1 x Antena (RF)
1 x CI+ 1.3[/TD]
[TD]-
-
-


[/TD]
[TD]5221-DVB-T/T2/C
5220-DVB-T/C


Analog (PAL,SECAM)


PVR


[/TD]
[TD="bgcolor: #3333cc"]CHE / CFE 5220
CHE / CFE 5221

49", 43", 40", 32"[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #3333cc"]CHE / CFE 5200
(2015)

43", 40", 32"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]43" - 8-bit, 60/50Hz
40" - 8-bit, 60/50Hz
32" - 8-bit, 60/50Hz
(Active Motion-100)[/TD]
[TD]43" -
40" -
32" -

[/TD]
[TD]43" -
40" -
32" -

[/TD]
[TD]43" -
40" -
32" -



[/TD]
[TD]43" -
40" -
32" -

[/TD]
[TD]43" -
40" -
32" -

[/TD]
[TD][/TD]
[TD]Lan
Wi-Fi
802.11 b
802.11 g
802.11.n
WiDi / Miracast
DLNA[/TD]
[TD]x HDMI 1.4
2 x USB 2.0
1 x SCART
1 x Antena (RF)
1 x CI+ 1.3[/TD]
[TD]-
-
-
-[/TD]
[TD]DVB-T/T2/C


Analog (PAL,SECAM)


PVR
[/TD]
[TD="bgcolor: #3333cc"]CHE / CFE 5200

43", 40", 32"[/TD]
[/TR]
[TR]
[TD="bgcolor: #3333cc"]CHE / CFE 5110
CHE / CFE 5111
(2015)

50", 43", 40", 32"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]50" - 8-bit, 60/50 Hz
43" - 8-bit, 60/50Hz
40" - 8-bit, 60/50Hz
32" - 8-bit, 60/50Hz
(Active Motion-100)[/TD]
[TD]50" -
43" -
40" -
32" -

[/TD]
[TD]50" -
43" -
40" -
32" -

[/TD]
[TD]50" -
43" -
40" -
32" -

[/TD]
[TD]50" -
43" -
40" -
32" -

[/TD]
[TD]50" -
43" -
40" -
32" -

[/TD]
[TD][/TD]
[TD]Lan
Wi-Fi
802.11 b
802.11 g
802.11.n
WiDi / Miracast
DLNA[/TD]
[TD]x HDMI 1.4
2 x USB 2.0
1 x SCART
1 x Antena (RF)
1 x CI+ 1.3[/TD]
[TD]-
-
-
-[/TD]
[TD]5111-DVB-T/T2/C
5110-DVB-T/C


Analog (PAL,SECAM)


PVR
[/TD]
[TD="bgcolor: #3333cc"]CHE / CFE 5110
CHE / CFE 5111

50", 43", 40", 32"[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #3333cc"]CHE / CFE 5100
CHE / CFE 5102
(2015)

50", 43", 40", 32"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]50" - 8-bit, 60/50Hz
43" - 8-bit, 60/50Hz
40" - 8-bit, 60/50Hz
32" - 8-bit, 60/50Hz
(Active Motion-100)[/TD]
[TD]50" -
43" -
40" -
32" -

[/TD]
[TD]50" -
43" -
40" -
32" -
advanced 12-bit color picture processing[/TD]
[TD]50" -
43" -
40" -
32" -

[/TD]
[TD]50" -
43" -
40" -
32" -

[/TD]
[TD]50" -
43" -
40" -
32" -

[/TD]
[TD][/TD]
[TD]Lan - Ethernet RJ45
Wi-Fi
802.11 b
802.11 g
802.11.n
WiDi / Miracast
DLNA
[/TD]
[TD]x HDMI 1.4
2 x USB 2.0
1 x SCART
1 x Antena (RF)
1 x CI+ 1.3[/TD]
[TD]-
-
-
-[/TD]
[TD]DVB-T/T2/C


Analog (PAL,SECAM)


PVR
[/TD]
[TD="bgcolor: #3333cc"]CHE / CFE 5100
CHE / CFE 5102

50", 43", 40", 32"[/TD]
[/TR]
[TR="bgcolor: #F8F8F8"]
[TD="bgcolor: #3333cc"]CFE 5000 / 5001 / 5002 K/E
(2015)

49"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]49" - 300cd/m2
No[/TD]
[TD]49" - IPS, 8-bit, 60/50Hz
(Active Motion-100)[/TD]
[TD]49" - Direct Led
[/TD]
[TD]49" -


advanced 12-bit color picture processing[/TD]
[TD]49" -[/TD]
[TD]49" -[/TD]
[TD]49" -


[/TD]
[TD]2 x 8W (8ohm)


Dolby Digital
Digital+[/TD]
[TD]Lan - Ethernet RJ45
Wi-Fi
[/TD]
[TD]3 x HDMI 1.3
2 x USB 2.0
1 x Antena (RF)
1 x CI+ 1.3[/TD]
[TD]-
-
-
-[/TD]
[TD]5000 - DVB-T/T2/C
5001 - DVB-T/T2/C
5002 - DVB-T/T2/C/S2
Analog (PAL,SECAM)

PVR[/TD]
[TD="bgcolor: #3333cc"]CFE 5000 E
CFE 5001 K
CFE 5002 E
49"[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #3333cc"]CHE / CFE 4040 E
CHE / CFE 4041 E
CHE / CFE 4042 E
(2015)
49", 40", 32"
(CHE 1366x768 / CFE 1920x1080)[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]49" - 300cd/m2
40" - 280cd/m2
32" -
No[/TD]
[TD]49" - 8-bit, 60/50Hz
40" - 8-bit, 60/50Hz
32" - 8-bit, 60/50Hz
(Active Motion-100)[/TD]
[TD]49" - Direct Led
40" - Direct Led
32" -

[/TD]
[TD]49" -
40" -
32" -

[/TD]
[TD]49" -
40" - 900:1
32" -

[/TD]
[TD]49" -
40" -
32" -

[/TD]
[TD]49" -
40" -
32" -

[/TD]
[TD][/TD]
[TD]_[/TD]
[TD]3 x HDMI 1.3
2 x USB 2.0
1 x SCART
1 x Component
1 x Composite
1 x Audio Optical Out
1 x 3.5mm Audio Out
1 x Antena (RF)
1 x CI+ 1.3[/TD]
[TD]
[/TD]
[TD]4042-DVB-T/T2/C/S/S2
4041-DVB-T/T2/C


Analog (PAL,SECAM)


PVR[/TD]
[TD="bgcolor: #3333cc"]CHE / CFE 4042
CHE / CFE 4041
40", 32"[/TD]
[/TR]
[TR]
[TD="bgcolor: #3333cc"]CHE / CFE 4000 Е
CHE / CFE 4010 Е
(2015)
24", 22"
(CHE 1366x768 / CFE 1920x1080)[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]24" - 250cd/m2
22" - 250cd/m2
No[/TD]
[TD]24" - IPS, 8-bit, 60/50Hz
22" - IPS, 8-bit, 60/50Hz
(Active Motion-100)[/TD]
[TD]24" - Edge Led
22" - Edge Led

[/TD]
[TD]24" -
22" -

[/TD]
[TD]24" -
22" -

[/TD]
[TD]24" -
22" -

[/TD]
[TD]24" -
22" -

[/TD]
[TD]2 x 3W (4ohm)


Dolby Digital[/TD]
[TD]_


[/TD]
[TD]2 x HDMI 1.3
1 x USB 2.0
1 x SCART
1 x Component
1 x Composite
1 x 3.5mm Audio Out
1 x Antena (RF)
1 x CI+ 1.3[/TD]
[TD]
[/TD]
[TD]4010-
4000-DVB-T/C


Analog (PAL,SECAM)
PVR[/TD]
[TD="bgcolor: #3333cc"]CHE / CFE 4000
CHE / CFE 4010
24", 22"[/TD]
[/TR]
[/TABLE]

[TABLE="class: cms_table_cms_table_cms_table_cms_table_cms_table_cms_table"]
[TR="bgcolor: #000044"]
[TD="colspan: 16, align: center"]Sharp TV 2016/2017 - european models[/TD]
[/TR]
[TR="bgcolor: #000066"]
[TD]Series
Model
________________[/TD]
[TD]
UHD
Premium
​
_____[/TD]
[TD]
Dolby Vision
​
____[/TD]
[TD]
Hybrid Log Gamma
(HLG)​
_____[/TD]
[TD]
HDR 10
3 fundamental HDR
building blocks:
ST2084 (EOTF PQ),
ST2086 (static metadata)
ST2094 (dynamic metadata)
_________________
​
[/TD]
[TD]
Videopanel ​
______________________
Type LCD matrix,
Bits of color,
(Operating frequency of T-Con board)
Curvature,
Index,
Screen Uniformity
Anti-reflective filter​
[/TD]
[TD]
Supported Resolutions​
__________________
Frame per seconds
24, 25, 30, 50, 60, 100, 120 p/i
-
Chroma subsampling
4:4:4
4:2:2
4:2:0​
[/TD]
[TD]
Backlight Unit​
________________
Type backlight
(Local Dimming zone)
Type LED
MEMC
Backlight Scanning
Black Frame Insertion
PulsΠϴ Wide Modulation​
[/TD]
[TD]
Audio​
________________[/TD]
[TD]
Built in Media Player
Supported file systems
Image file formats
Audio file formats/codecs
Video file formats​
____________________[/TD]
[TD]
Hardware & Software
_____________________
Operating System
Board
Central Processing Unit
System on Chip
Instruction set
Graphic Processor Unit
RAM
Total memory​
[/TD]
[TD]
Networks
​
____________[/TD]
[TD]
Conectors​
___________________[/TD]
[TD]
Tuners​
____________[/TD]
[TD]
Note​
____________________
Pros & Cons​
[/TD]
[TD]Series
Model
_______________[/TD]
[/TR]
[TR="bgcolor: #ADD8E6"]
[TD="colspan: 16, align: center"]Sixth series[/TD]
[/TR]
[TR]
[TD="bgcolor: #000099"]CFG6450E
FullHD (1920x1080)
55", 49",43", 40" ,32"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]No [/TD]
[TD]No[/TD]
[TD]60/50Hz
Active Motion-400
Flat
12-bit color picture processing[/TD]
[TD][/TD]
[TD][/TD]
[TD]Dolby Digital
Dolby Digital +
DTS 2.0
DTS Tru Surround[/TD]
[TD][/TD]
[TD]Dual Core[/TD]
[TD]Lan
Wi-Fi
802.11 b
802.11 g
802.11 n
Wi-Fi Direct
WiDi[/TD]
[TD]1 x Ethernet RJ45
3 x HDMI
2 x USB
1 x PC VGA for 32", 40", 43"
1 x Antena (RF) female
1 x CI+ 1.3
1x Card Reader for 49" and 55"[/TD]
[TD]DVB-T2/C
H.265/HEVC
PVR[/TD]
[TD]
[/TD]
[TD="bgcolor: #000099"]CFG6450
FullHD (1920x1080)
55", 49",43", 40" ,32"[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #000099"]CFG6350E
FullHD (1920x1080)
55", 49", 43", 40", 32"[/TD]
[TD]No [/TD]
[TD]No[/TD]
[TD]No [/TD]
[TD]No[/TD]
[TD]60/50Hz
Active Motion-400
Flat[/TD]
[TD][/TD]
[TD][/TD]
[TD]Dolby Digital
Dolby Digital +
DTS 2.0
DTS Tru Surround[/TD]
[TD][/TD]
[TD]Dual Core[/TD]
[TD]Lan
Wi-Fi
802.11 b
802.11 g
802.11 n
Wi-Fi Direct
WiDi[/TD]
[TD]1 x Ethernet RJ45
3 x HDMI
2 x USB
1 x PC VGA for 32", 40", 43"
1 x Antena (RF) female
1 x CI+ 1.3
1 x Card Reader for 49" and 55"[/TD]
[TD]DVB-T2/C
H.265/HEVC
PVR[/TD]
[TD][/TD]
[TD="bgcolor: #000099"]CFG6350
FullHD (1920x1080)
55", 49", 43", 40", 32"[/TD]
[/TR]
[TR]
[TD="bgcolor: #000099"]CFG6240E
FullHD (1920x1080)
55", 49", 43", 40"

CHG6240E
HD Ready (1366x768)
32"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]60/50Hz
Active Motion-200
Flat[/TD]
[TD][/TD]
[TD][/TD]
[TD]Dolby Digital
Dolby Digital +
DTS 2.0
DTS Tru Surround
woofer Harmon Kardon[/TD]
[TD][/TD]
[TD][/TD]
[TD]Lan
Wi-Fi
802.11 b
802.11 g
802.11 n
Wi-Fi Direct
WiDi[/TD]
[TD]1 x Ethernet RJ45
3 x HDMI
2 x USB
1 x PC VGA for 32", 40", 43"
1 x Antena (RF) female
1 x CI+ 1.3
1 x Card Reader for49" and 55"[/TD]
[TD]DVB-T2/C
H.265/HEVC[/TD]
[TD][/TD]
[TD="bgcolor: #000099"]CFG6240
FullHD (1920x1080)
55", 49", 43", 40"

CHG6240
HD Ready (1366x768)
32"[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #000099"]CFG6020E
FullHD (1920x1080)
55", 49", 40"

CHG6020E
HD Ready (1366x768)
32"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]60/50Hz
Active Motion-200
Flat[/TD]
[TD][/TD]
[TD][/TD]
[TD]Dolby Digital
Dolby Digital +
DTS 2.0
DTS Tru Surround[/TD]
[TD][/TD]
[TD][/TD]
[TD]Lan
W-Fi
802.11 b
802.11 g
802.11 n
Wi-Fi Direct
WiDi[/TD]
[TD]1 x Ethernet RJ45
2 x USB
1 x PC VGA
1 x Antena (RF) female
1 x CI+ 1.3
1 x Card Reader[/TD]
[TD]DVB-T2/C
H.265/HEVC[/TD]
[TD][/TD]
[TD="bgcolor: #000099"]CFG6020
FullHD (1920x1080)
55", 49", 40"

CHG6020
HD Ready (1366x768)
32"[/TD]
[/TR]
[TR]
[TD="bgcolor: #000099"]CHG6130E
HD Redy (1366x768)
24"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]60/50Hz
Active Motion-100
Flat[/TD]
[TD][/TD]
[TD][/TD]
[TD]Dolby Digital
DTS Tru Surround[/TD]
[TD][/TD]
[TD][/TD]
[TD]Lan
Wi-Fi Direct
WiDi[/TD]
[TD]1 x Antena (RF) female
1 x CI+ 1.3[/TD]
[TD]DVB-T2/C
H.265/HEVC[/TD]
[TD][/TD]
[TD="bgcolor: #000099"]CHG6130
HD Redy (1366x768
24"[/TD]
[/TR]
[TR="bgcolor: #ADD8E6"]
[TD="colspan: 16, align: center"]Fifth series[/TD]
[/TR]
[TR]
[TD="bgcolor: #000099"]CFG5250E
Full HD (1920x1080)
49", 43", 40", 32"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]60/50Hz
Active Motion-100
Flat[/TD]
[TD][/TD]
[TD][/TD]
[TD]Dolby Digital
DTS Tru Surround[/TD]
[TD][/TD]
[TD][/TD]
[TD]Lan
Wi-Fi Direct
WiDi[/TD]
[TD]2 x USB
1 x Antena (RF) female
1 x CI+ 1.3[/TD]
[TD]DVB-T2/C

[/TD]
[TD][/TD]
[TD="bgcolor: #000099"]CFG5250
Full HD (1920x1080)
49", 43", 24"[/TD]
[/TR]
[TR="bgcolor: #ADD8E6"]
[TD="colspan: 16, align: center"]Four series[/TD]
[/TR]
[TR]
[TD="bgcolor: #000099"]CFG4040E
Full HD (1920x1080)
55", 49", 43", 40", 32"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]60/50Hz
Active Motion-100
Flat[/TD]
[TD][/TD]
[TD][/TD]
[TD]Dolby
DTS Tru Surround[/TD]
[TD][/TD]
[TD][/TD]
[TD]Lan
Wi-Fi Direct
WiDi[/TD]
[TD]2 x USB
1 x Antena (RF) female
1 x CI+ 1.3[/TD]
[TD]DVB-T2/C
[/TD]
[TD][/TD]
[TD="bgcolor: #000099"]CFG4040
Full HD (1920x1080)
55", 49", 43", 40", 32"[/TD]
[/TR]
[TR="bgcolor: #000066"]
[TD]Series
Model
________________[/TD]
[TD]
UHD
Premium
​
_____[/TD]
[TD]
Dolby Vision
​
____[/TD]
[TD]
Hybrid Log Gamma
(HLG)​
_____[/TD]
[TD]
HDR 10
3 fundamental HDR
building blocks:
ST2084 (EOTF PQ),
ST2086 (static metadata)
ST2094 (dynamic metadata)
_________________
​
[/TD]
[TD]
Videopanel ​
______________________
Type LCD matrix,
Bits of color,
(Operating frequency of T-Con board)
Curvature,
Index,
Screen Uniformity
Anti-reflective filter​
[/TD]
[TD]
Supported Resolutions​
__________________
Frame per seconds
24, 25, 30, 50, 60, 100, 120 p/i
-
Chroma subsampling
4:4:4
4:2:2
4:2:0​
[/TD]
[TD]
Backlight Unit​
________________
Type backlight
(Local Dimming zone)
Type LED
MEMC
Backlight Scanning
Black Frame Insertion
PulsΠϴ Wide Modulation​
[/TD]
[TD]
Audio​
________________[/TD]
[TD]
Built in Media Player
Supported file systems
Image file formats
Audio file formats/codecs
Video file formats​
____________________[/TD]
[TD]
Hardware & Software
_____________________
Operating System
Board
Central Processing Unit
System on Chip
Instruction set
Graphic Processor Unit
RAM
Total memory​
[/TD]
[TD]
Networks
​
____________[/TD]
[TD]
Conectors​
___________________[/TD]
[TD]
Tuners​
____________[/TD]
[TD]
Note​
____________________
Pros & Cons​
[/TD]
[TD]Series
Model
_______________[/TD]
[/TR]
[/TABLE]

[flatpanelshd.om]...The Sharp TV brand will return to Europe, 50 new TVs announced...http://www.flatpanelshd.com/news.php?subaction=showfull&id=1472982303

...the TVs will not be produced by the Japanese manufacturer but instead UMC of Slovakia who has licensed the Sharp TV brand in Europe...


...The company was recently acquired by taiwanese Foxconn but before that happened the company sold the rights to use the TV brand in Europe to UMC of Slovakia. In the US, the rights were sold to Chinese Hisense...


----------------------------------

[hifi-journal.de]...IFA 2016: SHARP Shows new UHD TV line up...http://www.hifi-journal.de/news/24-lcd-fernseher/192-ifa-2016-sharp-zeigt-neues-uhd-tv-lineup

μετάφραση google de to en





[TABLE="class: cms_table_cms_table_cms_table_cms_table_cms_table_cms_table"]
[TR="bgcolor: #000044"]
[TD="colspan: 16, align: center"]Sharp TV 2016/2017 - european models[/TD]
[/TR]
[TR="bgcolor: #000066"]
[TD]Series
Model
______________[/TD]
[TD]
UHD
Premium
​
_____[/TD]
[TD]
Dolby Vision
​
____[/TD]
[TD]
Hybrid Log Gamma
(HLG)​
_____[/TD]
[TD]
HDR 10
____________
​
[/TD]
[TD]
Videopanel ​
__________________
Type LCD matrix,
Bits of color,
Vertical frequency(Digital)
Curvature,
Index,
Screen Uniformity
Anti-reflective filter​
[/TD]
[TD]
Supported Resolutions​
__________________
Frame per seconds
24, 25, 30, 50, 60, 100, 120 p/i
-
Chroma subsampling
4:4:4
4:2:2
4:2:0​
[/TD]
[TD]
Backlight Unit​
______________
Type backlight
(Local Dimming zone)
Type LED
MEMC
Backlight Scanning
Black Frame Insertion
PulsΠϴ Wide Modulation​
[/TD]
[TD]
Audio​
_____________________________[/TD]
[TD]
Built in Media Player
Supported file systems
Image file formats
Audio file formats/codecs
Video file formats​
____________________[/TD]
[TD]
Hardware & Software
_______________
Operating System
Board
Central Processing Unit
System on Chip
Instruction set
Graphic Processor Unit
RAM
Total memory​
[/TD]
[TD]
Networks
​
_________[/TD]
[TD]
Conectors​
_______________________[/TD]
[TD]
Tuners​
______________[/TD]
[TD]
Note​
____________________
Pros & Cons​
[/TD]
[TD]Series
Model
_______________[/TD]
[/TR]
[TR]
[TD="bgcolor: #000099"]CUG8460E
CUG8461E
CUG8462E
UlthraHD (3840x2160)
55", 49", 43"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]No [/TD]
[TD]55" - max 350cd/m2
49" - max 280cd/m2
43" - max 280cd/m2
No[/TD]
[TD]55" - IPS, 8-bit+FRC, 60/50Hz
49" - IPS, 8-bit+FRC, 60/50Hz
43" - IPS, 8-bit+FRC, 60/50Hz
Active Motion- 600
Flat
12-bit color picture processing[/TD]
[TD][/TD]
[TD]55" - Direct Led
49" - Direct Led
43" - Direct Led

[/TD]
[TD]Speaker Full-range + silk tweeter + woofer
Speaker Power 2x10W (8 ohm)
+15W subwoofer (8 ohm) - Only in 55"

Sound Technology Harman-Kardon
Sound System B/G, D/K, I, L, NICAM/A2
Sound Settings Sound Equalizer
Audio decoder- Dolby Digital/Digital+/DTS 2.0
Audio enhancement solution - DTS Studio Sound[/TD]
[TD]USB file system - FAT16/FAT32/NTFS
USB Video - AVI, MKV, WMV, ASF, MP4, M4v, RM, RMVB, VOB, TS, M2TS, MPG, FLV, SWF
(Xvid, VP9, VC-1, MPEG4, H.263, H264, H264)
USB Audio - MP3, M4a, WMA, AAC, AC3, EAC3,LPCM, OGG
USB Photo - JPG, JPEG, BMP, PNG, GIF[/TD]
[TD]OS- Linux - Aquos Net+
Quad Core
CPU -
GPU -
RAM -[/TD]
[TD]Lan
Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
802.11 ac
Wi-Fi Direct
Intel WiDi
Bluetooth
Miracast
MHL
DLNA[/TD]
[TD]1 x Ethernet RJ45
3 x HDMI 2.0
1 x USB 3.0
2 x USB 2.0
1 x mini SCART
1 x Antena (RF) female
1 x SAT In
1 x CI+ 1.3
1 x SD Card Slot
1 x Mini Component/YPbPr
1 x Mini AV Composite input + Audio In
1 x Audio out / Headphone Jack
1 x Digital Optical Audio Output[/TD]
[TD]8041 -> DVB-T/T2/C
8042 -> DVB-T/T2/C/S/S2
H.265/HEVC, MPEF4
Analog(NTSC,PAL,SECAM)
PVR with Timeshift[/TD]
[TD]
[/TD]
[TD="bgcolor: #000099"]CFG8460
UltraHD (3840x2160)
55", 49", 43"[/TD]
[/TR]
[TR]
[TD="bgcolor: #000099"]CUG8050E
CUG8051E
CUG8052E
UltraHD (3840x2160)
65", 55", 49", 43"[/TD]
[TD]No [/TD]
[TD]No[/TD]
[TD]No [/TD]
[TD]65" - max
55" - max
49" - max
43" - max
No[/TD]
[TD]65" - IPS, 8-bit+FRC, 60/50Hz
55" - IPS, 8-bit+FRC, 60/50Hz
49" - IPS, 8-bit+FRC, 60/50Hz
43" - IPS, 8-bit+FRC, 60/50Hz
Active Motion- 400
Flat[/TD]
[TD][/TD]
[TD]65" -
55" -
49" -
43" -

[/TD]
[TD]Speaker Power 2 x 10W (8 ohm)
Dolby Digital
Dolby Digital +
DTS 2.0
DTS Tru Surround[/TD]
[TD]USB file system - FAT16/FAT32/NTFS
USB Video -
USB Audio -
USB Photo -[/TD]
[TD]OS - Linux - Aquos Net+
Quad Core
CPU -
GPU -
RAM -[/TD]
[TD]Lan
Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 5GHz
802.11 ac
Wi-Fi Direct
Intel WiDi
Bluetooth
Miracast
MHL
DLNA[/TD]
[TD]1 x Ethernet RJ45
3 x HDMI 2.0
1 x USB 3.0
2 x USB 2.0
1 x Antena (RF) female
1 x SAT In
1 x CI+ 1.3
1 x SD Card Slot
1 x Mini Component
1 x Mini AV Composite
1 x Audio out
1 x Digital Optical Audio Ourtput[/TD]
[TD]8051 -> DVB-T/T2/C
8052 -> DVB-T/T2/C/S2
H.265/HEVC, MPEG4
Analog(NTSC,PAL,SECAM)
PVR with Timeshift[/TD]
[TD][/TD]
[TD="bgcolor: #000099"]CFG8050
UltraHD (3840x2160)
55", 49", 43", 40", 32"[/TD]
[/TR]
[TR]
[TD="bgcolor: #000099"]CFG6450E
CFG6451E
CFG6452E
FullHD (1920x1080)
55", 49",43", 40" ,32"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]No [/TD]
[TD]55" - max 400cd/m2
49" - max 300cd/m2
43" - max 300cd/m2
40" - max 300cd/m2
32" - max 280cd/m2
No[/TD]
[TD]55" - IPS, 8-bit, 60/50Hz
49" - IPS, 8-bit, 60/50Hz
43" - IPS, 8-bit, 60/50Hz
40" -
32" -
Active Motion-400
Flat
12-bit color picture processing[/TD]
[TD][/TD]
[TD]55" - Direct Led
49" - DirectLed
43" - Direct Led
40" - Direct Led
32" - Direct Led

[/TD]
[TD]Speaker Full-range + silk tweeter
Speaker Power 2x10W (8 ohm)
Sound Technology Harman-Kardon
Sound System B/G, D/K, I, L
NICAM/A2
Sound Settings Sound Equalizer
Audio decoder Dolby Digital/Digital+/DTS 2.0
Audio enhancement solution DTS TruSurround HDβ„’[/TD]
[TD]USB file system - FAT16/FAT32/NTFS
USB Video - AVI, MKV, WMV, ASF, MP4, M4v, RM, RMVB, VOB, TS, M2TS, MPG, FLV, SWF
Video Codec - HEVC/H.265, MPEG4/H.264, VP9
USB Music - MP3, M4a, WMA, AAC, AC3, EAC3, LPCM, OGG
USB Photo - JPG, JPEG, BMP, PNG[/TD]
[TD]Linux - Aquos Net+
Dual Core
CPU -
GPU -
RAM -[/TD]
[TD]
Lan
Wi-Fi
802.11 b
802.11 g
802.11 n
Wi-Fi Direct
Intel WiDi
Miracast
MHL
DLNA[/TD]
[TD]1 x Ethernet RJ45
3 x HDMI
2 x USB
1 x PC VGA for 32", 40", 43"
1 x Antena (RF) female
1 x CI+ 1.3
1x Card Reader for 49" and 55"[/TD]
[TD]DVB-T2/C
H.265/HEVC
MPEG4
PVR[/TD]
[TD]
[/TD]
[TD="bgcolor: #000099"]CFG6450
FullHD (1920x1080)
55", 49",43", 40" ,32"[/TD]
[/TR]
[TR]
[TD="bgcolor: #000099"]CFG6350E
FullHD (1920x1080)
55", 49", 43", 40", 32"[/TD]
[TD]No [/TD]
[TD]No[/TD]
[TD]No [/TD]
[TD]55" -
49" -
43" -
40" -
32" -
No[/TD]
[TD]55" - 8-bit, 60/50Hz
49" - 8-bit, 60/50Hz
43" - 8-bit, 60/50Hz
40" - 8-bit, 60/50Hz
32" - 8-bit, 60/50Hz
Active Motion-400
Flat[/TD]
[TD][/TD]
[TD]55" -
49" -
43" -
40" -
32" -

[/TD]
[TD]Dolby Digital
Dolby Digital +
DTS 2.0
DTS Tru Surround[/TD]
[TD]USB file system - FAT16/FAT32/NTFS
USB Video - AVI, MKV, WMV, ASF, MP4, M4v, RM, RMVB, VOB, TS, M2TS, MPG, FLV, SWF
USB Music - MP3, M4a, WMA, AAC, AC3, EAC3, LPCM, OGG
USB Photo - JPG, JPEG, BMP, PNG[/TD]
[TD]Linux - Aquos Net+
Dual Core[/TD]
[TD]Lan
Wi-Fi
802.11 b
802.11 g
802.11 n
Wi-Fi Direct
Intel WiDi
Miracast
MHL
DLNA[/TD]
[TD]1 x Ethernet RJ45
3 x HDMI
2 x USB
1 x PC VGA for 32", 40", 43"
1 x Antena (RF) female
1 x CI+ 1.3
1 x Card Reader for 49" and 55"[/TD]
[TD]DVB-T2/C
H.265/HEVC
MPEG4
PVR[/TD]
[TD][/TD]
[TD="bgcolor: #000099"]CFG6350
FullHD (1920x1080)
55", 49", 43", 40", 32"[/TD]
[/TR]
[TR]
[TD="bgcolor: #000099"]CFG6240E
FullHD (1920x1080)
55", 49", 43", 40"

CHG6240E
HD Ready (1366x768)
32"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]55" -
49" -
43" -
40" -
No[/TD]
[TD]55" - 8-bit, 60/50Hz
49" - 8-bit, 60/50Hz
43" - 8-bit, 60/50Hz
40" - 8-bit, 60/50Hz
Active Motion-200
Flat[/TD]
[TD][/TD]
[TD]55" -
49" -
43" -
40" -

[/TD]
[TD]Dolby Digital
Dolby Digital +
DTS 2.0
DTS Tru Surround
woofer Harmon Kardon[/TD]
[TD]USB file system - FAT16/FAT32/NTFS
USB Video - AVI, MKV, WMV, ASF, MP4, M4v, RM, RMVB, VOB, TS, M2TS, MPG, FLV, SWF
USB Music - MP3, M4a, WMA, AAC, AC3, EAC3, LPCM, OGG
USB Photo - JPG, JPEG, BMP, PNG[/TD]
[TD]Linux[/TD]
[TD]Lan
Wi-Fi
802.11 b
802.11 g
802.11 n
Wi-Fi Direct
Intel WiDi
Miracast
MHL
DLNA[/TD]
[TD]1 x Ethernet RJ45
3 x HDMI
2 x USB
1 x PC VGA for 32", 40", 43"
1 x Antena (RF) female
1 x CI+ 1.3
1 x Card Reader for49" and 55"[/TD]
[TD]DVB-T2/C
H.265/HEVC[/TD]
[TD][/TD]
[TD="bgcolor: #000099"]CFG6240
FullHD (1920x1080)
55", 49", 43", 40"

CHG6240
HD Ready (1366x768)
32"[/TD]
[/TR]
[TR]
[TD="bgcolor: #000099"]CFG6020E
FullHD (1920x1080)
55", 49", 40"

CHG6020E
HD Ready (1366x768)
32"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]55" - max 300cd/m2
49" - max
40" - max
No[/TD]
[TD]55" - 8-bit, 60/50Hz
49" - 8-bit, 60/50Hz
40" - 8-bit, 60/50Hz
Active Motion-200
Flat[/TD]
[TD][/TD]
[TD]55" - Direct Led
49" - Direct Led
40" -

[/TD]
[TD]Speaker - Full-range + silk tweeter + woofer
Speaker Power - 2x10W (8 ohm)
+15W subwoofer (8 ohm)
Sound Technology - Harman-Kardon
Sound System - B/G, D/K, I, L
NICAM/A2
Sound Settings - Sound Equalizer
Audio decoder Dolby Digital/Digital+/DTS 2.0
Audio enhancement solution - DTS TruSurround HD[/TD]
[TD]USB file system FAT16/FAT32/NTFS
USB Video -AVI/MKV/WMV/ASF/MP4/M4v/RM/
RMVB/VOB/TS/M2TS/MPG/FLV/SWF
USB Music - MP3, M4a, WMA, AAC, AC3, EAC3,
LPCM, OGG
USB Photo -JPG, JPEG, BMP, PNG[/TD]
[TD]Linux[/TD]
[TD]Lan
W-Fi
802.11 b
802.11 g
802.11 n
Wi-Fi Direct
Intel WiDi
Miracast
MHL
DLNA[/TD]
[TD]1 x Ethernet RJ45
3 x HDMI 2.0
1 x USB 3.0
2 x USB 2.0
1 x mini SCART
1 x Antena (RF) female
1 x SAT In
1 x CI+ 1.3
1 x SD Card Slot
1 x Mini Component/YPbPr
1 x Mini AV Composite input + Audio In
1 x Audio out / Headphone Jack
1 x Digital Optical Audio Output[/TD]
[TD]6022 -> DVB-T/T2/C/S2
6021 -> DVB-T2/C
H.265/HEVC[/TD]
[TD][/TD]
[TD="bgcolor: #000099"]CFG6020
FullHD (1920x1080)
55", 49", 40"

CHG6020
HD Ready (1366x768)
32"[/TD]
[/TR]
[TR]
[TD="bgcolor: #000099"]CHG6130E
HD Redy (1366x768)
24"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]24" -
No[/TD]
[TD]24" - 8-bit, 60/50Hz
Active Motion-100
Flat[/TD]
[TD][/TD]
[TD]24" -

[/TD]
[TD]Dolby Digital
DTS Tru Surround[/TD]
[TD][/TD]
[TD]Linux[/TD]
[TD]Lan
Wi-F-
802.11 b
802.11 g
802.11 n
Wi-Fi Direct
Intel WiDi
Miracast
DLNA[/TD]
[TD]2 x HDMI
2 x USB,
1 x SCART
1 x RF Antena
1 x Mini Component/YPbPr,
1 x Mini AV IN - Composite Video/CVBS and L/R Audio
shared for Composite Video and Component/YPbPr,
1 x Digital Optical Audio output
1 x 3.5mm Headphone[/TD]
[TD]6132 -> DVB-T/T2/C/S2
6131 -> DVB-T/T2/C
H.265/HEVC[/TD]
[TD][/TD]
[TD="bgcolor: #000099"]CHG6130
HD Redy (1366x768
24"[/TD]
[/TR]
[TR]
[TD="bgcolor: #000099"]CFG5250E
Full HD (1920x1080)
49", 43", 40", 32"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]49" -
43" -
40" -
32" -
No[/TD]
[TD]49" - 8-bit, 60/50Hz
43" - 8-bit, 60/50Hz
40" - 8-bit, 60/50Hz
32" - 8-bit, 60/50Hz
Active Motion-100
Flat[/TD]
[TD][/TD]
[TD]49" -
43" -
40" -
32" -[/TD]
[TD]2 x W ()
Dolby Digital
DTS Tru Surround[/TD]
[TD][/TD]
[TD]Linux[/TD]
[TD]Lan
Wi-Fi
802.11 b
802.11 g
Wi-Fi Direct
Intel WiDi[/TD]
[TD]2 x USB
1 x Antena (RF) female
1 x CI+ 1.3[/TD]
[TD]DVB-T2/C

[/TD]
[TD][/TD]
[TD="bgcolor: #000099"]CFG5250
Full HD (1920x1080)
49", 43", 24"[/TD]
[/TR]
[TR]
[TD="bgcolor: #000099"]CHG5110E
HD Ready (1366x768)
24"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]24" -
No[/TD]
[TD]24" - 8-bit, 60/50Hz
Active Motion-100
Flat[/TD]
[TD][/TD]
[TD]24" -[/TD]
[TD]2 x 3W (4 ohm)
Dolby Digital
DTS 2.0[/TD]
[TD][/TD]
[TD]Linux[/TD]
[TD]Lan
Wi-Fi
802.11 b
802.11 g
Wi-Fi Direct
Intel WiDi[/TD]
[TD]2 x USB
1 x Antena (RF) female
1 x CI+ 1.3[/TD]
[TD]5111 - DVB-T/T2/C
5112 - DVB-T/T2/C/S2

[/TD]
[TD][/TD]
[TD="bgcolor: #000099"]CFG5110
Full HD (1920x1080)
49", 43", 24"[/TD]
[/TR]
[TR]
[TD="bgcolor: #000099"]CFG4040E
Full HD (1920x1080)
55", 49", 43", 40", 32"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]55" -
49" -
43" -
40" -
32" -
No[/TD]
[TD]55" - 8-bit, 60/50Hz
49" - 8-bit, 60/50Hz
43" - 8-bit, 60/50Hz
40" - 8-bit, 60/50Hz
32" - 8-bit, 60/50Hz
Active Motion-100
Flat[/TD]
[TD][/TD]
[TD]55" -
49" -
43" -
40" -
32" -

[/TD]
[TD]Dolby
DTS Tru Surround[/TD]
[TD][/TD]
[TD][/TD]
[TD]Lan
Wi-Fi
802.11 g
Wi-Fi Direct
Intel WiDi[/TD]
[TD]2 x USB
1 x Antena (RF) female
1 x CI+ 1.3[/TD]
[TD]DVB-T2/C
[/TD]
[TD][/TD]
[TD="bgcolor: #000099"]CFG4040
Full HD (1920x1080)
55", 49", 43", 40", 32"[/TD]
[/TR]
[/TABLE]

Formatting a Hard Drive to FAT32 that is larger than 32GB
UMC (UK) LTD | Frequently asked questions

Top Bottom
