Καλησπέρα,

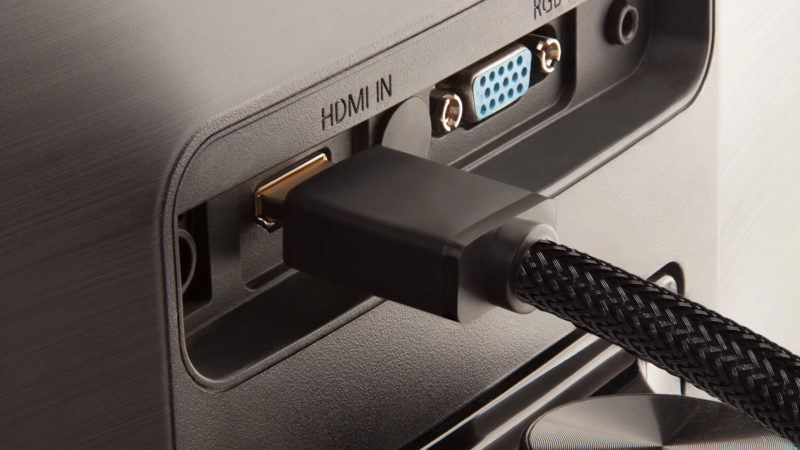

Αγόρασα χθες την tcl c725 και ήθελα να ρωτήσω αν γνωρίζει καποιος που την εχει συνδέσει με κονσολα ps5/xbox αν όντως λειτουργεί η θύρα hmdi 2.1 eARC ? Γιατί εγώ προσπαθώ να έχω αποτέλεσμα 4Κ 60 Hz YUV 4:4:4 ,ενώ το max που μου βγάζει ειναι YUV 4:2:2 και ότι περιορίζεται λόγω hdmi 2.0 . Το καλώδιο μου ειναι το Equip HDMI 2.1.
Ευχαριστώ πολύ εκ των προτέρων.
----------------
3840x2160
AiPQ 2.0 Engine
Dolby Vision, HDR10, HDR10+
Dolby Atmos
Bluetooth A2DP, HID
DVB-T2/C/S2
----
μέσα από την εφαρμογή AIDA64:
SoC
Model: Smart TV Pro
Realtek RTD2851M
Board : RTD2851M
Device: BeyondTV4
Product: BeyondTV6
Core Architecture: 4x ARM Cortex-A55 @ 1300 MHz
CPU Cores: 4
CPU Clock Range: 900 - 1300 MHz
Core Clock 1 : 1300 MHz
Core Clock 2 : 1300 MHz
Core Clock 3 : 1300 MHz
Core Clock 4 : 1300 MHz
Installed RAM : 2 GB
Available Memory: 511 MB
GPU Renderer : ARM Mali-G31 (Vulkan)
Screen resolution : 1920 x 1080
OpenGL ES version: 3.2
Total storage-On-board Storage : 16GB - expandable via USB
Internal Storage Total Space: 10,1 GB
Internal Storage Free Space: 9,44 GB
platform: Android R (11.0) tv
---------------
Reviews - test:
55"...[lesnumeriques.com]...TCL 55C725 review...https://www.lesnumeriques.com/tv-televiseur/tcl-55c725-p68039/test.html
55"...[computerbild.de]...TCL 55C725 review...https://www.computerbild.de/artikel/avf-Tests-Fernseher-TCL-C725-QLED-31355767.html
55"...[geex.x-kom.pl]...TCL 55C725 review...https://geex.x-kom.pl/recenzje/test-i-recenzja-telewizora-tcl-55c725/
software: V8-R51MT02-LF1V256.019836 version
produced in the Polish TCL factory in Żyrardów.
Display technology : LCD
Type LCD : VA panel, 4 domain,vertical stripe RGB

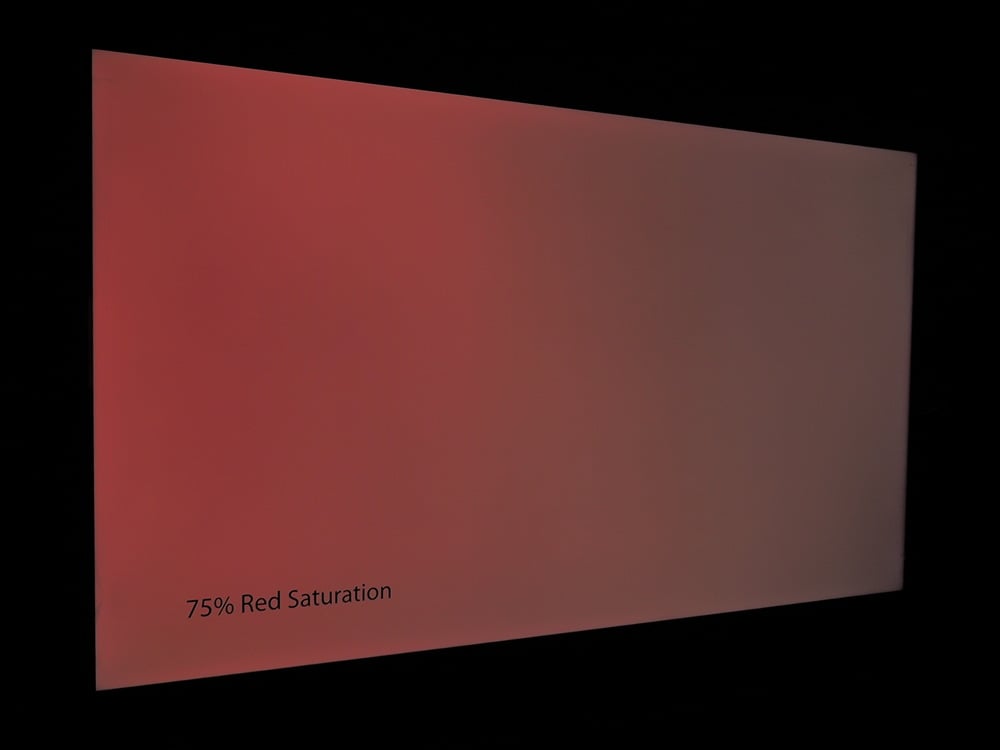

At a horizontal angle, the colors fade quite strongly, which is partly due to the "merit" of the selected panel, which has only 4 domains per subpixel, and not 8, as in the best rivals.
Backlight : Direct LED (global dimming)
60Hz+αναβόσβησμα του οπίσθιου φωτισμού
HDR
In HDR mode on the board 10%, the maximum luminance after three minutes of measurement was only 340 nits.
Οι ρυθμίσεις είναι μόνο για αναφορά.
Δεν υπάρχει καμία εγγύηση ότι θα σας δώσουν την καλύτερη εικόνα που είναι σύμφωνη με τα πρότυπα της βιομηχανίας και κατάλληλη για το περιβάλλον προβολής σας (ειδικά ισορροπία λευκού, ρυθμίσεις συστήματος γάμμα και χρώματος που διαφέρουν από μονάδα σε μονάδα).
Εάν θέλετε μια εγγυημένη βαθμονομημένη εικόνα, καλέστε έναν επαγγελματία βαθμονομητή τηλεόρασης.
film mode or movie mode
black level must be changed from 50 to 54
It's also a good idea to turn off the Black Expansion and Dynamic Highlight options.
50"...[geex.x-kom.pl]...TVL 50C726 review...https://geex.x-kom.pl/recenzje/test-i-recenzja-telewizora-tcl-50c725/
At a horizontal angle, the colors fade a lot, which is due to the matrix used, which has only four domains per subpixel, and not six or eight – as in the best solutions.
43"...[geex.x-kom.pl]...TCL 43C725 review...https://geex.x-kom.pl/recenzje/test-i-recenzja-telewizora-tcl-43c725/
60Hz
UHDA-P3 (CIExy) space coverage was 91%
VA panel LCD
At a horizontal angle, the colors fade quite strongly, which is partly due to the "merit" of the selected panel, which has only 4 domains per pixel, and not 8.
HDR
In HDR mode on the board 10%, the maximum luminance after three minutes of measurement was 366 nits, which is slightly above average.
Οι ρυθμίσεις είναι μόνο για αναφορά.
Δεν υπάρχει καμία εγγύηση ότι θα σας δώσουν την καλύτερη εικόνα που είναι σύμφωνη με τα πρότυπα της βιομηχανίας και κατάλληλη για το περιβάλλον προβολής σας (ειδικά ισορροπία λευκού, ρυθμίσεις συστήματος γάμμα και χρώματος που διαφέρουν από μονάδα σε μονάδα).
Εάν θέλετε μια εγγυημένη βαθμονομημένη εικόνα, καλέστε έναν επαγγελματία βαθμονομητή τηλεόρασης.
film mode
movie mode
black level must be changed from 50 to 54.
I also recommend disabling the Black Expansion and Dynamic Highlight options.
