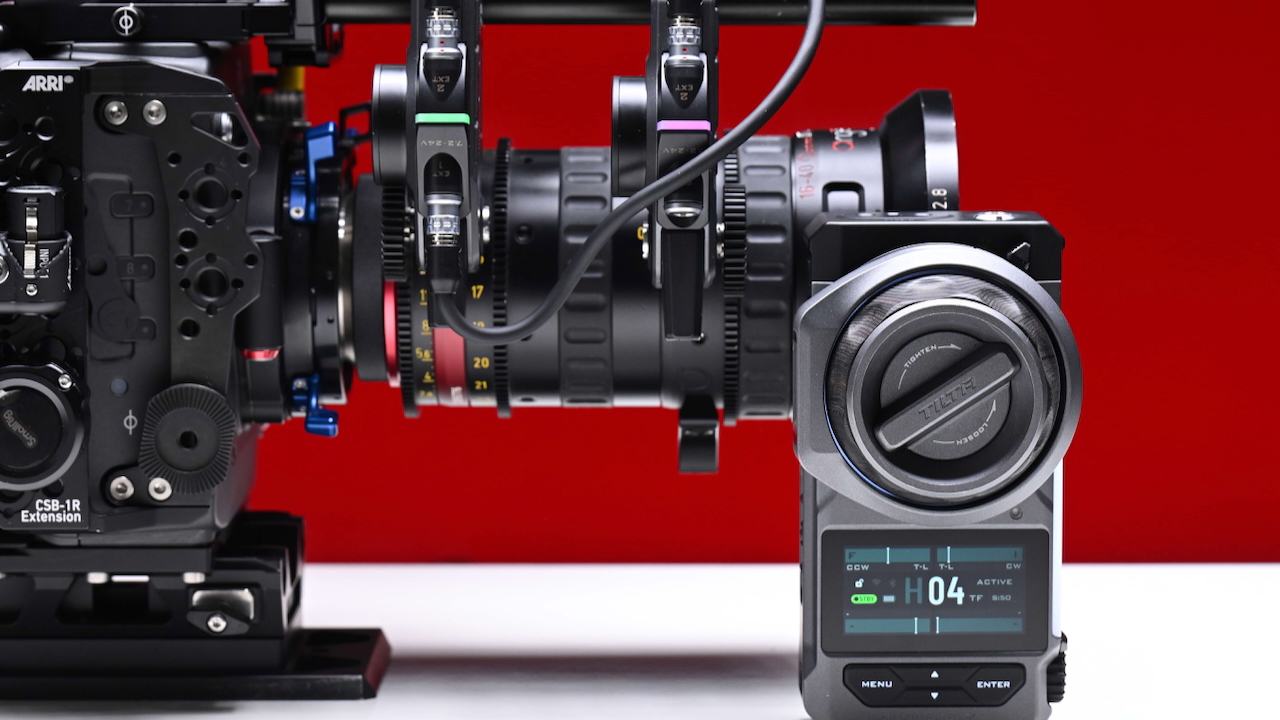

Tilta Nucleus-M II Review - Newsshooter
The new Tilta Nucleus-M II is a follow-up to the original Nucleus-M. Tilta introduced the Nucleus-M way back at NAB in 2017. It was designed to be an affordable FIZ system for the masses and at $1,199 USD it was considerably more affordable than anything else on the market at the time. It took...
www.newsshooter.com
Core Upgrades
- Compatible with First Generation’s Ecosystem– Seamless integration of the focus ring, data interface, and lens control motor—no need to replace your existing gear.
- Built on a Classic Design- Retains the damping adjustment and shortcut layout for easy operation—zero learning curve for existing users.
- New Electronic Focus Ring Added– Featuring a detachable design that preserves first-gen physical focus ring markings. Mark manually when removed, or switch to on-screen digital markings when attached.
- 2.4-inch Touchscreen Display– Quick access to focus, aperture, ISO, etc. with instant on-screen controls.
- Upgraded PID 2.0 algorithm and motor optimization for the Nucleus M II lens control motor—0.02s fast response and ultra-smooth focus adjustments, which are claimed to be free from stutter and delay.
- Four-way Multi-channel Series Connection– Directly control the Nucleus-M II lens control motor with the hand wheel, supporting up to 4 channels in series.
- Replaceable Gears– Modular design for quick assembly and long-term maintenance.
- Compatible with Multiple Mounting Rod Options– Nucleus-M II includes 15mm and 19mm rod adapters
- Nucleus-M II Wireless Control Handle– Versatile control system with seamless switching between primary and secondary functions.
- Compatible with NP-F Batteries– Powered by NP-F550 batteries.
- Supports Storage of up to 128 Lens Data Presets– The Nucleus-M II hand unit features built-in data storage, allowing one-touch access to saved settings for fast and convenient adjustments.
- MARK Point & RANGE Memory– Power loss protection keeps your settings intact, even after a power outage.
- Nucleus-M II Left Hand Mode– Customizable hand wheel position for all users.
- Robust Anti-Interference with Four Independent Channels– Upgraded channels for stronger signal, stable transmission, and precise focus.
- Modular Hand Unit with Zoom Modules– Customizable mounting on either side of the wireless control handle. Accommodate both left and right-hand users.
Nulceus Series Specification Comparison Table
| Nucleus M (First-gen) | Nucleus-M II | Nulceus Nano II | |
| Number of Hand Unit Controls | Control up to 3 channels directly with the hand wheel. | Control up to 4 channels directly with the hand wheel. | Control up to 4 channels with the power handle; hand wheel supports up to 2 channels. |
| Hand Unit Display | 1.3” black and white display | 2.4” color touchscreen display | 1.6” color touchscreen display |
| Power Supply | 18650 rechargeable lithium-ion battery | NP-F550 universal battery. Universal NP-F battery compatibility with extended runtime on a single charge. | Built-in 1800mAh high-capacity lithium battery |
| Focus Ring | Physical focus ring | New removable electronic focus ring, easily converted to a physical focus ring, with manual marking capability. | – |
| Hand Wheel Damping | Constant | Adjustable damping | Constant |
| Mark Power Loss Memory |  |  | |
| Lens Data Presets | | (128 lens data presets) | |
| Depth of Field Indicator | | | |
| Camera Setting Control | | | |
| Hand Wheel with Left-Right Hand Switch | | | |
| Compatibility with DJI Lens Control Motor (Stabilizer) | | | |
| Motor Size | 114*92*30.7mm 4.49 x 3.62 x 1.21 in | 103*78*30mm 4.06 x 3.07 x 1.18 in | 83*46*31mm 3.27 x 1.81 x 1.22 in |
| Motor Gear Replacement | | | |
| Motor Gear Direction Adjustment | | | |
| Motor Torque (14.8V) | 0.39Nm | 0.48Nm | 0.13Nm |
