Αυτος ειναι ο νεος μου δεκτης.Τον παρηγγειλα την Δευτερα και ειναι καθοδον.

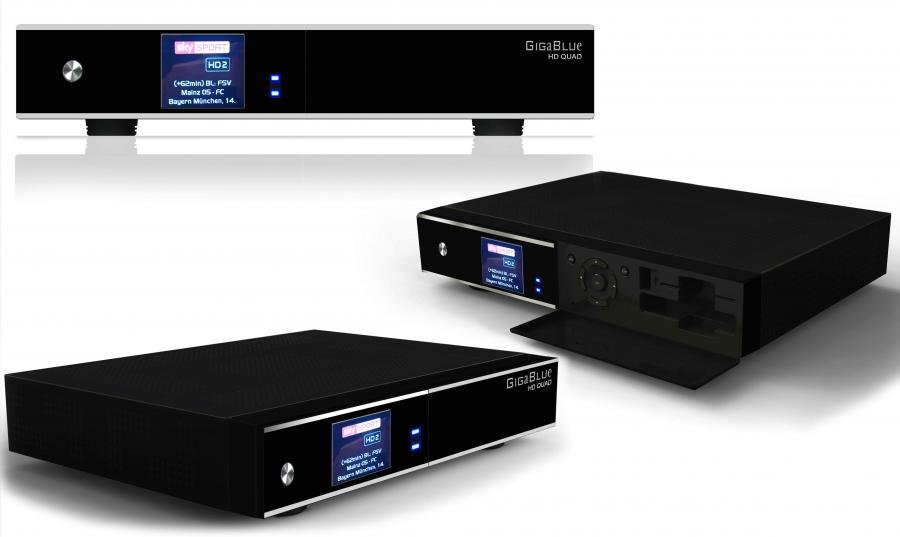

GigaBlue HD QUAD
Hybrid- HDTV Linux Receiver
DVB-S/S2, DVB-C/C2, DVB-T, IPTV, HBBTV
Brand new HD receiver sets new standards
The Gigablue Quad - execution leaves nothing to be desired.
2 built-in DVB-S2 tuners allow an independent twin use. About
two more tuner slots offer the possibility of the receiver
to expand any DVB-T or DVB-C2 and combine. The
strong processor offers the viewer a high resolution pictures
and a never experienced rapid change-over time. A further special
Characteristic of the GIGABLUE QUAD is the linking of TV and the Internet
Special features:
Multi media archive for video and audio over network
LCD Display ( coloured)
EPG up to 14 days
HDMI CEC control
PiP (Picture in picture)
Integrated UPnP Server /-clinet function
Webbrowser
Netzwerk-Interface Streaming-function
Plugin service ( Erweiterungen)
Software update via network
Settings over Pluginservice
UFScontrol - Plugin for Iphone and Android Smartphones
IP TV, IP Radio
2 x DVB-S/S2 und 2 x Plug&Play Tuner Modul Socket
Features:
Integrated HDTV twin tuner for satellite reception
2 x Plug & Play Hybrid Tuner Optional
Record up to 4 HDTV programs and an other HD look show.
Reception of free and PAY TV channels (2 CI-Schnittstellen and 1 Cardreader)
HDTV-PVR mit e-SATA oder USB, Multimedia Archiv für Bild-, Video- und Musikdatein
Timeshift ( time shifting)
Timer-Records (Once, daily, weekly, etc.)
EPG function, EPG search, picture in picture, EPG, timer, Favorites
OSD in many languages, DISEqC 1.0, 1.1, 1.2, Unicable, Usuals
Playback of multimedia files such as MP3, JPEGs and videos in HD quality
Electronic Program Guide(EPG)
Connectivity to external devices, such as e.g. a digital camera, external hard drive, and much more. (3xUSB, LAN)
Optical output for crystal-clear cinema sound
Technische Daten:
Prozessortyp/Mhz Mipsel / 1300 Mhz
Linux Kernel Kernel 3.x.x
DDRSDRAM / Flash DDR3 1024MB / NAND 512MB
Front Panel
LCD LCD Display 2inch Color
Frontkeys 8 Buttons
CI Slot 2 x CI
Cardreader 1x Cardreader
USB 1x USB

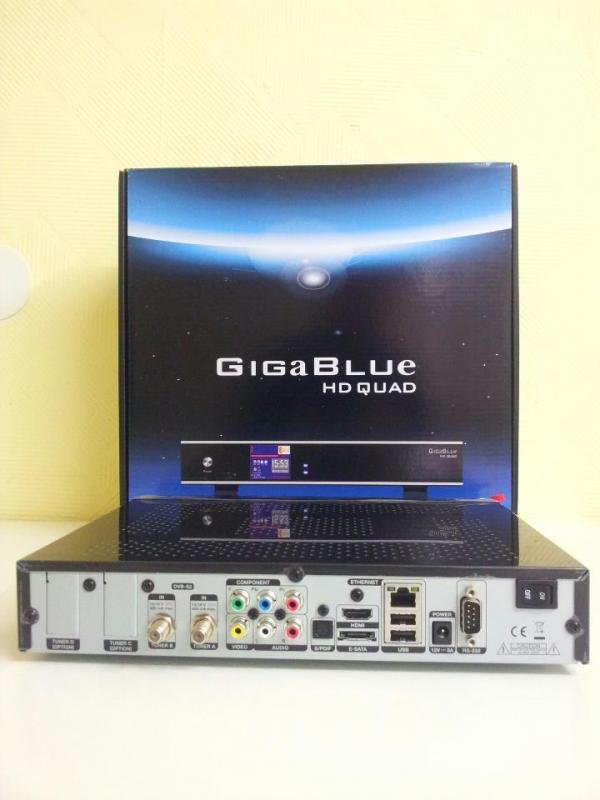

Rear Panel
Tuner DVB-S/S2 Twin input
Optional Tuner
2 x Plug in Play DVB-C/T(Option)
HDMI 1 x HDMI
USB 2 x USB
S/PDIF 1 x Optical
3x2 RCA
Component,Composite,L,R
Ethernet Ethernet 100/1000 MBit
E-SATA E-SATA
RS-232 RS-232
Power Jack Ja
Power Switch 1 Switch
Internal
E-SATA E-SATA

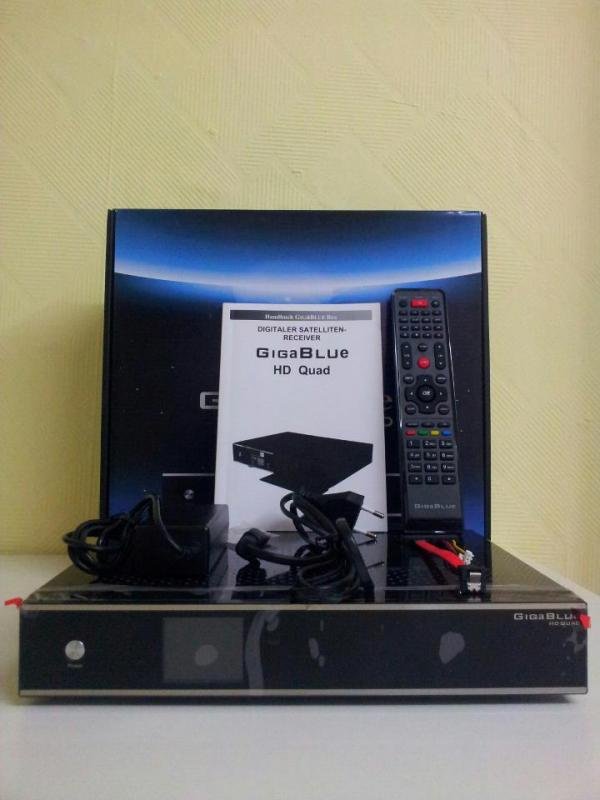

Accessories
Remotcontrol
GigaBlue Remotcontrol
Remotcontrol + Keyboard (Optional)
GigaBlue RCU Universal mit Tastatur
Tuner (Optional)
Hybrid (DVB-C / DVB-T
