-LG TV Line-up 2020-

[xavito]

55"...[hdtvpolska.com]...LG 55NANO913NA test...https://hdtvpolska.com/flagowy-telewizor-120hz-4k-lg-nano913-test-dobra-cena-duze-mozliwosci-dla-konsol-i-pc-z-hdmi-2-1/?showfull=1

μετάφραση google pl to en

αντικαθιστά την περσινή 55SM9010

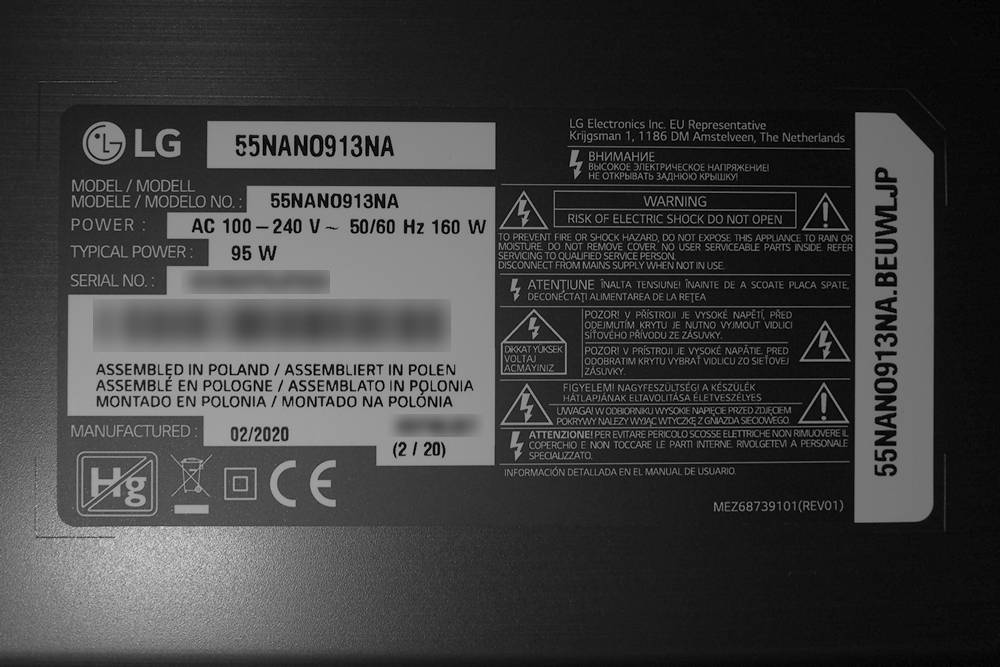

55NANO913NA:IPS panel - RGB,by LG Display
F.A.L.D. Direc LED LCD
Wide Color Gamut - WCG (aka marketing term NanoCell)
100/120Hz με MCFI + αναβόσβησμα του οπίσθιου φωτισμού

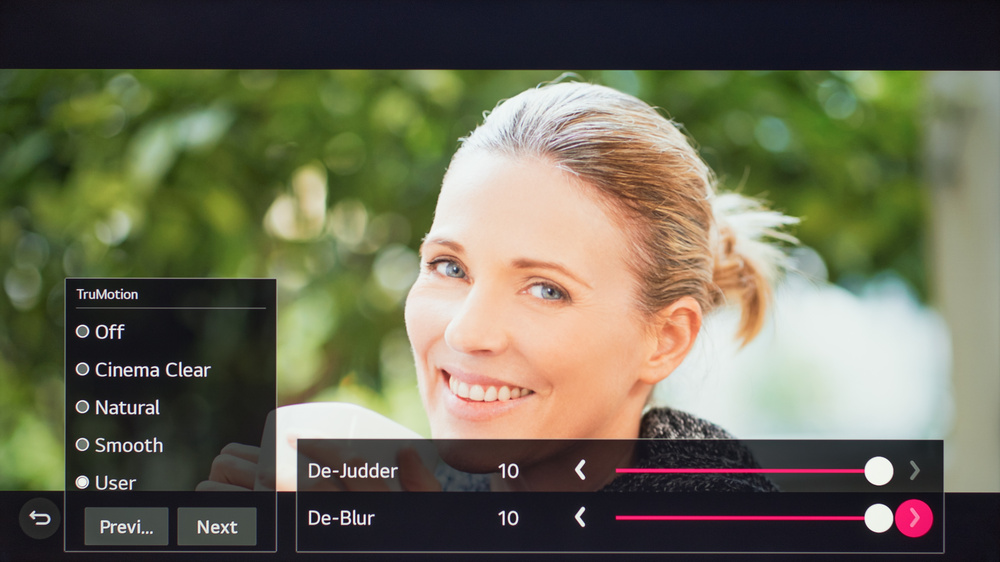

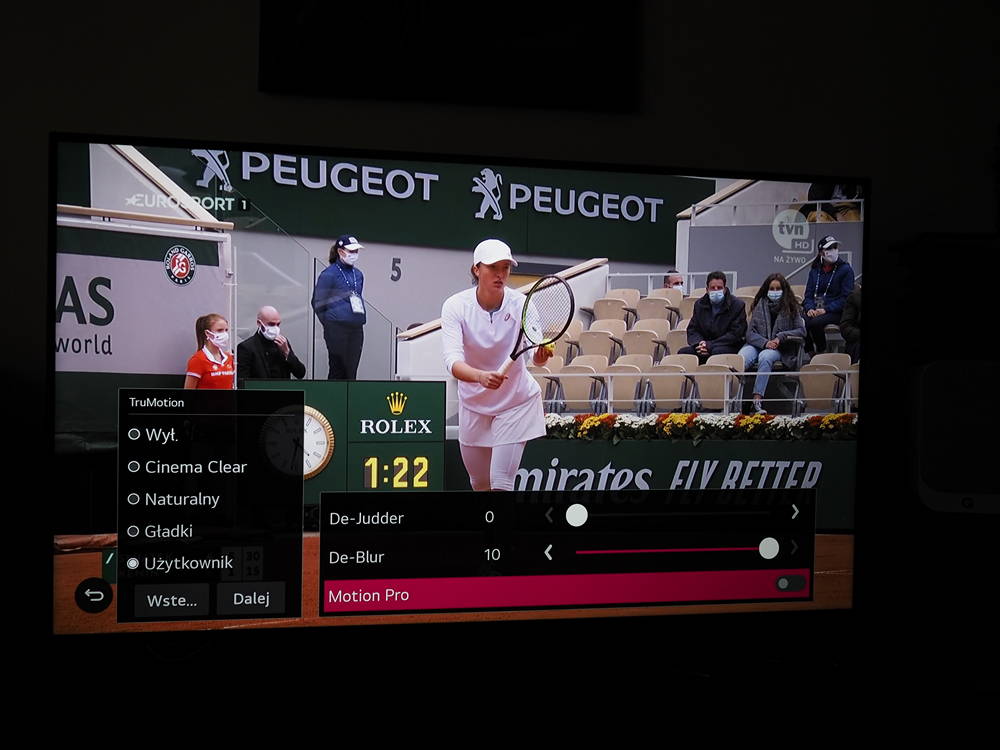

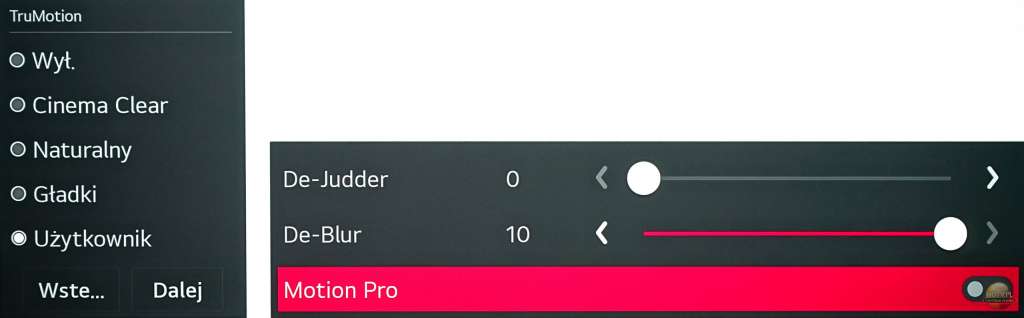

Ρυθμιστικό TruMotion (De-blur,100/120Ηz)



[xavito]

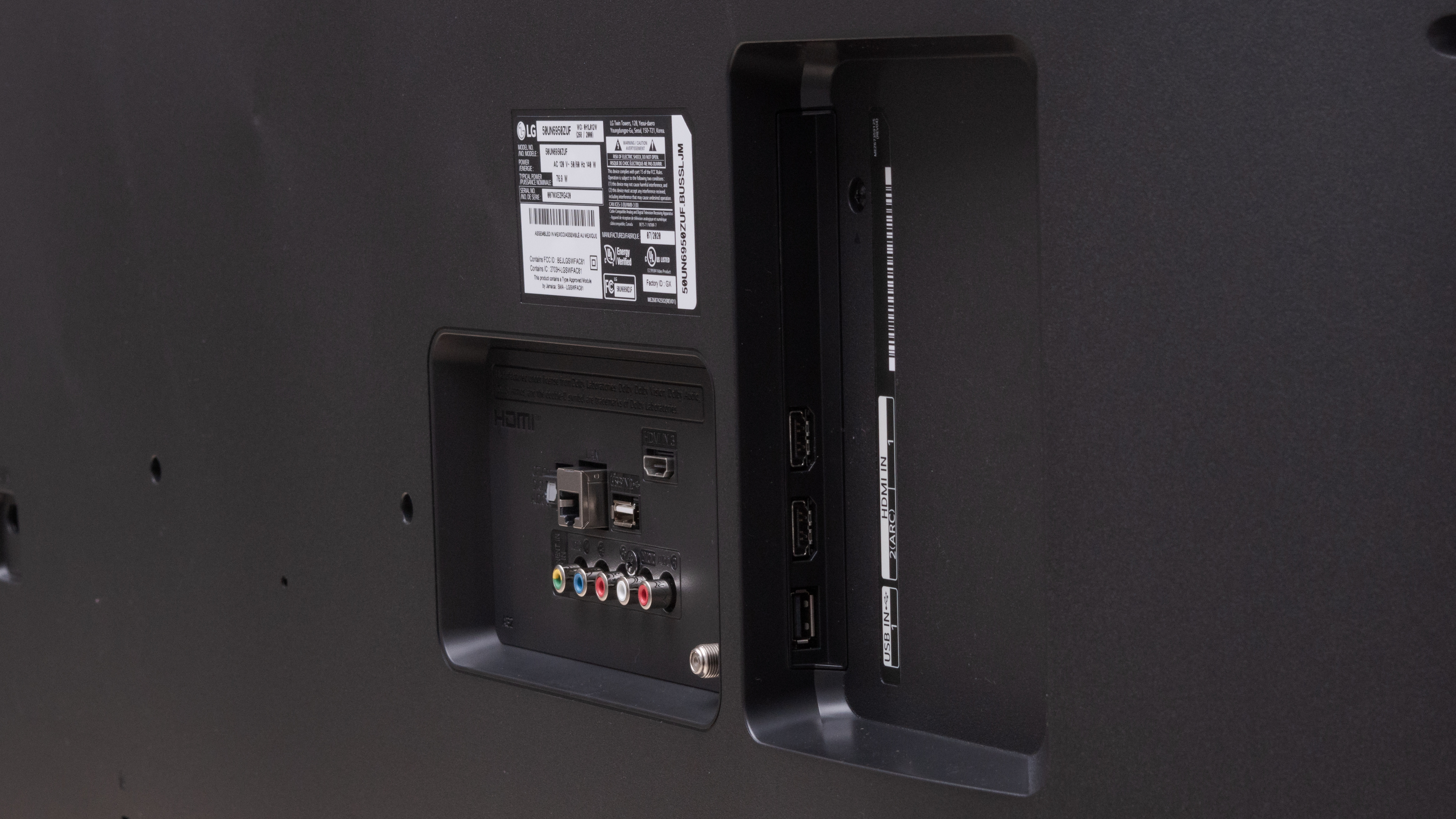

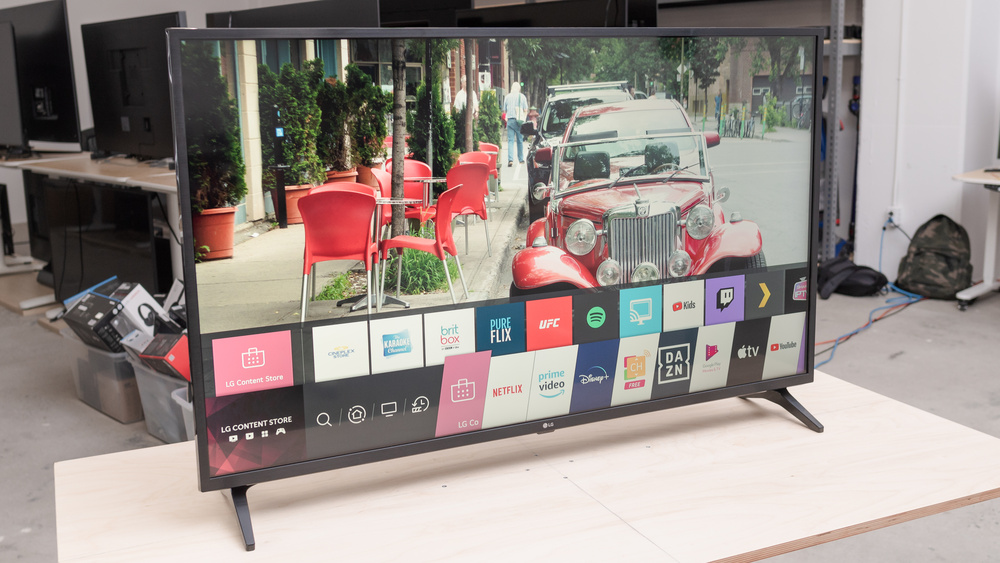

50"...[rtings.com]...LG 50UN6950Z review...https://www.rtings.com/tv/reviews/lg/un6950

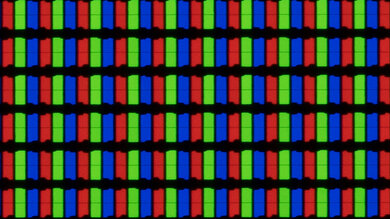

50UN6950:VA panel,BGR subpixel layout
50/60Hz,
no WCG

---------------------

Super fast board removal video. (LG 55UN6950ZUA)

https://www.youtube.com/watch?v=fXqbQJtyAHM
source:[TV Parts Today]



[xavito]

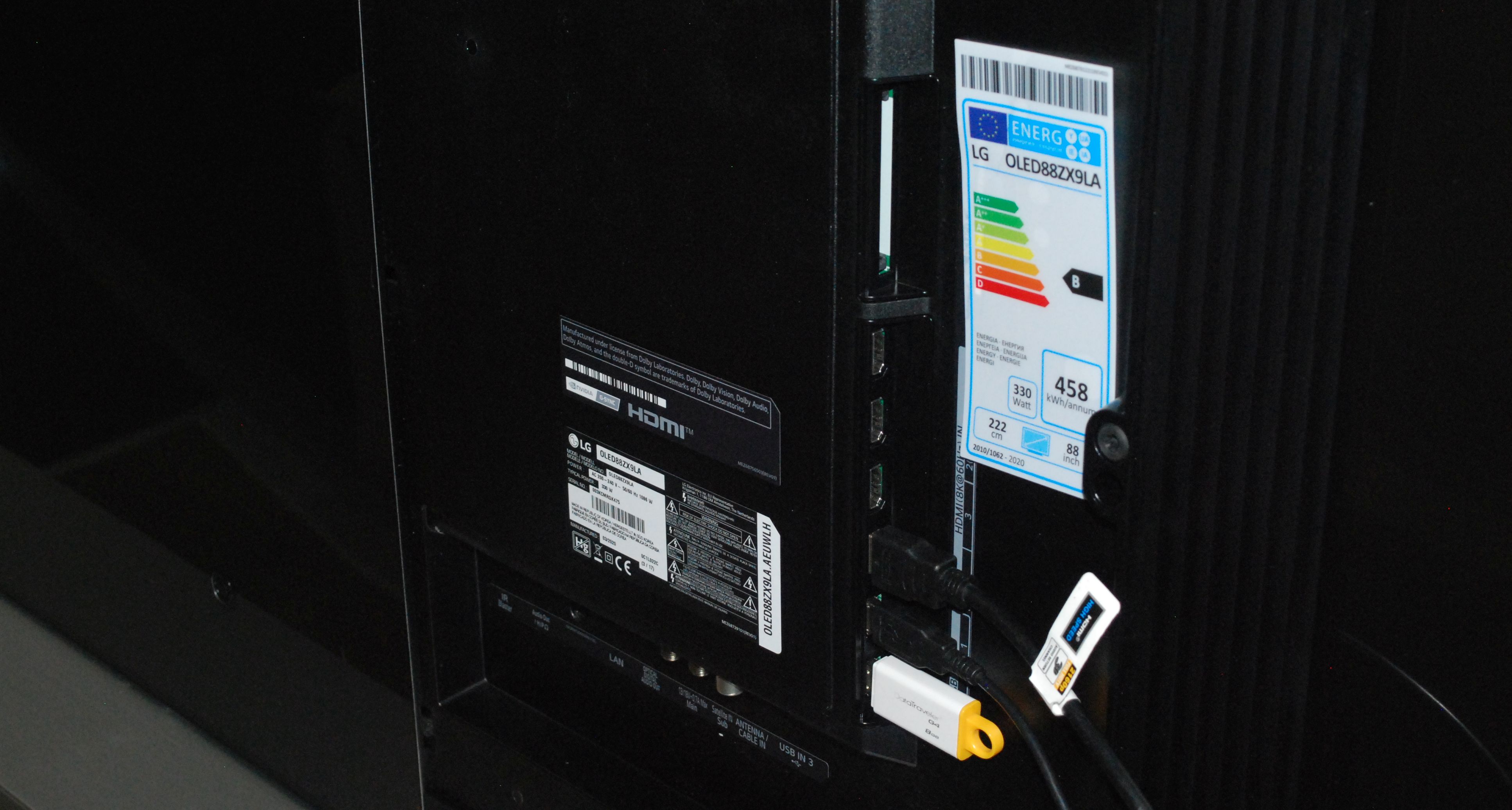

88"...[prohardver.hu]...LG 88ZX9LA test...https://prohardver.hu/teszt/lg_8k_oled_teve/lg_8k_oled_teve.html

μετάφραση google hu to en



[xavito]

55"...[rtings.com]...LG 55UN7000PUB review...https://www.rtings.com/tv/reviews/lg/un7000

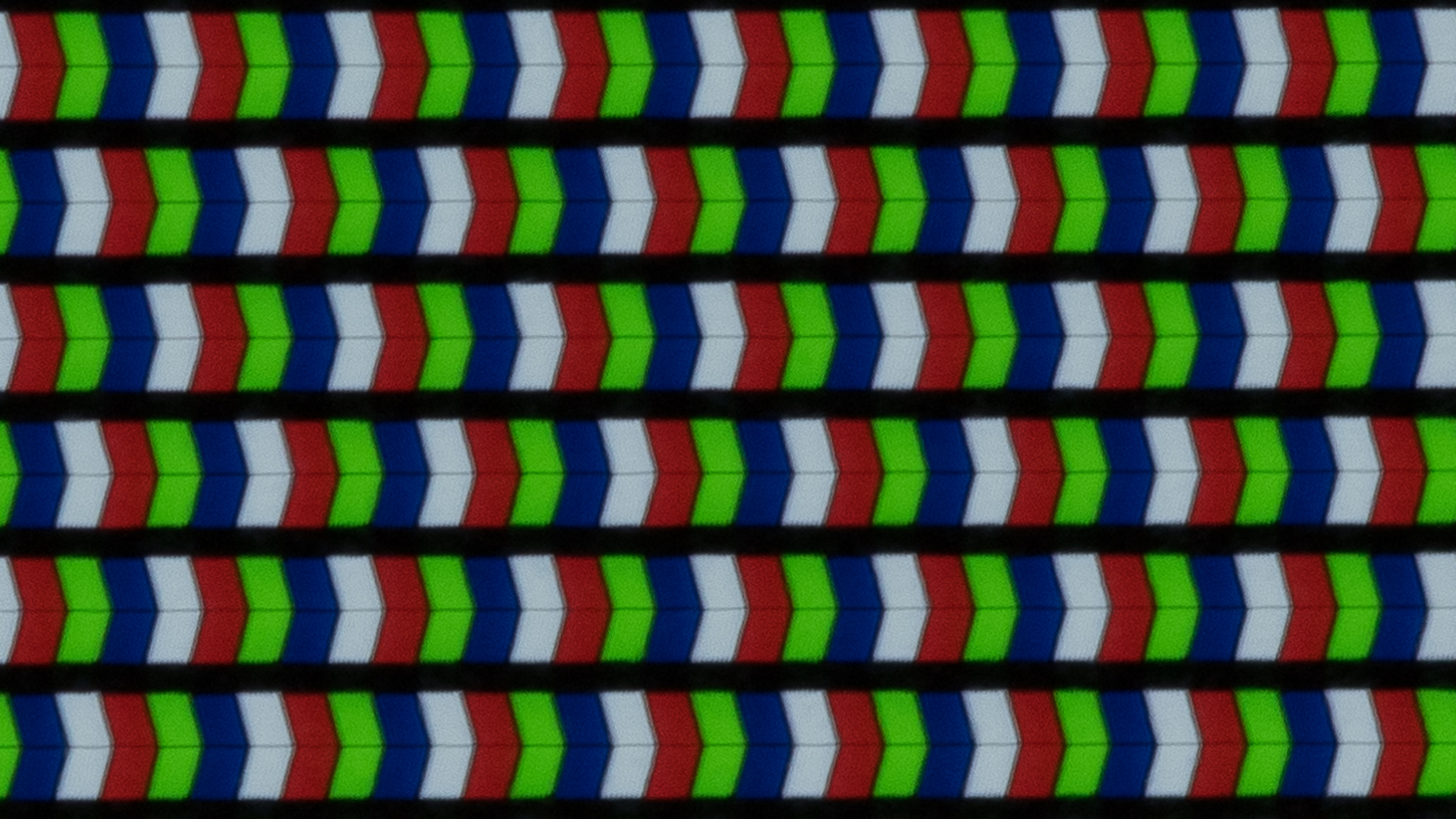

55UN7000PUB:RGBW μπερδεμένο panel IPS

------------------------------------

LG 65UN7000PUD teardown

πηγή:[tvpartstoday]

-----------------------------------


Faux-K: RGBW LED TV spoils 4K UHD resolution & colour...https://www.hdtvtest.co.uk/news/rgbw-201510084189.htm



[billpeppas]

Πάλι τα ίδια ?
Έλεος.



[xavito]

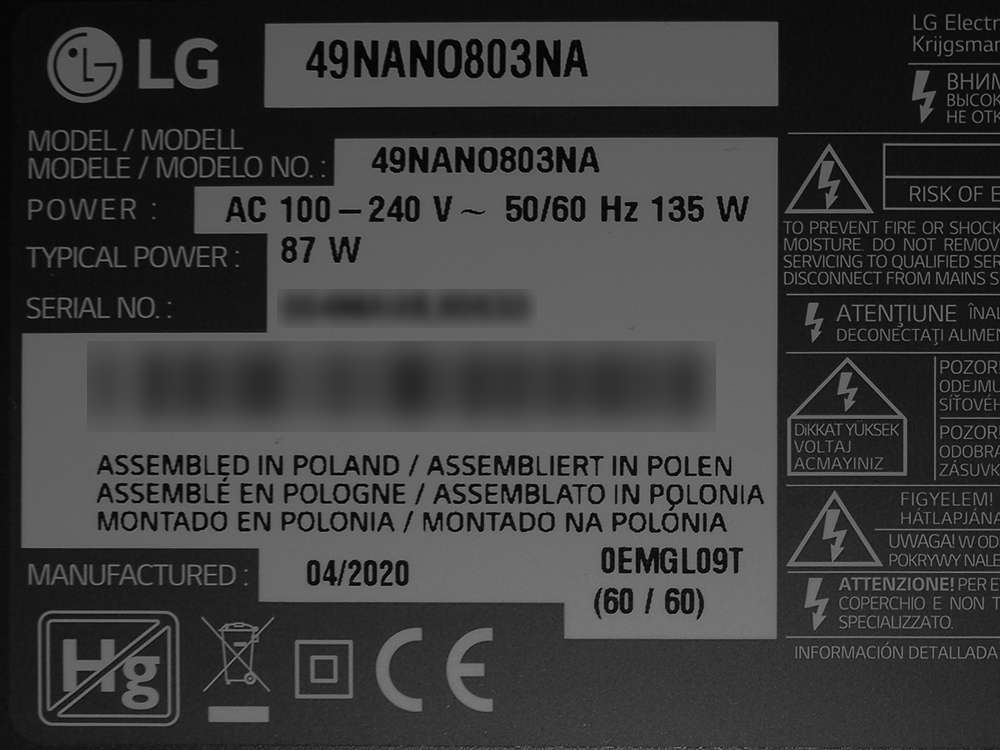

49"...[geex.x-kom.pl]...LG 49NANO803NA test...https://geex.x-kom.pl/recenzje/lg-49nano803na-test-i-recenzja/

μετάφραση google pl to en

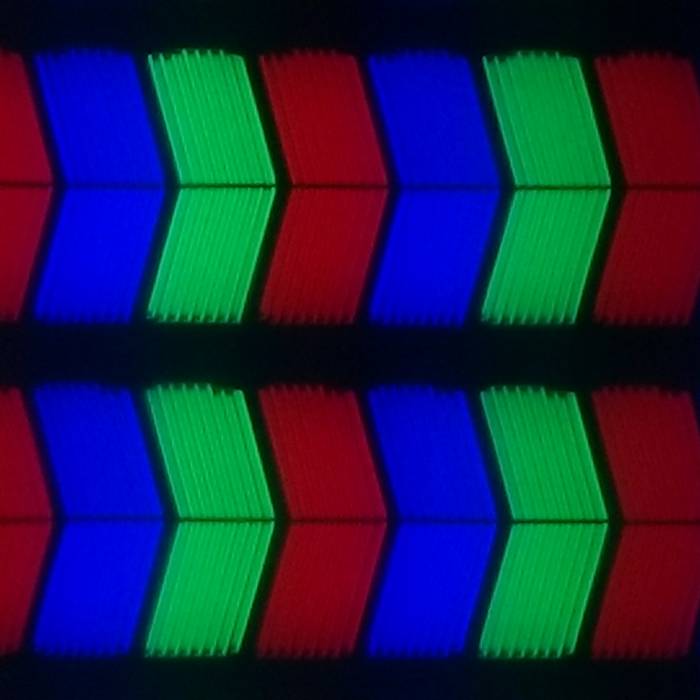

49NANO803NA:IPS panel by LG Display -RGB

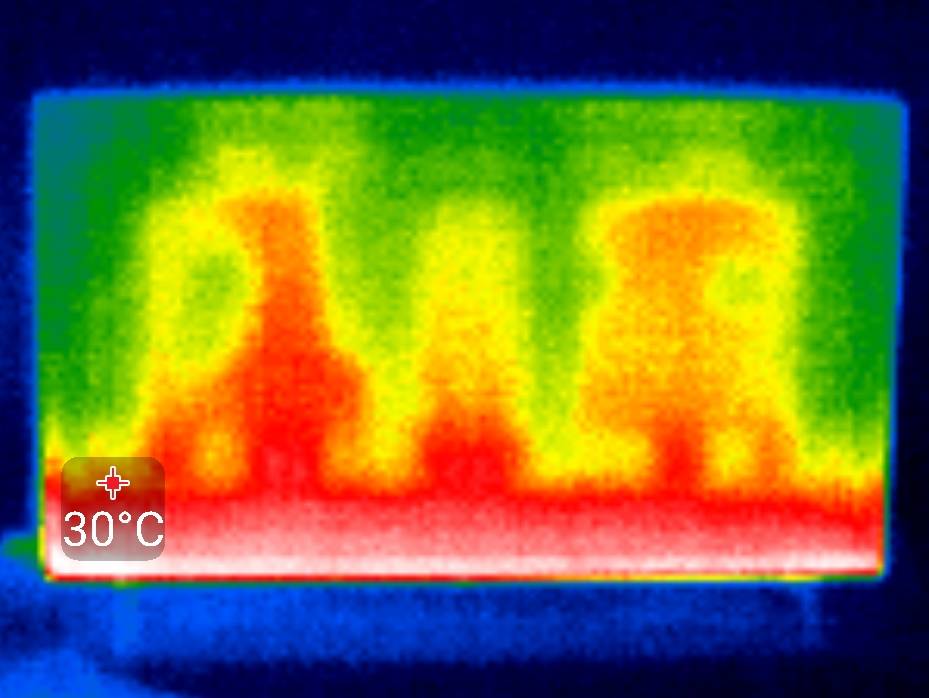

Edge-bottom LED LCD,local dimming: divide the screen into 6 independent vertical zones
WCG : aka NanoCell
50/60Hz
webOS version 5

The brightness of the image (luminance) was not high and in the filmmaker mode on the full screen test board it was:

maximum 273 cd / m ^ 2 (100/100 backlight)
The recommended brightness level for SDR home theater (approx. 120 cd / m ^ 2) is set to backlight to 40/100 .

HDR

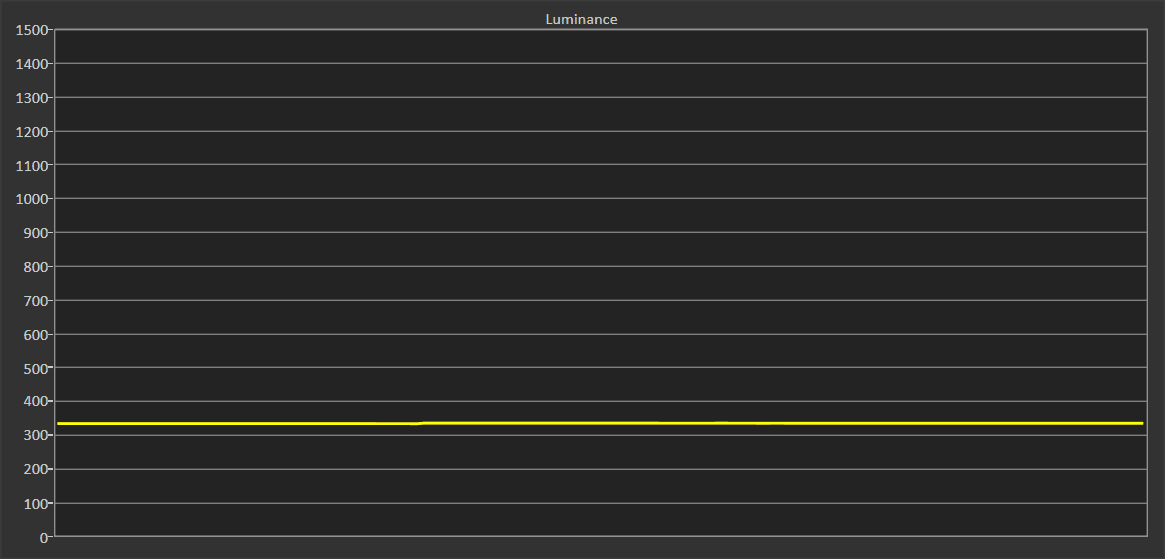

In HDR mode, on the 10% board, the maximum luminance after three minutes of measurement was 337 cd / m ^ 2.

Summary

In terms of image quality, the 49-inch NanoCell of the 803 series is practically no different from its predecessor. Like him (the 2019 SM series), the LG 49NANO803NA is a TV that will work well when watching SDR content such as news, current affairs and entertainment programs during the day. It can also be recommended for football matches or less demanding games.

On the other hand, if someone is looking for a home cinema TV of a similar size, in my opinion, they should be interested in models with a diagonal of 50 inches, which, fortunately, are not lacking in LG's offer. Thanks to the VA matrix, they will offer several times darker blacks and much higher contrast, which IPS matrices are simply not able to provide.

Okay, and what screen with a similar diagonal would the author recommend for HDR content? Well, in LG's offer we will not find anything better than the OLED48CX3LB model, but for this model (much more advanced, but of similar size) you will have to save much, much longer. Well, quality costs money.



[xavito]

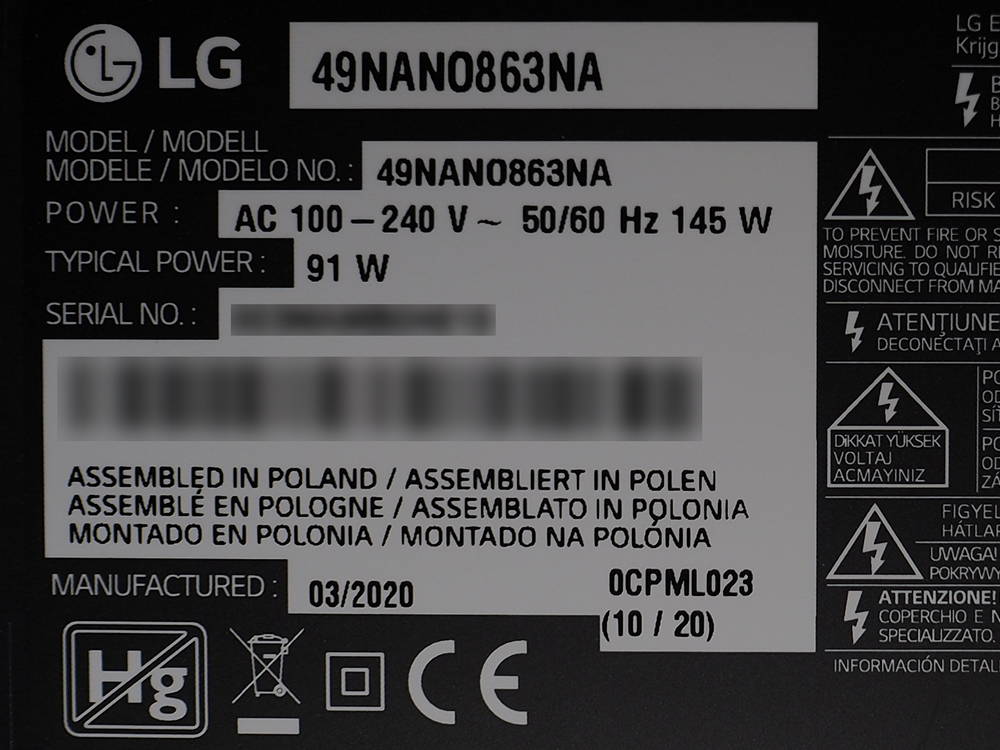

49"...[geex.x-kom.pl]...LG 49NANO863NA review...https://geex.x-kom.pl/recenzje/lg-49nano863na-test-i-recenzja/

μετάφραση google pl to en

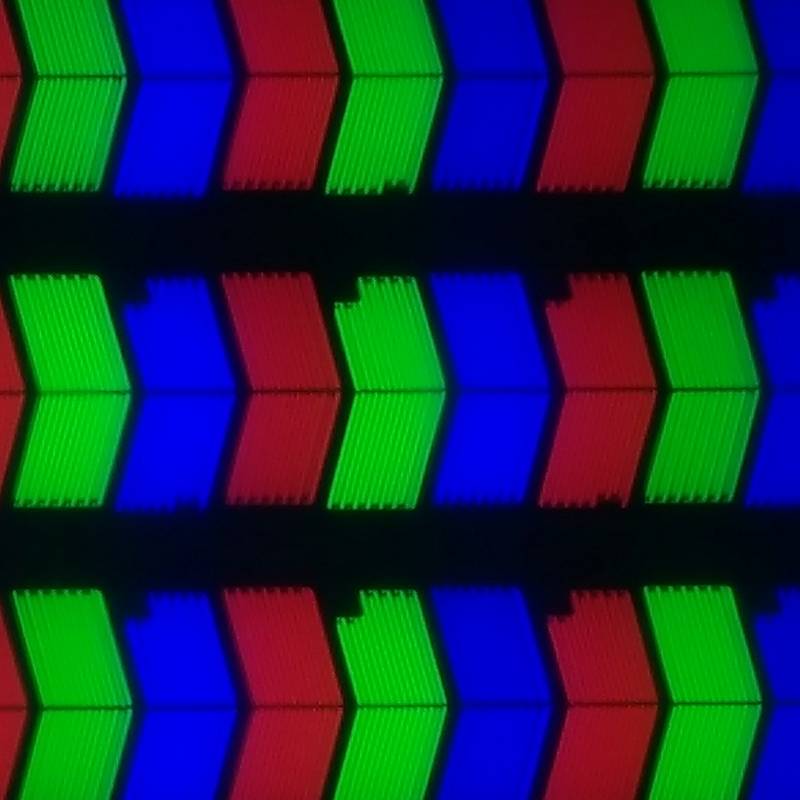

49NANO863NA:IPS panel - RGB

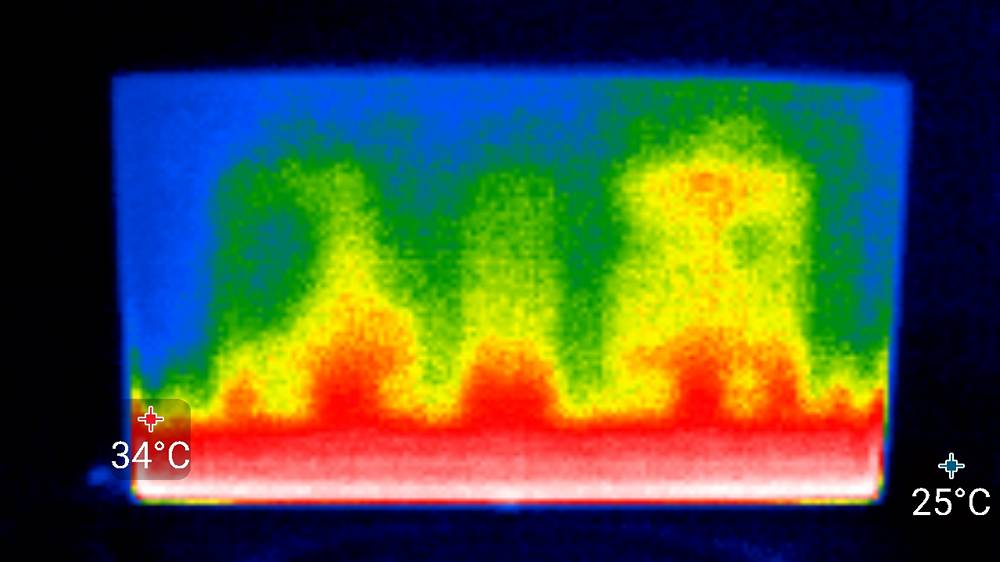

Edge (bottom) LED LCD,vertical dimming zones 6,
WCG (blue LEDs covered with a phosphor and a band-stop filter ,this solution is called by the manufacturer with the buzzing name NanoCell),
100/120Hz με MCFI+αναβόσβησμα του οπίσθιου φωτισμού,
ANSI contrast ratio was only 848:1

HDR

In HDR mode, on the 10% board, the maximum luminance after three minutes of measurement was 337 cd / m ^ 2 and, unlike the 49NANO803 model, it did not change during the measurement.

Summary

What is the difference between the 49NANO863NA and 49NANO803NA models, because black, contrast, brightness in HDR mode and color reproduction are basically the same? Well, paying extra for the 49NANO863NA we get a higher class matrix (120Hz) and, or maybe most of all, a partial functionality of HDMI 2.1, including eARC and 4K / 120Hz support. The LG 49NANO863NA looks like a TV specially tailored to the needs of players. On the other hand, home cinema lovers (read: dark blacks and high contrast) will have to look elsewhere.



[hristoslav2]

UN7100

LG UN73006 / UN73906

LG UN74006

LG UN80006

LG UN81006

LG UN85006

LG NANO796

LG NANO806

LG NANO816

LG NANO866

LG NANO906

LG NANO916

LG NANO956

LG NANO996

LG OLED BX6

LG OLED CX6

LG OLED GX6

LG OLED WX9

LG OLED ZX9

LG 43UN7100 - 108 cm LG 49UN7100 - 123 cm LG 55UN7100 - 139 cm LG 60UN7100 - 153 cm LG 65UN7100 - 164 cm LG 70UN7100 - 177 cm LG 75UN7100 - 189 cm

LG 43UN7300 - 108 cm LG 49UN7300 - 123 cm LG 50UN7300 - 126 cm LG 55UN7300 - 139 cm LG 65UN7300 - 164 cm

LG 43UN7400 - 108 cm LG 49UN7400 - 123 cm LG 50UN7400 - 126 cm LG 55UN7400 - 139 cm LG 65UN7400 - 164 cm

LG 43UN8000 - 108 cm LG 50UN8000 - 126 cm LG 55UN8000 - 139 cm LG 65UN8000 - 164 cm

LG 43UN8100 - 108 cm LG 50UN8100 - 126 cm LG 55UN8100 - 139 cm LG 65UN8100 - 164 cm LG 75UN8100 - 189 cm

LG 65UN8500 - 164 cm LG 75UN8500 - 189 cm LG 82UN8500 - 207 cm LG 86UN8500 - 217 cm

LG 55NANO79 - 139 cm LG 65NANO79 - 164 cm

LG 49NANO80 - 124 cm LG 55NANO80 - 139 cm LG 65NANO80 - 164 cm

LG 49NANO81 - 123 cm LG 55NANO81 - 139 cm LG 65NANO81 - 164 cm

LG 49NANO86 - 123 cm LG 55NANO86 - 139 cm LG 65NANO86 - 164 cm

LG 55NANO90 - 139 cm LG 65NANO90 - 164 cm LG 75NANO90 - 189 cm LG 86NANO90 - 217 cm

LG 55NANO91 - 139 cm LG 65NANO91 - 164 cm LG 75NANO91 - 189 cm LG 86NANO91 - 217 cm

LG 55NANO95 - 139 cm LG 65NANO95 - 164 cm

LG 65NANO99 - 164 cm LG 75NANO99 - 190 cm

LG OLED55BX6 - 139 cm LG OLED65BX6 - 164 cm

LG OLED48CX6 - 121 cm LG OLED55CX6 - 139 cm LG OLED65CX6 - 164 cm LG OLED77CX6 - 195 cm

LG OLED55GX - 139 cm LG OLED65GX - 164 cm LG OLED77GX - 195 cm

LG OLED65WX - 164 cm

LG OLED77ZX - 195 cm LG OLED88ZX - 222 cm

4K 3840x2160 Direct LED - Quad Core 4K 50Hz / 100Hz TruMotion HDR10 Pro / HGiG - - - - True Color Accuracy Advanced Color Enhancer FilmMaker Mode Audio 2.0 / 20W Ultra Surround - AI Sound - Clear Voice III 1x TNT / Cable / Satellite tuner PVR + TimeShift WebOS 5.0 Google Home / Echo / ThinQ App - - - Home Dashboard / HomeKit Wi-Fi / Bluetooth 3x HDMI 2.0 ARC / 2x USB Black / Bipolar base Classic remote control

4K 3840x2160 Direct LED - Quad Core 4K 50Hz / 100Hz TruMotion HDR10 Pro / HGiG - - - - True Color Accuracy Advanced Color Enhancer FilmMaker Mode Audio 2.0 / 20W Ultra Surround - AI Sound AI Acoustic Tuning Clear Voice III 1x TNT / Cable / Satellite tuner PVR + TimeShift WebOS 5.0 Google Assist. / Alexa / ThinQ Search and voice recognition Voice control Remote control Speech-to-Text / Telec. Universal Home Dashboard / HomeKit Wi-Fi / Bluetooth 3x HDMI 2.0 ARC / 2x USB Bipolar base Magic Remote (MR20)

4K 3840x2160 Direct LED - Quad Core 4K 50Hz / 100Hz TruMotion HDR10 Pro / HGiG - - - - True Color Accuracy Advanced Color Enhancer FilmMaker Mode Audio 2.0 / 20W Ultra Surround - AI Sound AI Acoustic Tuning Clear Voice III 1x TNT / Cable / Satellite tuner PVR + TimeShift WebOS 5.0 Google Assist. / Alexa / ThinQ Search and voice recognition Voice control Remote control Speech-to-Text / Telec. Universal Home Dashboard / HomeKit Wi-Fi / Bluetooth 3x HDMI 2.0 ARC / 2x USB Iron Gray / Crescent Base Magic Remote (MR20)

4K 3840x2160 Direct LED - Quad Core 4K 50Hz / 100Hz TruMotion HDR10 Pro / HGiG - - - - True Color Accuracy Advanced Color Enhancer FilmMaker Mode Audio 2.0 / 20W Ultra Surround - AI Sound AI Acoustic Tuning Clear Voice III 1x TNT / Cable / Satellite tuner PVR + TimeShift WebOS 5.0 Google Assist. / Alexa / ThinQ Search and voice recognition Voice control Remote control Speech-to-Text / Telec. Universal Home Dashboard / HomeKit Wi-Fi / Bluetooth 4x HDMI 2.0 ARC / 2x USB Iron Gray / Bipolar Base Magic Remote (MR20)

4K 3840x2160 Direct LED - Quad Core 4K 50Hz / 100Hz TruMotion HDR10 Pro / HGiG - - - - True Color Accuracy Advanced Color Enhancer FilmMaker Mode Audio 2.0 / 20W Ultra Surround - AI Sound AI Acoustic Tuning Clear Voice III 1x TNT / Cable / Satellite tuner PVR + TimeShift WebOS 5.0 Google Assist. / Alexa / ThinQ Search and voice recognition Voice control Remote control Speech-to-Text / Telec. Universal Home Dashboard / HomeKit Wi-Fi / Bluetooth 4x HDMI 2.0 ARC / 2x USB Light Black Pearl / Crescent Base Magic Remote (MR20)

4K 3840x2160 Direct LED - Alpha 7 Gen 3 4K 100Hz / 200Hz TruMotion HDR10 Pro / HGiG / Dolby Vision IQ AI Picture - 4K HFR Ultra Luminance True Color Accuracy Advanced Color Enhancer FilmMaker Mode Audio 2.0 / 20W Ultra Surround Dolby Atmos AI Sound AI Acoustic Tuning Clear Voice III 1x TNT / Cable / Satellite tuner PVR + TimeShift WebOS 5.0 Google Assist. / Alexa / ThinQ Search and voice recognition Voice control Remote control Speech-to-Text / Telec. Universal Home Dashboard / HomeKit Wi-Fi / Bluetooth 4x HDMI 2.0 / 2.1 eARC / 3x USB Iron Gray / Bipolar Base Magic Remote (MR20)

4K 3840x2160 Direct LED NanoCell Display / Color Quad Core 4K 50Hz / 100Hz TruMotion HDR10 Pro / HGiG - - - - True Color Accuracy Advanced Color Enhancer FilmMaker Mode Audio 2.0 / 20W Ultra Surround - AI Sound AI Acoustic Tuning Clear Voice III 1x TNT / Cable / Satellite tuner PVR + TimeShift WebOS 5.0 Google Assist. / Alexa / ThinQ Search and voice recognition Voice control Remote control Speech-to-Text / Telec. Universal Home Dashboard / HomeKit Wi-Fi / Bluetooth 3x HDMI 2.0 ARC / 2x USB Dark Meteor Titan / Crescent Base Magic Remote (MR20)

4K 3840x2160 Edge LED / Local Dimming NanoCell Display / Color Quad Core 4K 50Hz / 100Hz TruMotion HDR10 Pro / HGiG - - - Ultra Luminance True Color Accuracy Advanced Color Enhancer FilmMaker Mode Audio 2.0 / 20W Ultra Surround - AI Sound AI Acoustic Tuning Clear Voice III 1x TNT / Cable / Satellite tuner PVR + TimeShift WebOS 5.0 Google Assist. / Alexa / ThinQ Search and voice recognition Voice control Remote control Speech-to-Text / Telec. Universal Home Dashboard / HomeKit Wi-Fi / Bluetooth 4x HDMI 2.0 ARC / 2x USB Black / Bipolar base Magic Remote (MR20)

K 3840x2160 Edge LED / Local Dimming NanoCell Display / Color Quad Core 4K 50Hz / 100Hz TruMotion HDR10 Pro / HGiG - - - Ultra Luminance True Color Accuracy Advanced Color Enhancer FilmMaker Mode Audio 2.0 / 20W Ultra Surround - AI Sound AI Acoustic Tuning Clear Voice III 1x TNT / Cable / Satellite tuner PVR + TimeShift WebOS 5.0 Google Assist. / Alexa / ThinQ Search and voice recognition Voice control Remote control Speech-to-Text / Telec. Universal Home Dashboard / HomeKit Wi-Fi / Bluetooth 4x HDMI 2.0 ARC / 2x USB Black / Crescent Base Magic Remote (MR20)

4K 3840x2160 Edge LED / Local Dimming NanoCell Display / Color Alpha 7 Gen 3 4K 100Hz / 200Hz TruMotion HDR10 Pro / HGiG / Dolby Vision IQ AI Picture AMD FreeSync 4K HFR Ultra Luminance True Color Accuracy Advanced Color Enhancer FilmMaker Mode Audio 2.0 / 20W Ultra Surround Dolby Atmos AI Sound AI Acoustic Tuning Clear Voice III 1x TNT / Cable / Satellite tuner PVR + TimeShift WebOS 5.0 Google Assist. / Alexa / ThinQ Search and voice recognition Voice control Remote control Speech-to-Text / Telec. Universal Home Dashboard / HomeKit Wi-Fi / Bluetooth 4x HDMI 2.0 / 2.1 eARC / 3x USB Black / Crescent Base Magic Remote (MR20)

4K 3840x2160 Slim Direct LED / Full Array Dimming NanoCell Display Pro / Color Alpha 7 Gen 3 4K 100Hz / 200Hz TruMotion HDR10 Pro / HGiG / Dolby Vision IQ AI Picture AMD FreeSync 4K HFR Ultra Luminance True Color Accuracy Advanced Color Enhancer FilmMaker Mode Audio 2.2 / 40W (2.0 / 20W [55/65 "]) Ultra Surround Dolby Atmos AI Sound AI Acoustic Tuning Clear Voice III 1x TNT / Cable / Satellite tuner PVR + TimeShift WebOS 5.0 Google Assist. / Alexa / ThinQ Search and voice recognition Voice control Remote control Speech-to-Text / Telec. Universal Home Dashboard / HomeKit Wi-Fi / Bluetooth 4x HDMI 2.0 / 2.1 eARC / 3x USB Light Black / Bipolar Base Magic Remote (MR20)

4K 3840x2160 Slim Direct LED / Full Array Dimming NanoCell Display Pro / Color Alpha 7 Gen 3 4K 100Hz / 200Hz TruMotion HDR10 Pro / HGiG / Dolby Vision IQ AI Picture AMD FreeSync 4K HFR Ultra Luminance True Color Accuracy Advanced Color Enhancer FilmMaker Mode Audio 2.2 / 40W (2.0 / 20W [55/65 "]) Ultra Surround Dolby Atmos AI Sound AI Acoustic Tuning Clear Voice III 1x TNT / Cable / Satellite tuner PVR + TimeShift WebOS 5.0 Google Assist. / Alexa / ThinQ Search and voice recognition Voice control Remote control Speech-to-Text / Telec. Universal Home Dashboard / HomeKit Wi-Fi / Bluetooth 4x HDMI 2.0 / 2.1 eARC / 3x USB Light Black / Crescent Base Magic Remote (MR20)

8K 7680x4320 Slim Direct LED / Full Array Dimming NanoCell Display Pro / Color Alpha 9 Gen 3 8K 50Hz / 100Hz TruMotion HDR10 Pro / HGiG / Dolby Vision IQ AI Picture Pro - 4K HFR Ultra Luminance True Color Accuracy Advanced Color Enhancer FilmMaker Mode 2.2 / 40W audio Ultra Surround Dolby Atmos AI Sound Pro AI Acoustic Tuning Clear Voice IV 1x TNT / Cable / Satellite tuner PVR + TimeShift WebOS 5.0 Google Assist. / Alexa / ThinQ Search and voice recognition Voice control Remote control Speech-to-Text / Telec. Universal Home Dashboard / HomeKit Wi-Fi / Bluetooth 4x HDMI 2.0 / 2.1 eARC / 3x USB Light Black / Bipolar Base Magic Remote (MR20)

8K 7680x4320 Slim Direct LED / Full Array Dimming Pro NanoCell Display Pro / Color Alpha 9 Gen 3 8K 50Hz / 100Hz TruMotion HDR10 Pro / HGiG / Dolby Vision IQ AI Picture Pro - 4K HFR Ultra Luminance Pro True Color Accuracy Advanced Color Enhancer FilmMaker Mode 4.2 / 60W audio Ultra Surround Dolby Atmos AI Sound Pro AI Acoustic Tuning Clear Voice IV 1x TNT / Cable / Satellite tuner PVR + TimeShift WebOS 5.0 Google Assist. / Alexa / ThinQ Search and voice recognition Voice control Remote control Speech-to-Text / Telec. Universal Home Dashboard / HomeKit Wi-Fi / Bluetooth 4x HDMI 2.0 / 2.1 eARC / 3x USB Light Black / Bipolar Base Magic Remote (MR20)

4K 3840x2160 OLED - Alpha 7 Gen 3 4K 100Hz HDR10 Pro / HGiG / Dolby Vision IQ AI Picture AMD FreeSync / NVidia GSync 4K HFR Ultra Luminance Pro True Color Accuracy Advanced Color Enhancer FilmMaker Mode 2.2 / 40W audio OLED Surround Dolby Atmos AI Sound AI Acoustic Tuning Clear Voice III 1x TNT / Cable / Satellite tuner PVR + TimeShift WebOS 5.0 Google Assist. / Alexa / ThinQ Search and voice recognition Voice control Remote control Speech-to-Text / Telec. Universal Home Dashboard / HomeKit Wi-Fi / Bluetooth 4x HDMI 2.0 / 2.1 eARC / 3x USB Picture On Metal / Alpine Basic Base Magic Remote (MR20)

4K 3840x2160 OLED - Alpha 9 Gen 3 4K 100Hz HDR10 Pro / HGiG / Dolby Vision IQ AI Picture Pro AMD FreeSync / NVidia GSync 4K HFR Ultra Luminance Pro True Color Accuracy Pro Advanced Color Enhancer FilmMaker Mode 2.2 / 40W audio OLED Surround Dolby Atmos AI Sound Pro AI Acoustic Tuning Clear Voice IV 1x TNT / Cable / Satellite tuner PVR + TimeShift WebOS 5.0 Google Assist. / Alexa / ThinQ Search and voice recognition Voice control Remote control Speech-to-Text / Telec. Universal Home Dashboard / HomeKit Wi-Fi / Bluetooth 4x HDMI 2.0 / 2.1 eARC / 3x USB Picture On Metal / Alpine Slim Base Magic Remote (MR20)

4K 3840x2160 OLED - Alpha 9 Gen 3 4K 100Hz HDR10 Pro / HGiG / Dolby Vision IQ AI Picture Pro AMD FreeSync / NVidia GSync 4K HFR Ultra Luminance Pro True Color Accuracy Pro Advanced Color Enhancer FilmMaker Mode 4.2 / 60W audio OLED Surround Dolby Atmos AI Sound Pro AI Acoustic Tuning Clear Voice IV 1x TNT / Cable / Satellite tuner PVR + TimeShift WebOS 5.0 Google Assist. / Alexa / ThinQ Search and voice recognition Hands Free Voice Control Speech-to-Text / Telec. Universal Home Dashboard / HomeKit Wi-Fi / Bluetooth 4x HDMI 2.0 / 2.1 eARC / 3x USB Design Gallery / NO plinth Magic Remote (MR20)

4K 3840x2160 OLED - Alpha 9 Gen 3 4K 100Hz HDR10 Pro / HGiG / Dolby Vision IQ AI Picture Pro - 4K HFR Ultra Luminance Pro True Color Accuracy Pro Advanced Color Enhancer FilmMaker Mode 4.2 / 60W audio OLED Surround Dolby Atmos AI Sound Pro AI Acoustic Tuning Clear Voice IV 2x TNT / Cable / Satellite tuner PVR + TimeShift WebOS 5.0 Google Assist. / Alexa / ThinQ Search and voice recognition Hands Free Voice Control Speech-to-Text / Telec. Universal Home Dashboard / HomeKit Wi-Fi / Bluetooth 4x HDMI 2.0 / 2.1 eARC / 3x USB Wallpaper Design / Base Soundbar Magic Remote (MR20)

8K 7680x4320 OLED - Alpha 9 Gen 3 8K 100Hz HDR10 Pro / HGiG / Dolby Vision IQ AI Picture Pro AMD FreeSync / NVidia GSync 4K HFR Ultra Luminance Pro True Color Accuracy Pro Advanced Color Enhancer FilmMaker Mode 4.2 / 80W audio OLED Surround Dolby Atmos AI Sound Pro AI Acoustic Tuning Clear Voice IV 2x TNT / Cable / Satellite tuner PVR + TimeShift WebOS 5.0 Google Assist. / Alexa / ThinQ Search and voice recognition Hands Free Voice Control Speech-to-Text / Telec. Universal Home Dashboard / HomeKit Wi-Fi / Bluetooth 4x HDMI 2.0 / 2.1 eARC / 3x USB Design Gallery / Sculpture Signature Magic Remote (PM20)

Variation: 73006 Series: Iron Gray 73906 Series: White

Legend :
€’BLACK writing : the functionality is different compared to the left column (model of the previous series)
€’GRAY writing : the functionality is identical to that of the left column (model of the previous series)
€’RED writing : the functionality is special for this year (either new or rare etc.)



[xavito]

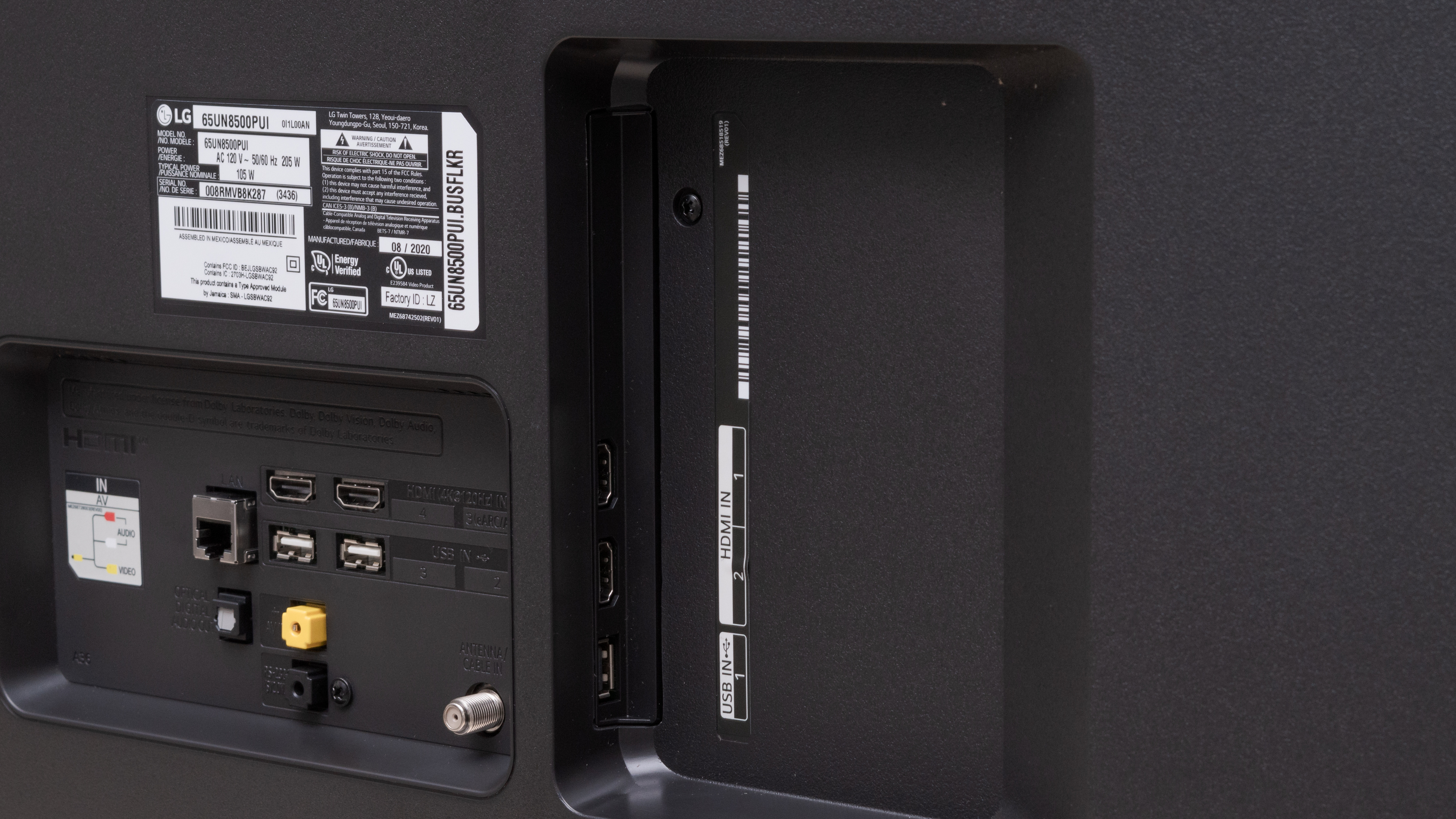

65"...[rtings.com]...LG 65UN8500PUI review...https://www.rtings.com/tv/reviews/lg/un8500

ADS (Advanced Dimension Switching) panel like most other entry-level LG TVs, which is technically different from an IPS panel, but the two perform very similarly.

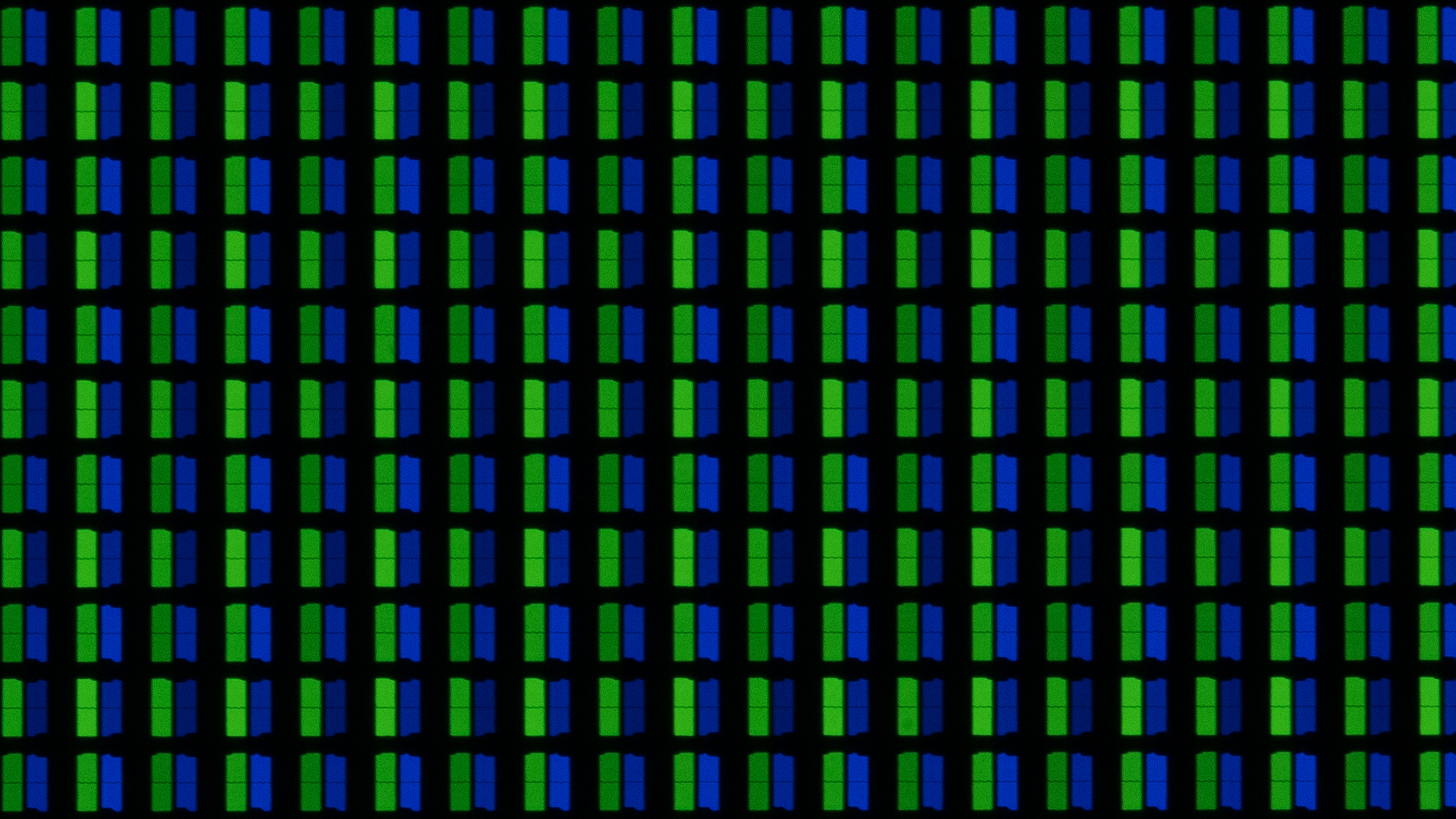

On this panel, the green pixels have a different shape than the blue and red pixels, and they look different than the green pixels on the LG NANO81.

The green and blue pixels also have a strange dimming effect where every second row has bright green and dim blue pixels, and the other rows have dim green and bright blue pixels.

100/120Hz με MCFI



[xavito]

65"...[hdtvtest.co.uk]...LG 65NANO906NA review

We review the LG Nano90 4K LED LCD television, which is basically half the price of the South Korean brand's CX OLED. It is a 2020 Nanocell TV, featuring an Alpha 7 gen 3 chipset, Dolby Vision compatibility, as well as two HDMI 2.1 ports with support for ALLM, VRR, eARC and 4k@120Hz.

Topics covered including:
contrast performance,
local dimming,
colour accuracy,
motion performance,
video processing,
screen uniformity,
HDR including Dolby Vision,
as well as gaming including 4K@120fps VRR in HDR.

Our review sample is the 65-inch LG 65NANO906NA which is the UK three-pin-plug version.

https://www.youtube.com/watch?v=lf09EfXgSxY

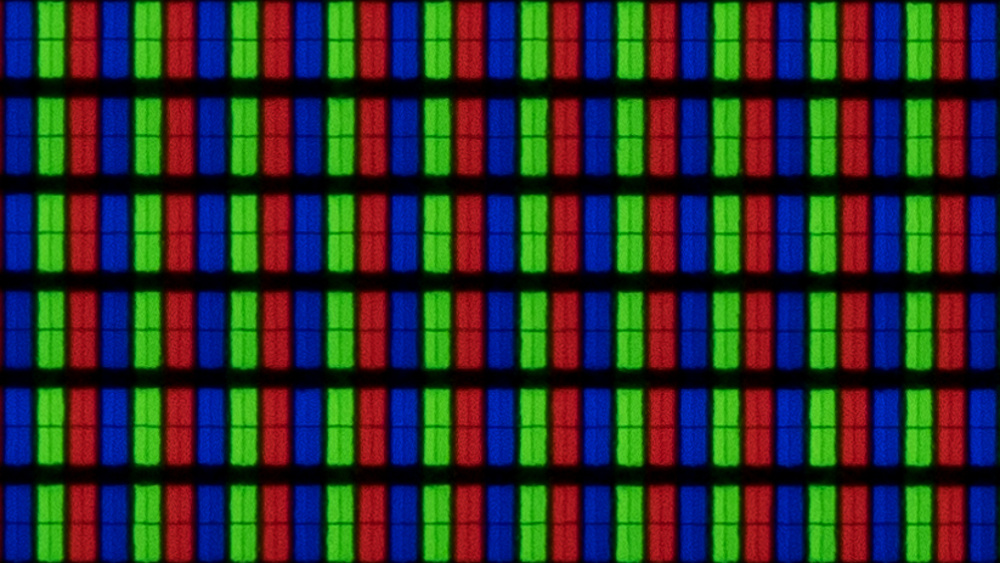

IPS panel RGB true 4K-vertical stripe,
D-LED LCD,F.A.L.D. : 4 x 8 (32 backlight zones)
WCG : (aka NanoCell Display)
a7 gen3:K6HP chip
100/120Hz με MCFI+αναβόσβησμα του οπίσθιου φωτισμού

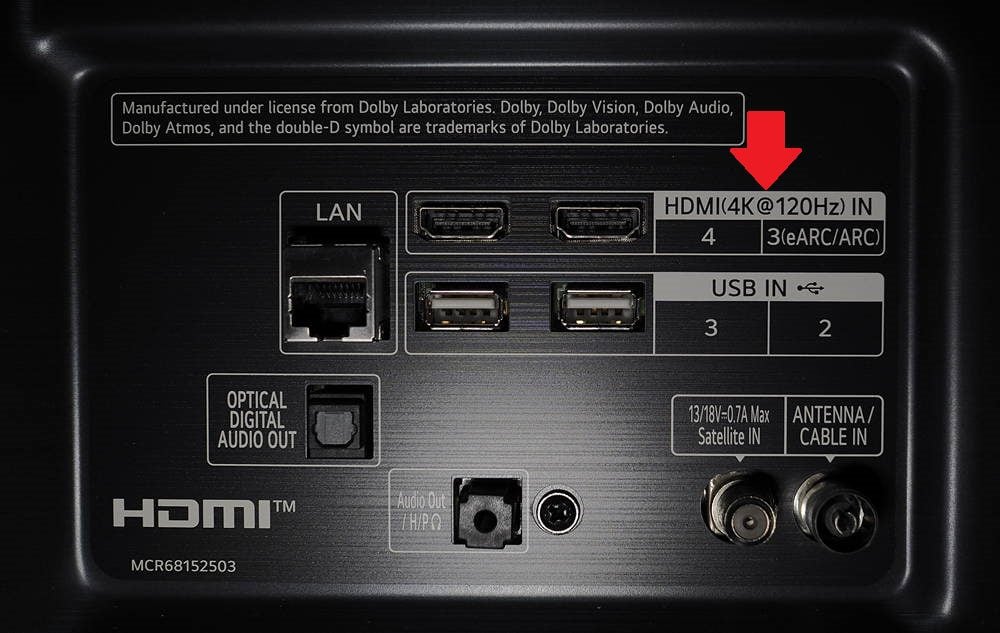

HDMI 2.1 (3,4):full bandwidth of 48Gbits/s
webOS 5.0

Native ANSI blacks was 0.11 cd/m2 if peak white was set at 120 cd/m2 with local dimming disabled.Contrast ratio 1091:1
Native ANSI blacks was 0.1 cd/m2 if peak white was set at 120 cd/m2 with local dimming engaged even on the high setting.Contrast ratio 1200:1
DCI-P3 colour gamut coverage : 92,6% uv
Rec.2020 colour gamut coverage : 68,7%
HDReak Brightness on a 10% window: 465 nits , after calibration to D65 white point,
Full-field: 361 nits



[papasouzakias]

Πωλείται ήδη από το Πλαίσιο (www.plaisio.gr/lg-nanocell-tv-50nano796-50-4k-ultra-hd_3559238) ένα νέο μοντέλο της LG με NanoCell technology στις 50 ίντσες. Είναι η LG 50NANO796. Σύμφωνα με ρωσικά φόρουμ που μίλησαν με αντιπρόσωπο του εργοστασίου της LG πρόκειται για VA panel από τρίτο κατασκευαστή http://webos-forums.ru/post110757.html#p110757. Αν ισχύει τότε θα είναι η πρώτη φορά που η LG δίνει τη τεχνολογία nanoCell σε τρίτο κατασκευαστή.



[xavito]

We compare LG's Nanocell TV vs the company's own OLED TV.

The review samples used were both 65-inch TVs, namely the LG Nano90 Nanocell LED LCD TV (model number 65NANO906NA) , and the LG CX OLED television (OLED65CX).
Topics covered include :

black level performance,
colour accuracy,
motion handling,
video processing,
screen uniformity,
HDR,
gaming,
viewing angles,
reflectivity
and image retention.

65"...[hdtvtest.co.uk]...LG 65NANO906NA vs LG 65CX

https://www.youtube.com/watch?v=L6wifpbBSbo

65NANO906NA :IPS panel F.A.L.D. LED LCD
65CX : WRGB OLED



[john_shadow]

Re: LG UM7450PLA : Reviews - Εντυπώσεις - Σχόλια

καλημέρα στην παρέα,
ερώτηση, πλέον οι LG (49,55,κτλ) έχουν RGB panels αντί για RGBW που βάζανε;;



[hristoslav2]

Απάντηση: Re: LG UM7450PLA : Reviews - Εντυπώσεις - Σχόλια



[papasouzakias]

Με αφορμή την κυκλοφορία στην Ελλάδα της LG 50NANO796NE, μπορούμε να εξακριβώσουμε τον τύπο του πάνελ από τους κωδικούς στη πλάτη της τηλεόρασης.

Από το αντίστοιχο ρωσικό μοντέλο ανέβασαν φωτογραφία από τη πλάτη της τηλεόρασης.

Ο κωδικός της τηλεόρασης είναι 50NANO796NF.BRUJLJU

Τα γράμματα JL δείχνουν ότι το πάνελ είναι S-MVA κατασκευασμένο από τη CHI MEI Optoelectronics.

Τα υπόλοιπα γράμματα δείχνουν ότι η τηλεόραση κατασκευάστηκε στη Ρωσία για την αγορά της Ρωσίας:

50: 50"
ΝΑΝΟ: 2020 model year
79: UHD LCD with Quantum Dots film - 50Hz
JL: S-MVA panel CHI MEI Optoelectronics
JU: Made in Russia
B: TV Board made in Russia
RU: TV made for the Russian Market


http://webos-forums.ru/topic6400-20.html
https://forum.setcombg.com/lg-Ρ‚ΠϴΠ...ΈΠ½Ρ„ΠΎ-Π½Π°-ΠΏΡŠΡ€Π²Π°-страница.html
http://webos-forums.ru/topic3195.html



[xavito]

55"...[hifi.de]...LG 55BX9LB test...https://hifi.de/test/lg-oled-bx-im-test-55bx9-39011



[hristoslav2]

​

LG	32"	43"	49"	50"	55"	60"	65"	70"	75"	82"	86"
NANO99							IPS		IPS
NANO95					IPS		IPS		IPS
NANO91					IPS		IPS
NANO90					IPS		IPS		IPS		IPS
NANO85/86			IPS		IPS		IPS
NANO80/81			IPS		IPS		IPS
NANO79		IPS		MVA	IPS		IPS		IPS
UN85							IPS		IPS	MVA	IPS
UN81		IPS		MVA	IPS		IPS		IPS
UN80		IPS		MVA	IPS		IPS		IPS	MVA	IPS
UN74		IPS	IPS	MVA	IPS		IPS	MVA
UN73		IPS	IPS	MVA	IPS	MVA	IPS
UN71		IPS	IPS	MVA	IPS	MVA	IPS	MVA	IPS
UN70		IPS		MVA	IPS		IPS
LM63	IPS	IPS
LM62	IPS
LM57	IPS	IPS
LN56	IPS	IPS

50" - A-MVA (AUO)
60" - UV2A (SHARP)
70" - UV2A (SHARP)



[xavito]

65"...[hdtvtest.co.uk]...LG 65NANO906NA vs Samsung QE65Q90T

IPS LCD panel vs VA LCD panel with viewing angle compensation film.


We compare LG 65NANO906NA vs Samsung QE65Q90T .

Topics covered include:
black level performance,
colour accuracy,
motion handling,
video processing,
screen uniformity,
HDR including Dolby Vision,
gaming,
viewing angles
and reflectivity.

https://www.youtube.com/watch?v=REJplBJVp9E
source:[hdtvtest.co.uk]



[Lobo10]

LG Electronics and Microsoft Xbox team up to promote LG OLED + Series X as "next-gen gaming experience"...https://www.flatpanelshd.com/news.php?subaction=showfull&id=1605688808


source:[flatpanelshd.com]

by xavito
----------------------


https://www.purexbox.com/news/2020/11/lg_oled_tv_becomes_an_official_tv_partner_of_the_xbox_series_x

Στάλθηκε από το SM-N975F μου χρησιμοποιώντας Tapatalk



[xavito]

55"...[geex.x-kom.pl]...LG 55NANO913NA review...https://geex.x-kom.pl/recenzje/unikat-test-i-recenzja-telewizora-lg-55nano913na/

μετάφραση google pl to en

55NANO913:IPS panel

HDR

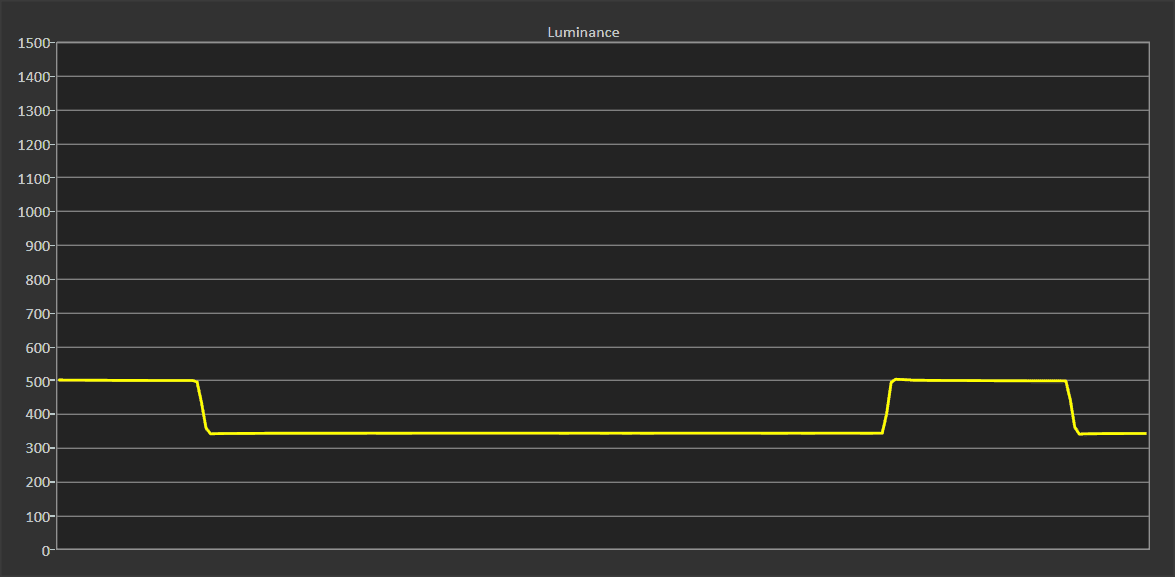

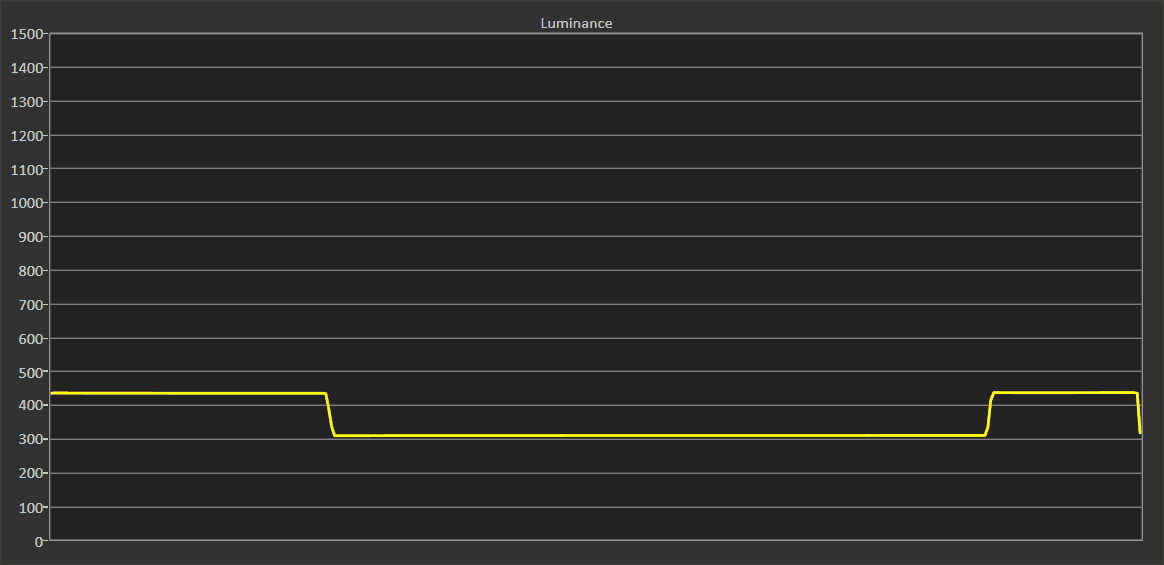

In HDR mode, on the 10% board, the maximum luminance after three minutes of measurement was 308 cd / m ^ 2 and unfortunately it changed during the measurement.

This behavior of the TV is due to the deliberate distortion of the LEDs, which leads to an increase in their temperature, which, of course, must be cooled afterwards. The instability of the brightness over time is of course one thing, while the low brightness in the dimple and only the average at the top are two more arguments supporting the claim that the domain of 55NANO913 should be SDR content - it will simply perform much better on them.

Finally, I would like to point out that it is worth turning off the dynamic tone mapping function , because it gives a too dark image.
