Nέα προϊόντα Hi End εταιρειών.
- Thread starter DIPIE
- Start date
Ανδρεας Σχιζας
AVClub Addicted Member
Ανδρεας Σχιζας
AVClub Addicted Member
VALVET
Soulshine ($5290)
blocks A3.5 ($5000 pr)
....(1)
....inputs: 5 high level inputs (Eichmann phonopod RCA), input impedance 100 KOhm, 1x XLR possible
amplification: 8x, 18dB,
max. output > 50 Volts,
output impedance 400 Ohm,
3 outputs (Eichmann phonopod RCA) OUT1/OUT2/RECOUT, 1x XLR possible
power supply: external solid state power supply, 50VA
dimensions:
444 x 50 x 306 mm (17.5 x 2 x 12 inches) WxHxD - Pre-amp;
170 x 50 x 306 mm (6.7 x 2 x 12 inches) WxHxD - power supply
....(2)
....amplification: 50 watts into 8 Ohm, 90 watts into 4 Ohm, Class A
transformer: 300VA each mono-block
filtering: 100,000 #65397;F filtering each mono-block
dimensions: 230 x 80 x 310 mm (9 x 3.1 x 12.2 inches) WxHxD each mono-block
(στα κουτια εχετε επιλογες)
Soulshine ($5290)
blocks A3.5 ($5000 pr)
....(1)
....inputs: 5 high level inputs (Eichmann phonopod RCA), input impedance 100 KOhm, 1x XLR possible
amplification: 8x, 18dB,
max. output > 50 Volts,
output impedance 400 Ohm,
3 outputs (Eichmann phonopod RCA) OUT1/OUT2/RECOUT, 1x XLR possible
power supply: external solid state power supply, 50VA
dimensions:
444 x 50 x 306 mm (17.5 x 2 x 12 inches) WxHxD - Pre-amp;
170 x 50 x 306 mm (6.7 x 2 x 12 inches) WxHxD - power supply
....(2)
....amplification: 50 watts into 8 Ohm, 90 watts into 4 Ohm, Class A
transformer: 300VA each mono-block
filtering: 100,000 #65397;F filtering each mono-block
dimensions: 230 x 80 x 310 mm (9 x 3.1 x 12.2 inches) WxHxD each mono-block
(στα κουτια εχετε επιλογες)
Attachments
Ανδρεας Σχιζας
AVClub Addicted Member
VALVET
Blocks L2, P2 , P2c Pre-Amplifiers
...Pre-Amplifier blocks L2:
inputs: 6 high level inputs (RCA), input impedance 100 kOhm
amplification: 10x, maximum output > 10 Volts, output impedance 2.5 kOhm, 2 outputs (RCA) (either OUT + REC or OUT 1 + OUT 2 for bi-amping)
dimensions: 445 x 45 x 230 mm (17.5 x 1.8 x 9 inches) WxHxD - Pre-amp; 120 x 60 x 320 mm (4.7 x 2.35 x 12.6 inches) WxHxD - tube power supply
remote control: yes, volume control
volume control: Alps motorized potentiometer
case: black powder coated, steel base plate, the rest aluminum
front: 10 mm, silver anodized, deep chromed brass at extra charge
sound: not the dull valve sound of the 50s; but open, clear, dynamic with an impressive bass and gorgeous timbre
price: USD 3,340.-
....Pre-Amplifier blocks P2:
inputs: excellent MM phono input (no negative feedback) + 4 high level inputs (RCA), input impedance 47 KOhm II 100 pF Phono, 100 KOhm Line
amplification: 45 db (Phono) plus 20 dB (Line), maximum output > 10 Volts, output impedance 2.5 kOhm (either OUT + REC or OUT 1 + OUT 2 for bi-amping)
dimensions: 445 x 45 x 230 mm (17.5 x 1.8 x 9 inches) WxHxD - Pre-amp; 120 x 60 x 320 mm (4.7 x 2.35 x 12.6 inches) WxHxD - tube power supply
remote control: yes, volume control
volume control: Alps motorized potentiometer
case: black powder coated, steel base plate, the rest aluminum
front: 10 mm, silver anodized, deep chromed brass at extra charge
sound: not the dull valve sound of the 50s but open, clear, dynamic with clean bass. Sensational musicality through the Phono input!
price: USD 4,165.-
....Pre-Amplifier blocks P2c:
exactely like the P2 but with an additional MC pure silver transformer
price: USD 4,990.-
...
Blocks L2, P2 , P2c Pre-Amplifiers
...Pre-Amplifier blocks L2:
inputs: 6 high level inputs (RCA), input impedance 100 kOhm
amplification: 10x, maximum output > 10 Volts, output impedance 2.5 kOhm, 2 outputs (RCA) (either OUT + REC or OUT 1 + OUT 2 for bi-amping)
dimensions: 445 x 45 x 230 mm (17.5 x 1.8 x 9 inches) WxHxD - Pre-amp; 120 x 60 x 320 mm (4.7 x 2.35 x 12.6 inches) WxHxD - tube power supply
remote control: yes, volume control
volume control: Alps motorized potentiometer
case: black powder coated, steel base plate, the rest aluminum
front: 10 mm, silver anodized, deep chromed brass at extra charge
sound: not the dull valve sound of the 50s; but open, clear, dynamic with an impressive bass and gorgeous timbre
price: USD 3,340.-
....Pre-Amplifier blocks P2:
inputs: excellent MM phono input (no negative feedback) + 4 high level inputs (RCA), input impedance 47 KOhm II 100 pF Phono, 100 KOhm Line
amplification: 45 db (Phono) plus 20 dB (Line), maximum output > 10 Volts, output impedance 2.5 kOhm (either OUT + REC or OUT 1 + OUT 2 for bi-amping)
dimensions: 445 x 45 x 230 mm (17.5 x 1.8 x 9 inches) WxHxD - Pre-amp; 120 x 60 x 320 mm (4.7 x 2.35 x 12.6 inches) WxHxD - tube power supply
remote control: yes, volume control
volume control: Alps motorized potentiometer
case: black powder coated, steel base plate, the rest aluminum
front: 10 mm, silver anodized, deep chromed brass at extra charge
sound: not the dull valve sound of the 50s but open, clear, dynamic with clean bass. Sensational musicality through the Phono input!
price: USD 4,165.-
....Pre-Amplifier blocks P2c:
exactely like the P2 but with an additional MC pure silver transformer
price: USD 4,990.-
...
Attachments
Ανδρεας Σχιζας
AVClub Addicted Member
VALVET
L1 Pre-Amplifier
A1r Power-Amplifier
...(1)
...inputs: 4 high level inputs (RCA), input impedance 100 KOhm
amplification: 2 outputs (RCA), output impedance 2.5 KOhm (choice of OUT + REC or OUT1 + OUT2 for bi-amping)
power supply: external power supply with tube rectification
dimensions: 120 x 60 x 320 mm (4.7 x 2.35 x 12.6 inches) WxHxD, same dimension for the tube power supply
remote control: no
volume control: Alps potentiometer
case: black or silver anodized, solid extruded aluminum profiles
front: silver or black anodized, chromed and polished brass at extra charge
sound: not the dull valve sound of the 50s; open, clear, dynamic with good bass foundation and gorgeous timbre
price: USD 2,290.- (surcharge for remote volume control USD 220.-)
...(2)
...connection: Massive RCA input socket, input impedance 50 KOhm, massive binding-posts for speaker connection, IEC mains socket
amplification: 25 Watts into 8 Ohms, 40 Watts into 4 Ohms, Class A
transformer: 80VA each mono-block
filtering: 60,000 #65397;F filtering each mono-block
dimensions: 120 x 60 x 400 mm (4.7 x 2.3 x 15.7 inches) WxHxD each mono-block
case: Black or silver anodized, solid extruded aluminum profiles
front: Black or silver anodized, chrome at extra charge, gentle backlit "V" in blue, red or green
sound: neutral/balanced with lots of power and control
price: USD 2,590.- a pair mono-blocks
...VALVET PDF..........http://www.highend-electronics.com/img/VALVET_PDF_109_Valvet.pdf
...............................http://www.highend-electronics.com/img/VALVET-L1-A1r-image-hifi-engl-translation.pdf
L1 Pre-Amplifier
A1r Power-Amplifier
...(1)
...inputs: 4 high level inputs (RCA), input impedance 100 KOhm
amplification: 2 outputs (RCA), output impedance 2.5 KOhm (choice of OUT + REC or OUT1 + OUT2 for bi-amping)
power supply: external power supply with tube rectification
dimensions: 120 x 60 x 320 mm (4.7 x 2.35 x 12.6 inches) WxHxD, same dimension for the tube power supply
remote control: no
volume control: Alps potentiometer
case: black or silver anodized, solid extruded aluminum profiles
front: silver or black anodized, chromed and polished brass at extra charge
sound: not the dull valve sound of the 50s; open, clear, dynamic with good bass foundation and gorgeous timbre
price: USD 2,290.- (surcharge for remote volume control USD 220.-)
...(2)
...connection: Massive RCA input socket, input impedance 50 KOhm, massive binding-posts for speaker connection, IEC mains socket
amplification: 25 Watts into 8 Ohms, 40 Watts into 4 Ohms, Class A
transformer: 80VA each mono-block
filtering: 60,000 #65397;F filtering each mono-block
dimensions: 120 x 60 x 400 mm (4.7 x 2.3 x 15.7 inches) WxHxD each mono-block
case: Black or silver anodized, solid extruded aluminum profiles
front: Black or silver anodized, chrome at extra charge, gentle backlit "V" in blue, red or green
sound: neutral/balanced with lots of power and control
price: USD 2,590.- a pair mono-blocks
...VALVET PDF..........http://www.highend-electronics.com/img/VALVET_PDF_109_Valvet.pdf
...............................http://www.highend-electronics.com/img/VALVET-L1-A1r-image-hifi-engl-translation.pdf
Attachments
Last edited:
Ανδρεας Σχιζας
AVClub Addicted Member
Boenicke W20 SE.........TEST........6moons
....http://www.6moons.com/audioreviews/boenicke/boenicke.html
...
....http://www.6moons.com/audioreviews/boenicke/boenicke.html
...
Attachments
Ανδρεας Σχιζας
AVClub Addicted Member
komhst
Banned
Ανδρεας Σχιζας
AVClub Addicted Member
......ναι! Ειδες η Altec?
Ανδρεας Σχιζας
AVClub Addicted Member
Audio Analogue
Eνα "ωραιο"...προσιτο σετ απο την Audio Analogue.
ROSSINI VT CD 2.0 ￥241,500
VERDI CENTO ￥325,500
http://www.naspec.co.jp/aa/aa-index.htm
Eνα "ωραιο"...προσιτο σετ απο την Audio Analogue.
ROSSINI VT CD 2.0 ￥241,500
VERDI CENTO ￥325,500
http://www.naspec.co.jp/aa/aa-index.htm
Attachments
Ανδρεας Σχιζας
AVClub Addicted Member
Ανδρεας Σχιζας
AVClub Addicted Member
Ανδρεας Σχιζας
AVClub Addicted Member

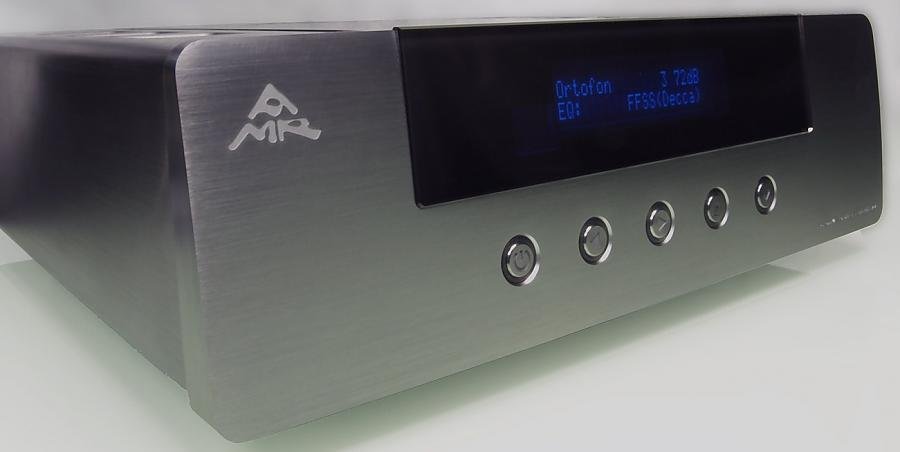

AMR
PH-77 (£5500)
Inputs: 3 x RCA selectable, 1 x RCA direct, 1 x RCA custom load
Gain: MC: 72, 66, 60, 54dB; MM: 48, 42, 36, 30dB + Mute
Load: MC: 47KOhm to 47Ohm in 32 Steps
MM: 47KOhm + 70pF to 680pF in 32 Steps
Frequency Response (-3dB): 12Hz - 95kHz
Signal-to-noise ratio #8220;A#8221; weighted: > 90 dB
Total Harmonic Dist. + Noise (THD+N): < 0.2%
Outputs: 1 x XLR L/R, 1 x RCA L/R, 1 x USB
Output impedance: RCA < 200 Ohm, XLR < 400 Ohm
Analog to Digital Converter: 24Bit/96KHz
Thermionic Electron Valves 2 X ECC81/12AT7 (NOS), 2 x 5687/6900 (NOS): amplification
EZ80/6V4 (NOS): rectifier stage
Power consumption: Standby: 10W Power on: 90W
Rated voltage: 100V/120V/230V~ AC 50Hz - 60Hz
Colour: Champagne or Titanium
Dimensions: 17.9in W by 6.2in H by 18.3in D
46cm W by 16cm H by 47cm D
62 cm W by 30cm H by 78cm D (shipped)
Weight: PH-77: 62 lbs/28 Kg
...
PH-77 (£5500)
Inputs: 3 x RCA selectable, 1 x RCA direct, 1 x RCA custom load
Gain: MC: 72, 66, 60, 54dB; MM: 48, 42, 36, 30dB + Mute
Load: MC: 47KOhm to 47Ohm in 32 Steps
MM: 47KOhm + 70pF to 680pF in 32 Steps
Frequency Response (-3dB): 12Hz - 95kHz
Signal-to-noise ratio #8220;A#8221; weighted: > 90 dB
Total Harmonic Dist. + Noise (THD+N): < 0.2%
Outputs: 1 x XLR L/R, 1 x RCA L/R, 1 x USB
Output impedance: RCA < 200 Ohm, XLR < 400 Ohm
Analog to Digital Converter: 24Bit/96KHz
Thermionic Electron Valves 2 X ECC81/12AT7 (NOS), 2 x 5687/6900 (NOS): amplification
EZ80/6V4 (NOS): rectifier stage
Power consumption: Standby: 10W Power on: 90W
Rated voltage: 100V/120V/230V~ AC 50Hz - 60Hz
Colour: Champagne or Titanium
Dimensions: 17.9in W by 6.2in H by 18.3in D
46cm W by 16cm H by 47cm D
62 cm W by 30cm H by 78cm D (shipped)
Weight: PH-77: 62 lbs/28 Kg
...
Attachments
Ανδρεας Σχιζας
AVClub Addicted Member

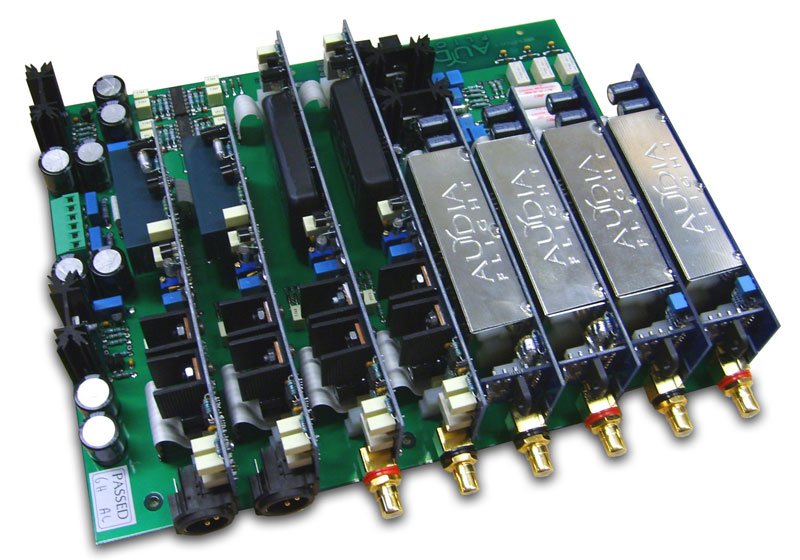

Audio Flight
Phono
...Gain MC 64 dB + 10 dB (74 dB in total) / MM 44 dB + 10 dB (54 dB in total)
Frequency response (1Wrsm, -3db) 5Hz - 120KHz
THD <0,05%
S/N ratio >90dB #8220;A#8221; weighted
RIAA accuracy +/- 0,1 dB
Channel Unbalance <0,04 dB
Stereo separation >95 dB @ 10 KHz
MC input impedance from 7 ohm to 980 ohm in eight step plus a custom resistor value
MM input impedance from 47pF to 600 pF in twelve step plus a custom capacitor value
Output impedance All outputs 500 ohm
Phase Non inverted
Maximum consumption 65W
Dimensions and weight 420x92x330mm (WxHxD), 10,5 Kg
...
Phono
...Gain MC 64 dB + 10 dB (74 dB in total) / MM 44 dB + 10 dB (54 dB in total)
Frequency response (1Wrsm, -3db) 5Hz - 120KHz
THD <0,05%
S/N ratio >90dB #8220;A#8221; weighted
RIAA accuracy +/- 0,1 dB
Channel Unbalance <0,04 dB
Stereo separation >95 dB @ 10 KHz
MC input impedance from 7 ohm to 980 ohm in eight step plus a custom resistor value
MM input impedance from 47pF to 600 pF in twelve step plus a custom capacitor value
Output impedance All outputs 500 ohm
Phase Non inverted
Maximum consumption 65W
Dimensions and weight 420x92x330mm (WxHxD), 10,5 Kg
...
Attachments
Ανδρεας Σχιζας
AVClub Addicted Member
T&C
T&C=True and Clear
Απο την Ρωσια με αγαπη!
....Pre2 ( 4900)
...AM250 ( 10400 pr)
...για AM250....Technical characteristics:number of channels: 1
balanced input: 1 XLR
unbalanced input: 1 RCA
frequency range: 0 - 200000 Hz
power output (4 Ohms): 250 Watt
minimum resistance: 2 Ohms
dimensions: 435x95x300
weight: 16 Kg
CD-transport/DAC player ...( 9850)
....Formats: CD, CD-R / RW
Analogue outputs: 1 pair RCA (unbalanced), 1 pair XLR (balanced)
Digital output: 1 x coaxial (RCA)
Digital inputs: 2 x coaxial (RCA), 1 x AES/EBU (XLR)
Audio-DAC: PCM 44.1 kHz/16 bit, 48 kHz/24 bit, 96 kHz/24 bit, 192 kHz/24 bit
Frequency range, Hz: 20-20000
Channel separation, dB:106
Nonlinear distortion coefficient: < 0,001 %
Precision of inner clock generator: < ±0.1 ppm
S/N Ratio, dB:109
Dimensions, mm: 435x95x300 x 2
Weight, kg: 30
....
http://www.tc-audio.com/en/map
T&C=True and Clear
Απο την Ρωσια με αγαπη!
....Pre2 ( 4900)
...AM250 ( 10400 pr)
...για AM250....Technical characteristics:number of channels: 1
balanced input: 1 XLR
unbalanced input: 1 RCA
frequency range: 0 - 200000 Hz
power output (4 Ohms): 250 Watt
minimum resistance: 2 Ohms
dimensions: 435x95x300
weight: 16 Kg
CD-transport/DAC player ...( 9850)
....Formats: CD, CD-R / RW
Analogue outputs: 1 pair RCA (unbalanced), 1 pair XLR (balanced)
Digital output: 1 x coaxial (RCA)
Digital inputs: 2 x coaxial (RCA), 1 x AES/EBU (XLR)
Audio-DAC: PCM 44.1 kHz/16 bit, 48 kHz/24 bit, 96 kHz/24 bit, 192 kHz/24 bit
Frequency range, Hz: 20-20000
Channel separation, dB:106
Nonlinear distortion coefficient: < 0,001 %
Precision of inner clock generator: < ±0.1 ppm
S/N Ratio, dB:109
Dimensions, mm: 435x95x300 x 2
Weight, kg: 30
....
http://www.tc-audio.com/en/map
Attachments
Ανδρεας Σχιζας
AVClub Addicted Member
Ανδρεας Σχιζας
AVClub Addicted Member
Dynaudio
Sapphire
Tωρα και σε....High-gloss white paint...:cool4:
...http://www.dynaudio.com/eng/index2.php
...πολυ τις μοδας εγινε!...
Sapphire
Tωρα και σε....High-gloss white paint...:cool4:
...http://www.dynaudio.com/eng/index2.php
...πολυ τις μοδας εγινε!...
Attachments
Ανδρεας Σχιζας
AVClub Addicted Member
komhst
Banned
CD-ROM υπολογιστή ATAPI... Ενδιαφέρον...
Τροφοδοσία αριστερά... Καλωδιοταινία στη μέση... Ωχ, αυτό το κιτρινόμαυρο στριφτό καλωδιάκι τι είναι; Δεν φαντάζομαι να είναι η αναλογική έξοδος του CD-ROM... Γιατί να υπάρχει αυτό εκεί; Αναρωτιέμαι τι θα συμβεί άμα το ξεσυνδέσω...
http://www.avclub.gr/forum/attachment.php?attachmentid=41166&d=1246704484
