Size and Weight

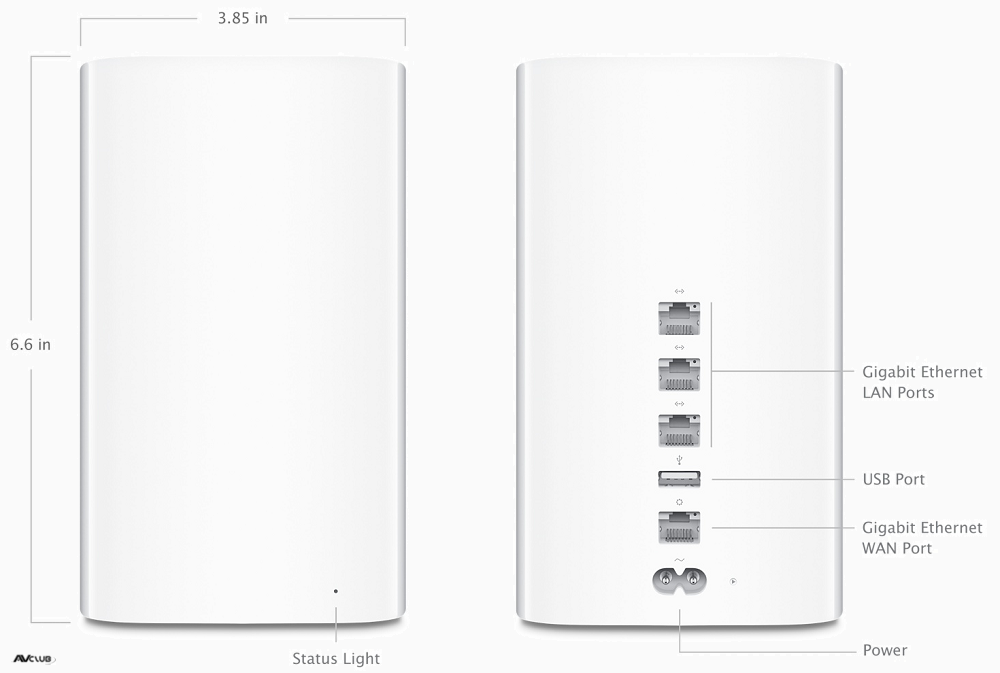

Dimensions: 3.85 inches (98 mm) by 3.85 inches (98 mm) by 6.6 inches (168 mm) Weight: 2.08 pounds (945 grams)Wireless
IEEE 802.11a/b/g/n/ac Six-element beamforming antenna array Simultaneous dual-band 2.4GHz and 5GHz Radio output power: 32.5 dBm maximum (varies by country) Channels 1-11, 36-48, and 149-165 approved for use in the United States and Canada Channels 1-13, 36-64, and 100-140 approved for use in Europe and Japan Channels 1-13, 36-64, and 149-165 approved for use in Australia, Hong Kong, and New ZealandCompatibility
Interoperable with 802.11a, 802.11b, 802.11g, 802.11n, and 802.11ac-enabled Mac computers, iOS devices,Apple TV, Windows-based PCs, and other Wi-Fi devices
NAT, DHCP, PPPoE, VPN Passthrough (IPSec, PPTP, and L2TP), DNS Proxy, IPv6 (6to4 and manual tunnels)Security
Wi‑Fi Protected Access™ (WPA/WPA2) WPA/WPA2 Enterprise MAC address filtering NAT firewall 802.1X, PEAP, LEAP, TTLS, TLS, FAST Time-based access controlInterfaces
Simultaneous dual-band 802.11ac wireless Gigabit Ethernet WAN port for connecting a DSL modem, cable modem, or Ethernet network USB 2 port for connecting a USB printer or hard drive Three Gigabit Ethernet LAN ports for connecting a computer, Ethernet hub, or networked printer Built-in power supplyNumber of Users
50Electrical and Environmental Requirements
100-240V AC, 50-60Hz; input current: 0.2 amp Operating temperature: 32° to 95° F (0° to 35° C) Storage temperature: -13° to 140° F (-25° to 60° C) Relative humidity (operating): 20% to 80%, noncondensing Maximum operating altitude: 10,000 feet Maximum storage altitude: 15,000 feetAgency Approval
FCC Part 15 Class B, Canada RSS-210, EN 300-328, EN 301-489, EN 301 893, ARIB STD-T66,RCR STD-T33, AS/NZS 4268: 2003, UL 60950, CSA-C22.2 No. 60950, GB 4943.1-2011
System Requirements
- Setup and Administration
iPhone, iPad, or iPod touch with iOS 5 or later and AirPort Utility 1.3 Mac with OS X Lion v10.7.5 or later and AirPort Utility 6.3- Wireless Device Access
Any Wi‑Fi-enabled device that uses the 802.11a/b/g/n/ac specification- Shared Printing with a USB Printer
USB printer Mac with OS X v10.2.7 or later PC with Windows XP (SP3), Windows Vista (SP2), Windows 7 (SP1), or Windows 8- Shared USB Hard Drive
Mac with OS X v10.4.8 or later PC with Windows XP (SP3), Windows Vista (SP2), Windows 7 (SP1), or Windows 8Software and Documentation
Printed documentation included AirPort Utility for Mac available for free download AirPort Utility for iOS available for free download Bonjour for Windows available for free downloadApple.com
