-Samsung TV Line-up 2024-

55"...[geex.x-kom.pl]...Samsung QE55S85D review...https://geex.x-kom.pl/recenzje/recenzja-samsung-55s85d/

via tvtest.pl

PontusM hardware platform
100/120Hz με MCFI
Made in Slovakia

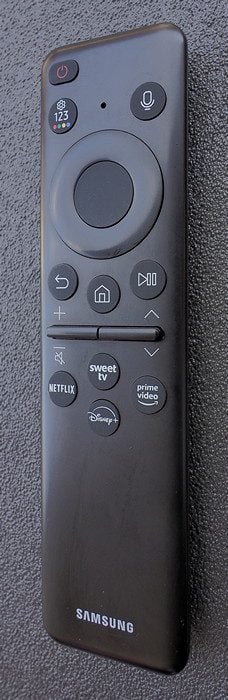

Remote control : model TM2360E

DCI-P3 (CIExy) coverage : 95%
HDR content :
In filmmaker (HDR) mode on the 10% board, the maximum luminance at the beginning of the three-minute measurement was 614 nits and increased to 624 nits within 180 seconds.

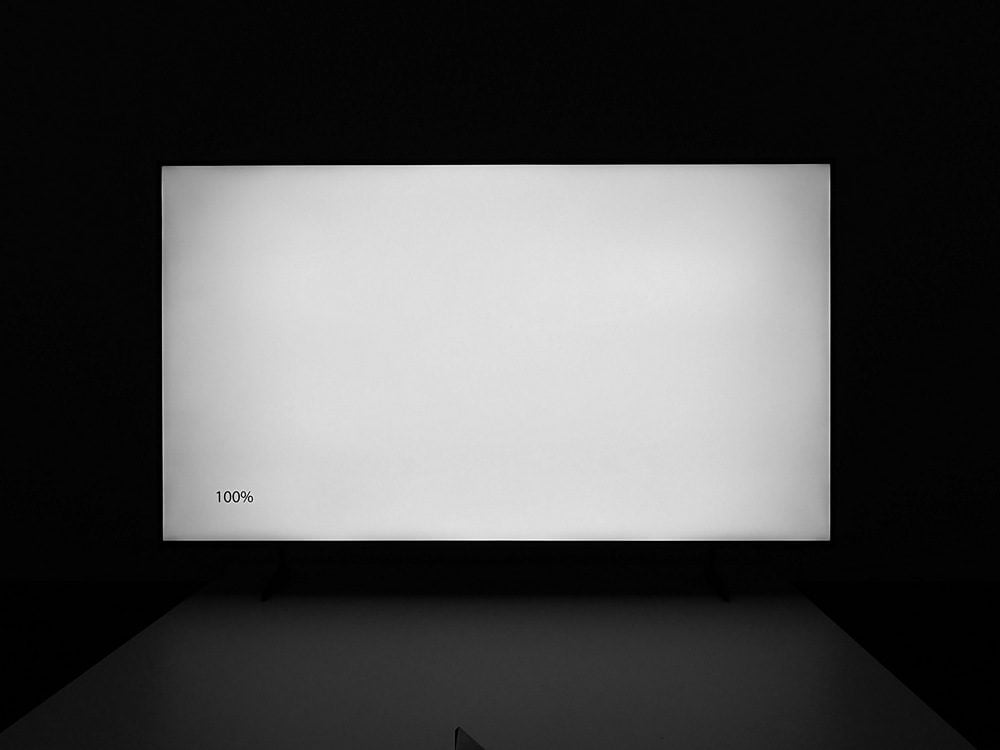

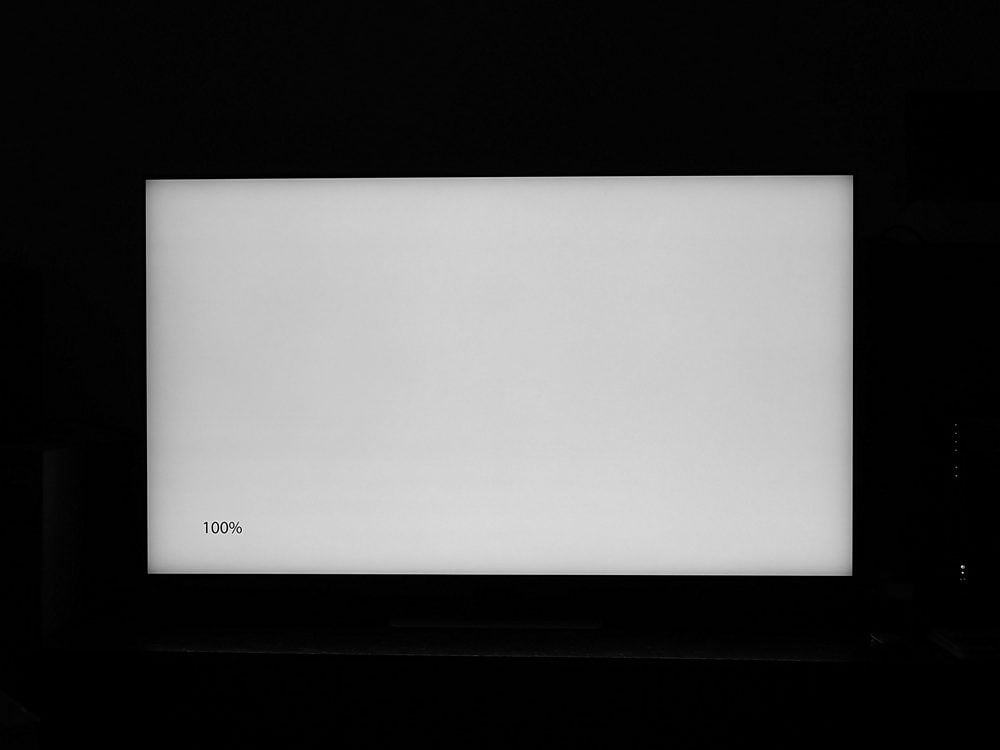

On the full-screen white board, the luminance was (as expected) much lower than in the 10% window and amounted to only 124 nits.

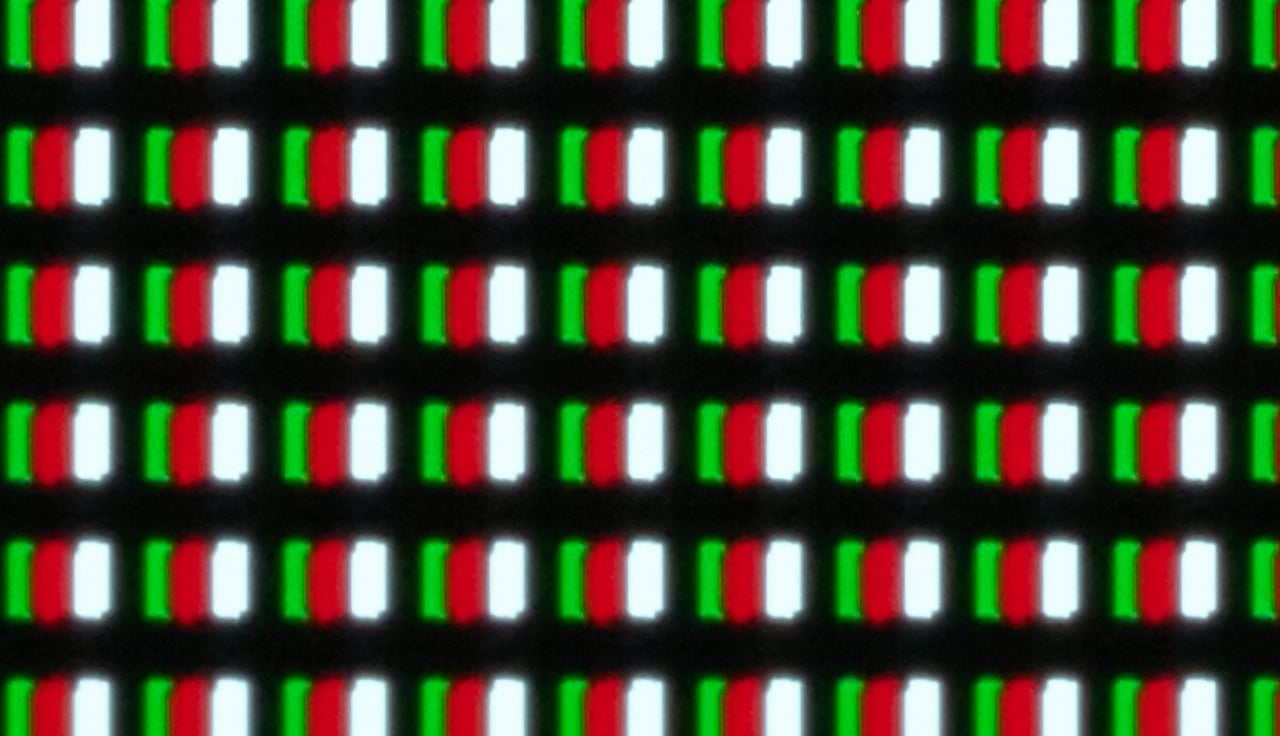

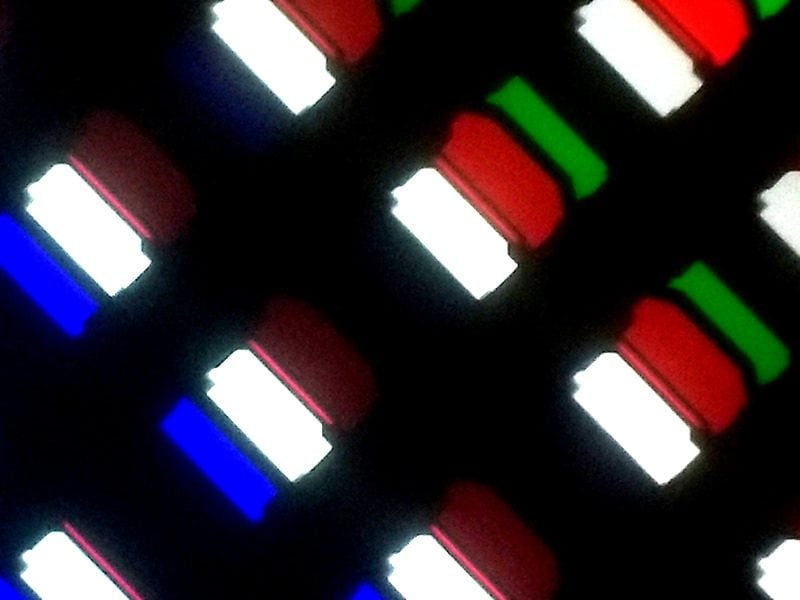

RGBW WOLED display from LG Display




----------

[flatpanelshd.com]...Samsung to bring its 'One UI' to tvs in 2025...https://www.flatpanelshd.com/news.php?subaction=showfull&id=1728304322

55"...[geex.x-kom.pl]...Samsung QE55S90D review...https://geex.x-kom.pl/recenzje/recenzja-samsung-55s90d/

Made in Hungary

RGBW WOLED panel by LG Display
100/120Hz με MCFI
PontusM hardware platform

In filmmaker (HDR) mode on the 10% board, the maximum luminance at the beginning of the three-minute measurement was 937 nits and increased to 1052 nits within 180 seconds.
the luminance in the 10% window 182 nits.



Explanation

Well, the type of panel is encoded in the full symbol of a given model: models with a WOLED panel from LG Display have the letter "E" in the designation, while those equipped with a QD-OLED panel from Samsung Display have the letter "T".
These letters are in the symbol in the second place to the right of the letter "D" for the model year 2024.
Anyway:
  • QE55S90DAEXXH – E stands for WOLED
  • QE65S90DATXXH – T stands for QD-OLED
  • QE77S90DAEXXH – E stands for WOLED
  • QE83S90DAEXXH – E stands for WOLED


model TM2360E



----------

65"...[lesnumeriques.com]...Samsung QE65S90D test...https://www.lesnumeriques.com/tv-televiseur/samsung-tq65s90d-p75661/test.html

RGB QD-OLED panel by Samsung Display
100/120Hz με MCFI

ea5b548b-oled-ou-qd-oled-les-nouveaux-tv-samsung-sement-le-trouble-mais-on-vous-guide_wtmk.jpg

55"...[hifi.de]...Samsung QE55Q60D (GQ55Q60D german market) review...https://hifi.de/test/samsung-q60d-test-216271




55"...[hifi.de]...Samsung UE55D7172 (GU55DU7170 german market) review...https://hifi.de/test/samsung-du7170-test-215393

...you can get the most natural image with the Film and Filmmaker picture modes...

IPS LCD panel
DCI-P3 color coverage : 80%
Peak brightness of around 250 candelas per square meter
50/60 Hz panel
HDR support : HDR10,HLG,HDR10+
Dolby Vision,DTS :όχι

HDMI 2.0 x3
USB 2.0 x1

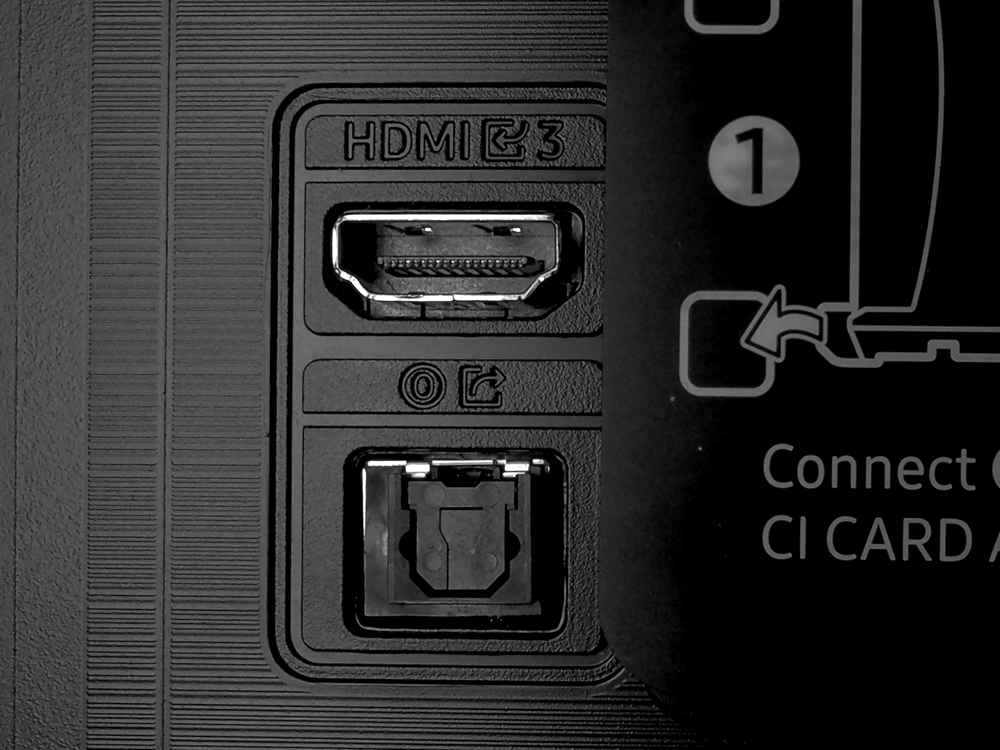

Ψηφιακή Έξοδος Ήχου (Οπτική) : όχι
Bluetooth : ναι
no timeshift and recording function via USB
remote control TM2240A without voice control
Samsung's Tizen 8.0 operating system
Apple AirPlay : ναι




65"...[rtings.com]...Samsung QN65QN95D (US model) review...https://www.rtings.com/tv/reviews/samsung/qn95d

Οι ρυθμίσεις είναι μόνο για αναφορά.
Δεν υπάρχει καμία εγγύηση ότι θα σας δώσουν την καλύτερη εικόνα που είναι σύμφωνη με τα πρότυπα της βιομηχανίας και κατάλληλη για το περιβάλλον προβολής σας (ειδικά ισορροπία λευκού, ρυθμίσεις συστήματος γάμμα και χρώματος που διαφέρουν από μονάδα σε μονάδα).
Εάν θέλετε μια εγγυημένη βαθμονομημένη εικόνα, καλέστε έναν επαγγελματία βαθμονομητή τηλεόρασης.
QN65QN95D calibration settings....https://www.rtings.com/tv/reviews/samsung/qn95d/settings

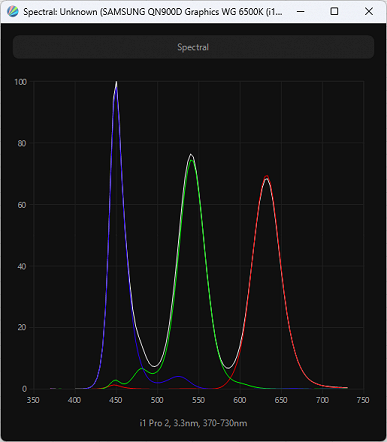

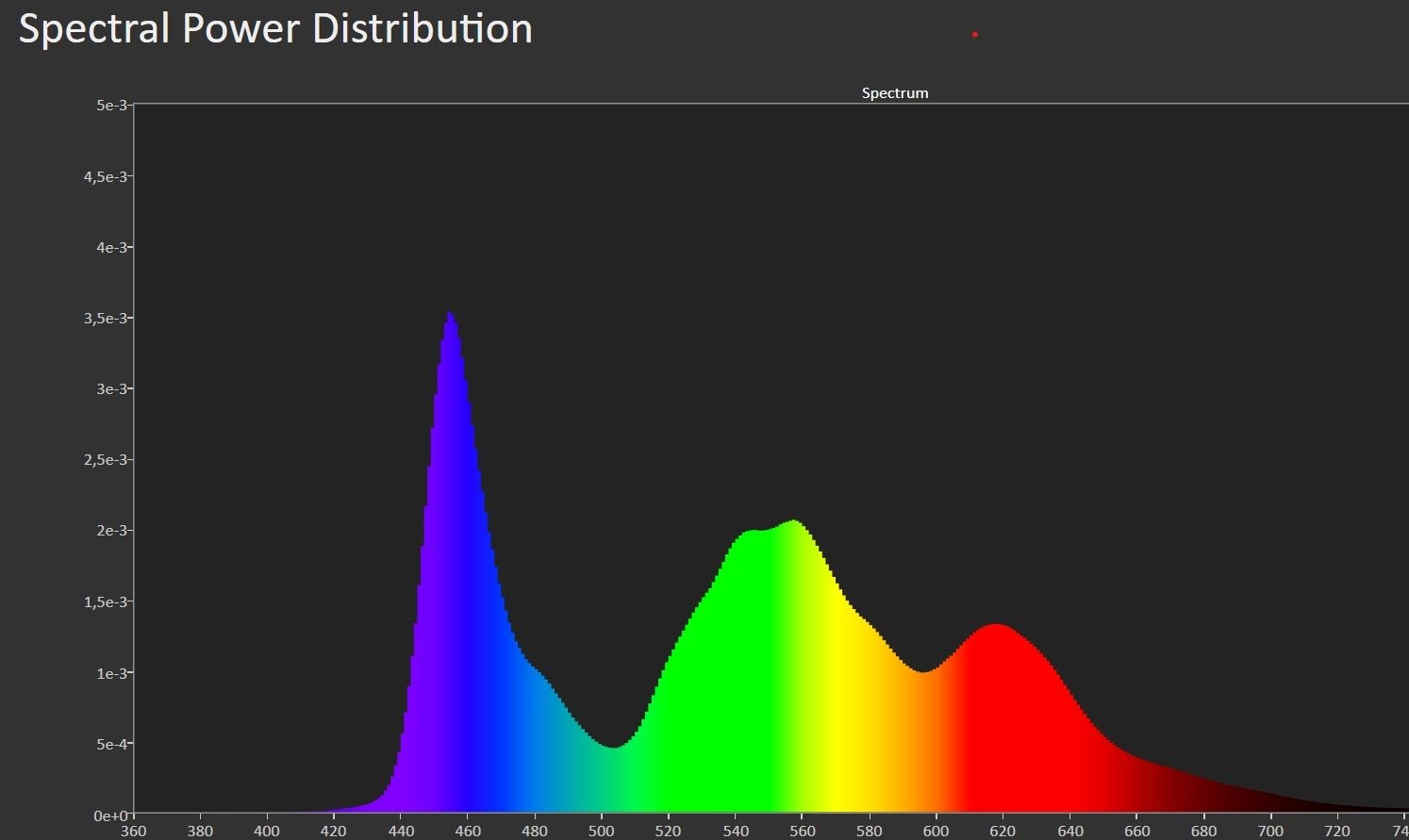

spectral power distribution (SPD) chart





--------

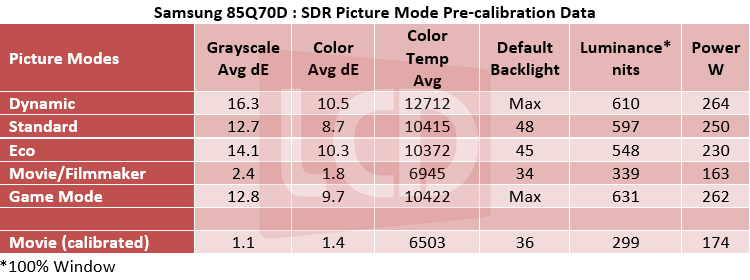

[lcdtvthailand.com]...Samsung QA85Q70D review...https://www.lcdtvthailand.com/review/samsung-85q70d/


65"...[geex.x-kom.pl]...Samsung UE65DU8002 review...https://geex.x-kom.pl/recenzje/recenzja-samsung-65du8002/

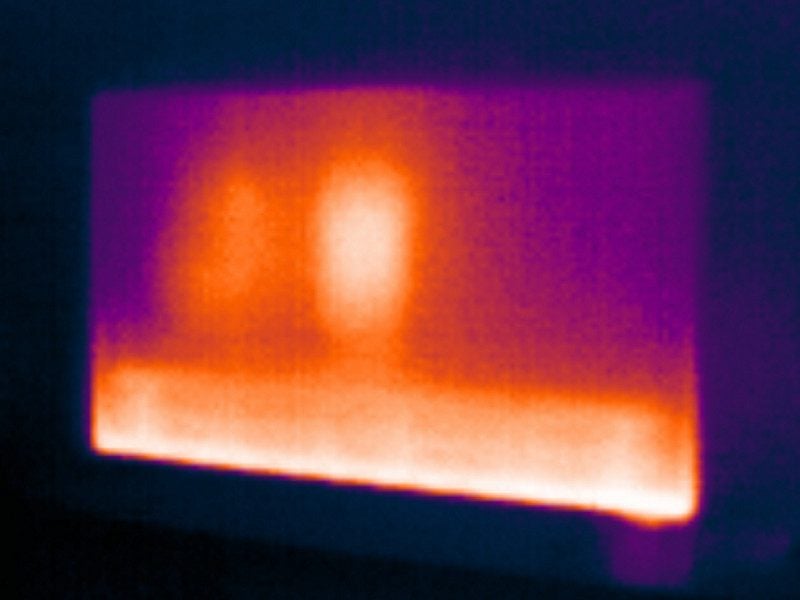

Edge (bottom) backlighting,

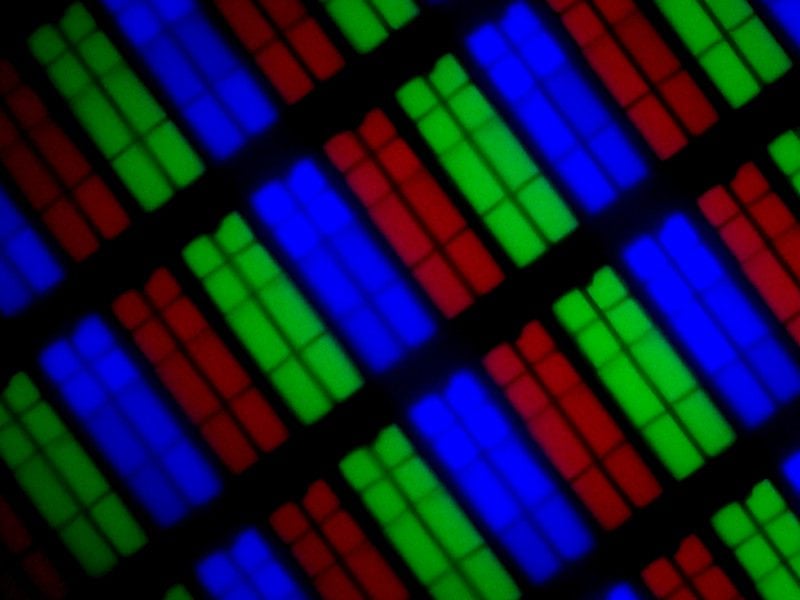

VA LCD (BGR) display by Sharp ,ANSI contrast ratio 4615:1,
NIKEL hardware platform
50/60Hz panel
WCG : DCI-P3 (CIExy) colour coverage 82%,
In filmmaker mode, on a board occupying 10% of the screen area, the maximum luminance 282 cd/m² (nits),

HDMI x3
USB x2
Made in Slovakia

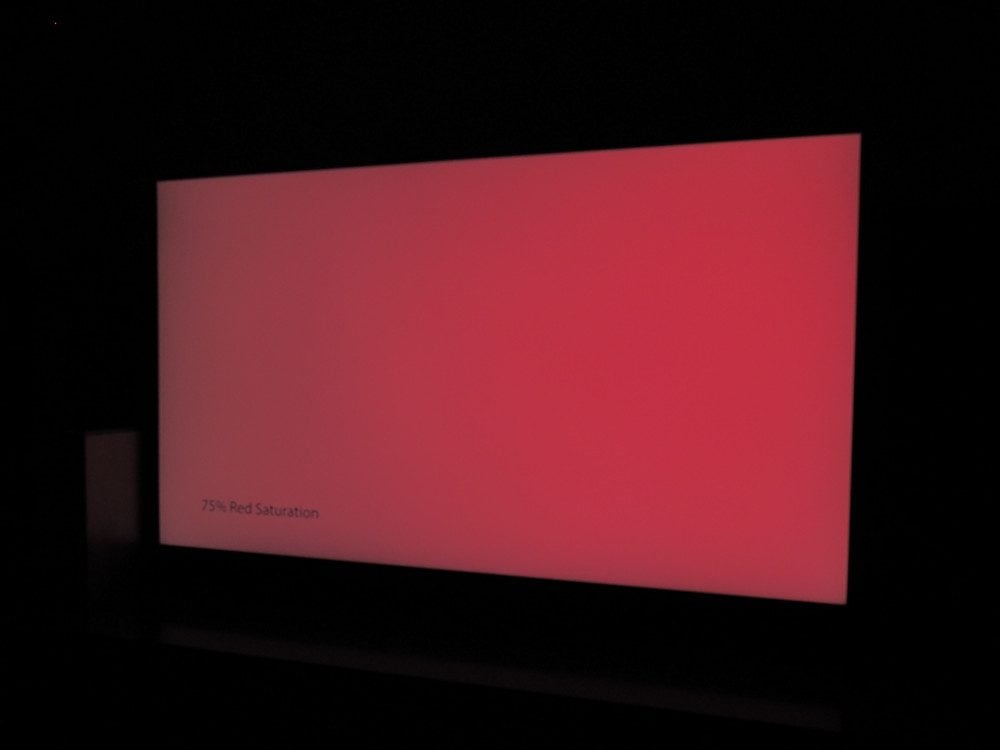

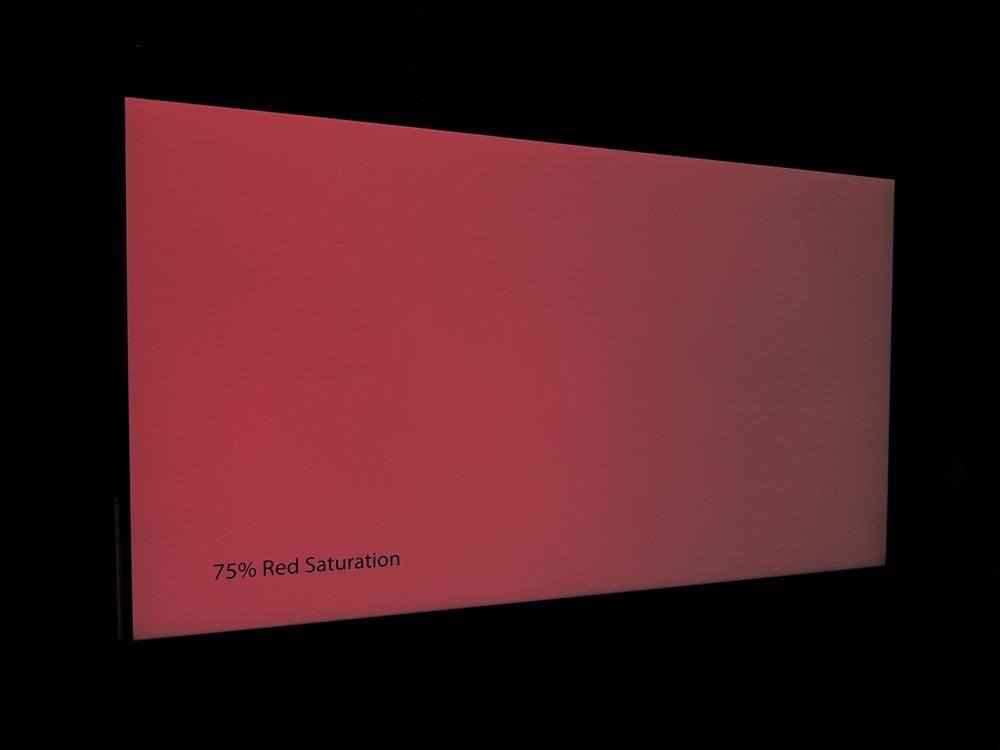

At an angle






TM2360E

55"...[geex.x-kom.pl]...Samsung UE55DU7192 review...https://geex.x-kom.pl/recenzje/recenzja-samsung-55du7192/

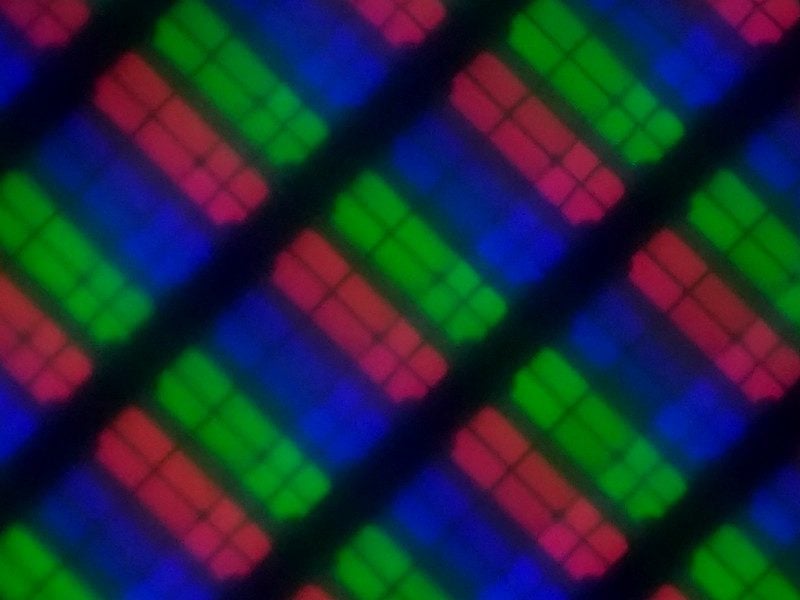

IPS LCD panel: ANSI contrast ratio 820:1 .

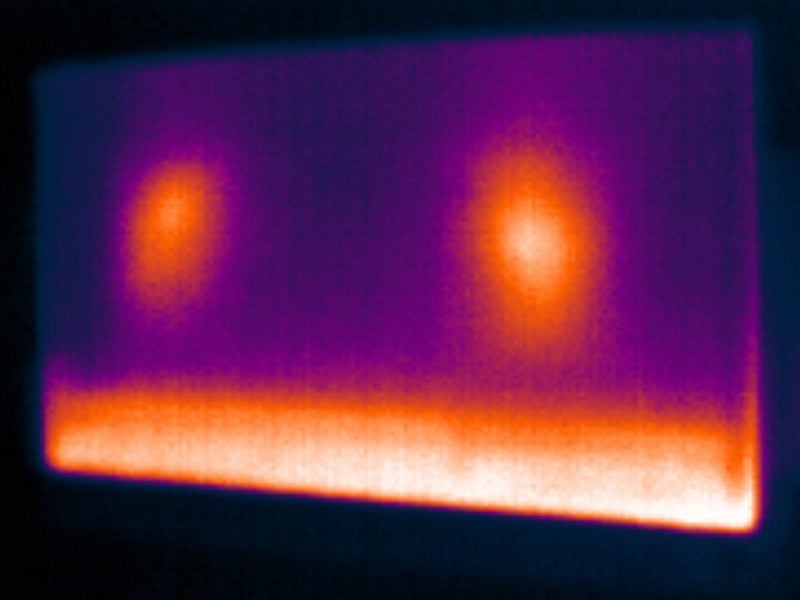

direct LED backlighting,two horizontal rows of LED,global dimming.
50/60Hz panel
KANTSU2E hardware platform
DCI-P3 (CIExy) colour coverage : 79%
HDR content: In filmmaker mode, on a board occupying 10% of the screen area, the maximum luminance at the end of the three-minute measurement was : 224 cd/m² (nits).
Tizen OS

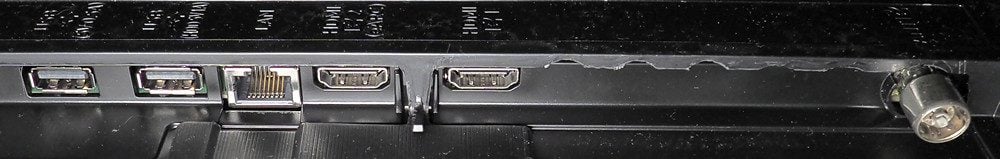

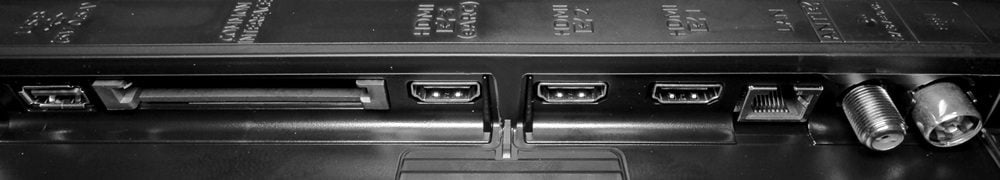

HDMI 2.0 x3
USB 2.0 x1
Ethernet (LAN) x1

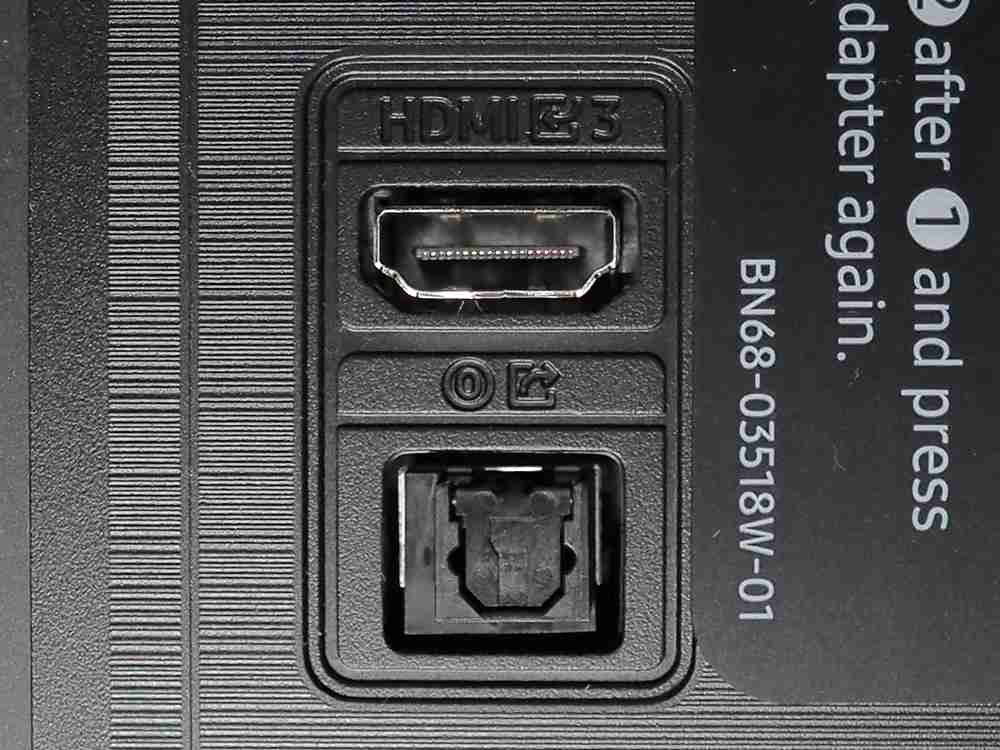

Ψηφιακή Έξοδος Ήχου (Οπτική) : όχι
λειτουργία εγγραφής βίντεο PVR : όχι

Made in Slovakia














TM2240A

55"...[geex.x-kom.pl - Tomasz Chmielewski]...Samsung QE55QN90D (QE55QN92D polish market) review...https://geex.x-kom.pl/recenzje/recenzja-samsung-55qn92d/

τεχνολογία πάνελ : LCD
τύπος πάνελ : VA,RGB,vertical stripe,8-domain
τοπολογία του οπίσθιου φωτισμού : Direct LED
οπίσθιος φωτισμός : mini LED FALD,36 horizontal zones and 14 vertical zones =504 dimming zones,
ανάλυση 4Κ=3840x2160=8.294.400 εικονοστοιχεία
100/120Hz με MCFI+αναβόσβησμα του οπίσθιου φωτισμού
DCI-P3 (CIExy) color space : 91%
HDR content : Ιn the filmmaker mode, on a board occupying 10% of the screen area, at the end of the four-minute measurement, it amounted to as much as 2212 cd/m² (nits).
Tizen OS 8.0

Κατασκευάζεται στη Σλοβακία

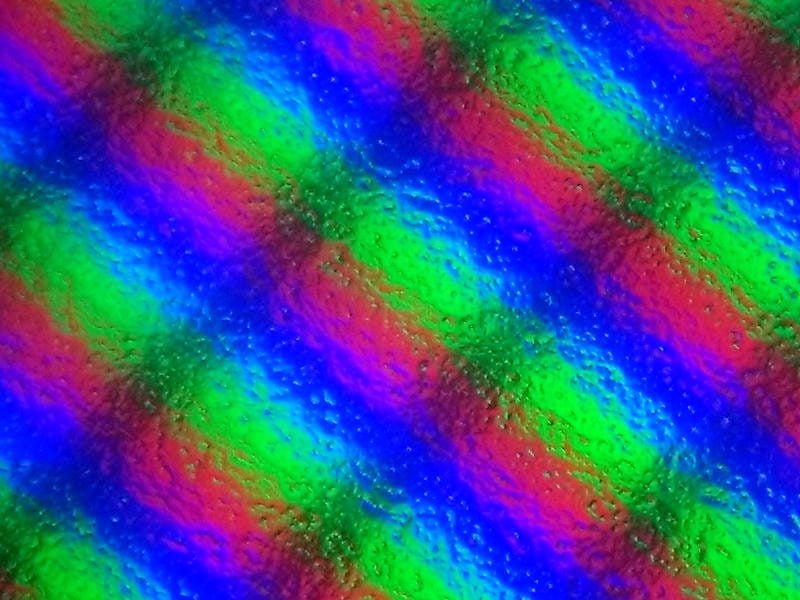

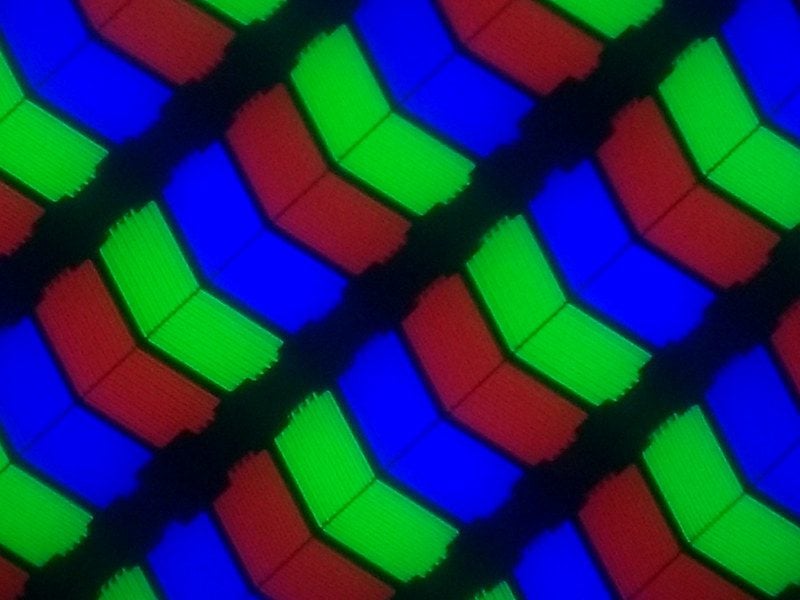

sub-pixel structure is slightly blurred, indicating the use of a special optical layer that improves the color reproduction at an angle











65"...[geex.x-kom.pl]...Samsung UE65DU8002 review...https://geex.x-kom.pl/recenzje/recenzja-samsung-65du8002/


DU8002 uses NIKEL hardware platform , which is faster than the KANTSU2 platform known from the lower DU7192 series.
Made in Slovakia
Remote control : TM2360E

DCI-P3 (CIExy) color coverage : 82%
HDR content :In filmmaker mode, on a board occupying 10% of the screen area, the maximum luminance was 282 nits.
50/60Hz panel


VA panel,RGB,vertical stripe :ANSI contrast ratio = 4615:1


edge LED (bottom) backlighting










55"...[wybierz.tv]...Samsung QE55QN95D test...https://www.wybierz.tv/telewizory/testy/samsung/samsung-neo-qled-qn95d_ACW


55"...[wybierz.tv]...Samsung QE55S85D test...https://www.wybierz.tv/telewizory/testy/samsung/samsung-oled-s85d_ADB

WRGB WOLED panel

55"...[geex.x-kom.pl]...Samsung QE55LS03D "Frame" test...https://geex.x-kom.pl/recenzje/recenzja-samsung-frame-55ls03d/

Made in Hungary

Edge (bottom) LED LCD
100/120Hz με MCFI
VA panel,RGB,vertical stripe : ANSI contrast ratio 4893:1
DCI-P3 (CIExy) color coverage : 85%
HDR: In filmmaker mode, on a board occupying 10% of the screen area, the maximum luminance was 608 nits at the end of the three-minute measurement.






50"...[geex.x-kom.pl]...Samsung QE50LS03D "Frame" review...https://geex.x-kom.pl/recenzje/recenzja-samsung-frame-50ls03d/

PontusM hardware platform
Made in Slovakia
VA LCD panel , ANSI contrast ratio 5150:1
matte screen
backlighting : edge-bottom LED
quite aggressive global image dimming (SDR)
50/60Hz panel
DCI-P3 (CIExy) color coverage : 84%
HDR : In filmmaker mode, on a board occupying 10% of the screen area, the maximum luminance was 569nits
