-Sony TV Line-up 2018-

  • Φωτογραφική συνάντηση στην Αθήνα!

    Αυτό το Σάββατο, στις δέκα το πρωϊ (10:00) στο Πάρκο Τρίτση. Λεπτομέρειες και συμμετοχές εδώ.

-Sony Master Series event: Everything about the X1 Ultimate processor...https://www.4kfilme.de/sony-master-series-event-alles-zum-x1-ultimate-prozessor/

μετάφραση google de to en






-Sony ZF9: 4K HDR TV with X1 Ultimate processor and FALD...https://www.4kfilme.de/sony-zf9-4k-hdr-fernseher-mit-x1-ultimate-prozessor-und-fald/

μετάφραση google de to en

...Anyone expecting a direct successor to the ZD9 will probably be disappointed. Rather, the ZF9 should be considered as a stand-alone model and is probably after a look at the data sheet rather an improved XF90 . In the quasi predecessor ZD9 about 630 dimming zones were used, in the current model, there are only 104 dimming zones. Both devices are a direct LED backlight (FALD)...

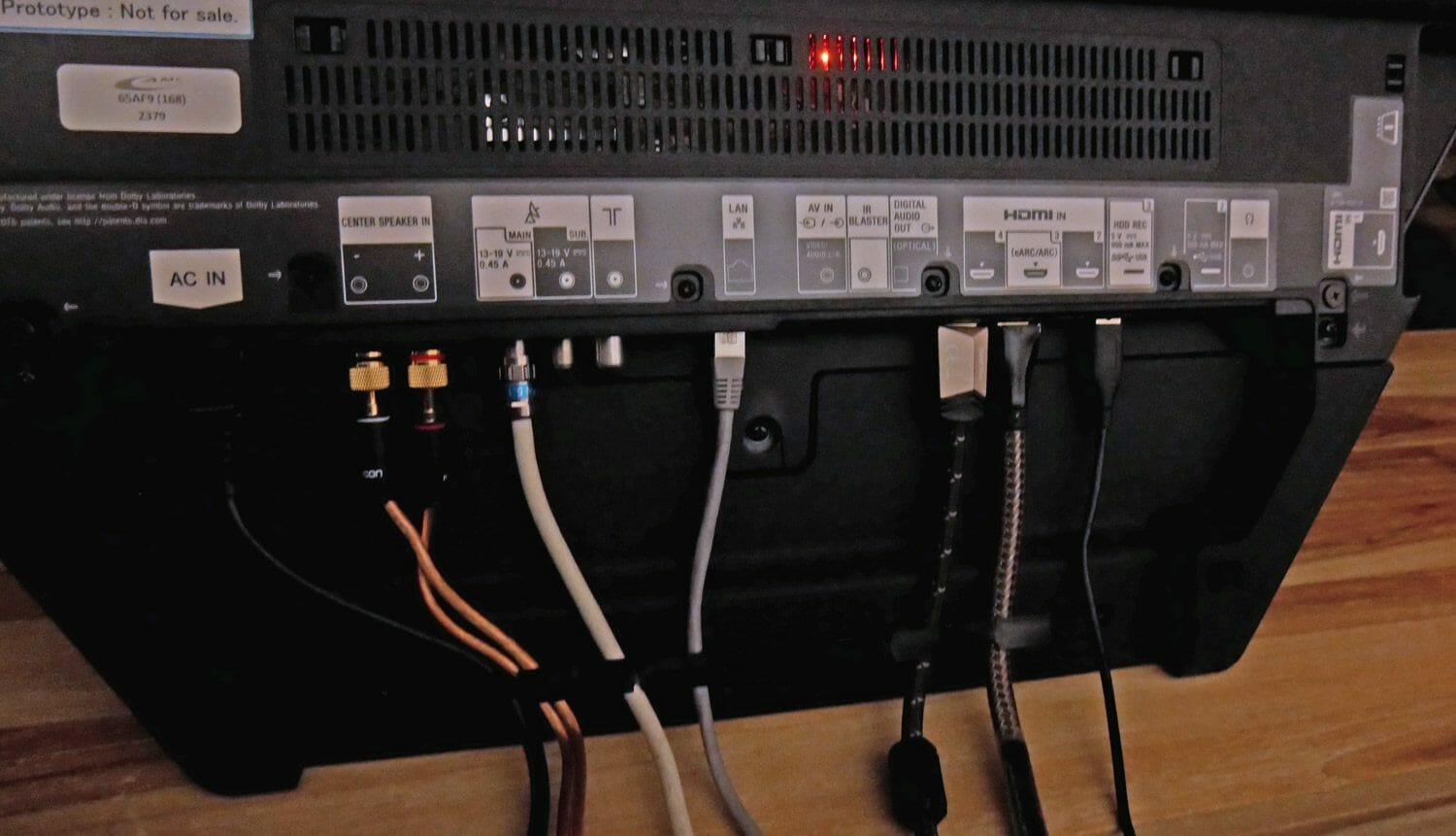

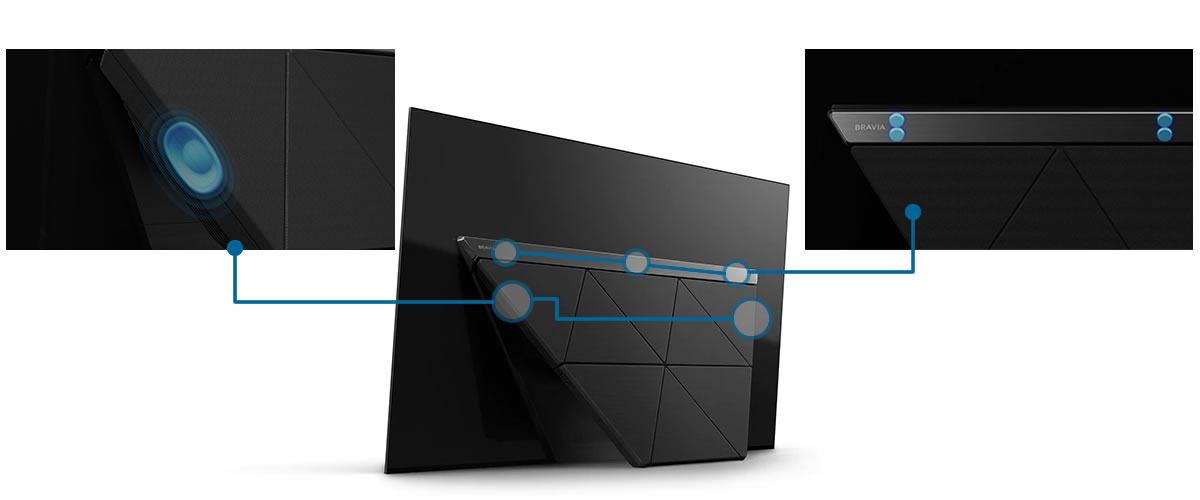

-Sony AF9: 4K OLED with Pixel Contrast Booster and X1 Ultimate processor...https://www.4kfilme.de/sony-af9-4k-oled-x1-ultimate-prozessor/

μετάφραση google de to en




source:[4kfilme.de]



Recommended retail prices and availability

BRAVIA OLED TV series AF9


BRAVIA OLED TV KD-65AF9 (65 "): 3.999


BRAVIA OLED TV KD-55AF9 (55 "): 2.999



Availability: from October 2018




LCD TV series ZF9


BRAVIA TV KD-75ZF9 (75 "): 4.999


BRAVIA TV KD-65ZF9 (65 "): 2.999



Availability: from October 2018

source:[presscentre.sony.de]

Last edited:
-Ενημέρωση υλικολογισμικού σε v6.5629

Σχετικά με αυτήν τη λήψη - Ημερομηνία κυκλοφορίας 05-09-2018.

Πλεονεκτήματα και βελτιώσεις από την τελευταία ενημέρωση:

Βελτιώνει τη φωτεινότητα εικόνας Hybrid Log Gamma (HLG) στη λειτουργία Vivid
Βελτιωμένη συμβατότητα με την εφαρμογή Home Theatre Control

Αυτές οι πληροφορίες ισχύουν για τις ακόλουθες σειρές τηλεόρασης :

AF8 / XF90 / XF85 / XF83 / XF80 / XF75 / WF80

------------------------------------------------------------


-Αρχικές ενδεικτικές τιμές στην ελληνική αγορά για την OLED AF9 & την LCD ZF9 :

KD-65AF9 : 4.099
KD-55AF9 : 3.099

KD-75ZF9 : 5.199
KD-65ZF9 : 3.099



-HDTV Magazine's Christian Trozinski presents the test for Sony's new Master TV Series. In the test you will learn everything worth knowing about the AF9 OLED and ZF9 LED-LCD. In addition, expect an OLED image comparison with Panasonic FZW954.

https://www.youtube.com/watch?v=BtUxXpeRpOQ
source video:[youtube.com - digitalfernsehende]

----------------------------------------------------------

-60"...[tvtest.pl]...Sony KD-60XF8305 test...http://www.tvtest.pl/sony-60xf8305-test/

μετάφραση google pl to en

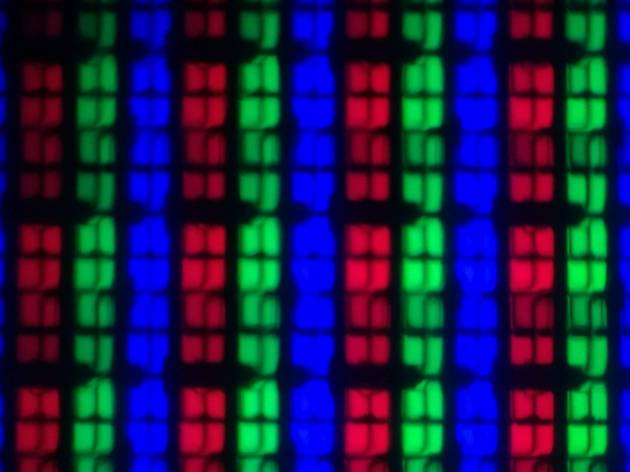

KD-60XF8305:VA panel RGB (vertical stripe),



The dependence of the maximum brightness ,in SDR mode (full screen) ,on setting the "brightness" parameter :

Backlight - cd/m2
0...............71
10.............113
12.............121
20.............150
30.............184
40.............216
50(max).......247

Last edited:
We unbox the new Sony AF9 Master Series OLED TV, and go through the user menu to see if there's anything new in terms of picture settings. This OLED television is also marketed as the Bravia A9F in the USA.

Our review sample is the 65-inch KD-65AF9 which retails for £3999 in the UK at the time we filmed this video in September 2018.

https://www.youtube.com/watch?v=wHr055hAhYM
source video:[youtube.com - hdtvtest.co.uk]


We review the Sony AF9 Master Series OLED TV (also marketed as the Bravia A9F in the USA) which features the company's top-tier X1 Ultimate video processor, Pixel Contrast Booster technology, HDR support for HDR10, HLG and Dolby Vision, Acoustic Surface Audio+, as well as faster Android TV platform (Oreo 8.0).

Two screen sizes are available, namely the 55-inch Sony KD-55AF9 and the 65-inch KD-65AF9.

Our review unit is the 65in Sony KD65AF9BU which is the United Kingdom 3-pin-plug version.

https://www.youtube.com/watch?v=-W_cNPF4wp8
source video:[youtube.com - hdtvtest.co.uk]

Last edited:

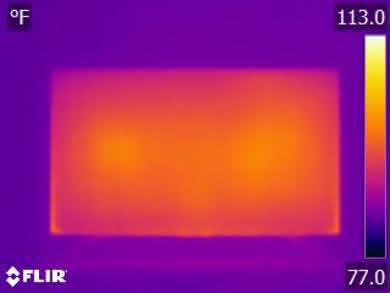

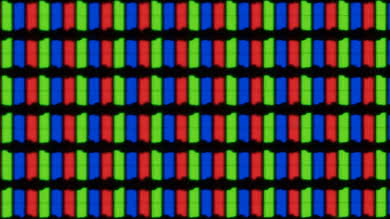

55"...[rtings.com]...Sony KD55X750F review...https://www.rtings.com/tv/reviews/sony/x750f


calibration settings...https://www.rtings.com/tv/reviews/sony/x750f/settings

KD55X750F (US) = KD55XF7596 Europe




source photo:[rtings.com]

------------------

--We just received the Sony XBR65Z9F we bought. Look for the full review and detailed measurements in the coming weeks.

source:[twitter.com - rtings.com]

-We bought the Sony A9F OLED. Look for our full review and measurements in the coming weeks.

source:[twitter.com - rtings.com]

Last edited:

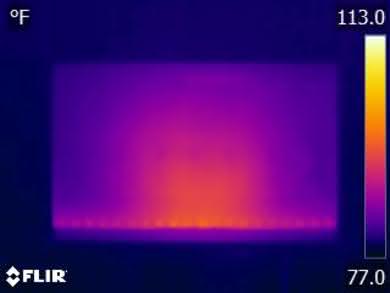

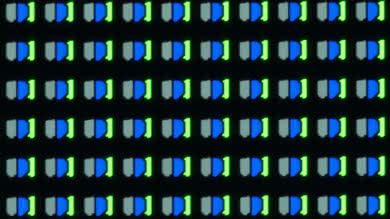

55"...[rtings.com]...Sony XBR55A9F review...https://www.rtings.com/tv/reviews/sony/a9f




source photo:[rtings.com]



Sony XBR55A8F vs Sony XBR55A9F side-by-side comparison...https://www.rtings.com/tv/tools/compare/sony-a8f-vs-sony-a9f/603/684

Sony XBR55A1E vs Sony XBR55A9F side-by-side comparison...https://www.rtings.com/tv/tools/compare/sony-a1e-vs-sony-a9f/434/684


-Discussion about the Sony A9F TV.

https://www.youtube.com/watch?v=Mz6pIX6cFls
source video:[youtube.com - rtings.com]


Hands-on review of the Sony A9F 2018 OLED TV

The A9F is a 2018 model in Sony’s highest end ‛MASTER’ series. In this review, we compare it to 4 other popular models.

Like all OLEDs, it delivers perfectly deep blacks, and has wide viewing angles. HDR looks great thanks to the excellent wide color gamut, and the best color volume that we've measured so far on an OLED. It has excellent motion handling, low input lag, and all four HDMI ports support HDMI 2.0 full bandwidth. Unfortunately, it isn't very bright with bright white scenes. The Android 8.0 smart platform is much faster than previous Sony TVs

Model tested: (XBR55A9F)
Should also be valid for the model (XBR65A9F)

https://www.youtube.com/watch?v=pvoHk8EImCw
source:[youtube.com - rtings.com]

Last edited:

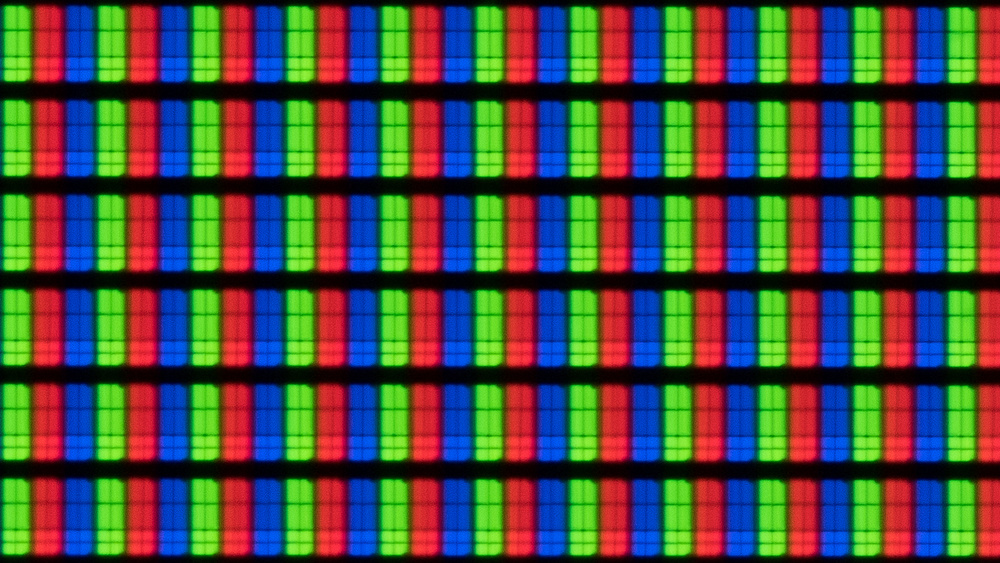

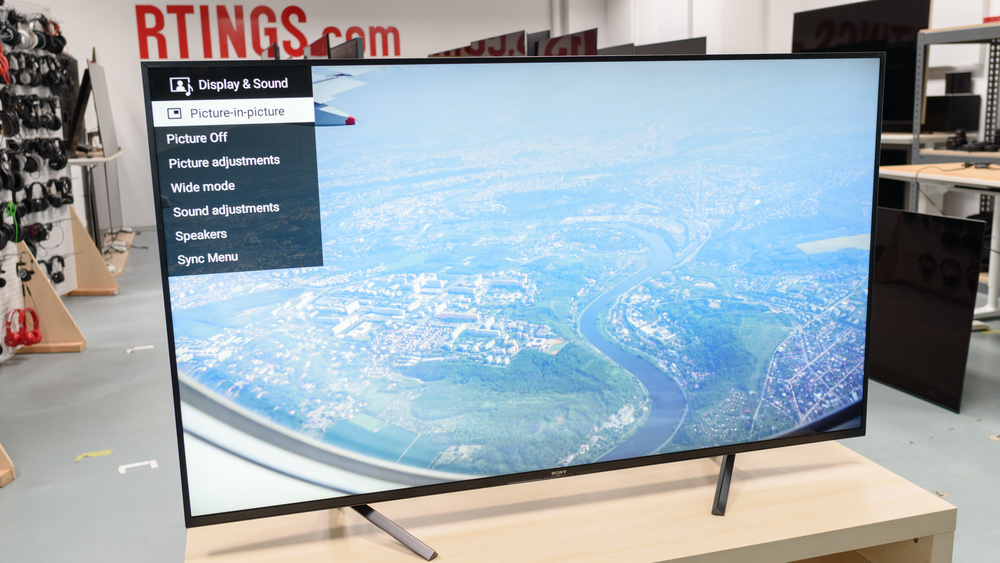

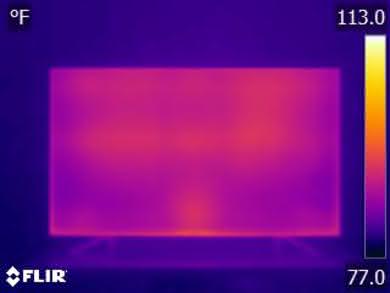

The Z9F is the successor to the Z9D. The performance is somewhere in between VA-type TVs and IPS-type TVs. The contrast ratio is fairly low, so blacks do appear gray when viewed in a completely dark room.

The TV has local dimming to mitigate this dark scene performance though, and it works well. When viewed in a bright room the TV can get exceptionally bright to overcome glare or produce bright highlights in HDR. The Z9F has low input lag and an excellent fast response time which is great for gamers.

Model tested: 65” (XBR65Z9F)
Should also be valid for the 75" (XBR75Z9F)

https://www.youtube.com/watch?v=vT7bD7UYXWA
source video:[youtube.com - rtings.com]

We compare the picture quality of the Panasonic FZ952 vs the Sony AF9 (also marketed as the Bravia A9F in the USA), two of the best OLED TVs available to buy in 2018.

Topics compared include near-black handling, colour accuracy, motion, upscaling, gradation, HDR (Dolby Vision & HDR10+), as well as input lag for gaming.

Our review samples are the 65-inch models, namely the Panasonic TX-65FZ952B and the Sony KD-65AF9. The more affordable Panasonic FZ802 OLED delivers similar picture quality to the FZ952, and is mentioned from time to time in this comparison review video.

https://www.youtube.com/watch?v=LEfGs6vHKBA
source video:[youtube.com - hdtvtest.co.uk]

[TABLE="class: cms_table_cms_table"]
[TR="bgcolor: #000066"]
[TD="colspan: 6, align: center"]Sony Android TV (EU)[/TD]
[/TR]
[TR="bgcolor: #000099"]
[TD="align: center"]Platform
_________[/TD]
[TD="align: center"]2015
___________________[/TD]
[TD="align: center"]2016
___________________[/TD]
[TD="align: center"]2017
___________________[/TD]
[TD="align: center"]2018
_____________________[/TD]
[TD="align: center"]2019
_____________________[/TD]
[/TR]
[TR]
[TD="align: center"]ATV1
SVPDTV15_EU[/TD]
[TD]X90C, X85C, X83C, S80C
W85C, W80C, W75C[/TD]
[TD]XD94, XD93, XD85[/TD]
[TD][/TD]
[TD][/TD]
[TD][/TD]
[/TR]
[TR]
[TD="align: center"]ATV2
BRAVIA_ATV2_EU[/TD]
[TD][/TD]
[TD]ZD9, XD80,XD75, XD70[/TD]
[TD]A1, XE94, XE93, XE90, XE85[/TD]
[TD]AF8, XF90, XF87/85, XF83[/TD]
[TD][/TD]
[/TR]
[TR]
[TD="align: center"]ATV3
BRAVIA_UR1_4K_EU[/TD]
[TD][/TD]
[TD][/TD]
[TD][/TD]
[TD]AF9, ZF9[/TD]
[TD]GX90, GX85 ?[/TD]
[/TR]
[TR]
[TD][/TD]
[TD][/TD]
[TD][/TD]
[TD][/TD]
[TD][/TD]
[TD][/TD]
[/TR]
[/TABLE]


https://www.mediatek.com/products/entertainment/digital-tv

[TABLE="class: cms_table_cms_table_cms_table_cms_table_cms_table_cms_table"]
[TR="bgcolor: #000066"]
[TD="colspan: 6, align: center"]Sony[/TD]
[/TR]
[TR="bgcolor: #000099"]
[TD="align: center"]2013
___________________[/TD]
[TD="align: center"]2014
___________________[/TD]
[TD="align: center"]2015
________________________[/TD]
[TD="align: center"]2016
_________________________[/TD]
[TD="align: center"]2017
__________________________[/TD]
[TD="align: center"]2018
_________________________[/TD]
[/TR]
[TR="bgcolor: #066c92"]
[TD="colspan: 9, align: center"]OLED - UltraHD[/TD]
[/TR]
[TR]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]

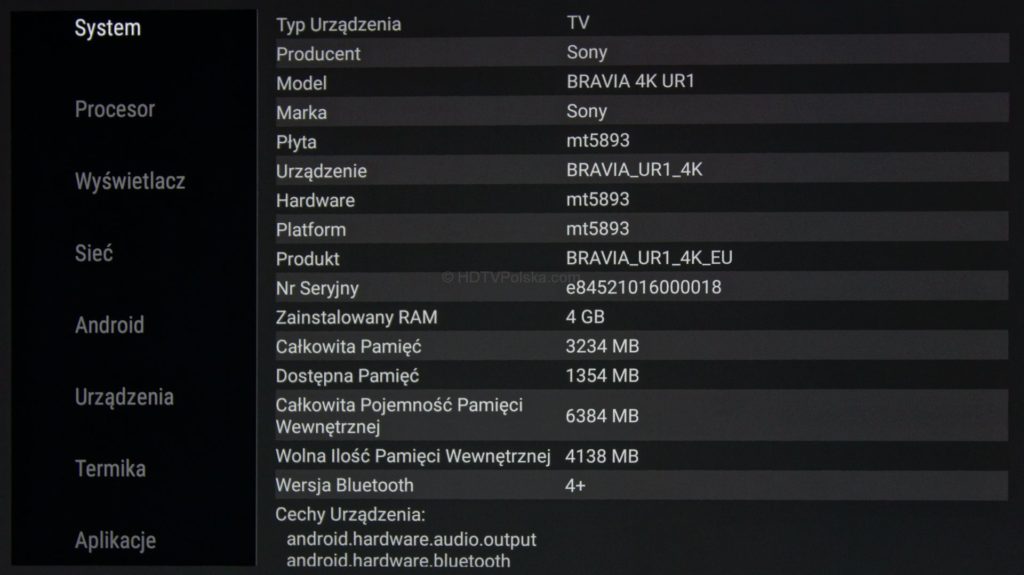

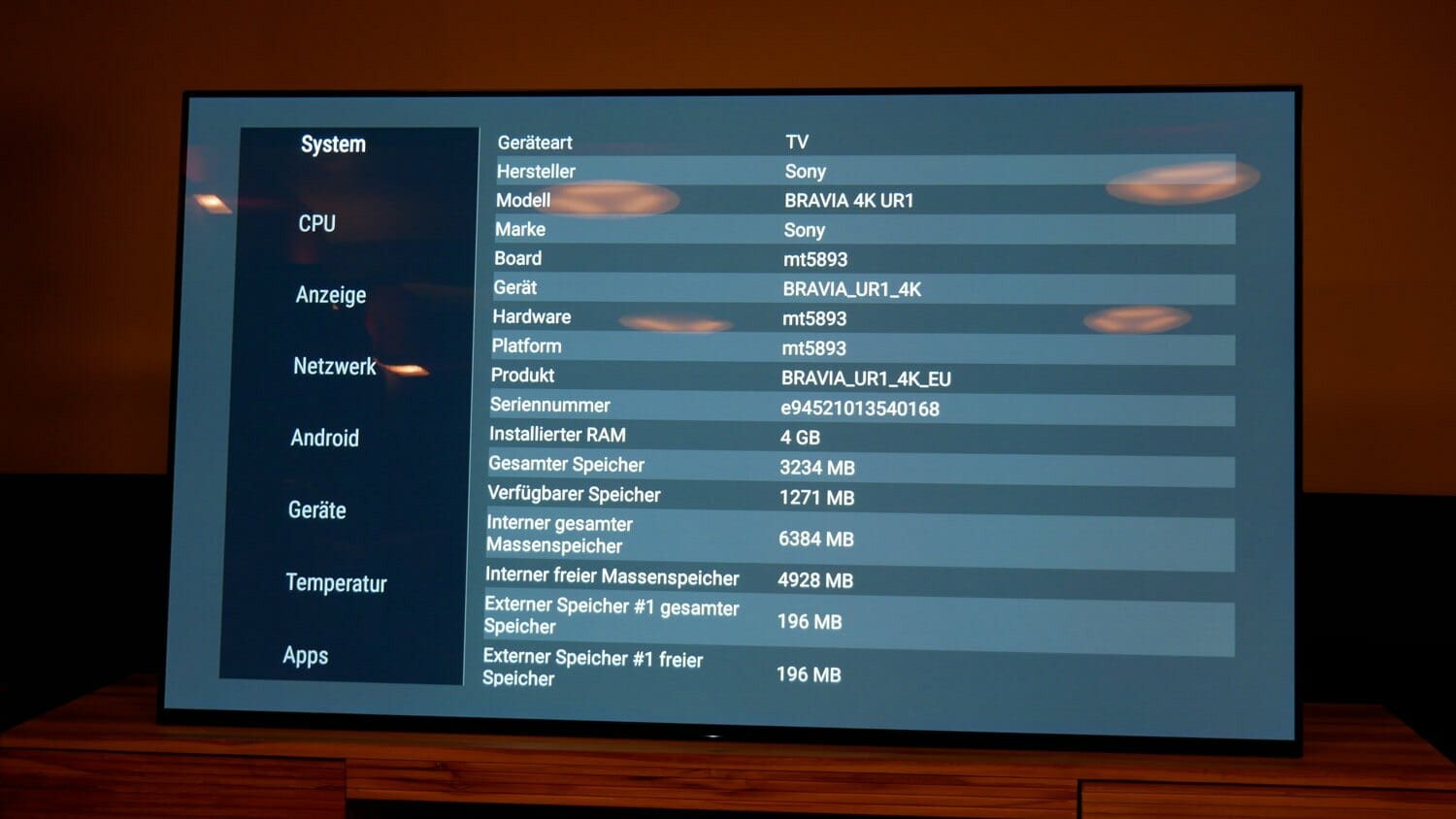

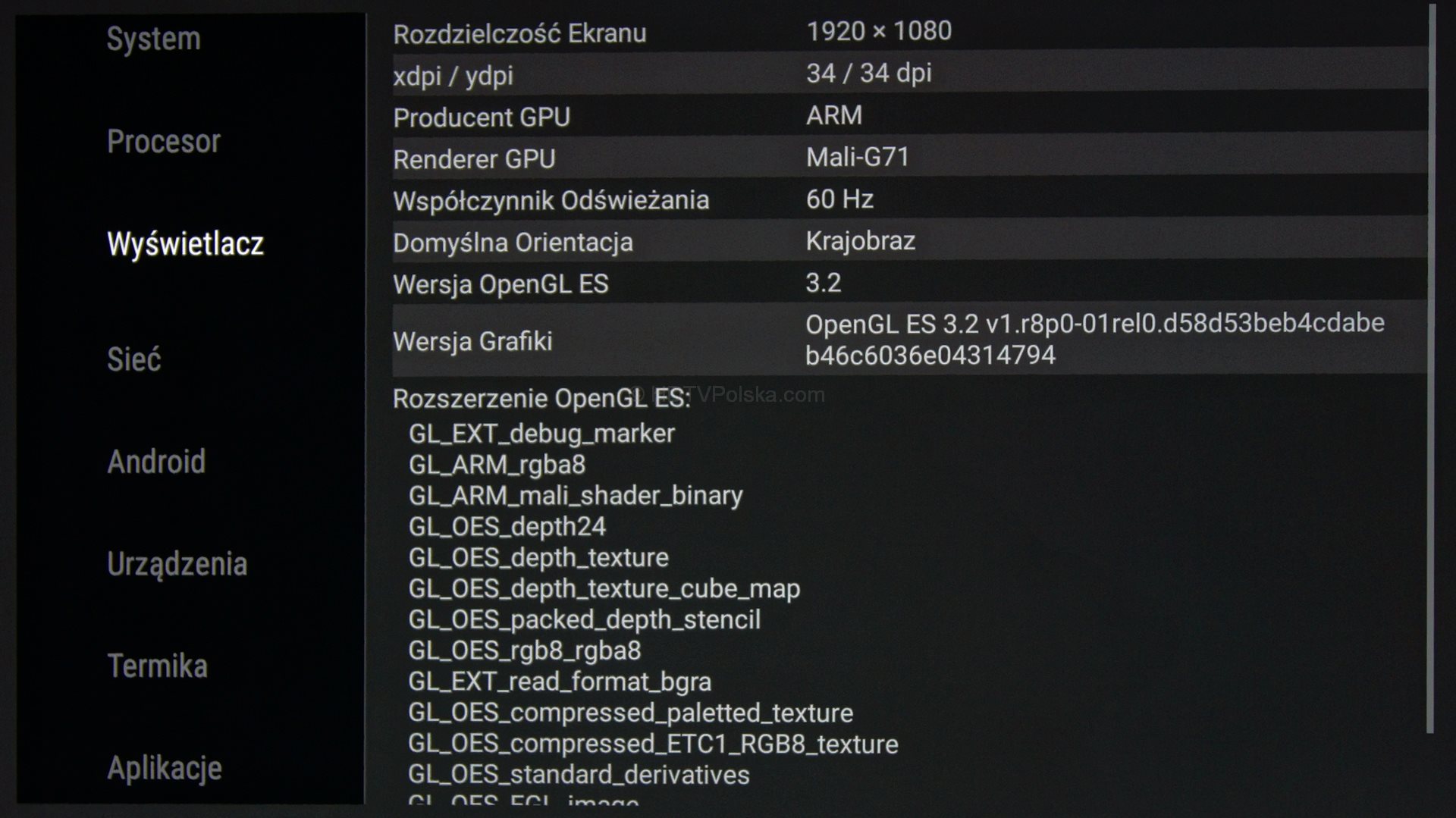

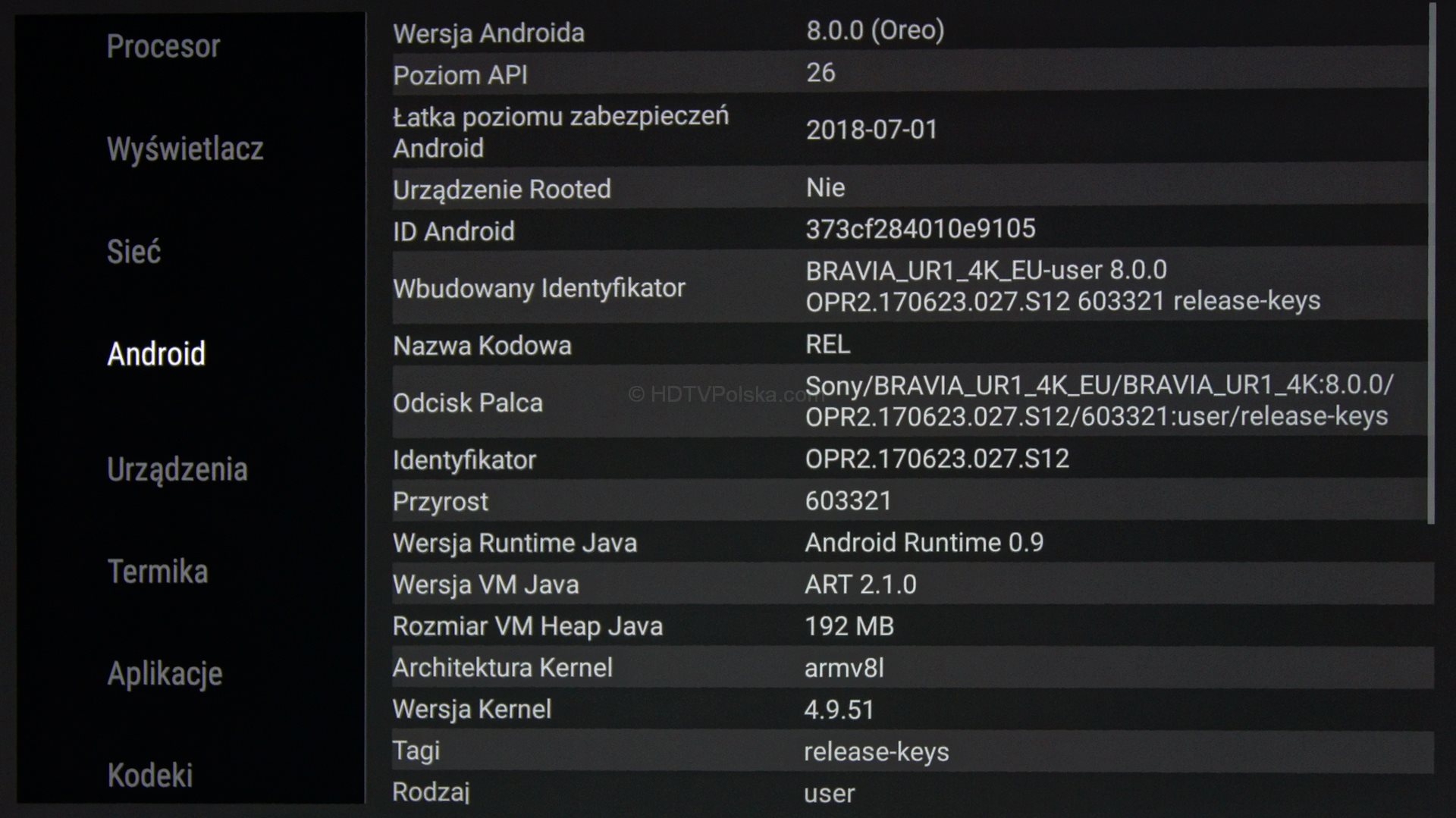

[TD="align: center"]AF9
Platform - BRAVIA_UR_4K_EU
AM-OLED (WRGB) 10-bit, 4 - generation, 120Hz

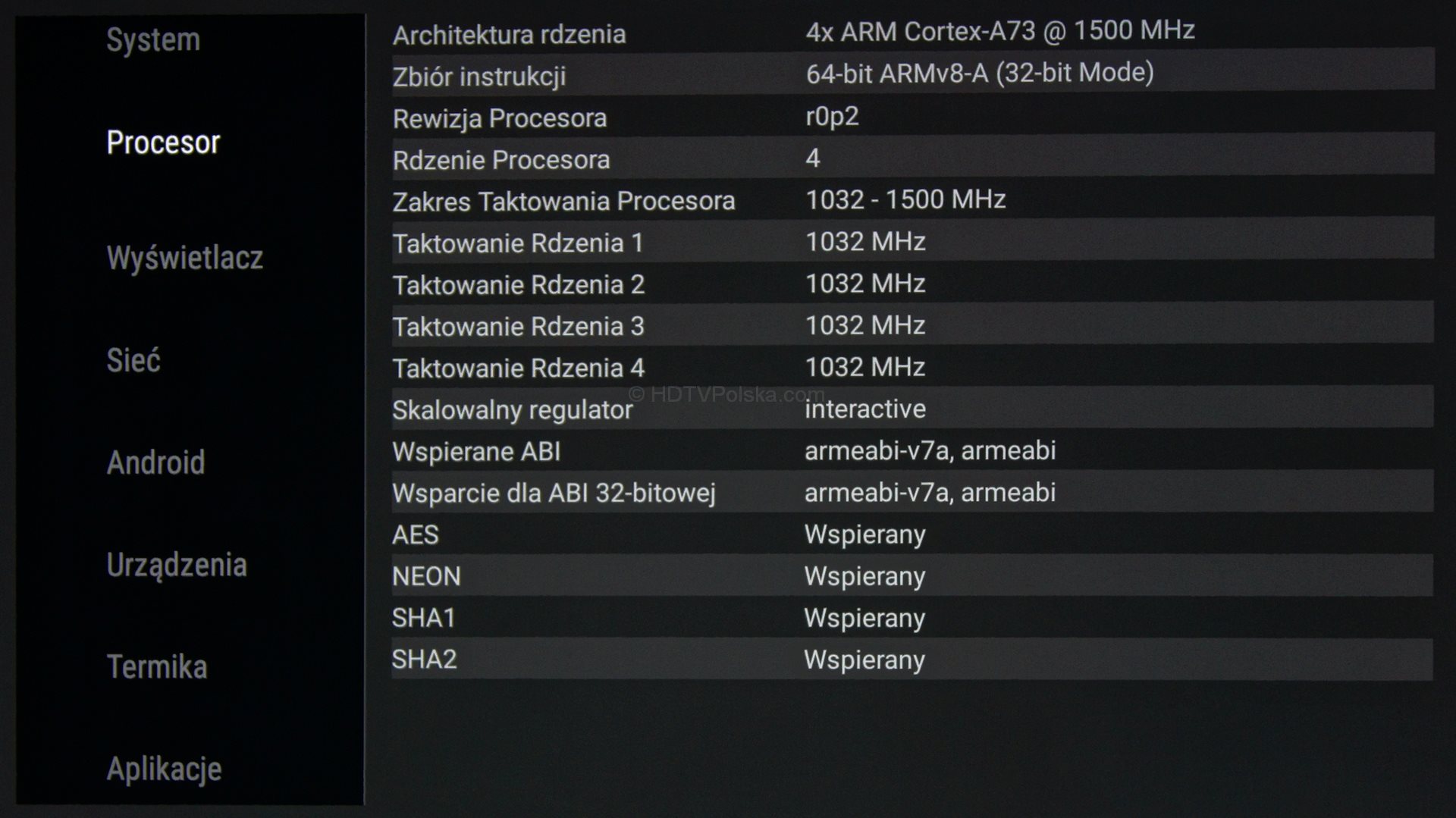

Mediatek 5893(5597) - 4xARM Cortex-A73 @ 1500MHz
64-bit ARMv8-A (32-bit mode)
GPU - ARM Mali-G71
RAM - 4GB
Storage - 16GB[/TD]
[/TR]
[TR]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]A1
Platform - BRAVIA_ATV2
AM-OLED (WRGB), 10-bit, 3 - generation, 120hz
Mediatek 5891(5596) - 4xARM Cortex-A53 @ 1100MHz
64-bit ARMv8-A (32-bit mode)
GPU - ARM Mali-T860 MP2
RAM - 2GB
Storage - 16GB[/TD]
[TD="align: center"]A1
Continues as OLED Flagship
to September[/TD]
[/TR]
[TR]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]AF8
Hardware copy of A1
with change design and remote
Platform - BRAVIA_ATV2
AM-OLED (WRGB), 10-bit, 3/4 - generation, 120Hz
Mediatek 5891(5596) - 4xARM Cortex-A53 @ 1100MHz
64-bit ARMv8-A (32-bit mode)
GPU - ARM Mali-T860 MP2
RAM - 2GB
Storage - 16GB[/TD]
[/TR]
[TR="bgcolor: #066c92"]
[TD="colspan: 6, align: center"]LCD - 3840x2160 - UltraHD[/TD]
[/TR]
[TR]
[TD="align: center"]-[/TD]
[TD="align: center"]X9505B
85" - S-MVA, Triluminos, FALD, 120Hz[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]ZD9
MVA, 10-bit, Triluminos, FALD, 120Hz
Platform - BRAVIA_ATV2_EU
Mediatek 5891(5596) - 4xARM Cortex-A53 @ 1100MHz
64-bit ARMv8-A (32-bit mode)
GPU - ARM Mali-T860 MP2
RAM - 2GB
Storage - 16GB[/TD]
[TD="align: center"]-> ZD9
Contiunues in 2017[/TD]

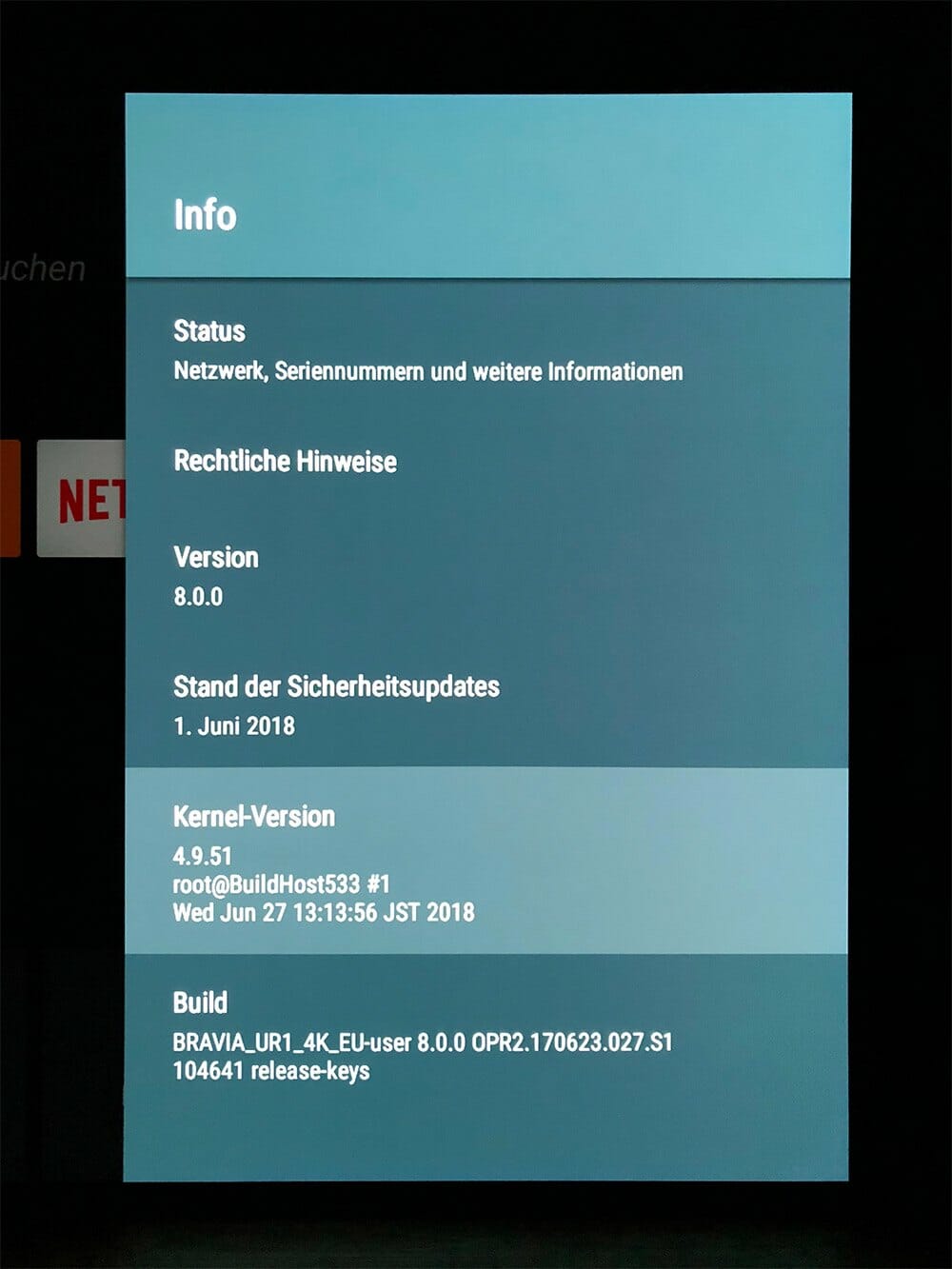

[TD="align: center"]ZF9
ZF9 = XE94/93
MVA, 10-bit, Triluminos, FALD, 120Hz,
104 dimming zones
Platform - BRAVIA_UR_4K
Mediatek 5893(5597) - 4xARM Cortex-A73 @ 1500MHz
64-bit ARMv8-A (32-bit mode)
GPU - ARM Mali-G71
RAM - 4GB
Storage - 16GB[/TD]
[/TR]
[TR]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]X9405C / X9305C
65" - A-MVA3, 10-bit, Triluminos, Edge LED, 120Hz
Mediatek - 5595 - 2xARM Cortex-A17 + 2xARM Cortex-A7
GPU ARM Mali-T624[/TD]
[TD="align: center"]XD9405 / XD9305
MVA, 10-bit, Triluminos, 120Hz
Platform - BRAVIA_ATV1
Mediatek 5890(5595) - 2xARM Cortex-A17 @ 1100MHz
32-bit ARMv7
GPU - ARM Mali-T624
RAM - 1.5GB
Storage - 16GB[/TD]
[TD="align: center"]XE940x / XE930x
MVA, 10-bit, Triluminos, 120Hz
Platform - BRAVIA_ATV2
Mediatek 5891(5596) - 4xARM Cortex-A53 @ 1100MHz
64-bit ARMv8-A (32-bit mode)
GPU - ARM Mali-T860 MP2
RAM - 2GB
Storage - 16GB[/TD]
[TD="align: center"]-[/TD]
[/TR]
[TR]
[TD="align: center"]X9000A
MVA, Triluminous(QDEF ?)
RGB-Edge LED[/TD]
[TD="align: center"]X9005B
MVA, Triluminos, EdgeLED[/TD]
[TD="align: center"]X9005C
S-IPS, Triluminos, Edge LED
Platform - BRAVIA_ATV1
Mediatek 5890(5595) - 2xARM Cortex-A17 @ 1100MHz
32-bit ARMv7
GPU - ARM Mali-T624
RAM - 1.5GB
Storage - 16GB[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]XE9005
MVA, 10-bit, Triluminos, FALD, 120Hz,
Platform - BRAVIA_ATV2
Mediatek 5891(5596) - 4xARM Cortex-A53 @ 1100MHz
64-bit ARMv8-A (32-bit mode)
GPU - ARM Mali-T860 MP2
RAM-2GB
Storage-16Gb[/TD]
[TD="align: center"]XF9005
Upgrade of XE90
MVA, 10-bit, Triluminos, FALD, 120Hz,
Platform - BRAVIA_ATV2
Mediatek 5891(5596) - 4xARM Cortex-A53 @ 1100MHz
64-bit ARMv8-A (32-bit mode)
GPU - ARM Mali-T860 MP2
RAM - 2GB
Storage - 16GB[/TD]
[/TR]
[TR]
[TD="align: center"]-[/TD]
[TD="align: center"]S9005B
SMVA, AMVA, Triluminos, EdgeLED[/TD]
[TD="align: center"]S9005C
Triluminos
Platform - BRAVIA_ATV1
Mediatek 5890(5595) - 2xARM Cortex-A17 @ 1100MHz
32-bit ARMv7
GPU - ARM Mali-T624
RAM - 1.5GB
Storage - 16GB[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[/TR]
[TR]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]S8505C
MVA, Triluminos, Edge LED
Platform - BRAVIA_ATV1
Mediatek 5890(5595) - 2xARM Cortex-A17 @ 1100MHz
32-bit ARMv7
GPU - ARM Mali-T624
RAM - 1.5GB
Storage - 16GB[/TD]
[TD="align: center"]SD8505
65" - MVA, triluminos, Edge LED, 120hz
55" - MVA, Triluminos, EdgeLED, 120hz
Platform - BRAVIA_ATV1
Mediatek 5890(5595) - 2xARM Cortex-A17 @ 1100MHz
32-bit ARMv7
GPU - ARM Mali-T624
RAM - 1.5GB
Storage - 16GB[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[/TR]
[TR]
[TD="align: center"]-[/TD]
[TD="align: center"]X8505B
S-IPS, MVA, Triluminos, EdgeLED[/TD]
[TD="align: center"]X850xC
A-MVA, Triluminos, Direct LED
Platform - BRAVIA_ATV1
Mediatek 5890(5595) - 2xARM Cortex-A17 @ 1100MHz
32-bit ARMv7
GPU - ARM Mali-T624
RAM - 1.5GB
Storage - 16GB[/TD]
[TD="align: center"]XD8505 / XD8577
XD8588 / XD8599
S-IPS panel, Triluminos, EdgeLED
Platform - BRAVIA_ATV1
Mediatek 5890(5595) - 2xARM Cortex-A17 @ 1100MHz
32-bit ARMv7
GPU - ARM Mali-T624
RAM - 1.5GB
Storage - 16GB[/TD]
[TD="align: center"]XE8505 / XE8577 / XE8588
XE8596 / XE8599
65" - MVA, Edge LED, 120Hz
55" - MVA, Edge LED, 120Hz
platform - BRAVIA_ATV2
Mediatek 5891(5596) - 4xARM Cortex-A53 @ 1100MHz
64-bit ARMv8-A (32-bit mode)
GPU - ARM Mali-T860 MP2
RAM - 2GB
Storage - 16GB[/TD]
[TD="align: center"]XF85xx / XF8796
85" - MVA, Triluminos, Direct LED, 120Hz
65" - S-IPS, Triluminos, Edge LED, 120Hz
55" - S-IPS, Triluminos, EdgeLED, 120hz
49" - MVA, Triluminos, EdgeLED, 120Hz
43" - S-IPS, Triluminos, Edge LED, 120Hz
Platform - BRAVIA_ATV2
Mediatek 5891(5596) - 4xARM Cortex-A53 @ 1100MHz
64-bit ARMv8-A (32-bit mode)
GPU - ARM Mali-T860 MP2
RAM - 2GB
Storage - 16GB[/TD]
[/TR]
[TR]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]X8305C
S-IPS, Triluminos, Edge LED
Platform - BRAVIA_ATV1
Mediatek 5890(5595) - 2xARM Cortex-A17 @ 1100MHz
32-bit ARMv7
GPU - ARM Mali-T624
RAM - 1.5GB
Storage - 16GB[/TD]
[TD="align: center"]XD8305
S-IPS, Triluminos, EdgeLED
Platform - BRAVIA_ATV2_EU
Mediatek 5891(5596) - 4xARM Cortex-A53 @ 1100MHz
64-bit ARMv8-A (32-bit mode)
GPU - ARM Mali-T860 MP2
RAM - 2GB
Storage - 16GB[/TD]
[TD="align: center"]-> XD8305
Continues in 2017[/TD]
[TD="align: center"]XF8305
70" - MVA, Triluminos, Direct LED, 120Hz
60" - MVA, Triluminos, Direct LED, 120Hz
Platform - BRAVIA_ATV2
Mediatek 5891(5596) - 4xARM Cortex-A53 @ 1100MHz
64-bit ARMv8-A (32-bit mode)
GPU - ARM Mali-T860 MP2
RAM - 2GB
Storage - 16GB[/TD]
[/TR]
[TR]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]S8005C
Platform -
Mediatek 5890(5595) - 2xARM Cortex-A17 @ 1100MHz
32-bit ARMv7
GPU - ARM Mali-T624
RAM - 1.5GB
Storage - 16GB[/TD]
[TD="align: center"]SD8005
50" - MVA, Triluminos, EdgeLED
Platform - BRAVIA_ATV2_EU
Mediatek 5891(5596) - 4xARM Cortex-A53 @ 1100MHz
64-bit ARMv8-A (32-bit mode)
GPU - ARM Mali-T860 MP2
RAM - 2GB
Storage - 16GB[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[/TR]
[TR]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]X8005C
S-IPS, A-MVA, Direct LED[/TD]
[TD="align: center"]XD8005 / XD8077
XD8088 / XD8099
55" - S-IPS, Triluminos, Edge LED, 60hz
49" - S-IPS, Triluminos, Edge LED, 60hz
43" - MVA, Triluminos, EdgeLED, 60Hz
Platform - BRAVIA_ATV2_EU
Mediatek 5891(5596) - 4xARM Cortex-A53 @ 1100MHz
64-bit ARMv8-A (32-bit mode)
GPU - ARM Mali-T860 MP2
RAM - 2GB
Storage - 16GB[/TD]
[TD="align: center"]XE8005 / XE8077 / XE8088
XE8096 / XE8099
55" - S-IPS, Triluminos, Edge LED
49" - S-IPS, Triluminos, Edge LED
Storage-16GB[/TD]
[TD="align: center"]XF8096
55" - S-IPS, 8-bit+FRC, Triluminos, Edge LED, 60Hz
49" - S-IPS, 8-bit+FRC, Triluminos, Edge LED, 60Hz
43" - S-IPS, 8-bit+FRC, Triluminos, Edge LED, 60Hz
Platform - BRAVIA_ATV2
Mediatek 5891(5596) - 4xARM Cortex-A53 @ 1100MHz
64-bit ARMv8-A (32-bit mode)
GPU - ARM Mali-T860 MP2
RAM - 2GB
Storage - 16GB[/TD]
[/TR]
[TR]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]XD7505
65" - S-IPS, Direct LED, 120Hz[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[/TR]
[TR]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]XF7596
65" - MVA, Direct LED, 60hz
55" - S-IPS, Direct LED, 60Hz
49" - S-IPS, Edge LED, 60Hz
43" - S-IPS, Edge LED, 60Hz
Platform - BRAVIA_ATV2
Mediatek 5891(5596) - 4xARM Cortex-A53 @ 1100MHz
64-bit ARMv8-A (32-bit mode)
GPU - ARM Mali-T860 MP2
RAM - 2GB
Storage - 16GB[/TD]
[/TR]
[TR]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]XD7005
S-IPS, Direct LED[/TD]
[TD="align: center"]XE7000 / XE7003 / XE7004
XE7005 / XE7077 / XE7096
MVA, Edge LED[/TD]
[TD="align: center"]XF7000 / XF7002 / XF7003
XF7004 / XF7005 / XF7077 / XF7096
65" - MVA, Direct LED, 60hz
55" - MVA, Direct LED, 60hz
49" - S-IPS, Edge LED, 60hz
43" - S-IPS, Edge LED, 60Hz
Storage - 16GB[/TD]
[/TR]
[TR="bgcolor: #066c92"]
[TD="colspan: 6, align: center"]1920x1080 - FullHD[/TD]
[/TR]
[TR]
[TD="align: center"]W900A
S-PVA, A-MVA,
Triluminos(QDEF ?)[/TD]
[TD="align: center"]W955B
IPS, Triluminos, EdgeLED[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[/TR]
[TR]
[TD="align: center"]-[/TD]
[TD="align: center"]W828B / W829B
A-MVA, EdgeLED[/TD]
[TD="align: center"]W805C / W807C / W809C
W808C / W855C / W857C
W858C / W859C
50" - MVA, Edge LED, 120Hz
Platform - BRAVIA_ATV1
Mediatek 5890(5595) - 2xARM Cortex-A17 @ 1100MHz
32-bit ARMv7
GPU - ARM Mali-T624
RAM - 1.5GB
Storage - 16GB[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]WF805 / WF804
49" - S-IPS, 8-bit, Edge LED, 60Hz
43" - S-IPS, 8-bit, Edge LED, 60Hz
Platform - BRAVIA_ATV2
Mediatek - 5590(5595) - 2xARM Cortex-A17@1100MHz
32-bit ARMv7
GPU Mali-T624
RAM-1.5GB
Storage - 16GB[/TD]
[/TR]
[TR]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]W800C
55" - A-MVA3 8-bit, Edge LED
50" - A-MVA3 8-bit, Edge LED
Platform - BRAVIA_ATV1
Mediatek 5890(5595) - 2xARM Cortex-A17 @ 1100MHz
32-bit ARMv7
GPU - ARM Mali-T624
RAM - 1.5GB
Storage - 16GB[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]-[/TD]
[/TR]
[TR]
[TD="align: center"]W800A
IPS[/TD]
[TD="align: center"]W800B[/TD]
[TD="align: center"]W755C / W756C
S-MVA, A-MVA, Edge LED
Platform - BRAVIA_ATV1
Mediatek 5890(5595) - 2xARM Cortex-A17 @ 1100MHz
32-bit ARMv7
GPU - ARM Mali-T624
RAM - 1.5GB
Storage - 16GB[/TD]
[TD="align: center"]WD750 / WD753 / WD755
WD757 / WD758 / WD759
IPS, MVA, Edge LED, 60Hz[/TD]
[TD="align: center"]WE750 / WE753 / WE755
IPS, Triluminos, Edge LED, 60Hz[/TD]
[TD="align: center"]-[/TD]
[/TR]
[TR]
[TD="align: center"]W650A
A-MVA [/TD]
[TD="align: center"]W70xB[/TD]
[TD="align: center"]W705C
MVA, Edge LED[/TD]
[TD="align: center"]WD650 / WD655
MVA, Direct LED, 60Hz[/TD]
[TD="align: center"]WE660 / WE663 / WE665
MVA, IPS, EdgeLED, 60Hz[/TD]
[TD="align: center"]WF660 / WF630 / WF665
50" - MVA, Direct LED, 60Hz
43" - IPS, Direct LED, 60Hz[/TD]
[/TR]
[TR]
[TD="align: center"]W600A
A-MVA [/TD]
[TD="align: center"]W6xxB[/TD]
[TD="align: center"]R503C / R553C
MVA, Edge LED[/TD]
[TD="align: center"]WD600 / WD603 / WD605
IPS, Direct LED, 60Hz[/TD]
[TD="align: center"]WE610 / WE613 / WE615
IPS, Edge LED, 60Hz[/TD]
[TD="align: center"]-[/TD]
[/TR]
[TR]
[TD="align: center"]R470A
S-PVA [/TD]
[TD="align: center"]R450B / R453B[/TD]
[TD="align: center"]R450C / R453C / R455C
EdgeLED[/TD]
[TD="align: center"]RD450 / RD455
Direct LED, 60Hz[/TD]
[TD="align: center"]RE450 / RE453 / RE455
40" - MVA, Edge LED[/TD]
[TD="align: center"]RF450 / RF453 / RF455
43" - Direct LED, 60Hz[/TD]
[/TR]
[TR="bgcolor: #066c92"]
[TD="colspan: 6, align: center"]1366x768 - HD Ready[/TD]
[/TR]
[TR]
[TD="align: center"]R420A
IPS[/TD]
[TD="align: center"]R412B[/TD]
[TD="align: center"]R403C
EdgeLED[/TD]
[TD="align: center"]RD430 / RD435
Direct LED, 60Hz[/TD]
[TD="align: center"]RE400 / RE403 / RE405
32" - IPS, Edge LED[/TD]
[TD="align: center"]-[/TD]
[/TR]
[TR="bgcolor: #000099"]
[TD="align: center"]2013
____________________[/TD]
[TD="align: center"]2014
____________________[/TD]
[TD="align: center"]2015
____________________[/TD]
[TD="align: center"]2016
____________________[/TD]
[TD="align: center"]2017
____________________[/TD]
[TD="align: center"]2018
___________________[/TD]
[/TR]
[/TABLE]

Last edited by a moderator:
65"...[lesnumeriques.com]...Sony KD-65ZF9 test...https://www.lesnumeriques.com/tv-televiseur/sony-kd-65zf9-p45375/test.html

μετάφραση google fr to en








source photos:[lesnumeriques.com]


-----------------------------------------------------------------------------


65"...[dday.it]...Sony KD-65AF9 review...https://www.dday.it/redazione/28373/sony-oled-af9-la-recensione-immagine-pura

μετάφραση google it to en



65"...[hdtvpolska.com]...Sony KD-65AF9 test...https://hdtvpolska.com/sony-kd-65af9-test-bravia-master-series-oled-ultra-hd-z-hdr/

μετάφραση google pl to en










source photos:[hdtvpolska.com]

Sony KD-65AF9 test...https://www.tek.no/artikler/test-sony-kd-65af9/448233

μετάφραση google no to en



65"...[flatpanelshd.com]...Sony KD-65AF9 review,calibration settings only for SDR...https://www.flatpanelshd.com/review.php?subaction=showfull&id=1541414557


source picture:[flatpanelshd.com]




65"...[lcdtvthailand.com]...Sony 65A9F review...https://www.lcdtvthailand.com/revie...V-ตัวท็อป-กับศักยภาพระดับ-Master-Series-.html

μετάφραση google th to en






source photos:[lcdtvthailand.com]



55"...[avforums.com]...Sony KD-55AF9 review...https://www.avforums.com/review/sony-kd-55af9-oled-tv-review.15500



65"...[avcesar.com]...Sony KD-65AF9 test...https://www.avcesar.com/test/ecran_plat/id-184/sony-kd-65af9/page-1.html

μετάφραση google fr to en


65"...[4kfilme.de]...Sony KD-65AF9 test...https://www.4kfilme.de/test-af9-sony-oled-4k-fernseher-65-zoll/

μετάφραση google de to en

Last edited:
We review the Sony ZF9 Master Series 4K HDR TV which is also marketed as the Bravia Z9F in the USA. It is an LED LCD television with full-array local dimming (FALD) direct-lit LED backlighting, the company's top-end X1 Ultimate video processing, X-Wide Angle, X-Motion Clarity and more responsive Android TV experience.

Topics covered including black level, local dimming, colour accuracy, screen uniformity, motion handling, picture processing, viewing angle, HDR and gaming.

Our review sample is the 75-inch Sony KD-75ZF9 with 288 individually dimmable zones. The smaller 65in KD-65ZF9 has a significantly lower FALD zone count of 104 zones.

https://www.youtube.com/watch?v=8mlTElC2z2A
source:[youtube.com - hdtvtest.co.uk]

Top Bottom
