-TCL TV Line-up 2022-

43"...[geex.x-kom.pl]...TCL 43P638 (43P63 series) review...https://geex.x-kom.pl/recenzje/test-i-recenzja-tcl-43p638/

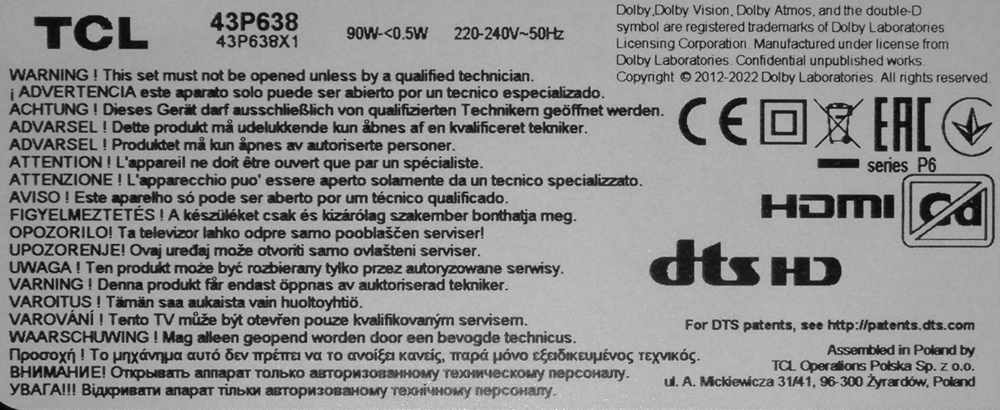

model code :43P638X1 ,software version V8-R51MT05-LF1V500,assembled in Poland

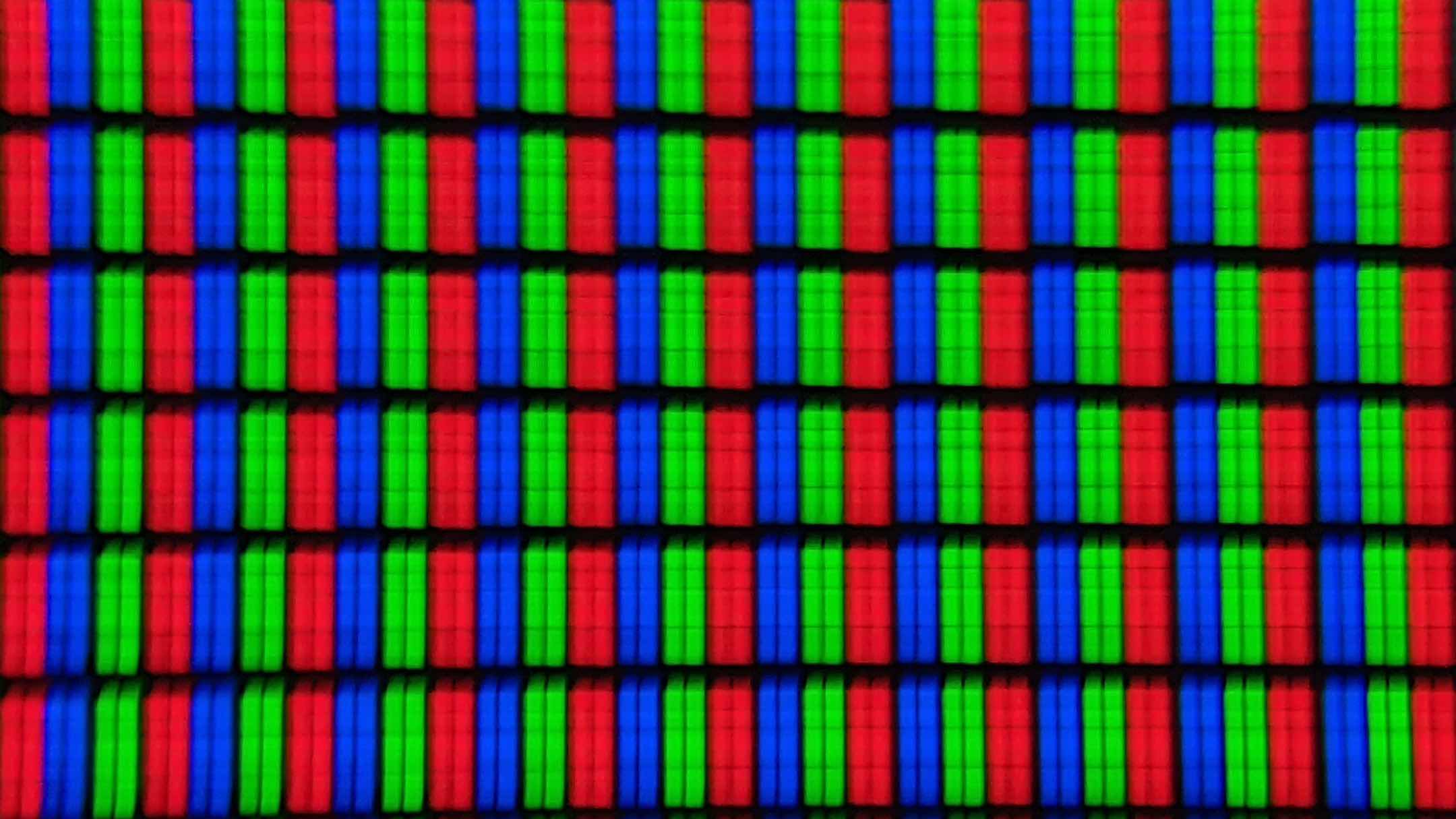

VA panel: (ANSI contrast ratio 4854:1)very good black and contrast (for LCD) ,4-domain,RGB,vertical stripe.
LCD
Direct LED backlighting
50/60Hz
Realtek RTD288 processor SoC
no phosphorus KSF = only standard color palette Rec.709 coverage
DCI-P3 (CIExy) has 79% coverage, meaning the TV only supports the standard color gamut. In other words, HDR content is not suitable (which is the norm in this price class).
Google TV based on Android TV 11.

Temperature close to the standard of the film mode (6489K),reference is D65,6504 Kelvin.

HDR: In the HDR movie mode on the board 10%, the maximum luminance after three minutes of measurement was 277 cd/m²(nits).
This is further proof that we are dealing with a TV suitable for SDR content, not HDR.

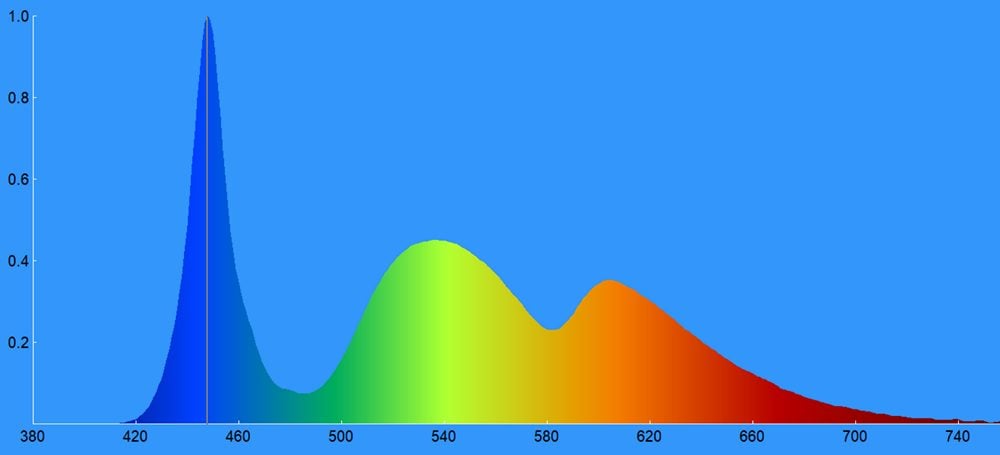

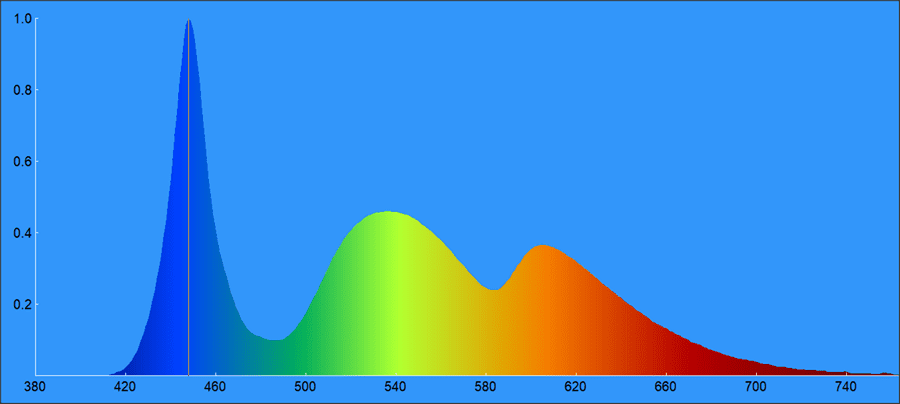

Spectral Power Distribution-SPD











SoC
Model: Smart TV
Realtek RTD2851A

Board : G07
Device: G07
Platform : rtd2851a
Product: G07_4K_GB_NF

Core Architecture: 4x ARM Cortex-A55 @ 1300 MHz
Instruction Set : 64-bit ARMv8-A (32 bit Mode)
CPU Cores: 4
CPU Clock Range: 900 - 1300 MHz
Installed RAM : 2 GB
Available Memory: 554 MB
GPU Renderer : ARM Mali-G31
UI Screen resolution : 1920 x 1080
Internal Storage Total Space: 8.7 GB
Internal Storage Free Space: 5.6 GB

65"...[fwd.nl]...TCL 65C935 review...https://fwd.nl/beeld/review-tcl-65c935-c935-serie-lcd-led-tv/

LCD
VA panel

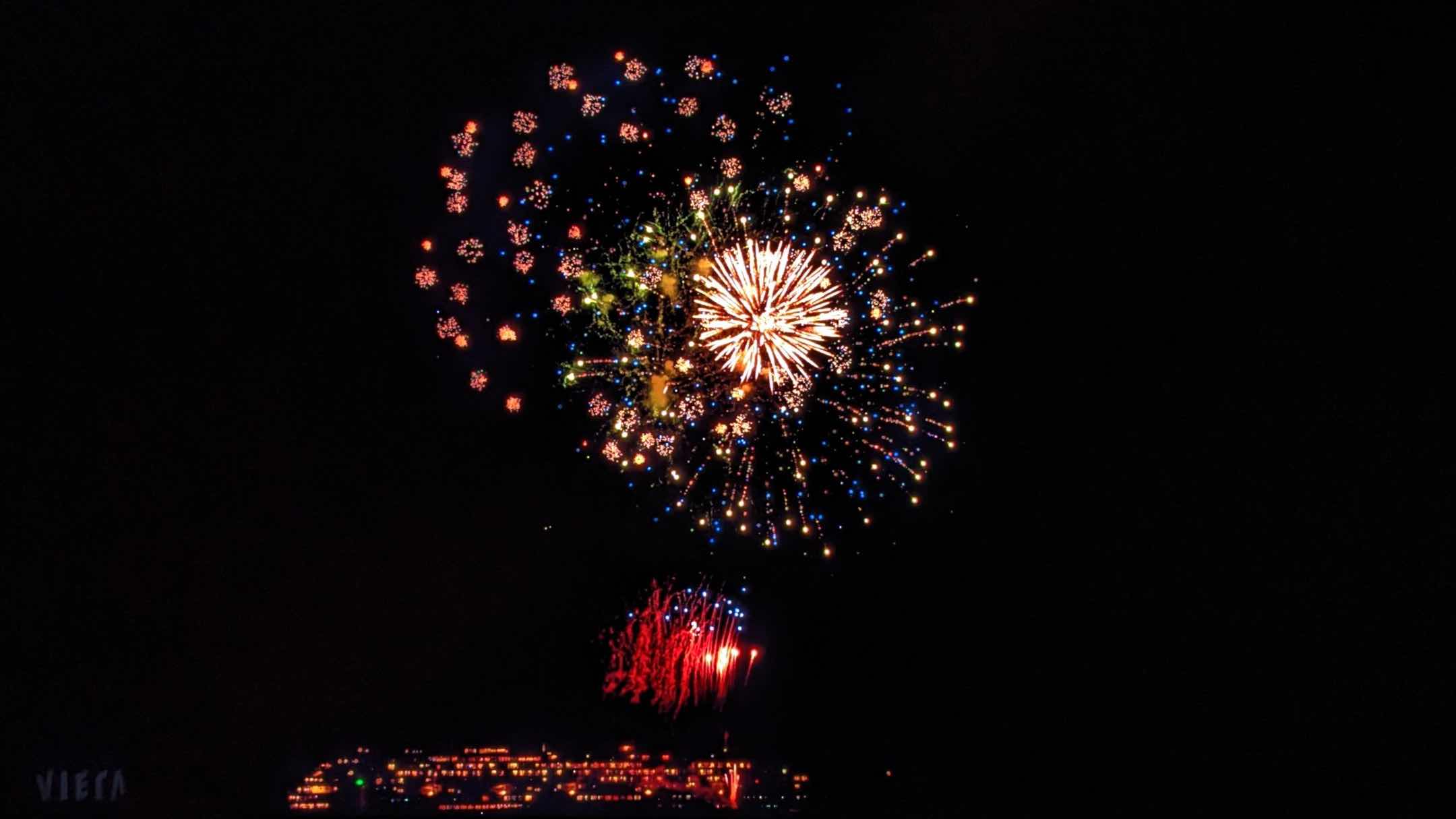

mini-LED Full Array Local Dimming (36×30 =1,080 zones) backlight
100/120Hz με MCFI











Οι ρυθμίσεις είναι μόνο για αναφορά.
Δεν υπάρχει καμία εγγύηση ότι θα σας δώσουν την καλύτερη εικόνα που είναι σύμφωνη με τα πρότυπα της βιομηχανίας και κατάλληλη για το περιβάλλον προβολής σας (ειδικά ισορροπία λευκού, ρυθμίσεις συστήματος γάμμα και χρώματος που διαφέρουν από μονάδα σε μονάδα).
Εάν θέλετε μια εγγυημένη βαθμονομημένη εικόνα, καλέστε έναν επαγγελματία βαθμονομητή τηλεόρασης.

Advanced/BrightnessAdvanced ColorAdvanced ClarityAdvanced Motion
Brightness: 80
Contrast: 90
Black level 50
Dynamic contrast: Off
Black stretch: High
Dynamic Brightness: auto
Local blackout: High
Local Contrast: Off
Gamma: 2		Color Saturation: 50
Shade: 50
Blue light filter: Off
Color temperature: Warm (-5)		Sharpness: 0-10
MPEG NR: layer
DNR: layer
Superior gradation: off/low		Motion clarity: Clear
LED motion: Off
Reduce blur: 10
Reduce vibration: 4-10
Screen settings/Overscan: Off

55"...[tvtest.pl/geex.x-kom.pl]...TCL 55P63 series (55P638) review...https://geex.x-kom.pl/recenzje/test-i-recenzja-tcl-55p638/

αντίστοιχη της 55P635

Αυτή η κριτική είναι για όλους όσους δεν μπορούν να αποφασίσουν αν θα αγοράσουν την 55C635 ή την φθηνότερη 55P638.
Αποδεικνύεται ότι οι διαφορές είναι μεγάλες – ακόμη μεγαλύτερες από ό,τι νόμιζα.

running software version V8-R51MT05-LF1V500.020739 and Android TV 11 (Google TV).
-----------

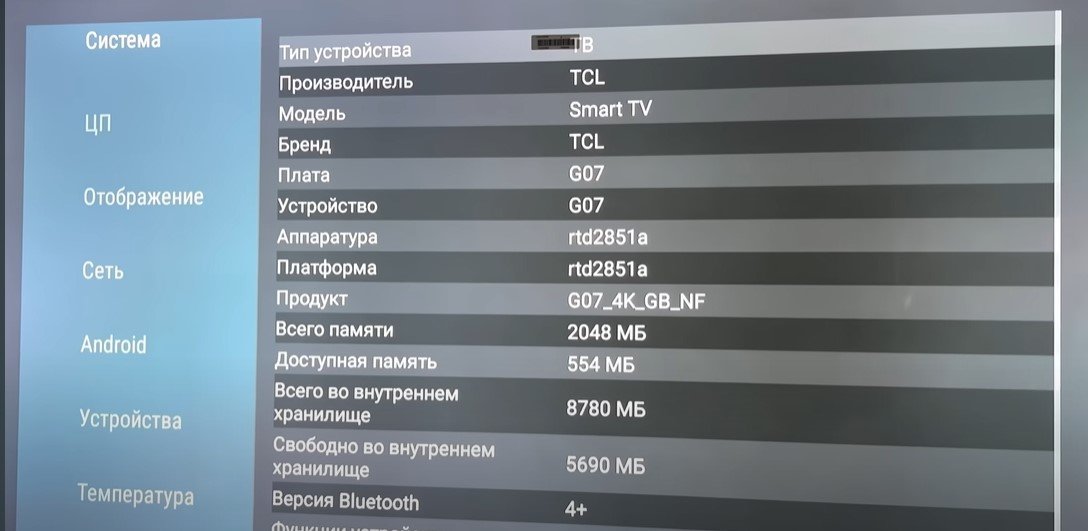

SoC
Model: Smart TV
Realtek RTD2851A

Board : G07
Device: G07
Platform : rtd2851a
Product: G07_4K_GB_NF

Core Architecture: 4x ARM Cortex-A55 @ 1300 MHz
Instruction Set : 64-bit ARMv8-A (32 bit Mode)
CPU Cores: 4
CPU Clock Range: 900 - 1300 MHz
Installed RAM : 2 GB
Available Memory: 554 MB
GPU Renderer : ARM Mali-G31
UI Screen resolution : 1920 x 1080
Internal Storage Total Space: 8.7 GB
Internal Storage Free Space: 5.6 GB
---------

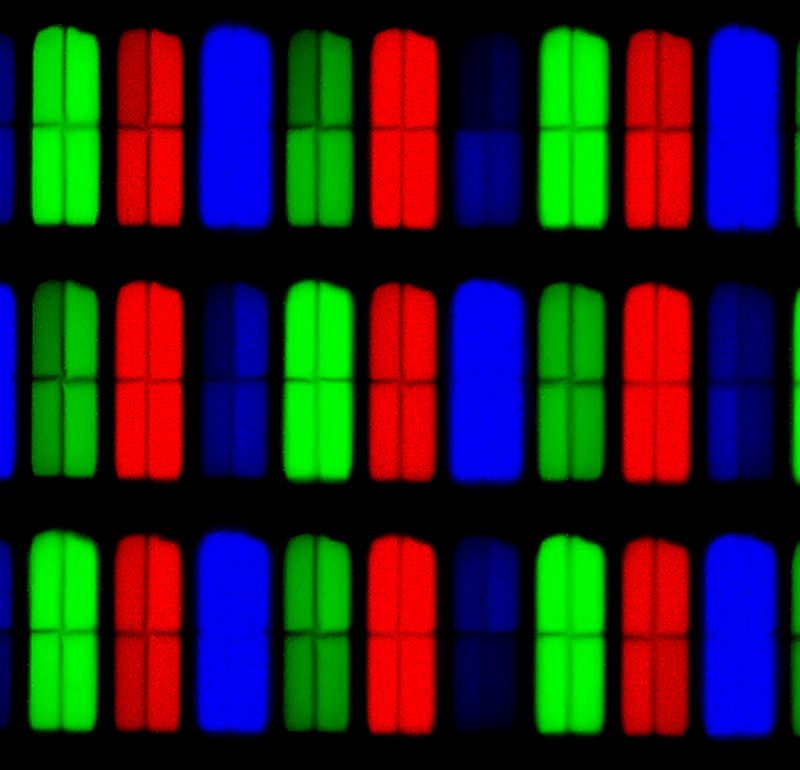

VA panel,4 domain,RGB,vertical stripe : ANSI contrast ratio = 5255:1
Direct backlighting LED LCD
50/60Hz
DCI-P3 (CIExy) : 79% coverage,only supports the standard color gamut SDR.
In HDR movie mode on a 10% board, the maximum luminance after three minutes of measurement was 258 cd/m² (nits).
---------
  • leg spacing (fixed): 1057 mm;
  • ground clearance: 43 mm;

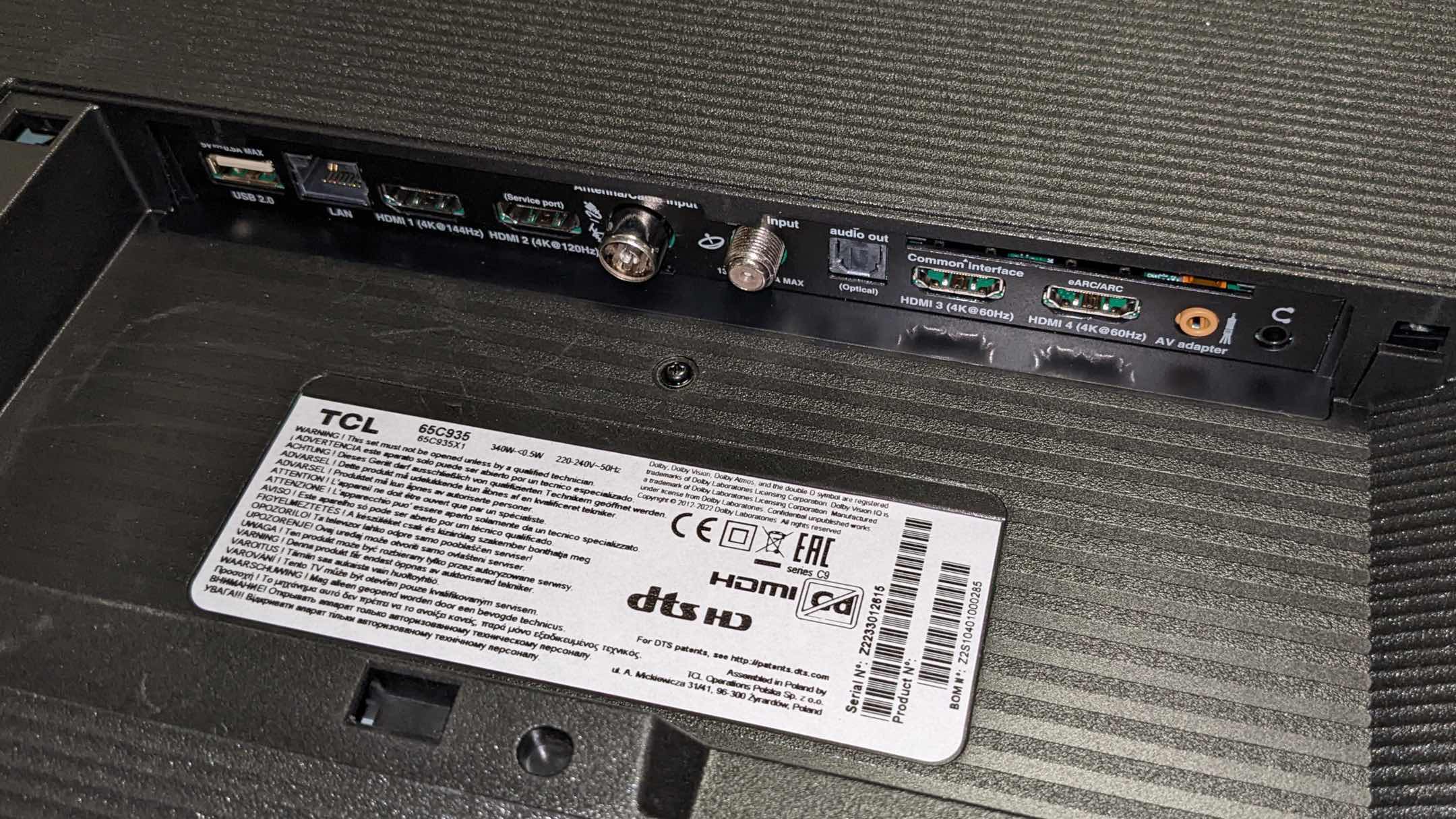

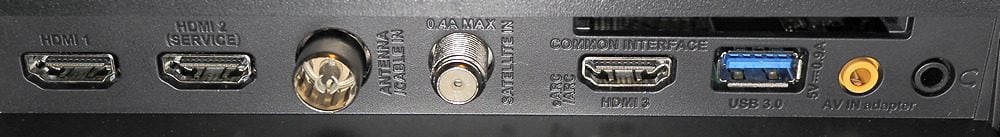

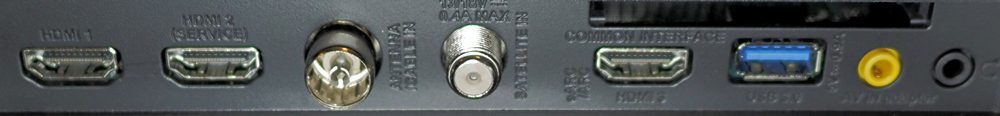

  • sockets: right;
  • Remote control 1: plastic, with a new rounded housing, voice, without backlight;
  • Remote control 2: plastic, traditional, without backlight.
----------



Spectral Power Distribution

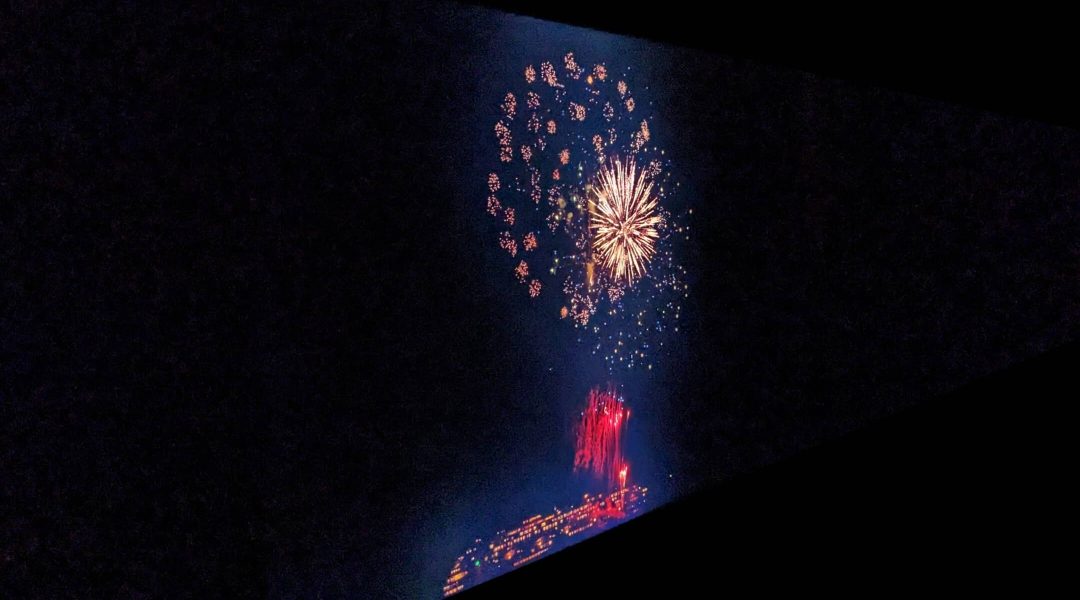

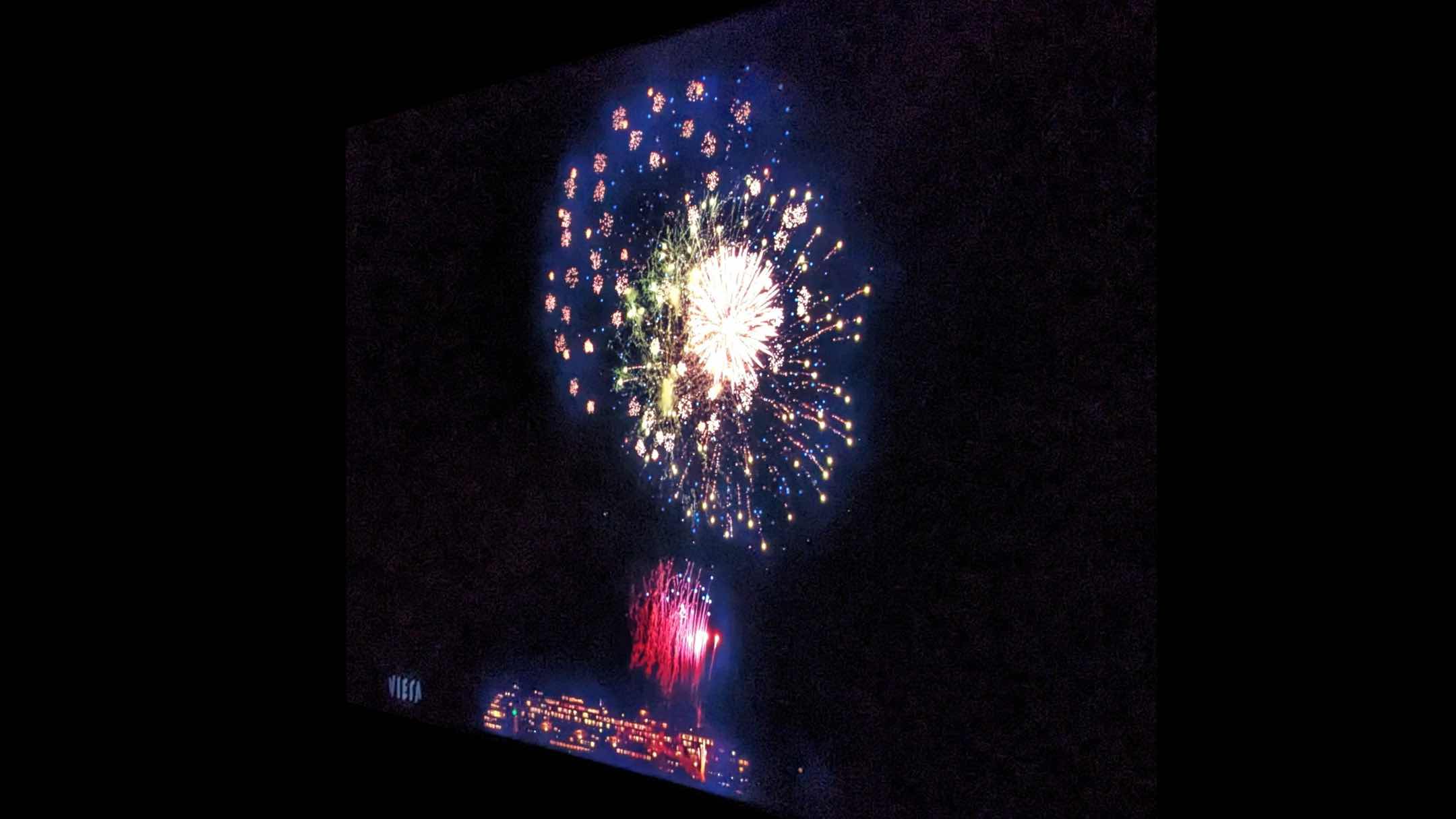

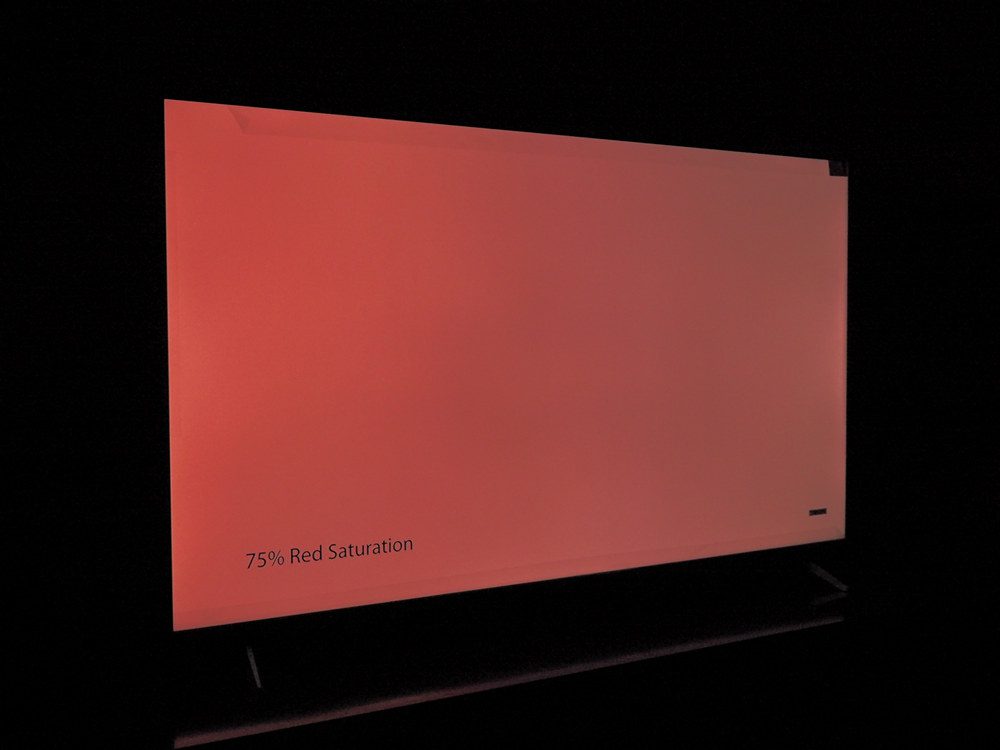

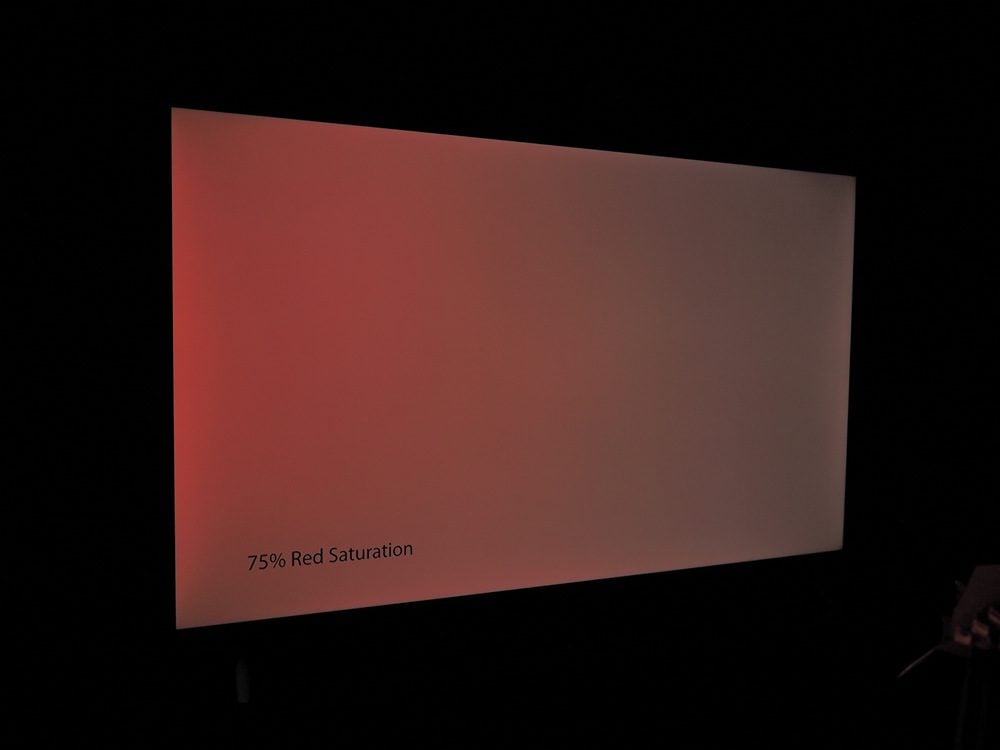

At an angle, the colors fade and darken (more vertically than horizontally).

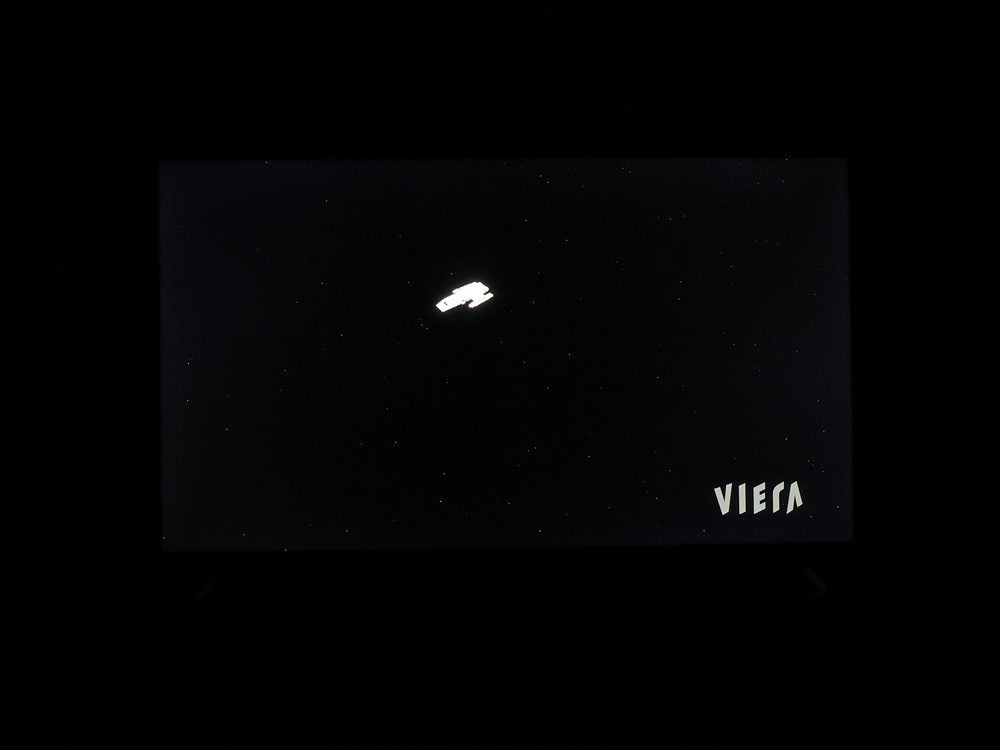

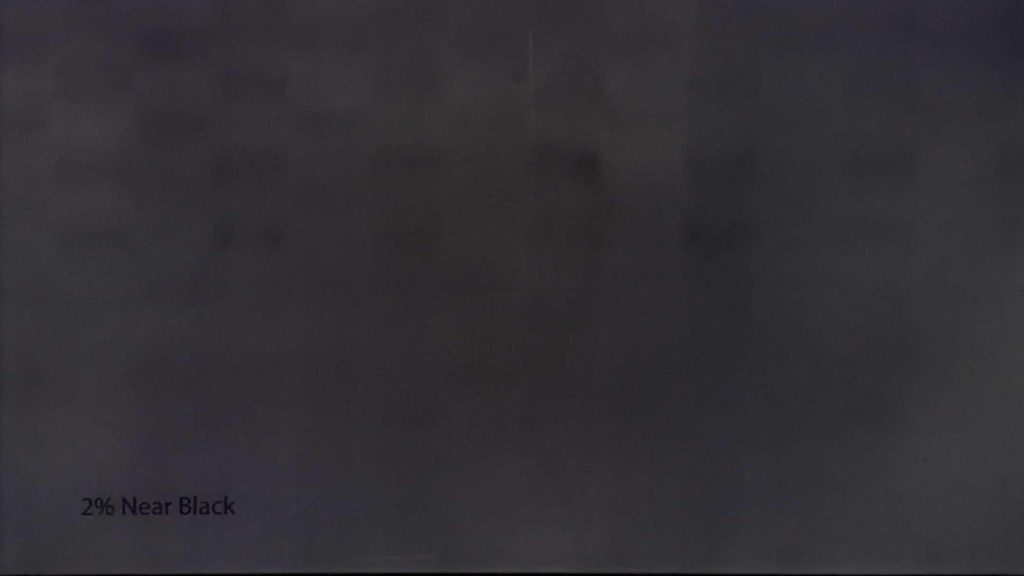

With the naked eye you can also see that the uniformity of the backlight leaves a lot to be desired.




maximization of the backlight






Power supply and mainboard one piece




Summary:​

The undoubted advantages of the TCL 55P638 TV are contrast, colors and attractive price.
In my opinion, this TV will work on such content as news, current affairs programs or nature films.
However, I recommend that anyone interested in this model consider buying a 55-inch model from the higher C635 series: it offers noticeably more, for little more.

Περίληψη:
Τα αναμφισβήτητα πλεονεκτήματα της τηλεόρασης TCL 55P638 είναι η αντίθεση, τα χρώματα και η ελκυστική τιμή.
Κατά τη γνώμη μου, αυτή η τηλεόραση θα λειτουργεί με περιεχόμενο όπως ειδήσεις, προγράμματα επικαιρότητας ή ταινίες για τη φύση.
Ωστόσο, συνιστώ σε όποιον ενδιαφέρεται για αυτό το μοντέλο να σκεφτεί να αγοράσει ένα μοντέλο 55 ιντσών από την υψηλότερη σειρά C635: προσφέρει αισθητά περισσότερα, για λίγο περισσότερο.
---------

Μέσα από την εφαρμογή AIDA64 που κατεβαίνει από το Google Play Store της τηλεόρασης
System 55P635.jpg

CPU 55P635.jpg

TCL 55P635 review video (ru)
To view this content we will need your consent to set third party cookies.
For more detailed information, see our cookies page.

---

TCL 55P735 review
To view this content we will need your consent to set third party cookies.
For more detailed information, see our cookies page.

SoC
Model: Smart TV Pro
Realtek RTD2851M

Device: BeyondTV4
Platform : rtd288o
Product: G03_4K_GB

Core Architecture: 4x ARM Cortex-A55 @ 1300 MHz
Instruction Set : 64-bit ARMv8-A (32 bit Mode)
CPU Cores: 4
CPU Clock Range: 900 - 1300 MHz
Installed RAM : 2 GB
Available Memory: 463 MB
GPU Renderer : ARM Mali-G31
UI Screen resolution : 1920 x 1080
Internal Storage Total Space: 10.1GB
Internal Storage Free Space: 7.7 GB

System 55P735.jpg

CPU 55P735.jpg

GPU 55P735.jpg


TCL 43P737 System AIDA64.jpg

TCL 43P737 processor AIDA64.jpg

TCL 43P737 GPU AIDA64.jpg
source : youtube.com/watch?v=hsEdmgsy2hI

πηγή : Pro100tehnika

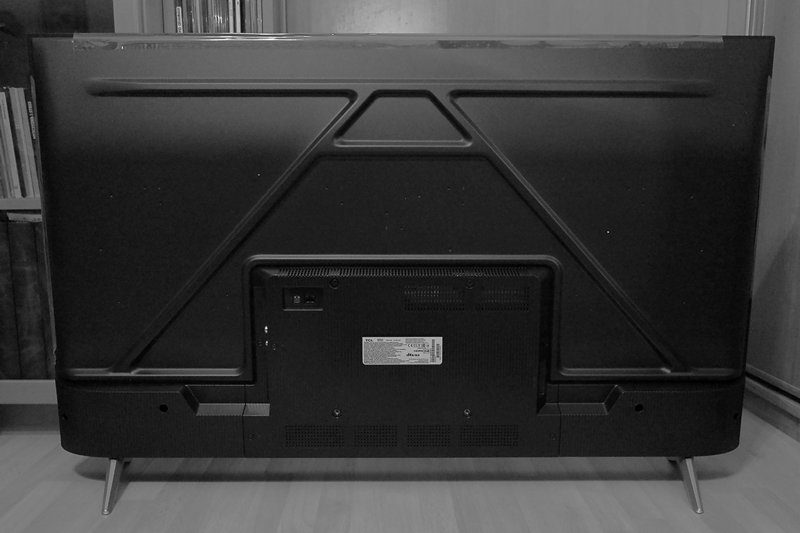

50"...[geex.x-kom.pl]...TCL 50P638 review...https://geex.x-kom.pl/recenzje/test-i-recenzja-tcl-50p638/

VA panel LCD,4-domain,RGB
Direct backlighting
50/60Hz
DCI-P3 (CIExy) : 77% coverage, meaning that the tv only supports the standard color gamut,SDR.
In the HDR movie mode on the 10% board, the maximum luminance after three minutes of measurement was 231 cd/m² (nits),suitable for SDR content, not HDR.

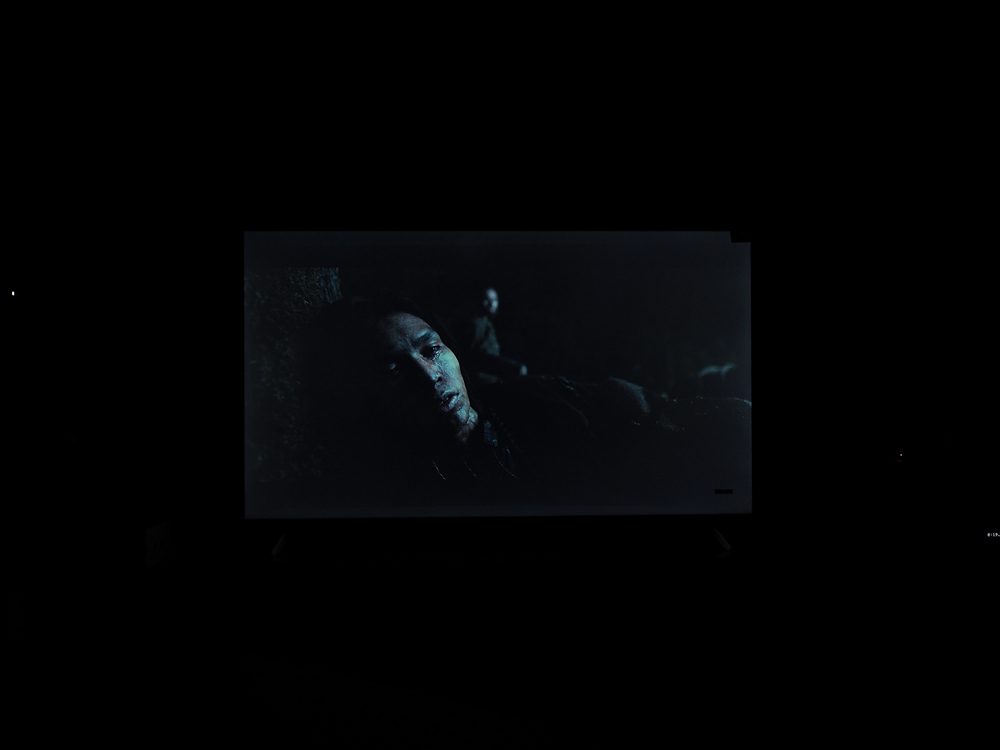

in HDR mode





98"...[fwd.nl]...TCL 98C735 review...https://fwd.nl/beeld/review-tcl-98c735-98-inch-tv-voor-nog-geen-4-000-euro/

TCL took us to Poland to test the 98C735

panel technology : LCD ,transmissive.

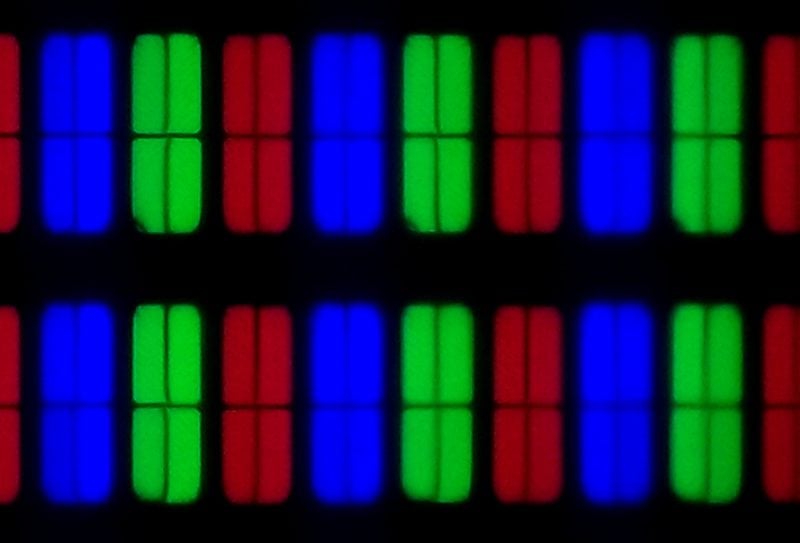

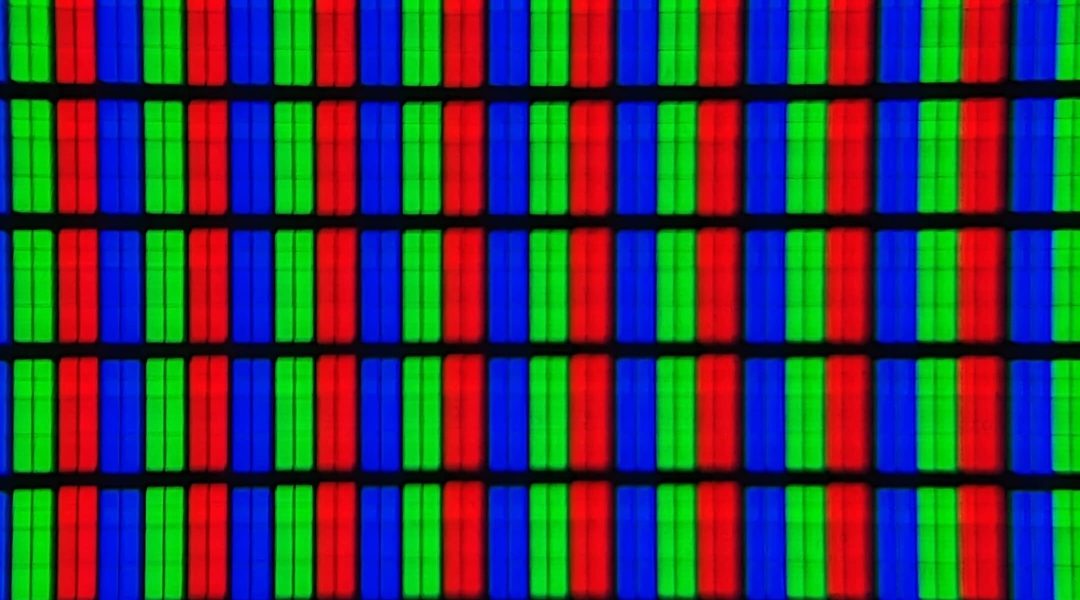

VA panel,RGB,verical stripe,8 domain.
FALD LED LCD: 24x8 = 192 dimming zones.
100/120Hz με MCFI.
94% DCI-P3 and 72% Rec.2020

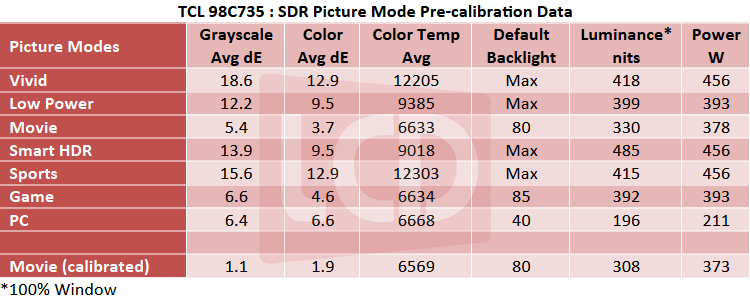

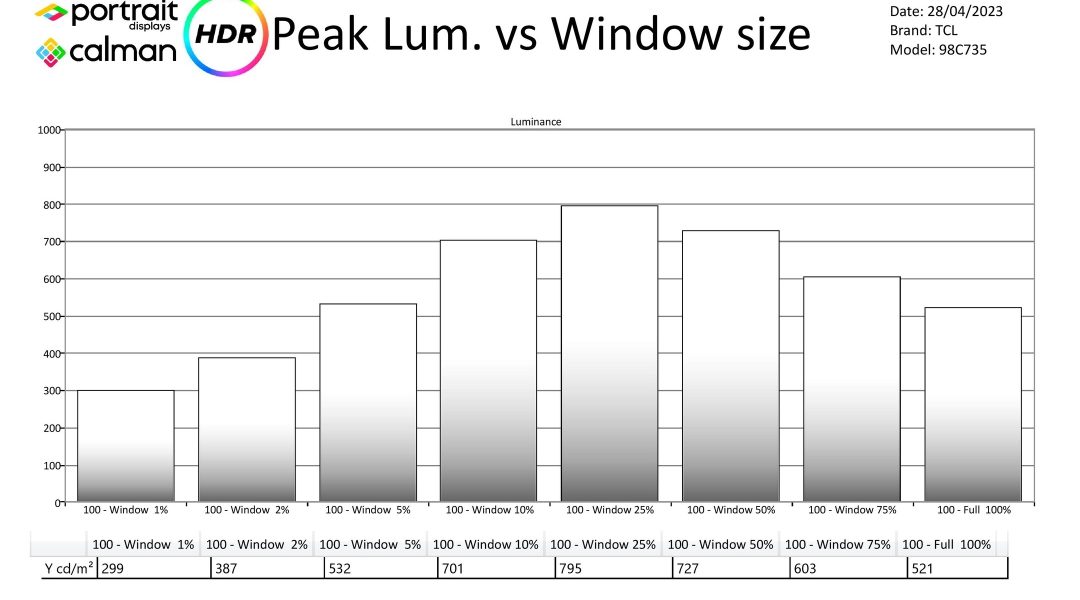

In HDR: a peak of 710 nits on the 10% window, and even almost 800 nits on a 25% window. The all-white screen still delivers 520 nits.
58kg
Retail price: 4000 €






98"...[hdtvtest.co.uk]...TCL 98C735 review

We review a 98-inch TCL C735 LCD tv vs an Ultra Short Throw (UST) 4K laser projector Samsung LSP9T.

TCL arranged this UST projector versus TV demonstration.

To view this content we will need your consent to set third party cookies.
For more detailed information, see our cookies page.

πηγή : hdtvtest.co.uk

------

98"...[lcdtvthailand.com]...TCL 98C735 test...https://www.lcdtvthailand.com/review/review_tcl98c735/

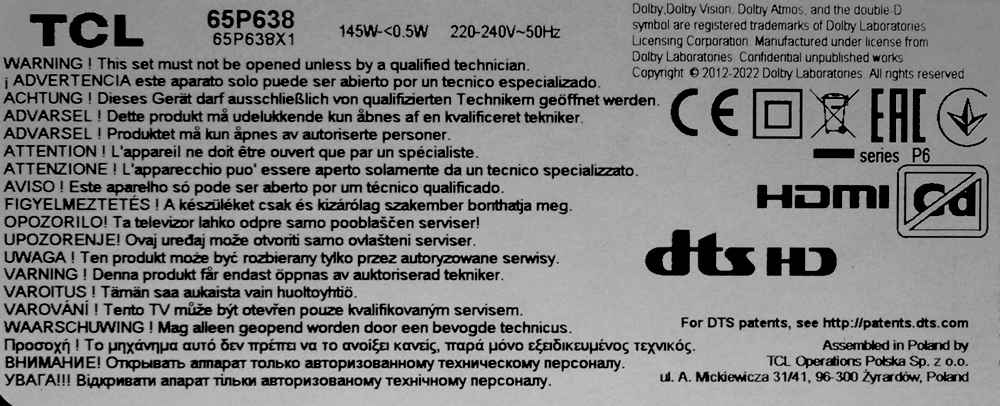

65"...[geex.x-kom.pl]...TCL 65P638 review...https://geex.x-kom.pl/recenzje/test-i-recenzja-tcl-65p638/

Αντίστοιχο μοντέλο στην ελληνική αγορά είναι η TCL 65P635

Software version V8-R51MT05-LF1V500.020739 and Android 11 (Google TV).

VA LCD panel,8 domain,RGB,vertical stripe
Direct LED backlighting
50/60Hz
Wide colour gamut: DCI-P3 (CIExy) 78% coverage, which means that the tv only supports the standard color gamut (SDR). In other words, HDR content is not suitable .
ANSI contrast ratio 7498:1
In the HDR movie mode on the board 10%, the maximum luminance after three minutes of measurement was 294 cd/m² (nits),suitable for SDR content, not HDR.

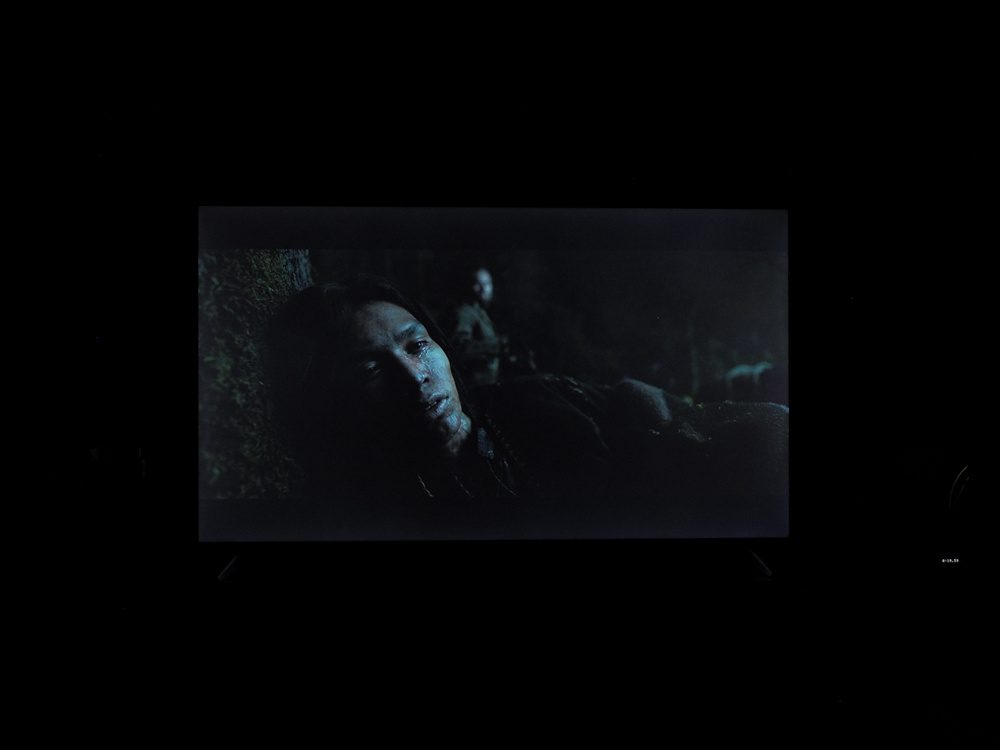

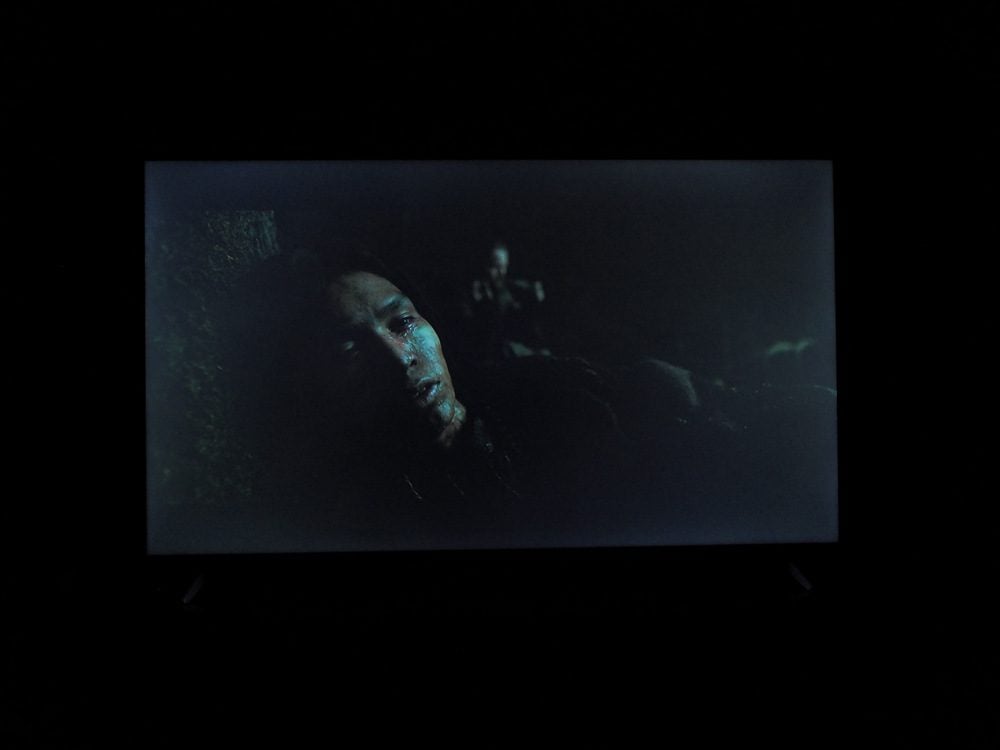

in HDR mode from The Revenant (2015)

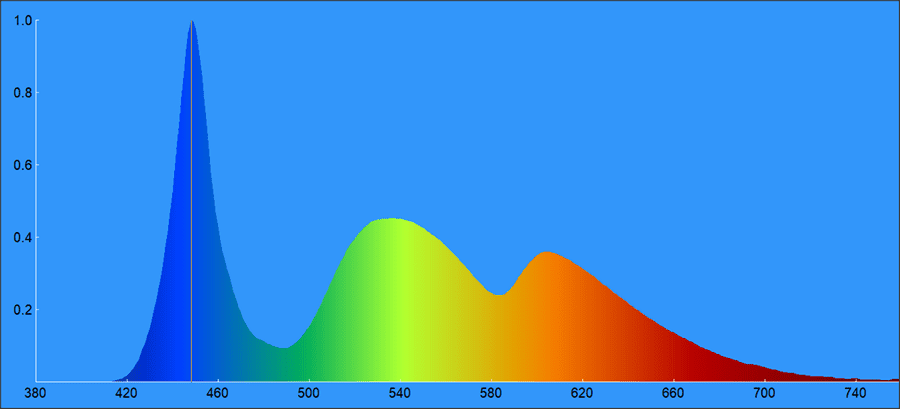

Spectral power of distribution














-----------

TV range benchmark - TCL vs Samsung, LG, Sony, Philips, Hisense

TCL 2022 range mapping to Samsung, LG, Sony, Philips, Hisense 2022 ranges
C935, C835, C735, C635, 98C735 benchmark
To view this content we will need your consent to set third party cookies.
For more detailed information, see our cookies page.

πηγή : Marek Maciejewski
Product Development Director Europe at TCL Europe
Διευθυντής Ανάπτυξης Προϊόντων TCL Ευρώπης
