-Panasonic TV Line-Up 2016-

[hristoslav2]

[TABLE="class: cms_table_cms_table_cms_table_cms_table_cms_table_cms_table"]
[TR="bgcolor: #663399"]
[TD="colspan: 16, align: center"]Panasonic UltraHD TV 2016[/TD]
[/TR]
[TR="bgcolor: #3333cc"]
[TD]Product[/TD]
[TD]UHD
Premium
[/TD]
[TD]Dolby
Vision
[/TD]
[TD]

HDR
​

_____________________[/TD]
[TD]Videopanel - LCD matrix
___________________________________[/TD]
[TD]

Backlight
Dimming
​

_____________________________________[/TD]
[TD]

Color Space
​

_____________________________[/TD]
[TD]

Contrast
White & Black level
​

_________________________________[/TD]
[TD]Viewing angle
_____________[/TD]
[TD]

Input Lag
​

_________________________________[/TD]
[TD]

SoC
software
OS
​

_________________[/TD]
[TD]

Conectors​

_________________[/TD]
[TD]

Networks
​

_______________________________[/TD]
[TD="class: sortable-pre"]

Tuner
​

_______________________________[/TD]
[TD]Picture Accuracy Out-of-the-Box (score out of 10)
_______________

[/TD]
[TD]Product[/TD]
[/TR]
[TR]
[TD="bgcolor: #0000ff"]CZ950
65"

OLED[/TD]
[TD]Yes[/TD]
[TD]No[/TD]
[TD]65" -[/TD]
[TD]Oled, WRGB, 10bit, 120/100Hz[/TD]
[TD]No[/TD]
[TD]65" -[/TD]
[TD]65" - ∞ / 130cd/m2 / 0.00cd/m2[/TD]
[TD]-
-
-[/TD]
[TD]-
-
-[/TD]
[TD][/TD]
[TD][/TD]
[TD]Lan -
Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Bluetooth
Wi-Fi Direct
DLNA (RUI2.0/DTCP-IP/DMP/DMR/DMS)[/TD]
[TD]2 x DVB-C/T2/S2,
1 x SAT>IP Client & Server
DVB-T2: HEVC H.264 и H.265
Analog (PAL,SECAM)
2 x CI+1.3


HEVC
VP9[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]CZ950[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #0000ff"]DX900
58", 65"[/TD]
[TD]Yes[/TD]
[TD]No[/TD]
[TD]65"- max 1250cd/m[SUP]2[/SUP]

---

58"- max 1320cd/m[SUP]2[/SUP]

---

Yes HDR10
SMPTE standards
ST2084, ST2086[/TD]
[TD]65"- SMVA, 10-bit, 120/100Hz + MCFI

---

58"- SMVA, 10-bit, 120/100Hz + MCFI

---

[/TD]
[TD]65"' - FALD - 512 zones (32 columns x 16 rows)

---

58" - FALD - 512 zones (32 columns x 16 rows)

---

Honeycomb backlight structure

---

Blue Leds (actually white
LEDs "boosted"
with red phosphorus)

---

(BLS - Backlight Scaning) +
(BFI - Black Frame Insertion)


6 cooling fan backlight[/TD]
[TD]65"- DCI P3 - 98% / Rec.2020 - 78%

---

58"- DCI P3 - 96% / Rec.2020 - 74%

---

[/TD]
[TD]65" - 5360:1 / 134cd/m2 / 0.025cd/m2

---

58" - 4600:1 / ---- cd/m2 / 0.023cd/m[SUP]2
[/SUP]

---

[/TD]
[TD]65" - 42°(cone)

---

58" - 46°(conе)

---

[/TD]
[TD]65"- Game mode -41ms / by default-51ms

---

58" -

---

[/TD]
[TD]Quad Core
P163
Firefox 2.5[/TD]
[TD]Bluetooth Ver. 4.0 (keyboards, mouse)
1 x Ethernet RJ45
2 x USB 2.0 (max500mA)
1 x USB 3.0 (max900mA)
1 x Ethernet RJ45
1 x HDMI 1.4 (CEC)
2 x HDMI 2.0 (ARC,CEC)
1 x Satelite In (Main: F-type female)
1 x Satelite In (Sub: F-type female)
1 x AV Composite In
1 x AV Component In
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF)female
1 x CI+ 1.3
Card reader SD/SDHC[/TD]
[TD]Lan
Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Wi-Fi Direct
DLNA (RUI2.0/DTCP-IP/DMP/DMR/DMS)[/TD]
[TD]2x DVB-C/T2/S2,
1 x SAT>IP Client & Server
DVB-T2: HEVC H.264 и H.265
Analog (PAL,SECAM)
2 x CI+1.3


HEVC
VP9[/TD]
[TD]9[/TD]
[TD="bgcolor: #0000ff"]DX900
[/TD]
[/TR]
[TR]
[TD="bgcolor: #0000ff"]DX800
58", 50"[/TD]
[TD]Yes[/TD]
[TD]No[/TD]
[TD]58" - max...cd/m[SUP]2[/SUP]

---

50" - max...cd/m[SUP]2[/SUP]

---

Yes HDR10
SMPTE standards
ST2084, ST2086[/TD]
[TD]58"- SMVA, 8-bit+Hi-FRC, 120/100Hz + MCFI

---

50"- SMVA, 8-bit+Hi-FRC, 120/100Hz + MCFI

---

[/TD]
[TD]58" - Edge Led

---

50" -

---

[/TD]
[TD]58"-

---

50"-

---

[/TD]
[TD]58"-

---

50"-

---

[/TD]
[TD]58" -

---

50" -

---

[/TD]
[TD]58" -

---

50" -

---

[/TD]
[TD]Quad Core
P163
Firefox 2.5[/TD]
[TD]Bluetooth Ver. 4.0 (keyboards, mouse)
1 x Ethernet RJ45
2 x USB 2.0 (max500mA)
1 x USB 3.0 (max900mA)
1 x Ethernet RJ45
1 x HDMI 1.4 (CEC)
2 x HDMI 2.0 (ARC,CEC)
1 x Satelite In (Main: F-type female)
1 x Satelite In (Sub: F-type female)
1 x AV Composite In
1 x AV Component In
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF)female
1 x CI+ 1.3
Card reader SD/SDHC[/TD]
[TD]Lan
Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Wi-Fi Direct
DLNA (RUI2.0/DTCP-IP/DMP/DMR/DMS)[/TD]
[TD]2 x DVB-C/T2/S2,
1 x SAT>IP Client & Server
DVB-T2: HEVC H.264 и H.265
Analog (PAL,SECAM)
2 x CI+1.3


HEVC
VP9[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DX800
[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #0000ff"]DX780
65", 58", 50"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]65" - max......cd/m[SUP]2[/SUP]

---

55" - max 577cd/m[SUP]2[/SUP]

---

50" - max .....cd/m[SUP]2[/SUP]

---

Compatible
HDR processing
(but no hardware for HDR)
[/TD]
[TD]65" - SMVA, 8-bit+FRC, 120/100Hz + MCFI

---

58" - SMVA, 8-bit+FRC, 120/100Hz + MCFI

---

50" - SMVA, 8-bit+FRC, 120/100Hz + MCFI

---

[/TD]
[TD]65" - Direct Led, Local Dimming

---

58" - Edge Led (below) Vertical Dimming

---

50" - Edge Led (below) Vertical Dimming

---

[/TD]
[TD]65" -

---

58" -

---

50" - DCI P3 - 89% / Rec.2020 - 66%

---

[/TD]
[TD]65" -

---

58" -

---

50" -

---

[/TD]
[TD]65" -

---

58" -

---

50" -

---

[/TD]
[TD]65" -

---

58" -

---

50" -

---

[/TD]
[TD]Quad Core
P163
Firefox 2.5[/TD]
[TD]Bluetooth Ver. 4.0 (keyboards, mouse)
1 x Ethernet RJ45
2 x USB 2.0 (max500mA)
1 x USB 3.0 (max900mA)
1 x Ethernet RJ45
1 x HDMI 1.4 (CEC)
2 x HDMI 2.0 (ARC,CEC)
1 x Satelite In (Main: F-type female)
1 x Satelite In (Sub: F-type female)
1 x AV Composite In
1 x AV Component In
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF)female
1 x CI+ 1.3
Card reader SD/SDHC[/TD]
[TD]Lan (10BASE-T/100BASE-TX)
Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Wi-Fi Direct
DLNA (RUI2.0/DTCP-IP/DMP/DMR/DMS)[/TD]
[TD]2 x DVB-C/T2/S2,
1 x SAT>IP Client & Server
DVB-T2: HEVC H.264 и H.265
Analog (PAL,SECAM)
2 x CI+1.3


HEVC
VP9[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DX780
[/TD]
[/TR]
[TR]
[TD="bgcolor: #0000ff"]DX750
65", 58", 50"[/TD]
[TD]No
[/TD]
[TD]No[/TD]
[TD]65" - max 435cd/m[SUP]2[/SUP]

---

58" - max 550cd/m[SUP]2[/SUP]

---

50" - max 550cd/m[SUP]2[/SUP]

---

Compatible
HDR processing
(but no hardware for HDR)[/TD]
[TD]65" - SMVA, 8-bit+FRC, 120/100Hz + MCFI

---

58" - SMVA, 8-bit+FRC, 120/100Hz + MCFI

---

50" - SMVA, 8-bit+FRC, 120/100Hz + MCFI

---

very glossy panel[/TD]
[TD]65" - Direct Led, No Dimming

---

58" - EdgE Led (below), Vertical Dimming ?

---

50" - Edge Led (below), Vertical Dimming ?

---

[/TD]
[TD]65" - DCI P3 - 94% / Rec.2020 -

---

58" - DCI P3 - 94% / Rec.2020 -

---

50" - DCI P3 - 86% / Rec.2020 - 66%

---

[/TD]
[TD]65" - 4300:1 / 123cd/m2 / 0.03cd/m2

---

58" -

---

50" - 3795:1/ ---- cd/m2 / 0.29cd/m2

---

[/TD]
[TD]65" - 30° (cone)

---

58" -

---

50" -

---

[/TD]
[TD]65"- Game mode-45ms / by default-106ms

---

58"- Game mode-44ms / by default-105ms

---

50"- Game mode-44ms / by default-105ms

---

[/TD]
[TD]Quad Core
P163
Firefox 2.5[/TD]
[TD]Bluetooth Ver. 4.0(keyboards, mouse)
1 x Ethernet RJ45
2 x USB 2.0 (max500mA)
1 x USB 3.0 (max900mA)
1 x Ethernet RJ45
1 x HDMI 1.4 (CEC)
2 x HDMI 2.0 (ARC,CEC)
1 x AV Composite In
1 x AV Component In
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF)female
1 x CI+ 1.3
Card reader SD/SDHC[/TD]
[TD]Lan (10BASE-T/100BASE-TX)
Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Wi-Fi Direct
DLNA (RUI2.0/DTCP-IP/DMP/DMR/DMS)[/TD]
[TD]DVB- C/T2/S2
with PIP functions, PAP, PAT, PVR and Time shift
Analog (PAL,SECAM)


HEVC
VP9[/TD]
[TD]THX & ISF sertification






Accurate Colour Drive: 3DLUT with 8000 points corrections[/TD]
[TD="bgcolor: #0000ff"]DX750[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #0000ff"]DX730
58", 50", 40"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]58"- max....cd/m[SUP]2[/SUP]

---

50"- max 317cd/m[SUP]2[/SUP]

---

40" - max...cd/m[SUP]2[/SUP]

---

Compatible
HDR processing
(but no hardware for HDR)[/TD]
[TD]58" - SMVA, 8-bit, 60/50Hz + BLB + MCFI

---

50" - SMVA, 8-bit, 60/50Hz + BLB + MCFI

---

40" - SMVA, 8-bit, 60/50Hz + BLB + MCFI

---

very glossy panel[/TD]
[TD]58" - Edge Led (below) Vertical Dimming

---

50" - Edge Led (below) Vertical Dimming

---

40" - Edge Led (below) Vertical Dimming

---

[/TD]
[TD]58" -

---

50" -

---

40" -

---

[/TD]
[TD]58" -

---

50" - 4824:1 / 0.04cd/m[SUP]2[/SUP]

---

40" -

---

[/TD]
[TD]58" -

---

50" - 42° (cone)

---

40" -

---

[/TD]
[TD]58" -

---

50" -

---

40" -

---

[/TD]
[TD]Quad Core
P193
Firefox 2.5
[/TD]
[TD]1 x Ethernet RJ45
2 x USB 2.0 (max500mA)
1 x USB 3.0 (max900mA)
1 x Ethernet RJ45
1 x HDMI 1.4 (CEC)
2 x HDMI 2.0 (ARC,CEC)
1 x AV Composite In
1 x AV Component In
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF)female
1 x CI+ 1.3
Card reader SD/SDHC[/TD]
[TD]Lan (10BASE-T/100BASE-TX)
Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Bluetooth Ver. 4.0 (keyboards, mouse)
Wi-Fi Direct
DLNA (RUI2.0/DTCP-IP/DMP/DMR/DMS)[/TD]
[TD]DVB-T/T2/C
Analog (PAL,SECAM)

HEVC
VP9[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DX730
[/TD]
[/TR]
[TR]
[TD="bgcolor: #0000ff"]DX700
58", 50"'40"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]58" - HDR 350cd/m2

---

50" - HDR 350cd/m[SUP]2
[/SUP]

---

40" -

---

Compatible
HDR processing
(but no hardware for HDR)[/TD]
[TD]58" - SMVA, 8-bit, 60/50Hz + BLB + MCFI

---

50" - SMVA, 8-bit, 60/50Hz + BLB + MCFI

---

40" - SMVA, 8-bit, 60/50Hz + BLB + MCFI

---

very glossy panel[/TD]
[TD]58" - Edge Led (below), Vertical Dimming

---

50" - Edge Led (below), Vertical Dimming

---

40" - Edge Led (below),

---

[/TD]
[TD]58" - DCI P3 - / Rec.2020 - 68.27%

---

50" -

---

40" -

---

[/TD]
[TD]58"- 5736:1 / 153cd/m2 / 0.03cd/m2
3184:1 / 0.038cd/m[SUP]2[/SUP]
ANSI - 2304:1 / 0.046cd/m[SUP]2
[/SUP]

---

50" - 4700:1 /

---

40" -

---

[/TD]
[TD]58" - 40°(conе)

---

50" -

---

40" -

---

[/TD]
[TD]58"- Game-49.8ms / by default-69.7ms

---

50"- Game

---

40" -

---

[/TD]
[TD]Quad Core
P193
Firefox 2.5[/TD]
[TD]Bluetooth Ver.4.0(keyboards, mouse)
1 x Ethernet RJ45
1 x USB 2.0 (max 500mA)
1 x USB 3.0 (max 900mA)
1 x HDMI 1.4 (CEC)
2 x HDMI 2.0 (ARC,CEC)
1 x AV Composite in
1 x AV Component in
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF) female
1 x CI+ 1.3[/TD]
[TD]Lan (10BASE-T/100BASE-TX)
WiFi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Wi-Fi Direct
DLNA (RUI2.0/DTCP-IP/DMP/DMR/DMS)[/TD]
[TD]DVB-C/T2/S/S2
Analog (PAL,SECAM)

HEVC[/TD]
[TD]9[/TD]
[TD="bgcolor: #0000ff"]DX700
[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #0000ff"]DX650
58", 50",40"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]58" -

---

50" -

---

40" -

---

No
[/TD]
[TD]58"- SMVA, 8-bit, 60/50Hz + BLB

---

50"- SMVA, 8-bit, 60/50Hz + BLB

---

40"- SMVA, 8-bit, 60/50Hz + BLB

---

[/TD]
[TD]58" - Edge Led

---

50" - Edge Led

---

40" - Edge Led

---

[/TD]
[TD]58"-

---

50"-

---

40"-

---

[/TD]
[TD]58"-

---

50"-

---

40"-

---

[/TD]
[TD]58"-

---

50"-

---

40"-

---

[/TD]
[TD][/TD]
[TD]Quad Core
-
Firefox 2.5[/TD]
[TD]1 x Ethernet RJ45
1 x USB 2.0 (max 500mA)
1 x USB 3.0 (max 900mA)
1 x HDMI 1.4 (CEC)
2 x HDMI 2.0 (ARC,CEC)
1 x AV Composite in
1 x AV Component in
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF) female
1 x CI+ 1.3[/TD]
[TD]Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Wi-Fi Direct
DLNA (RUI2.0/DTCP-IP/DMP/DMR/DMS)[/TD]
[TD]DVB-T/T2/C
Analog (PAL,SECAM)[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DX650
[/TD]
[/TR]
[TR]
[TD="bgcolor: #0000ff"]DX600
55", 49", 40"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]55" - max 294cd/m2

---

49" - max...cd/m[SUP]2[/SUP]

---

40" - max...cd/m[SUP]2[/SUP]

---

No[/TD]
[TD]55"- S-IPS, 8-bit, 60/50Hz + BLB

---

49"- S-IPS, 8-bit, 60/50Hz + BLB

---

40"- SMVA, 8-bit, 60/50Hz + BLB

---

[/TD]
[TD]55" - Edge Led

---

49" - Edge Led

---

40" - Edge Led

---

[/TD]
[TD]55"-

---

49"-

---

40"-

---

[/TD]
[TD]55"-

---

49"-

---

40"-

---

[/TD]
[TD]55"- 78° (cone)

---

49"-

---

40"-

---

[/TD]
[TD][/TD]
[TD]-
-
Firefox 2.5[/TD]
[TD]1 x Ethernet RJ45
1 x USB 2.0 (max 500mA)
1 x USB 3.0 (max 900mA)
1 x HDMI 1.4 (CEC)
2 x HDMI 2.0 (ARC,CEC)
1 x AV Composite in
1 x AV Component in
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF) female
1 x CI+ 1.3[/TD]
[TD]Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Wi-Fi Direct
DLNA[/TD]
[TD]DVB-T/T2/C
Analog (PAL,SECAM)[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DX600
[/TD]
[/TR]
[TR="bgcolor: #663399"]
[TD="colspan: 15, align: center"]Panasonic Full HD TV 2016[/TD]
[/TR]
[TR="bgcolor: #3333cc"]
[TD]Product[/TD]
[TD]UHD
Premium
[/TD]
[TD]Dolby
Vision
[/TD]
[TD]HDR
_________________[/TD]
[TD]Videopanel - LCD matrix
_________________[/TD]
[TD]Backlight
Dimming
______________________[/TD]
[TD]Color Space
_____________________________[/TD]
[TD]Contrast & Black level
_______________________[/TD]
[TD]Viewing angle
____________[/TD]
[TD]Input Lag
_____________[/TD]
[TD]SoC
software
OS
_________________[/TD]
[TD]Conectors
______________________________[/TD]
[TD]Networks
_______________________________[/TD]
[TD="class: sortable-pre"]Tuner
_______________________________[/TD]
[TD]Picture Accuracy Out-of-the-Box (score out of 10)
_______________

[/TD]
[TD]Product[/TD]
[/TR]
[TR="bgcolor: #F8F8F8"]
[TD="bgcolor: #0000ff"]DS630
50", 40", 32"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]50" - max - 362cd/m2

---

40" - max...cd/m[SUP]2[/SUP]

---

32" - max...cd/m[SUP]2[/SUP]

---

No[/TD]
[TD]50"- SMVA, 8-bit, 120/100Hz + BLB + MCFI

---

40"- SMVA, 8-bit, 120/100Hz + BLB + MCFI

---

32"- ?, 8-bit, 60/50Hz

---

[/TD]
[TD]50" - Edge Led

---

40" - Edge Led

---

32" - Edge Led

---

Only globally
(Adaptive Backlight Dimming)[/TD]
[TD]50"- DCI P3 - 74%

---

40"-

---

32"-

---

[/TD]
[TD]50"- 4311:1 /0.038cd/m2

---

40"-

---

32"-

---

[/TD]
[TD]50"-

---

40"-

---

32"-

---

[/TD]
[TD][/TD]
[TD]-
P162
my Home Screen 1.0[/TD]
[TD]Bluetooth 3.0(2.402GHz-2.480GHz)
1 x Lan Ethernet RJ45
3 x HDMI 1.4 (CEC)
2 x USB 2.0 (max500mA)
1 x mini Jack (3.5mm) stereo
1 x SCART
1 x Component (RCA PIN type)[/TD]
[TD](10BASE-T/100BASE-TX)
Wi-Fi
Wi-Fi Direct
DLNA
802.11 a/n
5.180GHZ-5.320GHz,5.500GHz-5.580GHz
5.660GHZ-5.700GHz
802.11 b/g/n
2.412GHz-2.472GHz
Security
WPA2-PSK(TKIP/AES)
WPA-PSK(TKIP/AES)
WEP(64-bit/128-bit)
[/TD]
[TD]DVB-T/T2/C
1 x SAT>IP Client & Server
Analog (PAL,SECAM,NTSC)




No HEVC[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DX630
[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #0000ff"]DS600
50", 40", 32"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]50" - max...cd/m2

---

40" - max...cd/m2

---

32" - max...cd/m2

---

No[/TD]
[TD]50" - , 8-bit, 60/50Hz

---

40" - SMVA, 8bit, 60/50Hz

---

32" - , 8/-bit, 60/50Hz

---

[/TD]
[TD]50" - Edge Led

---

40" - Edge Led

---

32" - Edge Led

---

[/TD]
[TD]50"-

---

40"-

---

32"-

---

[/TD]
[TD]50"-

---

40"-

---

32"-

---

[/TD]
[TD]50"-

---

40"-

---

32"-

---

[/TD]
[TD][/TD]
[TD]-
P161
-[/TD]
[TD]Bluetooth 3.0(2.402GHz-2.480GHz)
1 x Lan Ethernet RJ45
3 x HDMI 1.4 (CEC)
1 x
1 x




[/TD]
[TD](10BASE-T/100BASE-TX)
Wi-Fi
Wi-Fi Direct
DLNA
802.11 a/n
5.180GHZ-5.320GHz,5.500GHz-5.580GHz
5.660GHZ-5.700GHz
802.11 b/g/n
2.412GHz-2.472GHz
Security
WPA2-PSK(TKIP/AES)
WPA-PSK(TKIP/AES)
WEP(64-bit/128-bit)[/TD]
[TD]DVB-T/T2/C
Analog (PAL,SECAM)




No HEVC[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DX600
[/TD]
[/TR]
[TR]
[TD="bgcolor: #0000ff"]DS500
55", 49", 40",32",24"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]55" - max...cd/m[SUP]2[/SUP]

---

49" - max 314cd/m2

---

40" - max...cd/m[SUP]2[/SUP]

---

32" - max...cd/m[SUP]2[/SUP]

---

24" - max...cd/m[SUP]2[/SUP]

---

No[/TD]
[TD]55" - IPS, 8bit, 60/50Hz

---

49" - , 8-bit, 60/50Hz

---

40" - , 8-bit, 60/50Hz

---

32" - , 8-bit, 60/50Hz

---

24" - , 8-bit, 60/50Hz

---

[/TD]
[TD]55" - Edge Led

---

49" - Edge Led

---

40" - Edge Led

---

32" - Edge Led

---

24" - Edge Led

---

[/TD]
[TD]55"-

---

49"-

---

40"-

---

32"-

---

24" -

---

[/TD]
[TD]55"-

---

49"- 882:1 /

---

40"-

---

32"-

---

24" -

---

[/TD]
[TD]55"-

---

49"- 66° (cone)

---

40"-

---

32"-

---

24" -

---

[/TD]
[TD][/TD]
[TD]-
P161
-[/TD]
[TD]Bluetooth 3.0(2.402GHz-2.480GHz)
1 x Lan Ethernet RJ45
1 x
1 x[/TD]
[TD](10BASE-T/100BASE-TX)
Wi-Fi
Wi-Fi Direct
DLNA
802.11 a/n
5.180GHZ-5.320GHz,5.500GHz-5.580GHz
5.660GHZ-5.700GHz
802.11 b/g/n
2.412GHz-2.472GHz
Security
WPA2-PSK(TKIP/AES)
WPA-PSK(TKIP/AES)
WEP(64-bit/128-bit)[/TD]
[TD]DVB-T/T2/C
Analog (PAL,SECAM)




No HEVC[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DS500
[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #0000ff"]DS400
40"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]40" - max...cd/m[SUP]2[/SUP]
No[/TD]
[TD]40" - VA, 8bit, 60/50Hz[/TD]
[TD][/TD]
[TD]40"-[/TD]
[TD]40"-[/TD]
[TD]40"-[/TD]
[TD][/TD]
[TD]-
P161
-[/TD]
[TD][/TD]
[TD][/TD]
[TD]DVB-T/T2/C
Analog (PAL,SECAM)[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DS400
[/TD]
[/TR]
[/TABLE]



[technisat]

Όπως φαίνεται line-up 2017 δεν θα υπάρξει...

Panasonic Corp said it will close its unprofitable television screen manufacturing business...

A Panasonic spokeswoman said the company will stop producing TV screens at its plant...



[winlink]

Όπως φαίνεται line-up 2017 δεν θα υπάρξει...

Για τη μονάδα που φτιάχνει panels στην Ιαπωνία μιλάει η είδηση.



[xavito]

58"...[lesnumeriques.com]...Panasonic TX-58DX750F review...http://www.lesnumeriques.com/tv-televiseur/panasonic-tx-58dx750f-p31107/test.html

μετάφραση google fr to en

TX-58DX750F : VA panel RGB subpixel structure

Edge LED backlight system composed of a single bar placed at the base of the screen.



[hristoslav2]

Test Panasonic TX-50DX750 : le meilleur rapport qualité/prix de 2016 ? | HDfever

Google translate Fr to En



[hristoslav2]

Panasonic DX750 (TX-55DX750) Test - UHD 4K 120Hz - PANASONIC - HDTV Centrum Polska

Google translate Pl to En



[xavito]

40"...[prohardver.hu]...Panasonic TX-40DS630E review...http://prohardver.hu/teszt/panasonic_tx-40ds630/panasonic_tx-40ds630.html

μετάφραση google hu to en



[xavito]

50"...[hdtvtest.co.uk]...Panasonic TX-50DX750B review...http://www.hdtvtest.co.uk/news/tx50dx750b-201607034309.htm

Measured panel refresh rate 120Hz,

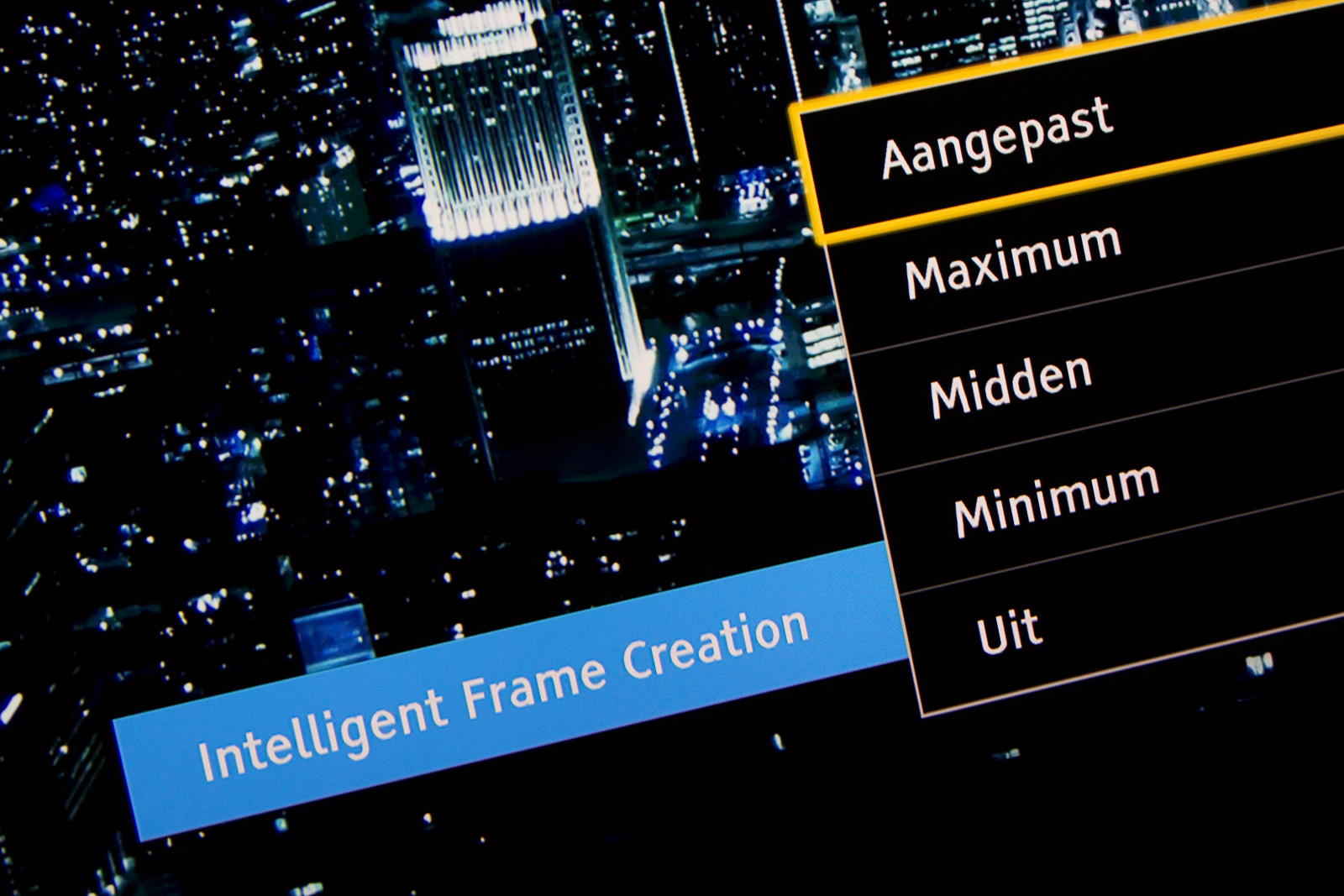

Motion resolution:1080 lines with optimised [IFC] “Custom“

]TX-50DX750:Macro photo of subpixel structure confirming VA-type LCD matrix RGB,Super MVA (SMVA) from Taiwanese vendor Innolux Corporation.

A quick thermal scan revealed that the edge LEDs are mounted along the bottom of the screen

Verdict

Even though its HDR rendition left us slightly underwhelmed owing to 500-nit peak brightness and ineffectual pseudo-local dimming, the Panasonic TX-50DX750B delivered outstanding SDR image quality with accurate colours and superb processing. The TV’s restricted viewing angles and higher propensity for dark smearing were direct consequences of the Innolux SMVA panel used, but at least it yielded some of the deepest native black-level reproduction we’ve measured from an LED LCD.
In fact, when you consider that LG’s UH770V and Sony’s XD85 use IPS-type LCD panels which feature weaker contrast performance, and the HDR presentation of Samsung’s KS7500 was just downright unconvincing despite its ability to hit 1000 nits, the Panasonic DX750 could very well turn out to be the best-performing midrange 4K HDR television for 2016. We’ll know more when we test Samsung’s flat-screen KS7000 sometime this month…

source photos:[hdtvtest.co.uk]



[xavito]

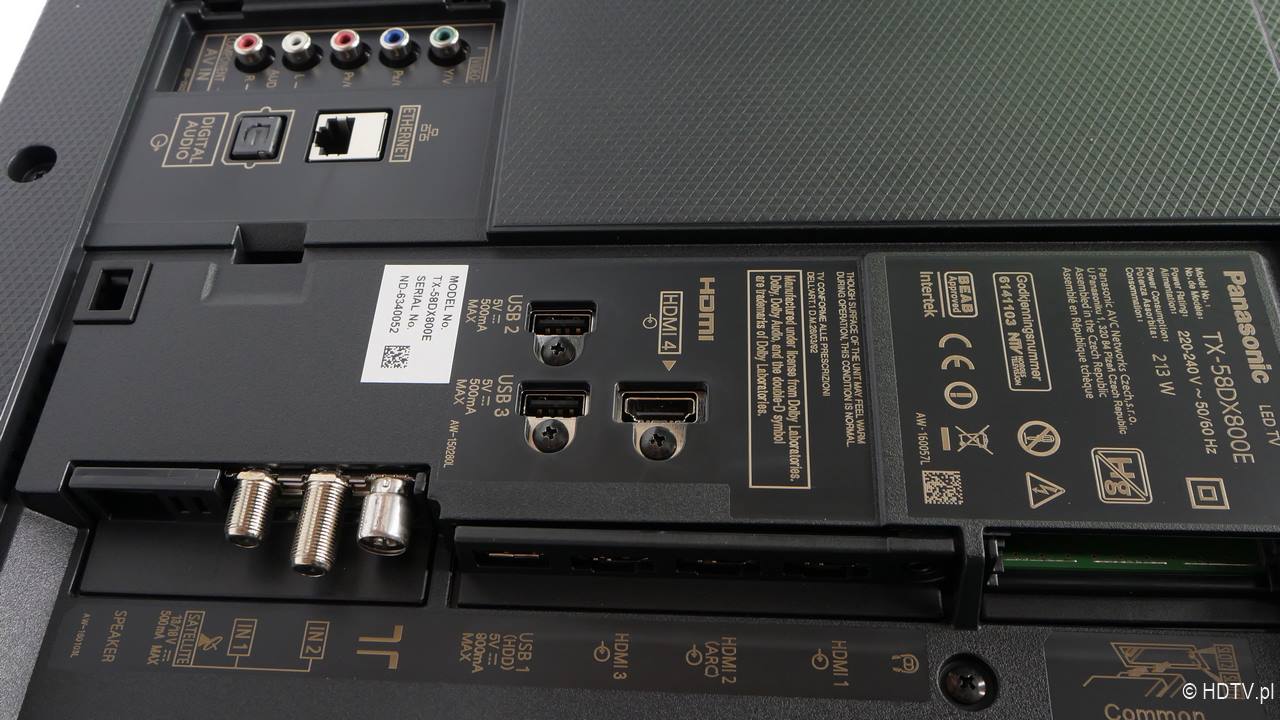

58"...[hdtvpolska.com]...Panasonic TX-58DX800E review...http://hdtvpolska.com/topic/37786-panasonic-dx800-tx-58dx800e-test-ultra-hd-4k-hdr-120hz/

μετάφραση google pl to en

TX-58DX800E:VA panel RGB 100/120Hz με MCFI+αναβόσβησμα του οπίσθιου φωτισμού,

-----------------------------------------------------------

55"...[avforums.com]...Panasonic TX-55DX600B review...https://www.avforums.com/review/panasonic-tx-55dx600b-ultra-hd-4k-tv.12495

TX-55DX600B: panel IPS variety,50/60Hz (4K 800 Hz BMR IFC ) ,average black level of 0.19 nits, ANSI contrast ratio of less than 750:1

https://www.youtube.com/watch?v=kEwhuzvJL04

https://www.youtube.com/watch?v=8ewysgY2ZXM



[xavito]

49"...[lcdtvthailand.com]...Panasonic TX-49DS630T review...http://www.lcdtvthailand.com/review_detail.php?id=1633

μετάφραση google th to en

TX-49DS630T:IPS panel



[xavito]

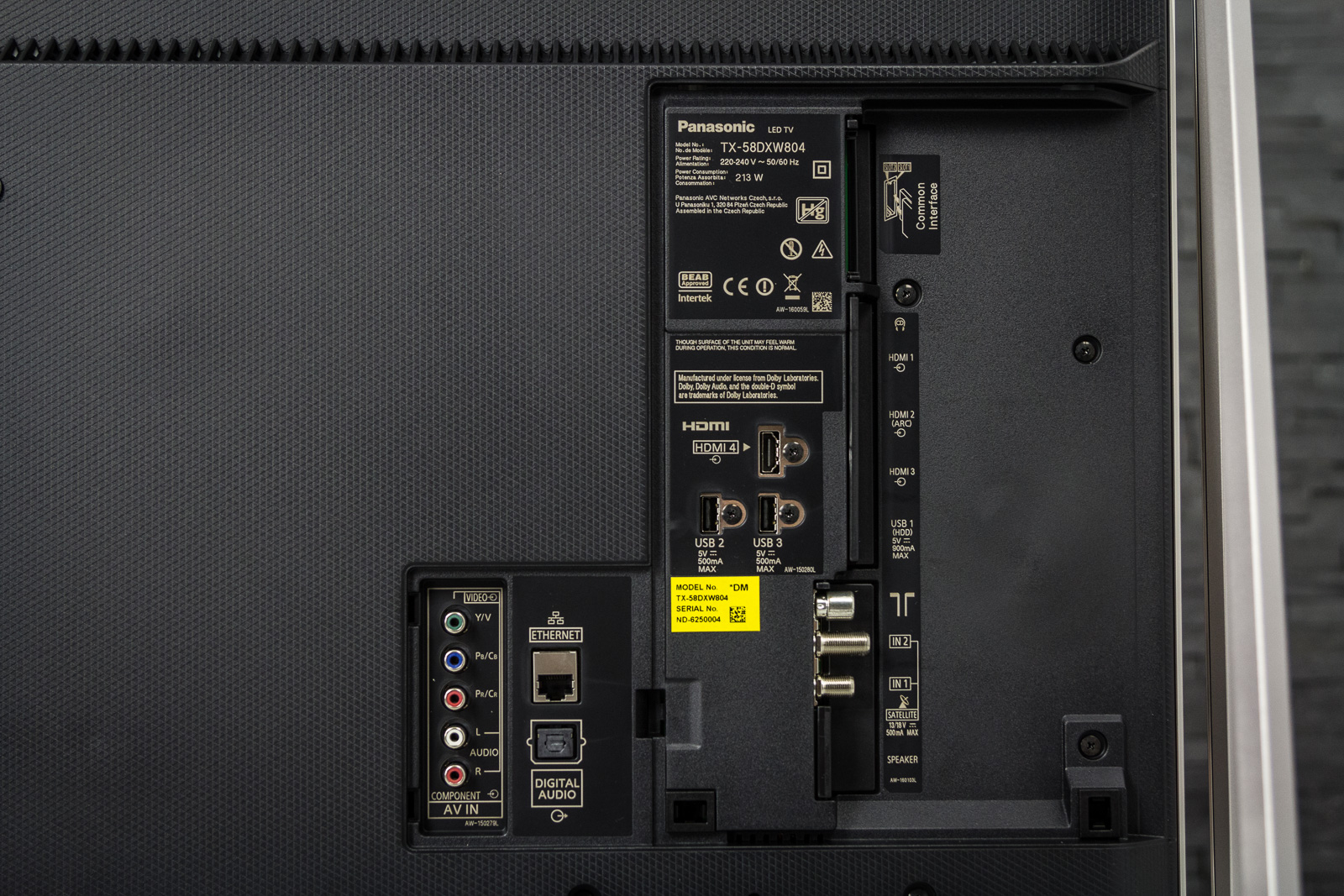

50"...[tweakers.net]...Panasonic TX-50DXW804 review...https://tweakers.net/reviews/4719/panasonic-dxw804-uhdtv-mooi-beeld-en-geluid-in-een-uniek-ontwerp.html

μετάφραση google nl to en

TX-50DXW804:VA panel RGB 100/120Hz με MCFI+αναβόσβησμα του οπίσθιου φωτισμού,

...DXW804 is actually the German version of the DX800...

... Unfortunately, Panasonic has chosen to omit a DTS-licensed, so very many movies have to do it without sound...

... The image is in fact divided into only four vertical zones...

Conclusion

Panasonic DXW804 may be costly, because you get something in return. The picture is stunning, with beautiful colors and a good contrast LCDTV. The maximum brightness is high, so you have a good picture under many lighting conditions, but for HDR rendering is the maximum brightness a bit on the low side. Panasonic has the view been properly adjusted at the factory, but if you're going to calibrate, you have these TV a good one, thanks to the pleasant working color management system.

Besides a good idea this TV also has a good sound, thanks to the single soundbar you get included. This provides a good stereo image and clearly intelligible voices. The bass is compelling, but very deep bass do not go. By separate speaker system, this is one of best-sounding televisions today.

You get two remote controls, which the infrared model works nicely; on the Touch Pad Controller, we are talking less. The DXW804 running on Firefox OS, we like it works and that is clearly designed. However, it is worrisome is that its development as well as stationary, because it still works exactly the same as last year.

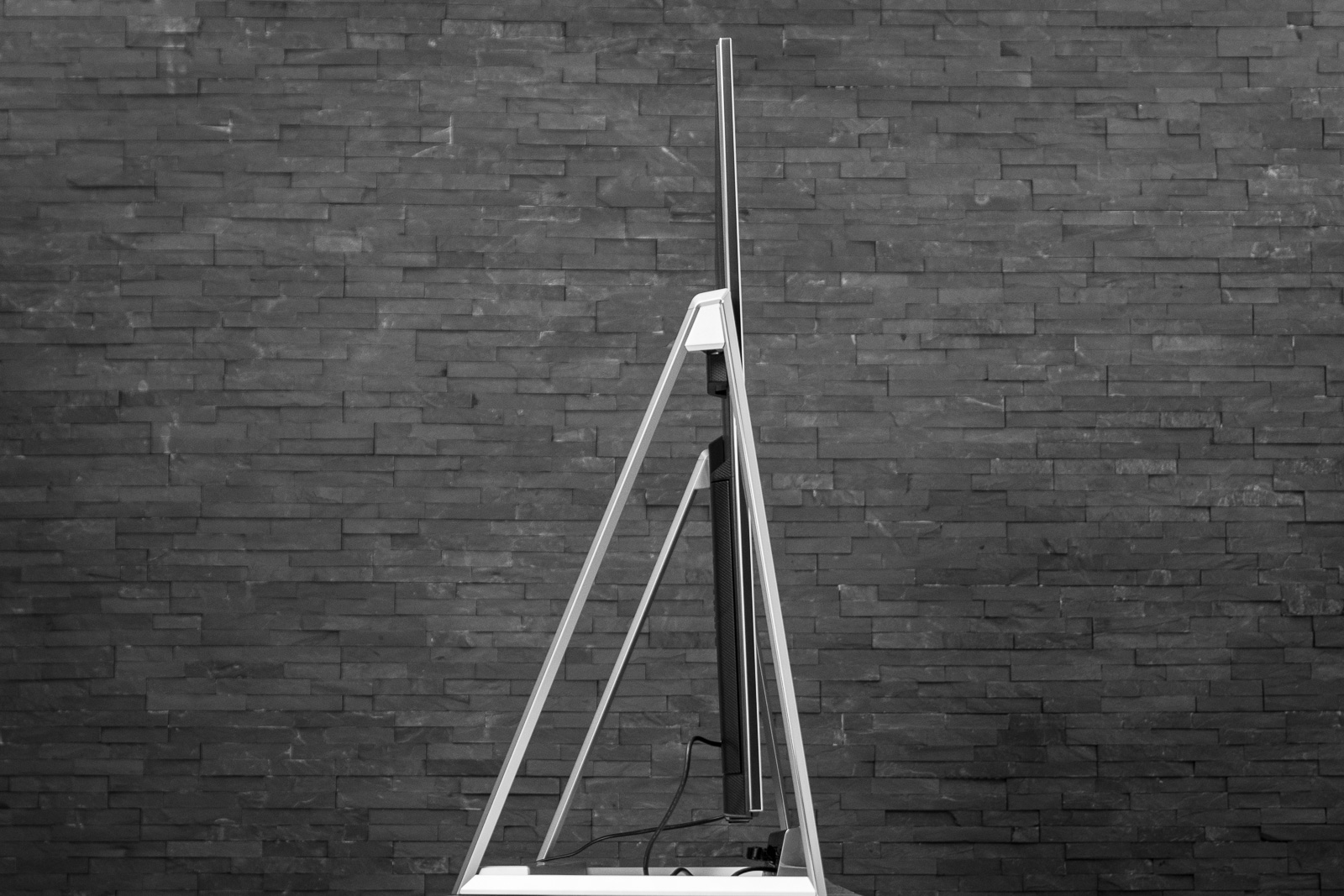

Regarding design, this unique television; screen hangs in a sleek stand and therefore you get a single soundbar with. The choice of Panasonic to come up with a distinctive design, we applaud much, but the uncompromising design are the opinions strongly divided. That means there is a large group of people who will leave this screen left because they did not find him nice. If you find it beautiful design and the high price is no object, you have to DXW804 a very good TV.



[hristoslav2]

[TABLE="class: cms_table_cms_table_cms_table_cms_table_cms_table_cms_table"]
[TR="bgcolor: #663399"]
[TD="colspan: 16, align: center"]Panasonic UltraHD TV 2016[/TD]
[/TR]
[TR="bgcolor: #000099"]
[TD]Product[/TD]
[TD]

Certification UHD
Premium​

______________________
Resolution: 3,840x2,160.
-
Color depth: 10-bit.
-
Color gamut: Wide, including the ability to show at least 90 percent of the P3 color gamut .
-
High dynamic range: Specifically the ability to use SMPTE ST2084's electro-optical transfer function, which Dolby helped create .
-
Minimum brightness and contrast ratios: There are two possible minimum specs. A minimum brightness of 1,000 nits, along with a black level of a maximum of 0.05 nits (20,000:1 contrast ratio), or a minimum brightness of 540 nits, along with a black level of a maximum of 0.0005 (1,080,000:1)[/TD]
[TD]

Dolby Vision​

_______________________________
The metadata is graded in each scene so you get different grades throughout the file. Dolby tells us that scene by scene grading is the superior way to grade a movie, which on paper does sound more efficient.
-
-
Standard: Poprietary
Peak Luminance: Up to 10,000 nits
Video Bit Depth: 12-bit
Metadata: Dynamic (scene by scene)
Software Upgradability: No(SoC hardware-embedded)
[/TD]
[TD]

HDR 10
_______________________________​

The metadata is graded and determined, and is then sent at the beginning of the file and covers the entire file. One set of metadata
-
-
-
-
Standard: Open
Peak Luminance: Up to 4,000 nits
Video Bit Depth: 10-bit
Metadata: Static (per title)
Software Upgradability: Yes











[/TD]
[TD]

Videopanel ​

___________________________________

Type LCD matrix,
Bits of color,
Operating frequency of T-Con board of the panel,
Curvature,
Index,
Anti-reflective filter​

[/TD]
[TD]

Backlight ​

________________________

Type backlight
(Local Dimming zone)
Type LED
MEMC
Backlight Scanning
Black Frame Insertion
PulsΠϴ Wide Modulation​

[/TD]
[TD]

Color Space ​

________________________

DCI P3 - %
Rec.2020 - %​

[/TD]
[TD]

Contrast
White & Black level​

________________________
ANSI
With local dimming
Without local dimming[/TD]
[TD]Viewing angle
_____________[/TD]
[TD]

Input Lag
​

___________________________________[/TD]
[TD]

SoC
CPU
GPU
software
OS
​

_________________[/TD]
[TD]

Conectors​

_____________________[/TD]
[TD]

Networks
​

_______________________________[/TD]
[TD="class: sortable-pre"]

Tuner
​

_________________________[/TD]
[TD]

Opportunities for
calibration
​

______________________________________

[/TD]
[TD]Product[/TD]
[/TR]
[TR]
[TD="bgcolor: #0000ff"]CZ950
65"
OLED[/TD]
[TD]Yes[/TD]
[TD]No[/TD]
[TD]65" - max 450cd/m2

---

Yes
SMPTE standarts
ST2084, ST 2086
















[/TD]
[TD]Oled, WRGB (LG Display), 10bit, 120/100Hz[/TD]
[TD]No backlight[/TD]
[TD]65" - DCI P3 X,Y - 86% / Rec.2020 - 70%[/TD]
[TD]65" - ∞ / 151cd/m2 / 0.00cd/m2[/TD]
[TD]65" - 45°
















[/TD]
[TD]65" - Game mode - 0ms / by default - 80ms
















[/TD]
[TD]-
Quad Core Pro 5
-
Firefox 2.0[/TD]
[TD]1 x Ethernet RJ45
2 x USB 2.0 (max500mA)
1 x USB 3.0 (max900mA)
4 x HDMI 2.0a (ARC,CEC)
1 x Satelite In (Main: F-type female)
1 x Satelite In (Sub: F-type female)
1 x AV Composite In
1 x AV Component In
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF)female
1 x CI+ 1.3
1 x Card reader SD/SDHC[/TD]
[TD]Lan -
Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Bluetooth ver. 4.0
Wi-Fi Direct
DLNA (RUI2.0/DTCP-IP/DMP/DMR/DMS)[/TD]
[TD]2 x DVB-C/T2/S2,
1 x SAT>IP Client & Server
DVB-T2: HEVC H.264 ΠΈ H.265
Analog (PAL,SECAM)
2 x CI+1.3
PVR, Time Shifting
HEVC
VP9[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]CZ950[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #0000ff"]DX900
58", 65"[/TD]
[TD]Yes[/TD]
[TD]No[/TD]
[TD]65"- max 1250cd/m[SUP]2[/SUP]

---

58"- max 1430cd/m[SUP]2[/SUP]

---

Yes HDR10
SMPTE standards
ST2084, ST2086[/TD]
[TD]65"- SMVA, 10-bit, 120/100Hz + MCFI

---

58"- SMVA, 10-bit, 120/100Hz + MCFI

---

[/TD]
[TD]65"' - FALD - 512 zones (32 columns x 16 rows)

---

58" - FALD - 512 zones (32 columns x 16 rows)

---

Honeycomb backlight structure
Blue Leds - with red phosphorus
MEMC - Intelligent Frame Creation
BLS - Backlight Scaning
BFI - Clear Motion
6 cooling fan backlight[/TD]
[TD]65"- DCI P3 X,Y - 98% / Rec.2020 - 78%

---

58"- DCI P3 X,Y - 96% / Rec.2020 - 74%

---

[/TD]
[TD]65" - ANSI
Static - 5360:1 / 134cd/m2 / 0.025cd/m2
Dynamic - 50000:1

---

58" - ANSI
Static - 4600:1 / ---- cd/m2 / 0.023cd/m[SUP]2[/SUP]
Dynamic - 50000:1

---

[/TD]
[TD]65" - 42°(cone)

---

58" - 46°(conΠϴ)

---

[/TD]
[TD]65"- Game mode - 41ms / by default - 51ms

---

58" - Game mode- 40ms / by default - 50ms

---

[/TD]
[TD]-
Quad Core
Chassis P163
Firefox 2.5[/TD]
[TD]1 x Ethernet RJ45
2 x USB 2.0 (max500mA)
1 x USB 3.0 (max900mA)
4 x HDMI 2.0a (ARC,CEC)
1 x Satelite In (Main: F-type female)
1 x Satelite In (Sub: F-type female)
1 x AV Composite In
1 x AV Component In
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF)female
1 x CI+ 1.3
1 x Card reader SD/SDHC[/TD]
[TD]Lan
Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Bluetooth ver. 4.0
Wi-Fi Direct
DLNA (RUI2.0/DTCP-IP/DMP/DMR/DMS)[/TD]
[TD]2x DVB-C/T2/S2,
1 x SAT>IP Client & Server
DVB-T2: HEVC H.264 ΠΈ H.265
Analog (PAL,SECAM)
2 x CI+1.3
PVR, Time Shifting
HEVC
VP9[/TD]
[TD]ISF Professional
THX Bright Room
3D LUT
CMS - RGBCYM
gray scale of 10 points
Rec.2020
Rec.709
direct Display Control mode to allow to adjust settings directly from the Calman software (professional edition) by connecting screen to a PC via Ethernet[/TD]
[TD="bgcolor: #0000ff"]DX900
[/TD]
[/TR]
[TR]
[TD="bgcolor: #0000ff"]DX800
58", 50"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]58" - max 553cd/m, 10% - 458cd/m[SUP]2[/SUP]

---

50" - max...cd/m[SUP]2[/SUP]

---

Yes HDR10
SMPTE standards
ST2084, ST2086[/TD]
[TD]58"- Super-MVA, 8-bit+FRC, 120/100Hz

---

50"- Super-MVA, 8-bit+FRC, 120/100Hz

---

[/TD]
[TD]58" - Edge Led

---

50" - Edge Led

---

Dimming - 4 Vertical zones
Blue Leds - with red phosphorus)
MEMC - Intelligent Frame Creation
BFI - Clear Motion[/TD]
[TD]58"- DCI P3 X,Y - 95% / Rec.2020 - 72%

---

50"- DCI P3 X,Y - 92%

---

[/TD]
[TD]58" - ANSI 3500:1

---

50"-

---

[/TD]
[TD]58" -

---

50" -

---

[/TD]
[TD]58" - Game mode 43ms / by default 110ms

---

50" - Game mode

---

[/TD]
[TD]-
Quad Core
Chassis P163
Firefox 2.5[/TD]
[TD]1 x Ethernet RJ45
2 x USB 2.0 (max500mA)
1 x USB 3.0 (max900mA)
4 x HDMI 2.0a (ARC,CEC)
1 x Satelite In (Main: F-type female)
1 x Satelite In (Sub: F-type female)
1 x AV Composite In
1 x AV Component In
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF)female
1 x CI+ 1.3
1 x Card reader SD/SDHC[/TD]
[TD]Lan
Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Bluetooth ver. 4.0
Wi-Fi Direct
DLNA (RUI2.0/DTCP-IP/DMP/DMR/DMS)[/TD]
[TD]2 x DVB-C/T2/S2,
1 x SAT>IP Client & Server
DVB-T2: HEVC H.264 ΠΈ H.265
Analog (PAL,SECAM)
2 x CI+1.3
PVR, Time Shifting HEVC
VP9[/TD]
[TD]ISF Professional
THX Bright Room
3D LUT
CMS - RGBCYM
gray scale of 10 points
Rec.2020
Rec.709
direct Display Control mode to allow to adjust settings directly from the Calman software (professional edition) by connecting screen to a PC via Ethernet[/TD]
[TD="bgcolor: #0000ff"]DX800
[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #0000ff"]DX780
65", 58", 50"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]65" - max......cd/m[SUP]2[/SUP]

---

55" - max 577cd/m[SUP]2[/SUP]

---

50" - max 5....cd/m[SUP]2[/SUP]

---

Compatible
HDR processing
(but no hardware for HDR)
[/TD]
[TD]65" - Super-MVA, 8-bit+FRC, 120/100Hz + MCFI

---

58" - Super-MVA, 8-bit+FRC, 120/100Hz + MCFI

---

50" - Super-MVA, 8-bit+FRC, 120/100Hz

---

[/TD]
[TD]65" - Direct Led, Local Dimming - 32 zones (8 x 4)

---

58" - Edge Led (below) Vertical Dimming

---

50" - Edge Led (below) Vertical Dimming

---

Blue Leds - with red phosphorus
MEMC - Intelligent Frame Creation
BFI - Clear Motion


[/TD]
[TD]65" - DCI P3 X,Y -

---

58" - DCI P3 X,Y -

---

50" - DCI P3 X,Y - 89% / Rec.2020 - 66%

---

[/TD]
[TD]65" -

---

58" -

---

50" -

---

[/TD]
[TD]65" -

---

58" -

---

50" -

---

[/TD]
[TD]65" - Game mode

---

58" - Game mode

---

50" - Game mode

---

[/TD]
[TD]-
Quad Core
Chassis P163
Firefox 2.5[/TD]
[TD]1 x Ethernet RJ45
2 x USB 2.0 (max500mA)
1 x USB 3.0 (max900mA)
2 x HDMI 2.0a (ARC,CEC)
2 x HDMI 1.4 (CEC)
1 x Satelite In (Main: F-type female)
1 x Satelite In (Sub: F-type female)
1 x AV Composite In
1 x AV Component In
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF)female
1 x CI+ 1.3
1 x Card reader SD/SDHC[/TD]
[TD]Lan (10BASE-T/100BASE-TX)
Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Bluetooth ver. 4.0
Wi-Fi Direct
DLNA (RUI2.0/DTCP-IP/DMP/DMR/DMS)[/TD]
[TD]2 x DVB-C/T2/S2,
1 x SAT>IP Client & Server
DVB-T2: HEVC H.264 ΠΈ H.265
Analog (PAL,SECAM)
2 x CI+1.3
PVR, Time Shifting
HEVC
VP9[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DX780
[/TD]
[/TR]
[TR]
[TD="bgcolor: #0000ff"]DX750
65", 58", 50"[/TD]
[TD]No
[/TD]
[TD]No[/TD]
[TD]65" - HDR max 435cd/m[SUP]2[/SUP]

---

58" - HDR 50-100% max 550cd/m[SUP]2[/SUP]

---

50" - HDR 10% max 628cd/m2/ 50-100% - 550cd/m2
SDR max 500cd/m[SUP]2[/SUP]

---

Compatible
HDR processing
(but no hardware for HDR)[/TD]
[TD]65" - Super-MVA, 8-bit+FRC, 120/100Hz

---

58" - Super-MVA, 8-bit+FRC, 120/100Hz

---

50" - Super-MVA, 8-bit+FRC, 120/100Hz

---

very glossy panel[/TD]
[TD]65" - Direct Led, No Dimming

---

58" - Edge Led (below), Vertical Dimming ?

---

50" - Edge Led (below), Vertical Dimming ?

---

MEMC - Intelligent Frame Creation[/TD]
[TD]65" - DCI P3 X,Y- 94% / Rec.2020 - 75%

---

58" - DCI P3 X,Y - 94% / Rec.2020 - 75%

---

50" - DCI P3 X,Y- 95% / Rec.2020 - 76%

---

[/TD]
[TD]65" - ANSI 4300:1 / 123cd/m2 / 0.03cd/m2

---

58"- ANSI 4313:1 /120cd/m2 / 0.017cd/m2

---

50" - ANSI 4000:1 /
Static - 4800:1/ 120 cd/m2 / 0.025cd/m2
Dynamic - 5000:1 / 625cd/m2 / 0.10cd/m2

---

[/TD]
[TD]65" - 35° (cone)

---

58" - 40° (cone)

---

50" - 46° (cone)

---

[/TD]
[TD]65"- Game mode-46ms / by default-106ms

---

58"- Game mode-47ms / by default-105ms

---

50"- Game mode-47ms / by default-105ms

---

[/TD]
[TD]-
Quad Core
Chassis P163
Firefox 2.5[/TD]
[TD]1 x Ethernet RJ45
2 x USB 2.0 (max500mA)
1 x USB 3.0 (max900mA)
2 x HDMI 2.0a (ARC,CEC)
2 x HDMI 1.4 (CEC)
1 x AV Composite In
1 x AV Component In
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF)female
1 x CI+ 1.3
1 x Card reader SD/SDHC[/TD]
[TD]Lan (10BASE-T/100BASE-TX)
Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Bluetooth ver. 4.0
Wi-Fi Direct
DLNA (RUI2.0/DTCP-IP/DMP/DMR/DMS)[/TD]
[TD]DVB- C/T2/S2
with PIP functions, PAP, PAT,
PVR and Time shift
Analog (PAL,SECAM)
PVR, Time Shifting
HEVC
VP9[/TD]
[TD]Accurate Colour Drive technology with 3D LUT conversion table with 8 000 points correction and the ability to calibrate 6 primary and secondary colors within a CMS on 3 axes. Or Black Gradation Drive that can provide more gradations in dark scenes through treatment with 12 bit color.
To adjust the colorimetry, the DX750 offers all the necessary settings with the choice of gamut used (Rec.601, Rec.709, EBU, DCI / P3 or Rec.2020), gamma used (with varying gamma whose BT.1886 with compensation of black, 2.2 used in lit room, the 2.4 used in dark room). You can edit each Gamma to correct on 10 points. Each gamut can be calibrated from a CMS (Color Management System) 3-axis (luminance, saturation and hue) with opportunity to correct 6 primary and secondary colors (RGBCMY). Finally, we also find a Balance Whites 2P and 10P (10 points) to adjust the color temperature.[/TD]
[TD="bgcolor: #0000ff"]DX750[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #0000ff"]DX730
58", 50", 40"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]58"- max....cd/m[SUP]2[/SUP]

---

50"- max 317cd/m[SUP]2[/SUP]

---

40" - max...cd/m[SUP]2[/SUP]

---

Compatible
HDR processing
(but no hardware for HDR)[/TD]
[TD]58" - Super-MVA, 8-bit, 60/50Hz + BLB

---

50" - Super-MVA, 8-bit, 60/50Hz + BLB

---

40" - Super-MVA, 8-bit, 60/50Hz + BLB

---

very glossy panel[/TD]
[TD]58" - Edge Led (below) Vertical Dimming

---

50" - Edge Led (below) Vertical Dimming

---

40" - Edge Led (below) Vertical Dimming

---

MEMC - Intelligent Frame Creation[/TD]
[TD]58" - DCI P3 -

---

50" - DCI P3 -

---

40" - DCI P3 -

---

[/TD]
[TD]58" -

---

50" - 4824:1 / 0.04cd/m[SUP]2[/SUP]

---

40" -

---

[/TD]
[TD]58" -

---

50" - 42° (cone)

---

40" -

---

[/TD]
[TD]58" - Game mode

---

50" - Game mode

---

40" - Game mode

---

[/TD]
[TD]-
Quad Core
Chassis P193
Firefox 2.5
[/TD]
[TD]1 x Ethernet RJ45
2 x USB 2.0 (max500mA)
1 x USB 3.0 (max900mA)
1 x HDMI 1.4 (CEC)
2 x HDMI 2.0a (ARC,CEC)
1 x AV Composite In
1 x AV Component In
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF)female
1 x CI+ 1.3
1 x Card reader SD/SDHC[/TD]
[TD]Lan (10BASE-T/100BASE-TX)
Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Bluetooth Ver. 4.0 (keyboards, mouse)
Wi-Fi Direct
DLNA (RUI2.0/DTCP-IP/DMP/DMR/DMS)[/TD]
[TD]DVB-T/T2/C
Analog (PAL,SECAM)
PVR, Time Shifting
HEVC
VP9[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DX730
[/TD]
[/TR]
[TR]
[TD="bgcolor: #0000ff"]DX700
58", 50"'40"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]58" - HDR 350cd/m2

---

50" - HDR 350cd/m[SUP]2
[/SUP]

---

40" -

---

Compatible
HDR processing
(but no hardware for HDR)[/TD]
[TD]58" - Super-MVA, 8-bit, 60/50Hz + BLB

---

50" - Super-MVA, 8-bit, 60/50Hz + BLB

---

40" - Super-MVA, 8-bit, 60/50Hz + BLB

---

very glossy panel[/TD]
[TD]58" - Edge Led (below), Vertical Dimming

---

50" - Edge Led (below), Vertical Dimming

---

40" - Edge Led(below), Vertical Dimming

---

MEMC - Intelligent Frame Creation[/TD]
[TD]58" - DCI P3 - / Rec.2020 - 68.27%

---

50" - DCI P3 -

---

40" - DCI P3 -

---

[/TD]
[TD]58"- 5736:1 / 153cd/m2 / 0.03cd/m2
3184:1 / 0.038cd/m[SUP]2[/SUP]
ANSI - 2304:1 / 0.046cd/m[SUP]2
[/SUP]

---

50" - 4700:1 /

---

40" -

---

[/TD]
[TD]58" - 40°(conΠϴ)

---

50" -

---

40" -

---

[/TD]
[TD]58"- Game mode-49.8ms / by default-69.7ms

---

50"- Game mode

---

40" - Game mode

---

[/TD]
[TD]-
Quad Core
Chassis P193
Firefox 2.5[/TD]
[TD]1 x Ethernet RJ45
1 x USB 2.0 (max 500mA)
1 x USB 3.0 (max 900mA)
1 x HDMI 1.4 (CEC)
2 x HDMI 2.0 (ARC,CEC)
1 x AV Composite in
1 x AV Component in
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF) female
1 x CI+ 1.3[/TD]
[TD]Lan (10BASE-T/100BASE-TX)
WiFi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Bluetooth ver. 4.0
Wi-Fi Direct
DLNA (RUI2.0/DTCP-IP/DMP/DMR/DMS)[/TD]
[TD]DVB-C/T2/S/S2
Analog (PAL,SECAM)
HEVC[/TD]
[TD]9[/TD]
[TD="bgcolor: #0000ff"]DX700
[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #0000ff"]DX650
58", 50",40"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]58" -

---

50" -

---

40" -

---

No
[/TD]
[TD]58"- Super-MVA, 8-bit, 60/50Hz + BLB

---

50"- Super-MVA, 8-bit, 60/50Hz + BLB

---

40"- Super-MVA, 8-bit, 60/50Hz + BLB

---

[/TD]
[TD]58" - Edge Led, (below)

---

50" - Edge Led, (below)

---

40" - Edge Led, (below)

---

MEMC - Inteligent Frame Creation[/TD]
[TD]58"- DCI P3 -

---

50"- DCI P3 -

---

40"- DCI P3 -

---

[/TD]
[TD]58"-

---

50"-

---

40"-

---

[/TD]
[TD]58"-

---

50"-

---

40"-

---

[/TD]
[TD]58" - Game mode

---

50" - Game mode

---

40" - Game mode

---

[/TD]
[TD]-
Quad Core
Chassis -
Firefox 2.5[/TD]
[TD]1 x Ethernet RJ45
1 x USB 2.0 (max 500mA)
1 x USB 3.0 (max 900mA)
1 x HDMI 1.4 (CEC)
2 x HDMI 2.0 (ARC,CEC)
1 x AV Composite in
1 x AV Component in
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF) female
1 x CI+ 1.3[/TD]
[TD]Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Wi-Fi Direct
DLNA (RUI2.0/DTCP-IP/DMP/DMR/DMS)[/TD]
[TD]DVB-T/T2/C
Analog (PAL,SECAM)[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DX650
[/TD]
[/TR]
[TR]
[TD="bgcolor: #0000ff"]DX600
55", 49", 40"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]55" - max 294cd/m2

---

49" - max...cd/m[SUP]2[/SUP]

---

40" - max...cd/m[SUP]2[/SUP]

---

No[/TD]
[TD]55"- Super-IPS, 8-bit, 60/50Hz + BLB

---

49"- Super-IPS, 8-bit, 60/50Hz + BLB

---

40"- Super-MVA, 8-bit, 60/50Hz + BLB

---

[/TD]
[TD]55" - Edge Led, (below)

---

49" - Edge Led, (below)

---

40" - Edge Led

---

[/TD]
[TD]55"- DCI P3 -

---

49"- DCI P3 -

---

40"- DCI P3 -

---

[/TD]
[TD]55"-

---

49"-

---

40"-

---

[/TD]
[TD]55"- 78° (cone)

---

49"-

---

40"-

---

[/TD]
[TD]55" - Game mode

---

49" - Game mode

---

40" - Game mode

---

[/TD]
[TD]-
-
Chassis -
Firefox 2.5[/TD]
[TD]1 x Ethernet RJ45
1 x USB 2.0 (max 500mA)
1 x USB 3.0 (max 900mA)
1 x HDMI 1.4 (CEC)
2 x HDMI 2.0 (ARC,CEC)
1 x AV Composite in
1 x AV Component in
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF) female
1 x CI+ 1.3[/TD]
[TD]Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Wi-Fi Direct
DLNA (RUI2.0/DTCP-IP/DMP/DMR/DMS)[/TD]
[TD]DVB-T/T2/C
Analog (PAL,SECAM)[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DX600
[/TD]
[/TR]
[TR="bgcolor: #663399"]
[TD="colspan: 16, align: center"]Panasonic Full HD TV 2016[/TD]
[/TR]
[TR="bgcolor: #000099"]
[TD]Product[/TD]
[TD]UHD
Premium
[/TD]
[TD]Dolby
Vision
[/TD]
[TD]HDR
_________________[/TD]
[TD]Videopanel - LCD matrix
_________________[/TD]
[TD]Backlight
Dimming
______________________[/TD]
[TD]Color Space
_____________________________[/TD]
[TD]Contrast & Black level
_______________________[/TD]
[TD]Viewing angle
____________[/TD]
[TD]Input Lag
_____________[/TD]
[TD]SoC
software
OS
_________________[/TD]
[TD]Conectors
____________________________[/TD]
[TD]Networks
_______________________________[/TD]
[TD="class: sortable-pre"]Tuner
_________________________[/TD]
[TD]Picture Accuracy Out-of-the-Box (score out of 10)
_______________

[/TD]
[TD]Product[/TD]
[/TR]
[TR="bgcolor: #F8F8F8"]
[TD="bgcolor: #0000ff"]DS630
50", 40", 32"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]50" - max - 362cd/m2

---

40" - max...cd/m[SUP]2[/SUP]

---

32" - max...cd/m[SUP]2[/SUP]

---

No[/TD]
[TD]50"- Super-MVA, 8-bit, 120/100Hz + BLB

---

40"- Super-MVA, 8-bit, 120/100Hz + BLB

---

32"- ?, 8-bit, 60/50Hz

---

[/TD]
[TD]50" - Edge Led

---

40" - Edge Led

---

32" - Edge Led

---

Only globally
(Adaptive Backlight Dimming)
MEMC - Intelligent Frame Creation[/TD]
[TD]50"- DCI P3 - 74%

---

40"- DCI P3 -

---

32"- DCI P3 -

---

[/TD]
[TD]50"- 4311:1 /0.038cd/m2

---

40"-

---

32"-

---

[/TD]
[TD]50"-

---

40"-

---

32"-

---

[/TD]
[TD]50" -

---

40" -

---

32" -

---

[/TD]
[TD]-
-
Chassis P162
my Home Screen 1.0[/TD]
[TD]Bluetooth 3.0(2.402GHz-2.480GHz)
1 x Lan Ethernet RJ45
3 x HDMI 1.4 (CEC)
2 x USB 2.0 (max500mA)
1 x mini Jack (3.5mm) stereo
1 x SCART
1 x Component (RCA PIN type)[/TD]
[TD]Lan (10BASE-T/100BASE-TX)
Wi-Fi
Wi-Fi Direct
DLNA
802.11 a/n
5.180GHZ-5.320GHz,5.500GHz-5.580GHz
5.660GHZ-5.700GHz
802.11 b/g/n
2.412GHz-2.472GHz
Security
WPA2-PSK(TKIP/AES)
WPA-PSK(TKIP/AES)
WEP(64-bit/128-bit)
[/TD]
[TD]DVB-T/T2/C
1 x SAT>IP Client & Server
Analog (PAL,SECAM,NTSC)
No HEVC[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DS630
[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #0000ff"]DS600
50", 40", 32"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]50" - max...cd/m2

---

40" - max...cd/m2

---

32" - max...cd/m2

---

No[/TD]
[TD]50" - MVA , 8-bit, 60/50Hz

---

40" - Super-MVA, 8bit, 60/50Hz

---

32" - , 8/-bit, 60/50Hz

---

Backlight Motion Rate 400[/TD]
[TD]50" - Edge Led

---

40" - Edge Led

---

32" - Edge Led

---

[/TD]
[TD]50"- DCI P3 -

---

40"- DCI P3 -

---

32"- DCI P3 -

---

[/TD]
[TD]50"-

---

40"-

---

32"-

---

[/TD]
[TD]50"-

---

40"-

---

32"-

---

[/TD]
[TD]50" -

---

40" -

---

32" -

---

[/TD]
[TD]-
-
Chassis P161
-[/TD]
[TD]1 x Lan Ethernet RJ45
3 x HDMI 1.4 (CEC)
2 x USB 2.0
1 x SCART
1 x Antena (RF) female
1 x CI+ 1.3
Bluetooth 3.0 (2.402GHz-2.480Ghz)








[/TD]
[TD]Lan (10BASE-T/100BASE-TX)
Wi-Fi
Wi-Fi Direct
DLNA
802.11 a/n
5.180GHZ-5.320GHz,5.500GHz-5.580GHz
5.660GHZ-5.700GHz
802.11 b/g/n
2.412GHz-2.472GHz
Security
WPA2-PSK(TKIP/AES)
WPA-PSK(TKIP/AES)
WEP(64-bit/128-bit)[/TD]
[TD]DVB-T/T2/C
Analog (PAL,SECAM)
No HEVC[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DS600
[/TD]
[/TR]
[TR]
[TD="bgcolor: #0000ff"]DS500
55", 49", 40",32",24"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]55" - max...cd/m[SUP]2[/SUP]

---

49" - max 314cd/m2

---

40" - max...cd/m[SUP]2[/SUP]

---

32" - max...cd/m[SUP]2[/SUP]

---

24" - max...cd/m[SUP]2[/SUP]

---

No[/TD]
[TD]55" - Super-IPS, 8bit, 60/50Hz

---

49" - Super-IPS , 8-bit, 60/50Hz

---

40" - , 8-bit, 60/50Hz

---

32" - , 8-bit, 60/50Hz

---

24" - , 8-bit, 60/50Hz

---

Backlight Motion Rate 400[/TD]
[TD]55" - Edge Led

---

49" - Edge Led

---

40" - Edge Led

---

32" - Edge Led

---

24" - Edge Led

---

[/TD]
[TD]55" - DCI P3 -

---

49" - DCI P3 -

---

40" - DCI P3 -

---

32" - DCI P3 -

---

24" -

---

[/TD]
[TD]55"-

---

49"- 882:1 /

---

40"-

---

32"-

---

24" -

---

[/TD]
[TD]55"-

---

49"- 66° (cone)

---

40"-

---

32"-

---

24" -

---

[/TD]
[TD]55" -

---

49" -

---

40" -

---

32" -

---

24" -

---

[/TD]
[TD]-
-
Chassis P161
-[/TD]
[TD]1 x USB 2.0
1 x Ethernet RJ45
2 x HDMI 1.4 (ARC, CEC)
1 x Scart
1 x AV Composite In
1 x AV Component In
1 x Opticasl Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF) female
1 x CI+ 1.3
Bluetooth 3.0 (2.402GHz-2.480GHz)[/TD]
[TD]Lan (10BASE-T/100BASE-TX)
Wi-Fi
Wi-Fi Direct
802.11 a/n
5.180GHZ-5.320GHz,5.500GHz-5.580GHz
5.660GHZ-5.700GHz
802.11 b/g/n
2.412GHz-2.472GHz
Security
WPA2-PSK(TKIP/AES)
WPA-PSK(TKIP/AES)
WEP(64-bit/128-bit)
DLNA[/TD]
[TD]DVB-T/T2/C
Analog (PAL,SECAM)
No HEVC[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DS500
[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #0000ff"]DS400
40"[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]40" - max...cd/m[SUP]2[/SUP]

---

No[/TD]
[TD]40" - MVA, 8bit, 60/50Hz

---

Backlight Motion Rate - 400








[/TD]
[TD]40" - Edge Led[/TD]
[TD]40"- DCI P3 -[/TD]
[TD]40"-[/TD]
[TD]40"-[/TD]
[TD]40" -[/TD]
[TD]-
-
Chassis P161
-[/TD]
[TD]1 x USB 2.0
1 x Ethernet RJ 45
2 x HDMI 1.4 (ARC, CEC)
1 x SCART
1 x AV Composite In
1 x AV Component In
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF) female
1 x CI+ 1.3[/TD]
[TD]Lan
WiFi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5Ghz
DLNA[/TD]
[TD]DVB-T/T2/C
Analog (PAL,SECAM)[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DS400
[/TD]
[/TR]
[/TABLE]



[xavito]

50"...[hdtv.com.pl]...Panasonic TX-50DX750E teardown...http://www.hdtv.com.pl/forum/newsy/127247-panasonic-50dx750-matryca-i-wyposazenie-wewnetrzne.html

μετάφραση google pl to en

TX-50DX750E : panel made by INNOLUX V500DK4-KS7

source photos:[hdtv.com.pl]



[xavito]

58"...[nl.hardware.info]...Panasonic TX-58DXW784 review...https://nl.hardware.info/reviews/6830/panasonic-dx780--dxw784-review-allrounder-met-hdr

μετάφραση google nl to en



[xavito]

50"...[avforums.com]...Panasonic TX-50DX802B review...https://www.avforums.com/review/panasonic-dx802-tx-50dx802b-ultra-hd-4k-tv-review.12800

Conclusion

The DX802 is clearly aimed at the lifestyle sector of the TV market but we were pleased to discover that despite the emphasis on design, Panasonic haven't compromised on performance. The 50DX802 uses an easel-style silver stand that includes a separate soundbar and it is certainly eye-catching. The build quality is good and although you will need a wide surface to position the DX802B on, there is also the option to wall mount both the TV and the soundbar. In the case of the soundbar itself, it definitely sounds better than most built-in speakers but will struggle to compete with a dedicated soundbar that includes its own active subwoofer. In terms of features the DX802 includes THX certification, active shutter 3D and support for HDR10, along with Panasonic's excellent Firefox Smart TV platform with a full compliment of catch-up and streaming services. The input lag was measured at 44ms and if energy consumption is important to you, the DX802 proved to be very efficient.

The overall performance of the 50DX802B was very good, with a decent out-of-the-box performance and an impressive greyscale accuracy after calibration. We were a little disappointed at the overall colour accuracy, especially from a Panasonic, but the DX802 handled the HDR tests quite well. The native colour gamut was 67% of Rec.2020, the peak brightness was limited to 545nits and the tone mapping appeared to clip content mastered at more than 1,000nits but overall the HDR performance was good, although lacking some of the impact of other TVs we've tested. The performance with standard and high definition content was excellent and we were glad to find that the local dimming was much improved over other Panasonic TVs we've seen. The 3D was also very good, delivering plenty of depth whilst keeping the flicker and crosstalk to a minimum. So overall the Panasonic TX-50DX802B proved to be an excellent combination of design and performance that is worthy of recommendation.​



[hristoslav2]

[TABLE="class: cms_table_cms_table_cms_table_cms_table_cms_table_cms_table"]
[TR="bgcolor: #5900b3"]
[TD="colspan: 20, align: center"]Panasonic UHD TV 2016 - european models[/TD]
[/TR]
[TR="bgcolor: #000099"]
[TD]

Series
Model​

________________[/TD]
[TD]

Certification UHD Premium (1)​

________[/TD]
[TD]

Dolby Vision(2)​

____[/TD]
[TD]

HDR 10​

_________________

In Windows
2/5/10/20/100%​

[/TD]
[TD]

Videopanel ​

_________________________

Type LCD matrix,
Bits of color,
(Operating frequency of T-Con board of the panel)
Curvature,
Index,
Screen Uniformity
Anti-reflective filter​

[/TD]
[TD]

Backlight​

________________________

Type backlight
(Local Dimming zone)
Type LED
MEMC
Backlight Scanning
Black Frame Insertion
Pulsе Wide Modulation​

[/TD]
[TD]

Color Space ​

_______________________________

DCI P3 / Rec.2020 / Delta E / Gamma / Temperature​

[/TD]
[TD]

Contrast White & Black level​

_________________________

ANSI
With local dimming
Without local dimming​

[/TD]
[TD]

Viewing angle___________​

( ° cone)​

[/TD]
[TD]

Motion resolution​

_____________________

Horizontal Lines​

[/TD]
[TD]Product_____________[/TD]
[TD]

Input Lag​

_______________________________[/TD]
[TD]

Audio​

___________________________________[/TD]
[TD]

SoC,
CPU,
GPU,
Software,
OS​

_______________________[/TD]
[TD]

Networks​

_____________________[/TD]
[TD]

Conectors​

________________________[/TD]
[TD]

Tuners​

________________[/TD]
[TD]

Opportunities for calibration​

_________________________[/TD]
[TD]

Note​

____________________________________________________________________________

Pros & Cont​

[/TD]
[TD]Product[/TD]
[/TR]
[TR]
[TD="bgcolor: #0000ff"]CZ950 OLED
TX-65CZ950[/TD]
[TD]Yes[/TD]
[TD]No[/TD]
[TD]65" - max 450cd/m2

---

YesSMPTE standartsST2084, ST 2086[/TD]
[TD]Oled, WRGB (LG Display), 10bit, 120/100Hz[/TD]
[TD]No backlight[/TD]
[TD]65" - DCI P3 X,Y - 86% / Rec.2020 - 70%[/TD]
[TD]65" - ∞ / 151cd/m2 / 0.00cd/m2[/TD]
[TD]65" - 45°[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]CZ950
65"
OLED[/TD]
[TD]65" - Game mode - 0ms / by default - 80ms[/TD]
[TD][/TD]
[TD]-
Quad Core Pro 5
-
Firefox 2.0[/TD]
[TD]1 x Ethernet RJ45
2 x USB 2.0 (max500mA)
1 x USB 3.0 (max900mA)
4 x HDMI 2.0a HDCP2.2 (ARC,CEC)
1 x Satelite In (Main: F-type female)
1 x Satelite In (Sub: F-type female)
1 x AV Composite In
1 x AV Component In
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF)female
1 x CI+ 1.3
1 x Card reader SD/SDHC[/TD]
[TD]Lan -
Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Bluetooth ver.4.0(for keyboard and mouse, no Bluetooth audio)
Wi-Fi Direct
DLNA (RUI2.0/DTCP-IP/DMP/DMR/DMS)[/TD]
[TD]2 x DVB-C/T2/S2,
1 x SAT>IP Client & Server
DVB-T2: HEVC H.264 и H.265
Analog (PAL,SECAM)
2 x CI+1.3PVR, Time Shifting
HEVC, VP9[/TD]
[TD][/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]CZ950[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #0000ff"]DX900
TX-65DX900E
TX-65DXC904
TX-65DXW904
TX-65DX902B
TX-58DX900E
TX-58DXC904
TX-58DXW904
TX-58DX902B[/TD]
[TD]Yes[/TD]
[TD]No[/TD]
[TD]65"- max 1250cd/m[SUP]2[/SUP]

---

58"- max 1430cd/m[SUP]2[/SUP]

---

Yes HDR10SMPTE standardsST2084, ST2086[/TD]
[TD]65"- SMVA, 10-bit, 120/100Hz

---

58"- SMVA, 10-bit, 120/100Hz

---

Motion Clarity Frame Interpolation
Black Frame Insertion (Clear Motion)[/TD]
[TD]65"' - FALD, 512 zones (32 columns x 16 rows)

---

58" - FALD, 512 zones (32 columns x 16 rows)

---

Honeycomb backlight structureBlue Leds - with red phosphorusMEMC - Intelligent Frame CreationBLS - Backlight ScaningBFI - Clear Motion6 cooling fan backlight[/TD]
[TD]65"- 98% / 78% /

---

58"- 96% / 74%

---

phosphorus-based diodes for a wide gamut close to the DCI 4K(Blue Led + Red/Green phosphorus)[/TD]
[TD]65" - ANSIStatic - 5360:1 / 134cd/m2 / 0.025cd/m2Dynamic - 50000:1

---

58" - ANSI Static - 4600:1 / ---- cd/m2 / 0.023cd/m[SUP]2 /[/SUP]Dynamic - 50000:1

---

[/TD]
[TD]65" - 42°(cone)

---

58" - 46°(conе)

---

[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DX900
58", 65"[/TD]
[TD]65"- Game mode - 41ms / by default - 51ms

---

58" - Game mode- 40ms / by default - 50ms

---

[/TD]
[TD]40Watt (10W+10W+10W+10W)
integrated subwoofer
Dolby Digital Plus
No DTS
VR-Audio Master Surround 2.1[/TD]
[TD]-
Quad Core
Chassis P163
Firefox 2.5[/TD]
[TD]1 x Ethernet RJ45
2 x USB 2.0 (max500mA)
1 x USB 3.0 (max900mA)
4 x HDMI 2.0a HDCP2.2 (ARC,CEC)
1 x Satelite In (Main: F-type female)
1 x Satelite In (Sub: F-type female)
1 x AV Composite In
1 x AV Component In
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF)female
1 x CI+ 1.3
1 x Card reader SD/SDHC[/TD]
[TD]Lan
Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Bluetooth ver.4.0(for keyboard and mouse, no Bluetooth audio)
Wi-Fi Direct
DLNA (RUI2.0/DTCP-IP/DMP/DMR/DMS)[/TD]
[TD]2x DVB-C/T2/S2,
1 x SAT>IP Client & ServerDVB-T2: HEVC H.264 и H.265
Analog (PAL,SECAM)
2 x CI+1.3PVR, Time Shifting
HEVC, VP9[/TD]
[TD]ISF ProfessionalTHX Bright Room3D LUTCMS - RGBCYMgray scale of 10 pointsRec.2020Rec.709direct Display Control mode to allow to adjust settings directly from the Calman software (professional edition) by connecting screen to a PC via Ethernet[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DX900[/TD]
[/TR]
[TR]
[TD="bgcolor: #0000ff"]DX800
TX-58DX800E
TX-58DXW804
TX-58DX802B
TX-50DX800E
TX-50DXW804
TX-50DX802B[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]58" - max 553cd/m,
10% - 458cd/m[SUP]2[/SUP]

---

50" - 10% - 545cd/m[SUP]2[/SUP]

---

Yes HDR10SMPTE standardsST2084, ST2086[/TD]
[TD]58"- Super-MVA, 8-bit+FRC, 120/100Hz

---

50"- Super-MVA, 8-bit+FRC, 120/100Hz

---

Motion Clarity Frame Interpolation
Black Frame Insertion (Clear Motion)
-
Panasonic have done an excellent job of ensuring the backlight is suitably uniform. There was no apparent dirty screen effect or any obvious bright edges and overall with normal viewing material the backlight performance was very good. At night in a dark room you could see some minor backlight issues but those were rare and easily mitigated with some bias lighting.[/TD]
[TD]58" - Edge Led

---

50" - Edge Led

---

Dimming - 4 Vertical zonesBlue Leds - with red phosphorus)MEMC - Intelligent Frame CreationBFI - Clear Motion[/TD]
[TD]58"- 95% / 72%

---

50"- 86% / 67% / DeltaE 2.3 / Gamma 2.4

---

phosphorus-based diodes for a wide gamut close to the DCI 4K(Blue Led + Red/Green phosphorus)[/TD]
[TD]58" - ANSI 3500:1 / 0.0

---

50" - ANSI 5310:1 / 0.02cd/m2
with Adaptive Backlight Control (local dimming) 0.002cd/m2,

---

[/TD]
[TD]58" -

---

50" -

---

[/TD]
[TD]58" -

---

50" - with IFC - 1080 / without - 350 [/TD]
[TD="bgcolor: #0000ff"]DX800
58", 50"[/TD]
[TD]58" - Game mode 43ms / by default 110ms

---

50" - Game mode 44ms / by default 110ms

---

The DX802 delivered an input lag of 44ms in Game Mode, which whilst not as low as some of the competition, should be good enough for all but the most demanding of gamers. We certainly had no problems with lag when gaming and found the overall performance to be very good with our PS4. One interesting thing to note is that you can select the Game Mode when watching HDR content, which means that when HDR games are released you should still be able to enjoy the benefits of a lower input lag.[/TD]
[TD]40 W (10W+10W+20W)
integrated subwoofer
Dolby Digital Plus
No DTS
VR-Master Audio 2.1 Surround
12 TrainPrismatic Speaker

---

The soundbar includes a 12 train prismatic speaker, a quad passive radiator and 40W of amplification, whilst there are holes at the back so that it can, along with the TV, also be wall mounted. The fact that you can detach the soundbar completely means you also have the option to not use it at all and simply use your DX802 with a third-party audio solution. [/TD]
[TD]-
Quad Core
Chassis P163
Firefox 2.5[/TD]
[TD]1 x Ethernet RJ45
2 x USB 2.0 (max500mA)
1 x USB 3.0 (max900mA)
4 x HDMI 2.0a HDCP2.2 (ARC,CEC)
1 x Satelite In (Main: F-type female)
1 x Satelite In (Sub: F-type female)
1 x AV Composite In
1 x AV Component In
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF)female
1 x CI+ 1.3
1 x Card reader SD/SDHC[/TD]
[TD]Lan
Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Bluetooth ver.4.0(for keyboard and mouse, no Bluetooth audio)
Wi-Fi Direct
DLNA (RUI2.0/DTCP-IP/DMP/DMR/DMS)[/TD]
[TD]2 x DVB-C/T2/S2,
1 x SAT>IP Client & ServerDVB-T2: HEVC H.264 и H.265
Analog (PAL,SECAM)2 x CI+1.3PVR, Time Shifting HEVC, VP9[/TD]
[TD]As with all Panasonic TVs, the DX800 comes with an excellent set of calibration controls, including 2- and 10-point white balance controls, a separate gamma control and a full Colour Management System (CMS),ISF Professional, THX Bright Room, 3D LUTCMS - RGBCYM gray scale of 10 points. Rec.2020, Rec.709 direct Display Control mode to allow to adjust settings directly from the Calman software (professional edition) by connecting screen to a PC via Ethernet[/TD]
[TD]The colour accuracy of the DX802 wasn't as good as we would expect from a Panasonic TV[/TD]
[TD="bgcolor: #0000ff"]DX800[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #0000ff"]DX780
TX-65DX780E
TX-65DXW784
TX-58DX780E
TX-58DXW784
TX-58DXX789
TX-58DXN788
TX-58DXF787
TX-58DXT786
TX-50DX780E
TX-50DXW784
TX-50DXT786
TX-50DXF787[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]65" - max......cd/m[SUP]2[/SUP]

---

55" - max 577cd/m[SUP]2[/SUP]

---

50" - max 5....cd/m[SUP]2[/SUP]

---

CompatibleHDR processing (but no hardware for HDR)[/TD]
[TD]65" - Super-MVA, 8-bit+Hi-FRC, 120/100Hz

---

58" - Super-MVA, 8-bit+Hi-FRC, 120/100Hz

---

50" - Super-MVA, 8-bit+Hi-FRC, 120/100Hz

---

Motion Clarity Frame Interpolation
Black Frame Insertion (Clear Motion)[/TD]
[TD]65" - Direct Led, Local Dimming - 32 zones (8 x 4)

---

58" - Edge Led (below) Vertical Dimming

---

50" - Edge Led (below) Vertical Dimming

---

Blue Leds - with red phosphorusMEMC - Intelligent Frame CreationBFI - Clear Motion[/TD]
[TD]65" - DCI P3 X,Y -

---

58" - DCI P3 X,Y -

---

50" - DCI P3 X,Y - 89% / Rec.2020 - 66%

---

phosphorus-based diodes for a wide gamut close to the DCI 4K(Blue Led + Red/Green phosphorus)[/TD]
[TD]65" -

---

58" -

---

50" -

---

[/TD]
[TD]65" -

---

58" -

---

50" -

---

[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DX780
65", 58", 50"[/TD]
[TD]65" - Game mode

---

58" - Game mode

---

50" - Game mode

---

[/TD]
[TD]2x10 Watt RMS
Dolby Digital Plus
No DTS
VR-Audio Surround True[/TD]
[TD]-
Quad Core
Chassis P163
Firefox 2.5[/TD]
[TD]1 x Ethernet RJ45
2 x USB 2.0 (max500mA)
1 x USB 3.0 (max900mA)
2 x HDMI 2.0a HDCP2.2 (ARC,CEC)
2 x HDMI 1.4 (CEC)
1 x Satelite In (Main: F-type female)
1 x Satelite In (Sub: F-type female)
1 x AV Composite In
1 x AV Component In
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF)female1 x CI+ 1.3
1 x Card reader SD/SDHC[/TD]
[TD]Lan (10BASE-T/100BASE-TX)
Wi-Fi 802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Bluetooth Ver.4.0(for keyboard and mouse, no Bluetooth audio)
Wi-Fi Direct
DLNA (RUI2.0/DTCP-IP/DMP/DMR/DMS)[/TD]
[TD]2 x DVB-C/T2/S2,
1 x SAT>IP Client & ServerDVB-T2: HEVC H.264 и H.265Analog (PAL,SECAM)2 x CI+1.3PVR, Time Shifting
HEVC, VP9[/TD]
[TD][/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DX780[/TD]
[/TR]
[TR]
[TD="bgcolor: #0000ff"]DX750
TX-65DX750E
TX-65DX750B
TX-58DX750E
TX-58DX750F
TX-50DX750E
TX-50DX750F
TX-50DX750B[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]65" - max 435cd/m[SUP]2[/SUP]

---

58" - 100% max 550cd/m[SUP]2[/SUP]

---

50" - 10% max 529cd/m2/
SDR max 500cd/m[SUP]2[/SUP]

---

CompatibleHDR processing (but no hardware for HDR)[/TD]
[TD]65" - Super-MVA, 8-bit+Hi-FRC, 120/100Hz

---

58" - Super-MVA, 8-bit+Hi-FRC, 120/100Hz

---

50" - Super-MVA, 8-bit+HI-FRC, 120/100Hz

---

50"- panel Innolux V500DK4-KS7-Rev.R24
Motion Clarity Frame Interpolation
Black Frame Insertion (Clear Motion)
very glossy panel
The Adaptive Backlight Control (local dimming) on the DX750 was a little disappointing, especially compared to the sophisticated system employed by Samsung, and even in the low mode we saw artefacts that were quite obvious at times. Although it was less an issue of haloing and more of a problem of the entire image obviously dimming in certain scenes. However since the native blacks and backlight uniformity are good, if you sit central to the screen there is very little difference with the local dimming on or off and at least when it's off you avoid any issues.[/TD]
[TD]65" - Direct Led, No Dimming

---

58" - Edge Led (below), Vertical Dimming

---

50" - Edge Led (below), Vertical Dimming

---

MEMC - Intelligent Frame CreationBMR 1800[/TD]
[TD]65" - 90% / 70%

---

58" - 90% / 70%

---

50" - 86% / 66%

---

phosphorus-based diodes for a wide gamut close to the DCI 4K(Blue Led + Red/Green phosphorus)[/TD]
[TD]65" - ANSI 4300:1 / 123cd/m2 / 0.03cd/m2

---

58"- ANSI 4313:1 /120cd/m2 / 0.017cd/m2

---

50" - ANSI 3795:1 / 0.023cd/m2
with Adaptive Backlight Control(Local Dimming) 0.001cd/m2
Static 4800:1/ 120 cd/m2 / 0.025cd/m2
Dynamic 5000:1 / 625cd/m2 / 0.10cd/m2

---

[/TD]
[TD]65" - 42° (cone)

---

58" - 44° (cone)

---

50" - 46° (cone)

---

[/TD]
[TD]65" -

---

58" - with IFC 1080 / without - 350

---

50" - with IFC 1080 / without - 350[/TD]
[TD="bgcolor: #0000ff"]DX750
65", 58", 50"[/TD]
[TD]65"- Game mode-46ms / by default-106ms

---

58"- Game mode-47ms / by default-105ms

---

50"- Game mode-47ms / by default-105ms

---

[/TD]
[TD]2x10 Watt RMS
Dolby Digital Plus
No DTS
VR-Audio Surround True

---

The rendering is still acceptable, average with perfectly intelligible dialogue, but rather limited power with 2 x 10 Watts and no Subwoofer output as Sony. no one still finds a lot of settings to optimize the sound rendering, level the volume changes from one channel to another, a 7-band EQ, a surround mode, etc.[/TD]
[TD]-
Quad Core
Chassis P163
Firefox 2.5[/TD]
[TD]1 x Ethernet RJ45
2 x USB 2.0 (max500mA)
1 x USB 3.0 (max900mA)
2 x HDMI 2.0a HDCP2.2 (ARC,CEC)
2 x HDMI 1.4 (CEC)
1 x AV Composite In
1 x AV Component In
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF)female1 x CI+ 1.3
1 x Card reader SD/SDHC[/TD]
[TD]Lan (10BASE-T/100BASE-TX)
Wi-Fi 802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Bluetooth Ver.4.0(for keyboard and mouse, no Bluetooth audio)
Wi-Fi Direct
DLNA (RUI2.0/DTCP-IP/DMP/DMR/DMS)[/TD]
[TD]DVB- C/T2/S2
with PIP functions, PAP, PAT, PVR and Time shift
Analog (PAL,SECAM)
PVR, Time Shifting
HEVC H.265, VP9[/TD]
[TD]Accurate Colour Drive technology with 3D LUT conversion table with 8 000 points correction and the ability to calibrate 6 primary and secondary colors within a CMS on 3 axes. Or Black Gradation Drive that can provide more gradations in dark scenes through treatment with 12 bit color.To adjust the colorimetry, the DX750 offers all the necessary settings with the choice of gamut used (Rec.601, Rec.709, EBU, DCI / P3 or Rec.2020), gamma used (with varying gamma whose BT.1886 with compensation of black, 2.2 used in lit room, the 2.4 used in dark room). You can edit each Gamma to correct on 10 points. Each gamut can be calibrated from a CMS (Color Management System) 3-axis (luminance, saturation and hue) with opportunity to correct 6 primary and secondary colors (RGBCMY). Finally, we also find a Balance Whites 2P and 10P (10 points) to adjust the color temperature.THX - NoISF - No[/TD]
[TD]As for upscaling UHD Panasonic, there is no doubt he has made great progress. It's quite different from what Samsung offers, closer to what Sony offers, that is to say a very natural image, less chiseled than on the Samsung TV, but very precise and with a sumptuous quilted. The upscaling provides an image with rich texture and greatly improves accuracy without displaying traces of upscaling. So it is very comprehensive, especially for network management, but lacks however DisplayPort who was present on the AX900, or aptX Bluetooth and a Subwoofer output like what Sony offers. Standard remote control, without micro or backlit button. A good remote control, solid but rather plain .., and no possibility to calibrate the TV for a tablet like the DX900 as the DX750 is not certified ISF.

• + Design, build quality, the possibility of multiple foot positions
• + A powerful contrast to an Edge LED (4800: 1 ANSI)
• + A bright peak in HDR pretty good (625 nits)
• + System of internal gradation great despite the slab 8 bit
• + HDR rendering of very good quality
• + A rich spectrum of beautiful, balanced colors, a wide gamut (91.2% of DCI)
• + Colorimetry output very correct card (delta E less than 3)
• + A high-performance video processing, including SD content with a very natural picture
• + Several algorithms with efficient remastering yet made once natural
• + Ultra settings to complete color management level and HDMI
• + IFC made without a fluid including 24P
• + Complete network management, Samba, DLNA / UPnP, multiroom client / server, sharing the tuner on the network
• + interesting multimedia management (UHD video playback and HDR, VP9 and HEVC, MKV, TS, Flac, ALAC, etc.), but no DTS decoding that just spoils the fun!
• + A good quality 3D rendering, although some ghosting
• + The best quality / price ratio in 2016, certainly!
• - The anti-reflection treatment of limited
• - A slab 8 bit (although fnally we do not notice it)
• - IFC made too which generates a digital or video camera (main fault)
• - Lack of support DTS multimedia
• - A single HD tuner (DVB-C / T2 compliant HEVC and MPEG4)
• - A slightly Directive slab contrast term as all VA panels
• - A detail enhancement filter and / or contours would have been welcome for more chiseled picture lovers
• - No compatibility Dolby Vision
• - Local Dimming that a mouth too black to Medium or High
• - The edges of the slab clearer in some dark scenes

[/TD]
[TD="bgcolor: #0000ff"]DX750[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #0000ff"]DX730
TX-58DX730E
TX-50DX730E
TX-40DX730E
TX-40DXW735
TX-40DXW734[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]58"- max....cd/m[SUP]2[/SUP]

---

50"- max 317cd/m[SUP]2[/SUP]

---

40" - max...cd/m[SUP]2[/SUP]

---

CompatibleHDR processing (but no hardware for HDR)[/TD]
[TD]58" - Super-MVA, 8-bit+FRC, 60/50Hz

---

50" - Super-MVA, 8-bit+FRC, 60/50Hz

---

40" - Super-MVA, 8-bit+FRC, 60/50Hz

---

Motion Clarity Frame Interpolation
Black Frame Interpolation
4K Backlight Motion Rate IFC 1400
very glossy panel[/TD]
[TD]58" - Edge Led (below) Vertical Dimming

---

50" - Edge Led (below) Vertical Dimming

---

40" - Edge Led (below) Vertical Dimming

---

MEMC - Intelligent Frame Creation[/TD]
[TD]58" - DCI P3 -

---

50" - DCI P3 -

---

40" - DCI P3 -

---

[/TD]
[TD]58" -

---

50" - 4824:1 / 0.04cd/m[SUP]2[/SUP]

---

40" -

---

[/TD]
[TD]58" -

---

50" - 42° (cone)

---

40" -

---

[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DX730
58", 50", 40"[/TD]
[TD]58" - Game mode

---

50" - Game mode

---

40" - Game mode

---

[/TD]
[TD]2x10 Watt RMS
Dolby Digital Plus
No DTS
VR-Audio Surround
True[/TD]
[TD]-
Quad Core
Chassis P193
Firefox 2.5 [/TD]
[TD]1 x Ethernet RJ45
2 x USB 2.0 (max500mA)
1 x USB 3.0 (max900mA)
1 x HDMI 1.4 (CEC)
2 x HDMI 2.0a (ARC,CEC)
1 x AV Composite In
1 x AV Component In
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF)female
1 x CI+ 1.3
1 x Card reader SD/SDHC[/TD]
[TD]Lan (10BASE-T/100BASE-TX)
Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Bluetooth Ver.4.0(for keyboard and mouse, no Bluetooth audio)
Wi-Fi Direct
DLNA (RUI2.0/DTCP-IP/DMP/DMR/DMS)[/TD]
[TD]DVB-T/T2/C/S/S2
Double Tuner
Analog (PAL,SECAM)
PVR, Time Shifting
HEVC, VP9[/TD]
[TD][/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DX730[/TD]
[/TR]
[TR]
[TD="bgcolor: #0000ff"]DX720
TX-58DX720E
TX-50DX720E
TX-40DX720E

[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]58"- max....cd/m[SUP]2[/SUP]

---

50"- max ....cd/m[SUP]2[/SUP]

---

40" - max...cd/m[SUP]2[/SUP]

---

CompatibleHDR processing (but no hardware for HDR)[/TD]
[TD]58" - Super-MVA, 8-bit+FRC, 60/50Hz

---

50" - Super-MVA, 8-bit+FRC, 60/50Hz

---

40" - Super-MVA, 8-bit+FRC, 60/50Hz

---

Motion Clarity Frame Interpolation
Black Frame Interpolation
4K Backlight Motion Rate IFC 1600
very glossy panel[/TD]
[TD]58" - Led, Local Dimming

---

50" - Led, Local Dimming

---

40" - Led, Local Dimming

---

MEMC - Intelligent Frame Creation[/TD]
[TD]58" - DCI P3 -

---

50" - DCI P3 -

---

40" - DCI P3 -

---

[/TD]
[TD]58" -

---

50" - 4824:1 / 0.04cd/m[SUP]2[/SUP]

---

40" -

---

[/TD]
[TD]58" -

---

50" - 42° (cone)

---

40" -

---

[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DX720
58", 50", 40"[/TD]
[TD]58" - Game mode

---

50" - Game mode

---

40" - Game mode

---

[/TD]
[TD]2x10 Watt RMS
Dolby Digital Plus
No DTS
VR-Audio Master Surround[/TD]
[TD]-
Quad Core
Chassis P193
Firefox 2.5 [/TD]
[TD]1 x Ethernet RJ45
2 x USB 2.0 (max500mA)
1 x USB 3.0 (max900mA)
1 x HDMI 1.4 (CEC)
2 x HDMI 2.0a (ARC,CEC)
1 x AV Composite In
1 x AV Component In
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF)female
1 x CI+ 1.3
1 x Card reader SD/SDHC[/TD]
[TD]Lan (10BASE-T/100BASE-TX)
Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Bluetooth Ver.4.0(for keyboard and mouse, no Bluetooth audio)
Wi-Fi Direct
DLNA (RUI2.0/DTCP-IP/DMP/DMR/DMS)[/TD]
[TD]DVB-T/T2/C
Analog (PAL,SECAM)
PVR, Time Shifting
HEVC, VP9[/TD]
[TD][/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DX720[/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #0000ff"]DX700
TX-58DX700E
TX-58DX700F
TX-58DXW704
TX-50DX700E
TX-50DX703E
TX-50DXU701
TX-40DX700E
TX-40DX703E
TX-40DX700F
TX-40DXU701
[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]58" - HDR max 350cd/m2

---

50" - HDR max 350cd/m[SUP]2[/SUP]

---

40" -

---

CompatibleHDR processing (but no hardware for HDR)[/TD]
[TD]58" - Super-MVA, 8-bit, 60/50Hz

---

50" - Super-MVA, 8-bit, 60/50Hz

---

40" - Super-MVA, 8-bit, 60/50Hz

---

Black Frame Interpolation
4K Backlight Motion Rate IFC 1400
very glossy panel[/TD]
[TD]58" - Edge Led (below), Vertical Dimming

---

50" - Edge Led (below), Vertical Dimming

---

40" - Edge Led(below), Vertical Dimming

---

MEMC - Intelligent Frame Creation[/TD]
[TD]58" - DCI P3 - / Rec.2020 - 68.27%

---

50" - DCI P3 -

---

40" - DCI P3 -

---

[/TD]
[TD]58"- 5736:1 / 153cd/m2 / 0.03cd/m23184:1 / 0.038cd/m[SUP]2[/SUP]ANSI - 2304:1 / 0.046cd/m[SUP]2[/SUP]

---

50" - 4700:1 /

---

40" -

---

[/TD]
[TD]58" - 40°(conе)

---

50" -

---

40" -

---

[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DX700
58", 50"'40"[/TD]
[TD]58"- Game mode-49.8ms / by default-69.7ms

---

50"- Game mode

---

40" - Game mode

---

[/TD]
[TD]2x10 Watt RMS
Dolby Digital Plus
No DTS
VR-Audio True Surround
[/TD]
[TD]-
Quad Core
Chassis P193
Firefox 2.5[/TD]
[TD]1 x Ethernet RJ45
1 x USB 2.0 (max 500mA)
1 x USB 3.0 (max 900mA)
1 x HDMI 1.4 (CEC)
2 x HDMI 2.0 (ARC,CEC)
1 x AV Composite in
1 x AV Component in
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF) female
1 x CI+ 1.3[/TD]
[TD]Lan (10BASE-T/100BASE-TX)
WiFi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Bluetooth ver. 4.0
Wi-Fi Direct
DLNA (RUI2.0/DTCP-IP/DMP/DMR/DMS)[/TD]
[TD]DVB-C/T2/S/S2
Analog (PAL,SECAM)
HEVC,[/TD]
[TD][/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DX700[/TD]
[/TR]
[TR]
[TD="bgcolor: #0000ff"]DX650
TX-55DX650E
TX-55DX653E
TX-55DXW654
TX-49DX650E
TX-49DX653E
TX-40DX650E
TX-40DX653E[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]55" -

---

49" -

---

40" -

---

No[/TD]
[TD]58"- Super-MVA, 8-bit, 60/50Hz

---

49"- Super-MVA, 8-bit, 60/50Hz

---

40"- Super-MVA, 8-bit, 60/50Hz

---

4K Black Frame Interpolation 1000[/TD]
[TD]55" - Edge Led, (below)

---

49" - Edge Led, (below)

---

40" - Edge Led, (below)

---

MEMC - Inteligent Frame Creation
4K Backlight Motion Rate IFC 1000[/TD]
[TD]55"- DCI P3 -

---

49"- DCI P3 -

---

40"- DCI P3 -

---

[/TD]
[TD]55"-

---

49"-

---

40"-

---

[/TD]
[TD]55"-

---

49"-

---

40"-

---

[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DX650
55", 49",40"[/TD]
[TD]55" - Game mode

---

49" - Game mode

---

40" - Game mode

---

[/TD]
[TD]2x10 Watt RMS
Dolby Digital Plus
No DTS
VR-Audio True Surround
[/TD]
[TD]-
Quad Core
Chassis -Firefox 2.5[/TD]
[TD]1 x Ethernet RJ45
1 x USB 2.0 (max 500mA)
1 x USB 3.0 (max 900mA)
1 x HDMI 1.4 (CEC)
2 x HDMI 2.0 (ARC,CEC)
1 x AV Composite in
1 x AV Component in
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF) female1 x CI+ 1.3[/TD]
[TD]Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Wi-Fi Direct
DLNA (RUI2.0/DTCP-IP/DMP/DMR/DMS)[/TD]
[TD]DVB-T/T2/C
Analog (PAL,SECAM)[/TD]
[TD][/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DX650 [/TD]
[/TR]
[TR="bgcolor: #EEEEEE"]
[TD="bgcolor: #0000ff"]DX600
TX-55DX600E
TX-55DX603E
TX-55DXW604
TX-55DXU601
TX-49DX600E
TX-49DX603E
TX-49DXU601
TX-49DXW604
TX-40DX600E
TX-40DX603E
TX-40DXW604
TX-40DXU601[/TD]
[TD]No[/TD]
[TD]No[/TD]
[TD]55" - max 294cd/m2

---

49" - max...cd/m[SUP]2[/SUP]

---

40" - max...cd/m[SUP]2[/SUP]

---

No[/TD]
[TD]55"- Super-IPS, 8-bit, 60/50Hz + BLB

---

49"- Super-IPS, 8-bit, 60/50Hz + BLB

---

40"- Super-MVA, 8-bit, 60/50Hz + BLB

---

4K Backlight Motion Rate IFC 800[/TD]
[TD]55" - Edge Led, (below)

---

49" - Edge Led, (below)

---

40" - Edge Led

---

[/TD]
[TD]55"- DCI P3 -

---

49"- DCI P3 -

---

40"- DCI P3 -

---

[/TD]
[TD]55"-

---

49"-

---

40"-

---

[/TD]
[TD]55"- 78° (cone)

---

49"-

---

40"-

---

[/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DX600
55", 49", 40"[/TD]
[TD]55" - Game mode

---

49" - Game mode

---

40" - Game mode

---

[/TD]
[TD]2x10 Watt RMS
Compatible
Dolby Digital Plus
No DTS
VR-Audio True Surround[/TD]
[TD]-
-
Chassis
-
Firefox 2.5[/TD]
[TD]1 x Ethernet RJ45
1 x USB 2.0 (max 500mA)
1 x USB 3.0 (max 900mA)
1 x HDMI 1.4 (CEC)
2 x HDMI 2.0 (ARC,CEC)
1 x AV Composite in
1 x AV Component in
1 x Optical Audio Out
1 x 3.5mm Audio Out
1 x Antena (RF) female1 x CI+ 1.3[/TD]
[TD]Wi-Fi
802.11 a
802.11 b
802.11 g
802.11 n
802.11 n 5GHz
Wi-Fi Direct
DLNA (RUI2.0/DTCP-IP/DMP/DMR/DMS)[/TD]
[TD]DVB-T/T2/C
Analog (PAL,SECAM)[/TD]
[TD][/TD]
[TD][/TD]
[TD="bgcolor: #0000ff"]DX600 [/TD]
[/TR]
[TR="bgcolor: #000099"]
[TD]Series
Model
________________[/TD]
[TD]

Certification UHD Premium (1)​

________[/TD]
[TD]

Dolby Vision(2)​

____[/TD]
[TD]

HDR 10​

________________

In Windows
2/5/10/20/100%​

[/TD]
[TD]

Videopanel ​

_______________________

Type LCD matrix,
Bits of color,
(Operating frequency of T-Con board of the panel)
Curvature,
Index,
Screen Uniformity
Anti-reflective filter​

[/TD]
[TD]

Backlight​

____________________

Type backlight
(Local Dimming zone)
Type LED
MEMC
Backlight Scanning
Black Frame Insertion
Pulsе Wide Modulation​

[/TD]
[TD]

Color Space ​

___________________

DCI P3 / Rec.2020 / Delta E​

[/TD]
[TD]

Contrast White & Black level​

________________________

ANSIWith local dimmingWithout local dimming​

[/TD]
[TD]

Viewing angle
_______________​

( ° cone)​

[/TD]
[TD]

Motion resolution​

_____________________[/TD]
[TD]Product
_____________[/TD]
[TD]

Input Lag​

_______________________________[/TD]
[TD]

Audio​

_______________________________[/TD]
[TD]

SoCCPUGPUSoftwareOS​

_______________________[/TD]
[TD]

Networks​

____________[/TD]
[TD]

Conectors​

______________________[/TD]
[TD]

Tuners​

______________[/TD]
[TD]

Opportunities for calibration​

_________________________[/TD]
[TD]

Note​

____________________________________________________________________________

Pros & Cont​

[/TD]
[TD]Product[/TD]
[/TR]
[/TABLE]



[hristoslav2]

Panasonic 65DX900E (DX900E) UHD HDR LCD TV – recenzija – HD Televizija – HDTV eZine
Google translate Hr to En



[xavito]

65"...[hdtvtest.co.uk]...Panasonic TX-65DX902B review...http://www.hdtvtest.co.uk/news/tx65dx902b-201608144320.htm

Macro photo of subpixel configuration indicating VA-type LCD matrix sourced from Taiwanese vendor Innolux Corporation,RGB,

Verdict

Some may question our decision to lavish our β€œHighly Recommended – Best Value” award on a flagship TV costing nearly £3000, but when you take into consideration the Panasonic Viera TX-65DX902B’s supreme colour accuracy that’s possible through professional calibration, general picture quality and HDR-compatible game mode, plus the fact that following an official price drop recently to £2899, the TV undercuts rival FALD (full-array local dimming) LED LCD and OLED models by at least £800 in the UK, hopefully you’ll understand our reasoning.

​

source image:[perfectimage.gr]



[xavito]

58"...[avforums.com]...Panasonic TX-58DX902B review...https://www.avforums.com/review/panasonic-tx-58-dx902B-dx900-ultra-hd-4k-hdr-tv-review.12278

https://www.youtube.com/watch?v=2p9wrY-aFns

https://www.youtube.com/watch?v=GyOZGTU8EmU



[xavito]

Panasonic shows off new flat-screen 65-inch UHD TV OLED panel at IFA 2016.

source photo:[prohardver.hu]
