-Sony TV Line-up 2021-

[xavito]

75"...[rtings.com]...Sony XR-75X95J review...https://www.rtings.com/tv/reviews/sony/x95j

VA panel + viewing angle compensation film( marketing term: X-Wide Angle)+X-Anti Reflection(anti-reflective coating)
Direct (Full Array LED) 84, independently dimmable zones in a 6 x 14 array

X95J replaces the X950H (XH9505)

Το μοντέλο 65'' δεν διαθέτει τεχνολογία anti-reflective coating (marketing term:X-Anti Reflection).

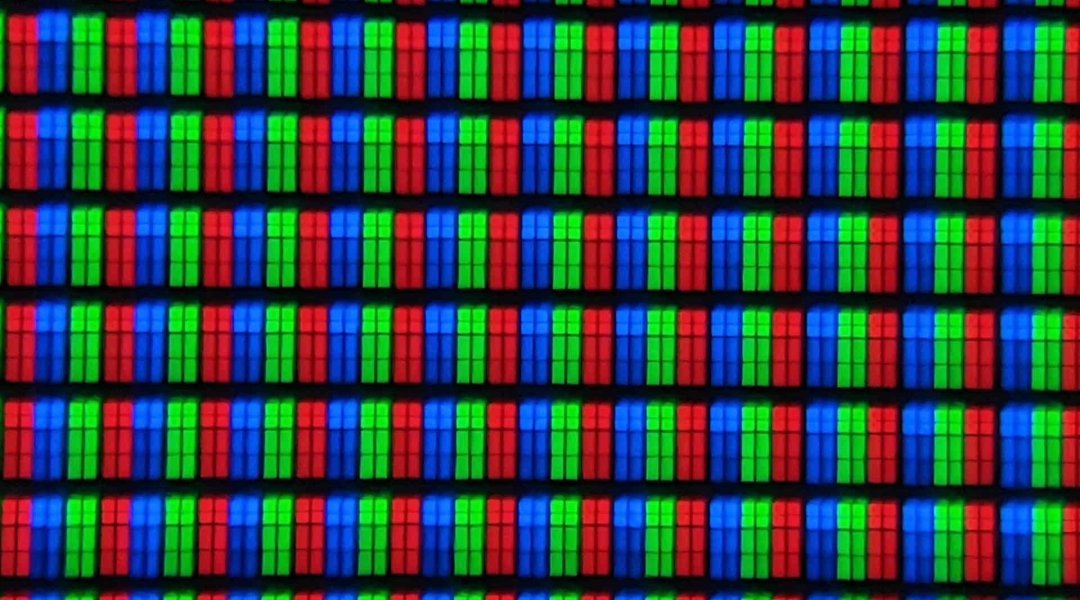

XR-75X95J :subpixel panel structure,8 domain,RGB,vertical stripe

Οι ρυθμίσεις είναι μόνο για αναφορά.
Δεν υπάρχει καμία εγγύηση ότι θα σας δώσουν την καλύτερη εικόνα που είναι σύμφωνη με τα πρότυπα της βιομηχανίας και κατάλληλη για το περιβάλλον προβολής σας (ειδικά ισορροπία λευκού, ρυθμίσεις συστήματος γάμμα και χρώματος που διαφέρουν από μονάδα σε μονάδα).
Εάν θέλετε μια εγγυημένη βαθμονομημένη εικόνα, καλέστε έναν επαγγελματία βαθμονομητή τηλεόρασης.

Recommended settings XR-75X95J...https://www.rtings.com/tv/reviews/sony/x95j/settings




-----

65"...[hifi.de]...Sony XR-65X95JAEP review...https://hifi.de/test/sony-x95j-test-70359



[xavito]

65"...[dday.it]...Sony XR-65A80J review...https://www.dday.it/redazione/40503/sony-oled-tv-a80j-in-prova-recensione



[xavito]

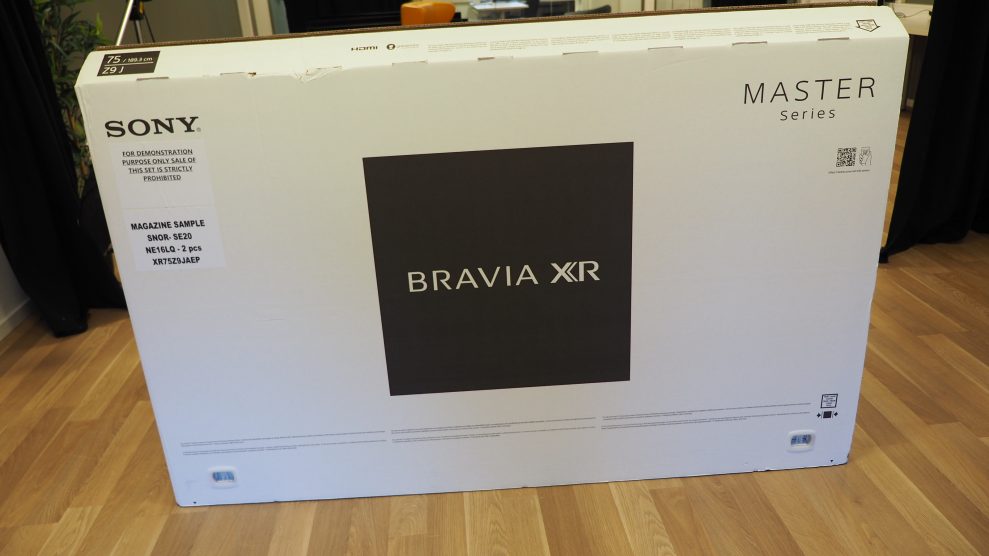

75"...[lesnumeriques.com]...Sony XR-75Z9J review...https://www.lesnumeriques.com/tv-televiseur/sony-xr-75z9j-p64951/test.html

Οι ρυθμίσεις είναι μόνο για αναφορά.
Δεν υπάρχει καμία εγγύηση ότι θα σας δώσουν την καλύτερη εικόνα που είναι σύμφωνη με τα πρότυπα της βιομηχανίας και κατάλληλη για το περιβάλλον προβολής σας (ειδικά ισορροπία λευκού, ρυθμίσεις συστήματος γάμμα και χρώματος που διαφέρουν από μονάδα σε μονάδα).
Εάν θέλετε μια εγγυημένη βαθμονομημένη εικόνα, καλέστε έναν επαγγελματία βαθμονομητή τηλεόρασης.

Our settings and measures
We set the Sony Bravia XR-75Z9J to Expert mode then we lowered the brightness to 7 in order to obtain a white close to 150 cd / m².
Regarding the MotionFlow motion compensation engine, Expert mode allows you to limit motion blur while maintaining the 24 fps frame rate of the cinema.
The Clarity 1 mode activates the Xmotion Flow Clarity (the system for inserting black images by zone).

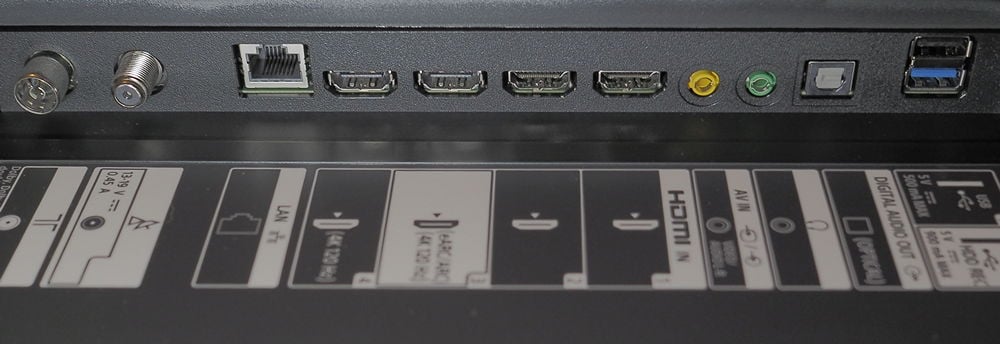

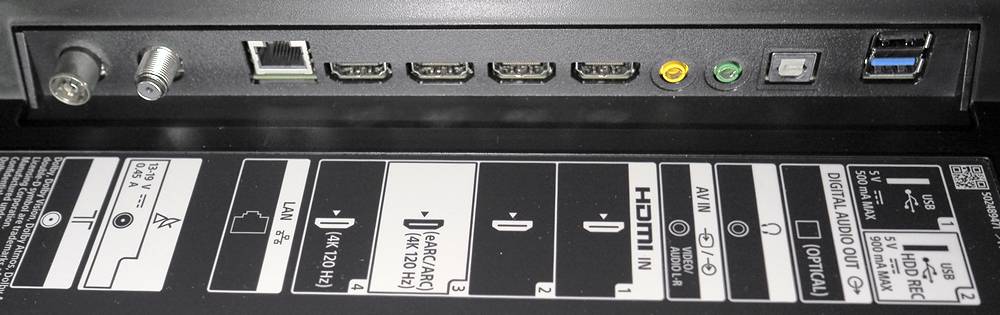

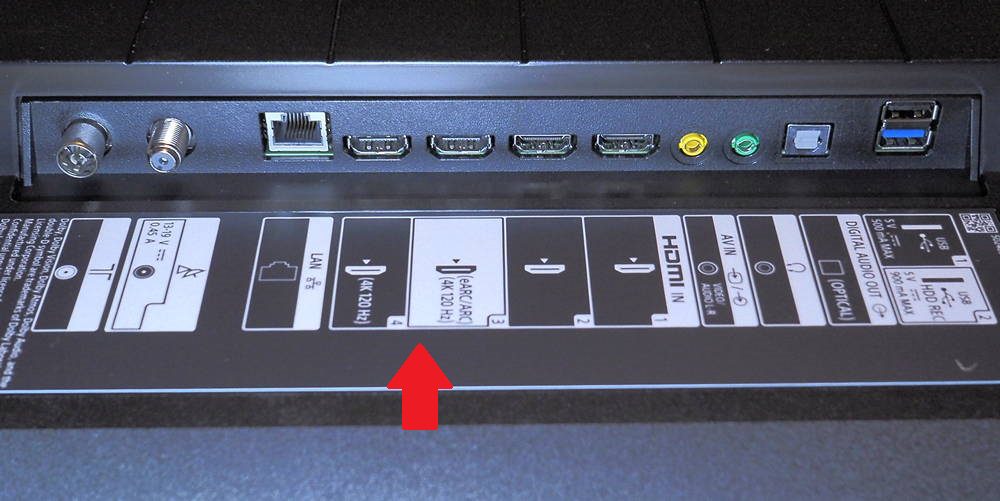

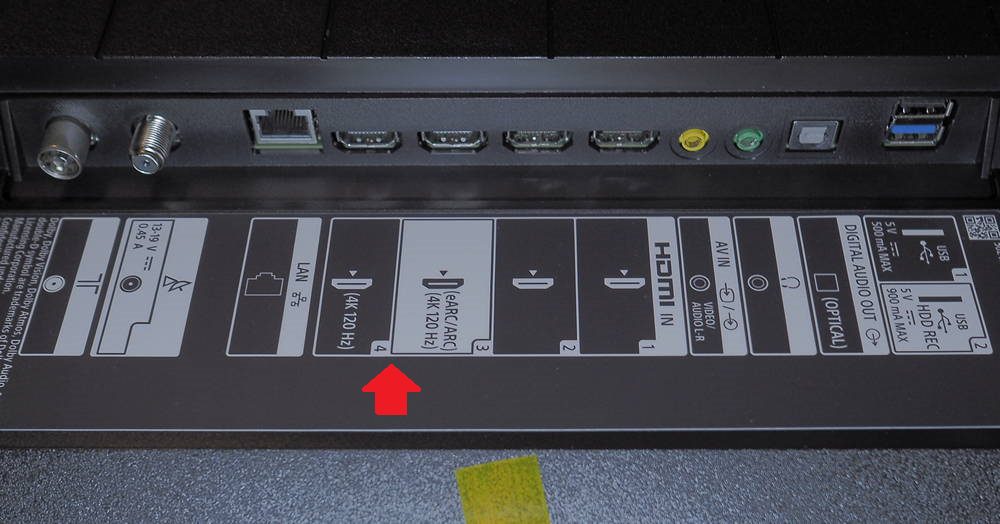

Finally, do not forget to unblock the HDMI ports (Settings> Watching TV> External inputs> HDMI signal format> Improved format).

---

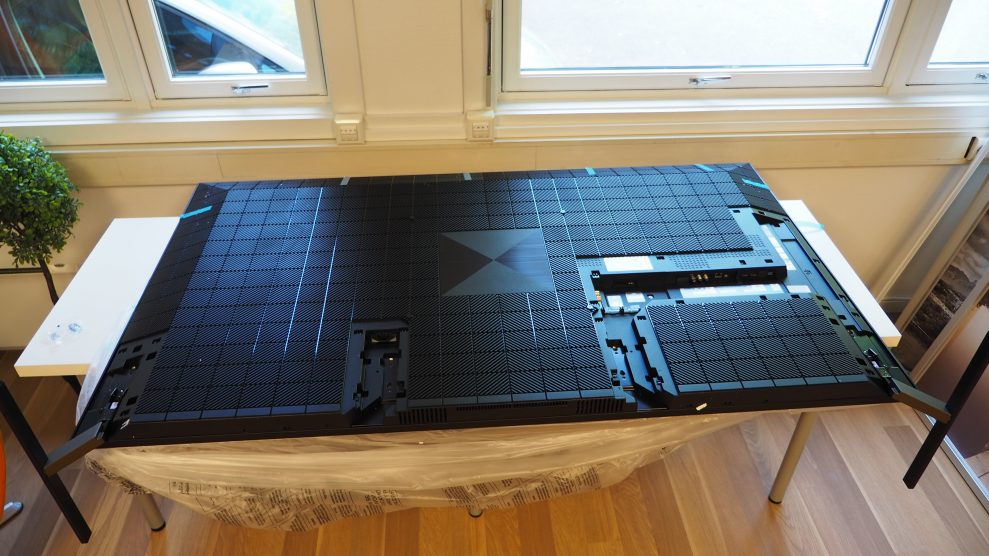

75"...[lydogbilde.no]...Sony XR-75Z9J review...https://www.lydogbilde.no/test/tv/sony-bravia-xr-75z9j/



[xavito]

55"...[hdtvtest.co.uk]...Sony XR-55X90J review + comparison vs XH90

We review the Sony X90J 4K LED LCD TV, including comparison vs last year's BRAVIA XH90/ X900H.

Timestamps:
===========
0:00 X90J vs X900H, but which is which?
0:24 Black level measurements
0:56 Local dimming performance
2:00 Such accurate colours out of the box!
2:35 Motion handling
3:39 Video processing including upscaling
4:41 Screen uniformity
5:10 HDR performance including Dolby Vision
5:51 Gaming including input lag
8:37 Anti-glare coating & TV design
9:02 HDMI 2.1 ports
10:04 Final verdict
10:24 Comparison vs XH90/ X900H

Our review sample is the 55-inch Sony XR-55X90J, but it's also available in 50-inch (model number XR-50X90J), 65-inch (XR-65X90J) & 75-inch (XR-75X90J) screen sizes.
This video was graded & uploaded in HDR10, and so is best watched on an HDR display.

Native ANSI blacks was 0.021 cd/m2, if peak white was set at 122.2 cd/m2 with local dimming disabled,native contrast ratio 5937.
ANSI blacks was 0.02 cd/m2, if peak white was set at 123.5 cd/m2 with local dimming enabled, contrast ratio 6209.
4 vertical colums x 6 horizontal rows = 24 independently dimmable zones
DCI-P3 colour gamut coverage : 88.5 %

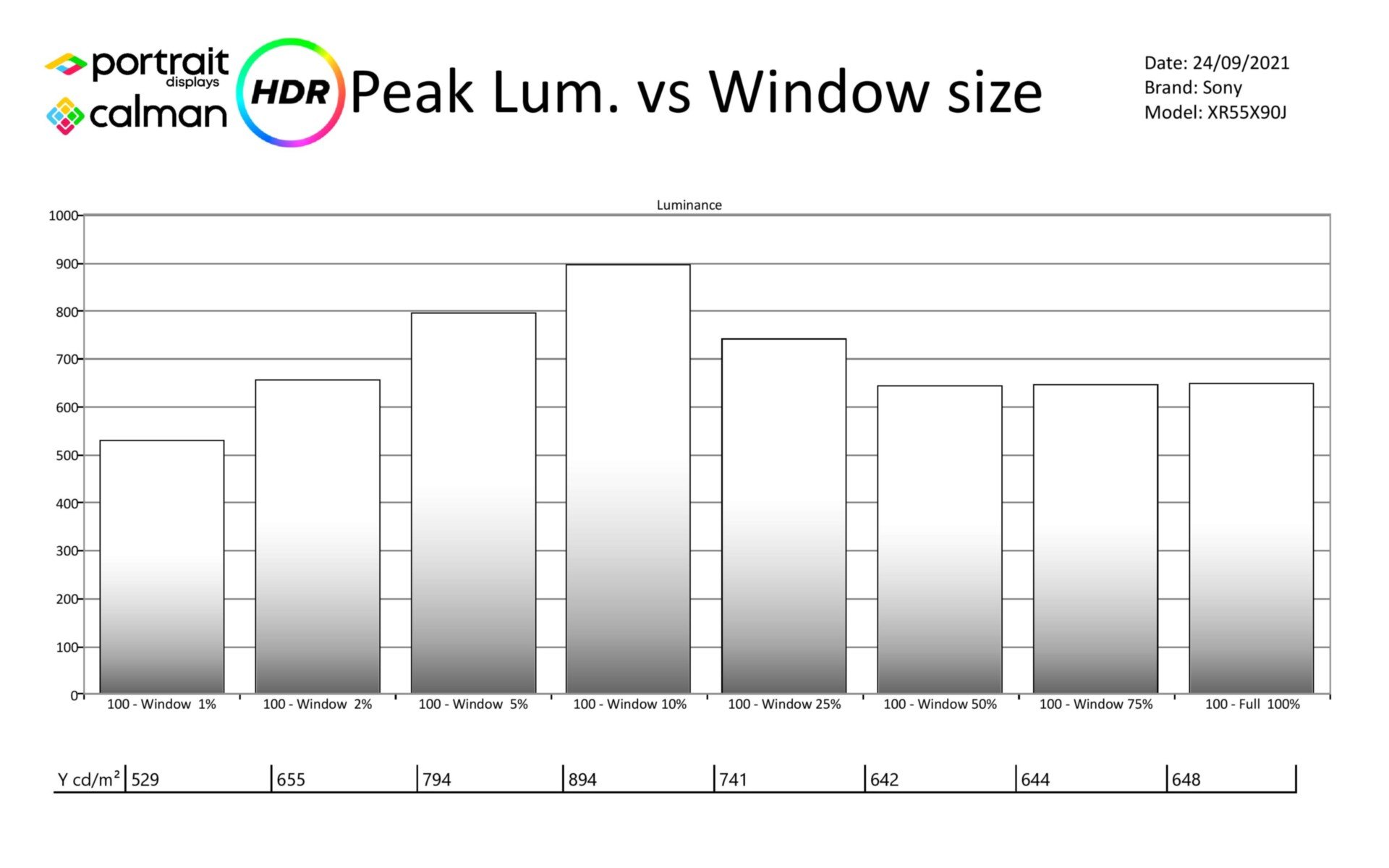

HDR: Peak Brightness on a 10% window: 835 nits , after calibration to D65 white point.
HDR: Peak Brightness on full-field: 583 nits after calibration to D65 white point.


View attachment 185044

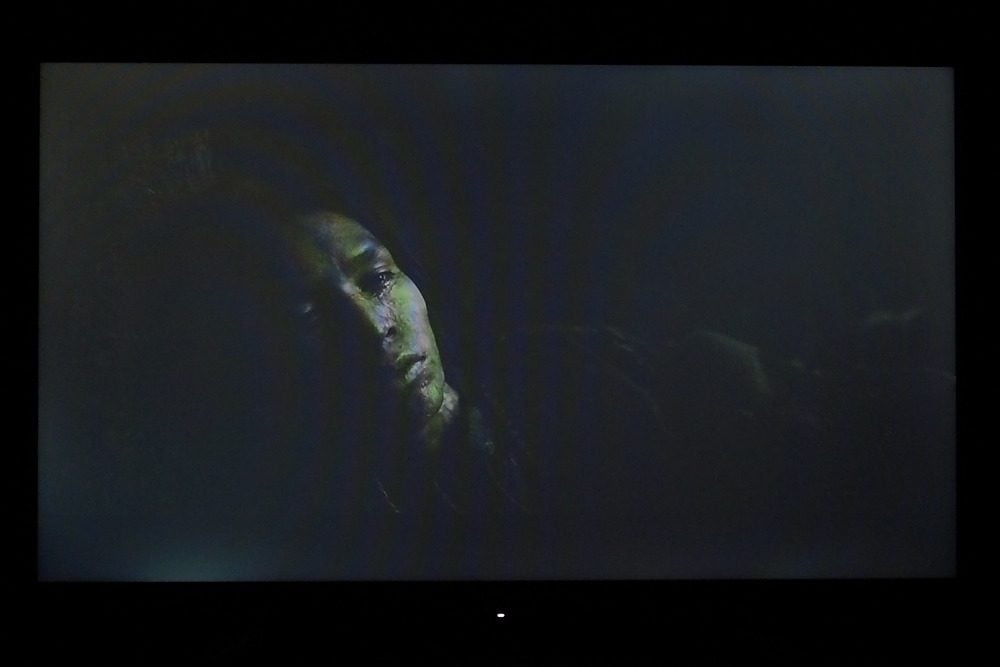

with local dimming disabled
View attachment 185045

View attachment 185046

View attachment 185047

We compare the Sony X90J 4K LED LCD TV vs last year's BRAVIA XH90 (also marketed as the X900H in the USA).

Timestamps:
===========
0:00 Sony X90J (left) vs X900H (right)
0:21 HDR peak brightness
0:54 HDR tone-mapping
1:33 Black level with local dimming
2:49 More calibration controls
3:56 Upscaling with BRAVIA XR
4:46 Gradation
5:57 [Film Mode] "Low" setting
6:17 4K 120Hz resolution
6:59 4K 120Hz HDR posterisation
7:27 Blooming
8:05 DCI-P3 & Rec.2020 coverage
9:53 Summary

This video was graded & uploaded in HDR10, and so is best watched on an HDR display.

πηγή: hdtvtest.co.uk



[xavito]

We demonstrate 11 Sony TV tips & tricks to speed up the Google TV performance, using a Sony A90J Master Series OLED television as an example.

Tips include:
0:00 Apps-only mode
0:53 Get to apps faster
1:34 Skip home screen
2:05 Quick settings
2:44 Reduce data transmission
3:44 Clear cached data
4:04 Play Store shortcut
4:46 Direct HDMI button
5:30 Auto Game Mode
6:00 Screensaver shortcut
6:26 Limit background processes

While this video was done using a 2021 Sony BRAVIA television, some of these hacks can also be applied to the Android TV platform on older Sony TVs to speed things up.

πηγή: hdtvtest.co.uk



[xavito]

55"...[fwd.nl]...Sony XR-55X90J review...https://fwd.nl/beeld/review-sony-xr-55x90j-x90j-serie-lcd-led-tv/

Οι ρυθμίσεις είναι μόνο για αναφορά.
Δεν υπάρχει καμία εγγύηση ότι θα σας δώσουν την καλύτερη εικόνα που είναι σύμφωνη με τα πρότυπα της βιομηχανίας και κατάλληλη για το περιβάλλον προβολής σας (ειδικά ισορροπία λευκού, ρυθμίσεις συστήματος γάμμα και χρώματος που διαφέρουν από μονάδα σε μονάδα).
Εάν θέλετε μια εγγυημένη βαθμονομημένη εικόνα, καλέστε έναν επαγγελματία βαθμονομητή τηλεόρασης.
Wide-Mode: Auto
4/3 Default: Normal
Auto Display Environment: Off
Picture Range: +1

Picture Mode: User
Auto Picture Mode: Off
Light Sensor: On

Brightness: Max
Contrast: 90
Gamma: -2
HDR Hue Mapping: Gradation
Black Level : 50
Black Adjust: Off
Adv. Contrast Optimization: Off
Auto Local Dimming : Center
Peak Illumination: Off

Color: 50
Hue: 0
Color Temperature: Expert 1
Live Colour: Off

Sharpness: 50
Reality Creation: Auto
Reducing Random Noise: Low
Digital Noise Reducing: Low
Smooth Gradation: Low
MotionFlow: Auto,
or Smoothness 2,
Brightness 1.
Movie Mode: Auto



[xavito]

-Sony announces "Perfect for PlayStation 5" features for 4K & 8K TVs...https://www.flatpanelshd.com/news.php?subaction=showfull&id=1633615200

The first "Perfect for PlayStation 5" TVs are Sony's A80J, A90J, X90J, X95J and Z9J models. Two new gaming features (HGiG and ALLM) will come to PS5 and the TVs by the end of 2021.




-X80J and X85J are also getting the new PS5 features...https://www.flatpanelshd.com/news.php?subaction=showfull&id=1633688241

πηγή : flatpanelshd.com



[xavito]

50"...[geex.x-kom.pl]...Sony KD-50X80J review...https://geex.x-kom.pl/recenzje/test-i-recenzja-telewizora-sony-50x80j/

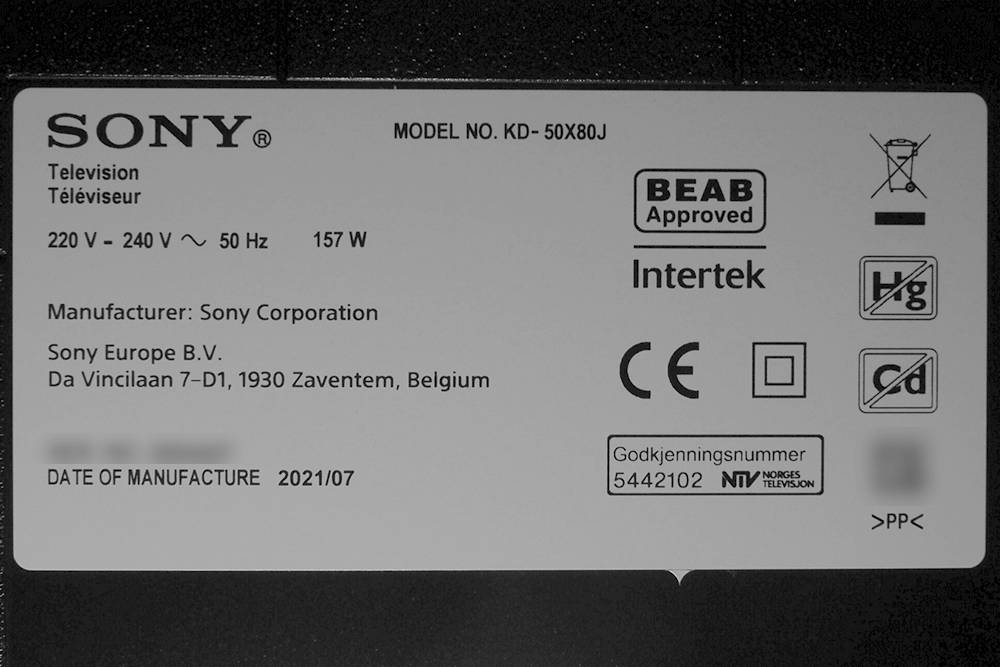

KD-50X80J :

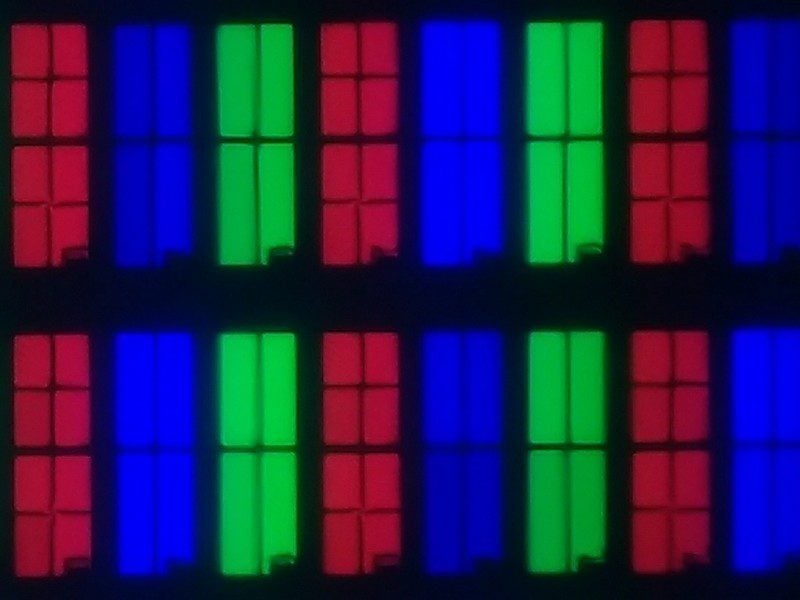

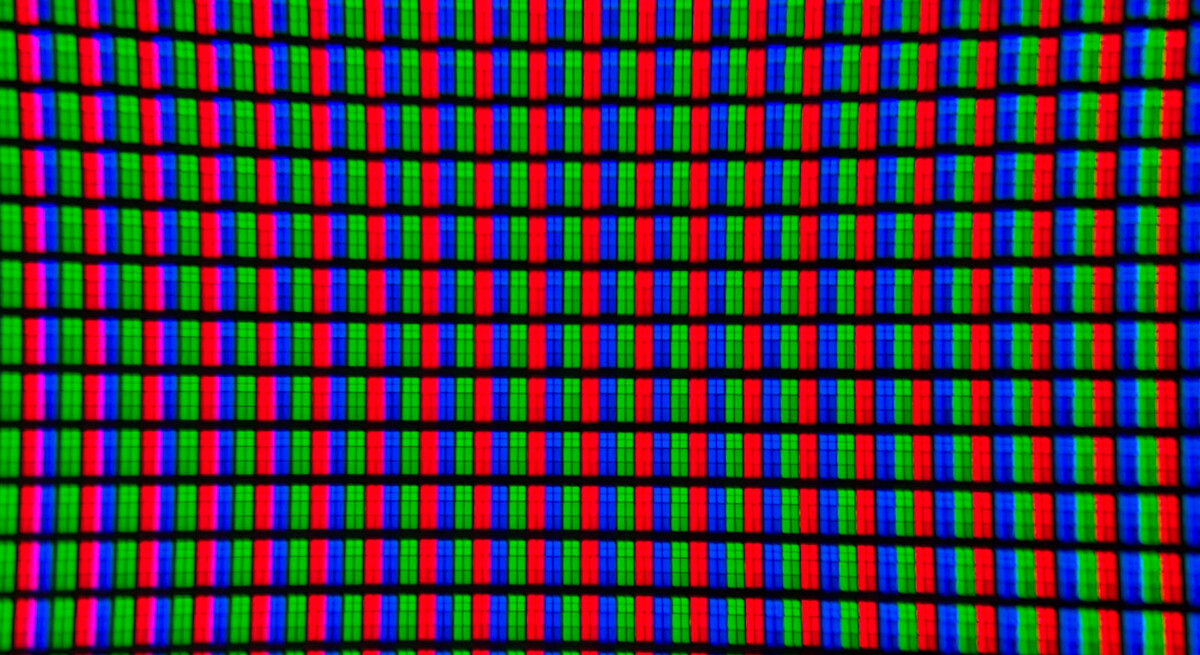

Panel type: VA panel,RGB vertical stripe,eight-domain structure of red subpixels – a rarity in this class of diagonals.
This will have a beneficial effect on color reproduction at an angle.4-domain of blue and green subpixels.
Backlight type : Direct LED
panel technology : LCD
50/60Hz

ANSI contrast ratio was 3450:1

HDR

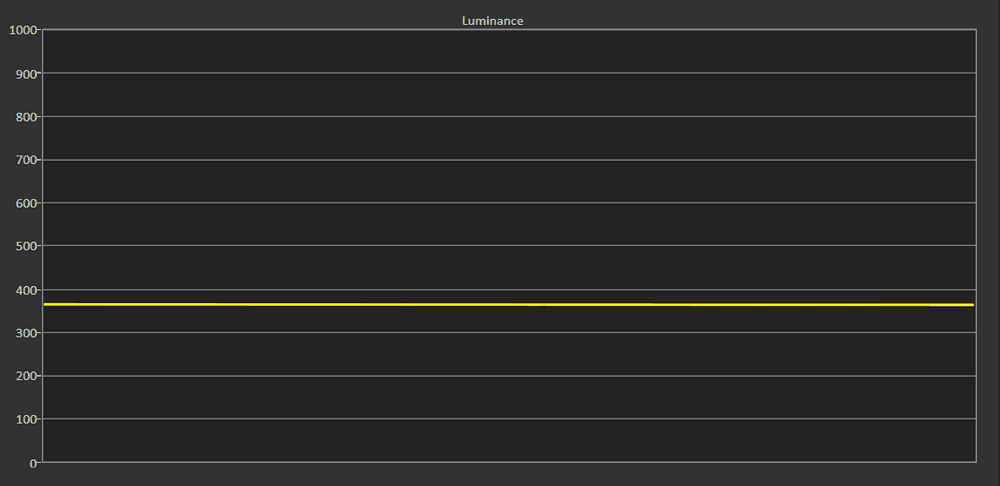

In the own mode on the board 10%, the maximum luminance after three minutes of measurement was stable and amounted to 363 nits.



[xavito]

-Google TV adds user profiles, watchlists & more...https://www.flatpanelshd.com/news.php?subaction=showfull&id=1634030712

πηγή : flatpanelshd.com


-------------

Sony has launched a new "Perfect for PS5" campaign to promote its BRAVIA XR televisions, featuring two PS5-exclusive features, namely "Auto HDR Tone Mapping" & "Auto Genre Picture Mode".

"Auto HDR Tone Mapping" refers to automatic HGiG parameter population through identification of the TV model number through EDID.

"Auto Genre Picture Mode" is PS5's version of automatic game mode switching.

Besides the BRAVIA XR TVs (X90J, X95J, A80J, A90J, Z9J), the X80J, X85J and last year's XH90 or X900H are also getting the new features following a software update on both the PS5 console and the TVs.

The PS5 is adding a new feature called "Auto HDR Tone Mapping" which will identify certain Sony TV models, then automatically retrieve the correct HGiG parameters from database.
Think of it as automatic HGiG calibration, but only for Sony BRAVIA XR TVs.

πηγή : hdtvtest.co.uk

---------------------

Sony Electronics Introduces "Perfect for PlayStation 5" for BRAVIA XR TVs...https://www.sony.com/en_us/SCA/comp...rfect-for-playstation5-for-bravia-xr-tvs.html
Sony Electronics - 10/07/2021

"Perfect for PlayStation 5" BRAVIA XR-exclusive Features:

Auto HDR Tone Mapping: With Auto HDR Tone Mapping, the HDR settings will be optimized instantly during PS5 initial setup.
The PS5 will automatically recognize individual BRAVIA XR TV models and select the best HDR setting for the TV accordingly.
With the optimized HDR tone mapping level to customers' BRAVIA display specification, they'll see crucial details and colors even in high contrast scenes. For instance, users will get the addition of detailed objects on the track in Gran Turismo so they know just how to make their next move.

Auto Genre Picture Mode: BRAVIA XR TVs can detect whether users are playing a game or watching movies and shows. With Auto Genre Picture Mode, the TV automatically switches into Game Mode when gaming, which minimizes input lag to make the action more responsive, or to Standard Mode when watching movies via a streaming service or from an Ultra HD Blu-ray™ disc on the PS5, which shifts focus to picture processing for a more expressive picture.

Software updates, available by the end of January 2022, on both PS5 and BRAVIA XR TVs are required to access Auto HDR Tone Mapping and Auto Genre Picture Mode.



[xavito]

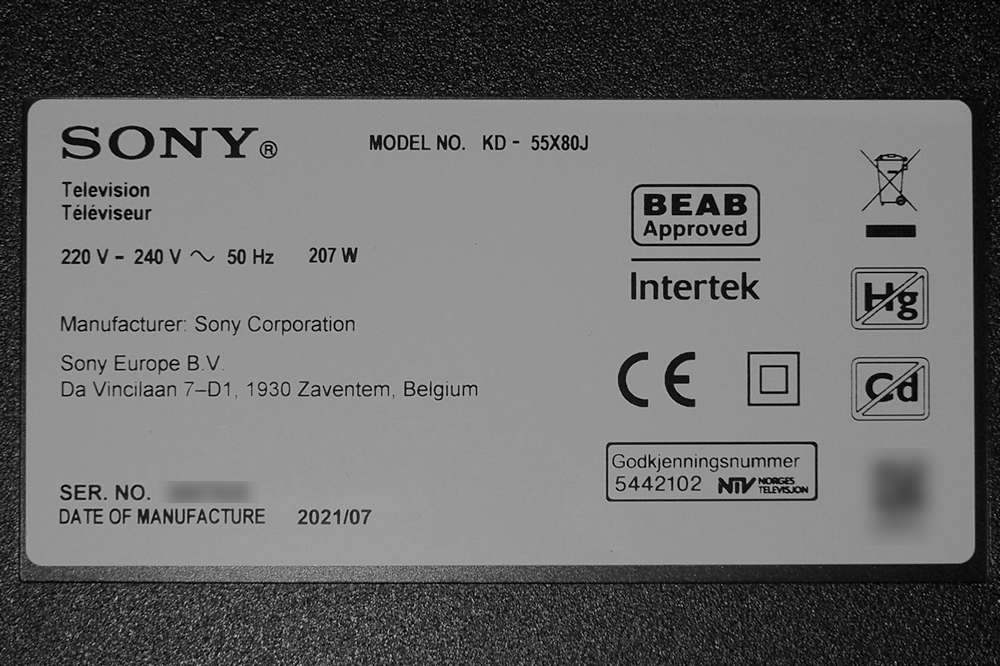

55"...[geex.x-kom.pl]...Sony KD-55X80J review...https://geex.x-kom.pl/recenzje/wiecej-cali-ale-test-i-recenzja-telewizora-sony-55x80j/

Panel type: ADS panel,like IPS,RGB
Backlight type : Direct LED
panel technology : LCD
50/60Hz

ANSI contrast ratio was 940:1

HDR
In own mode on the board 10%, the maximum luminance after three minutes of measurement was stable and amounted to 395 nits.



[xavito]

65"...[frandroid.com]...Sony XR-65X90J review...https://www.frandroid.com/marques/sony/1067297_test-sony-xr-65x90j-tv

XR-65X90J : VA panel



[xavito]

65"...[tweakers.net]...Sony XR-65X90J review...https://tweakers.net/reviews/9466/sony-x90j-4k-tv-tv-voor-sportliefhebbers.html

HDR

HDR mode Cinema



[xavito]

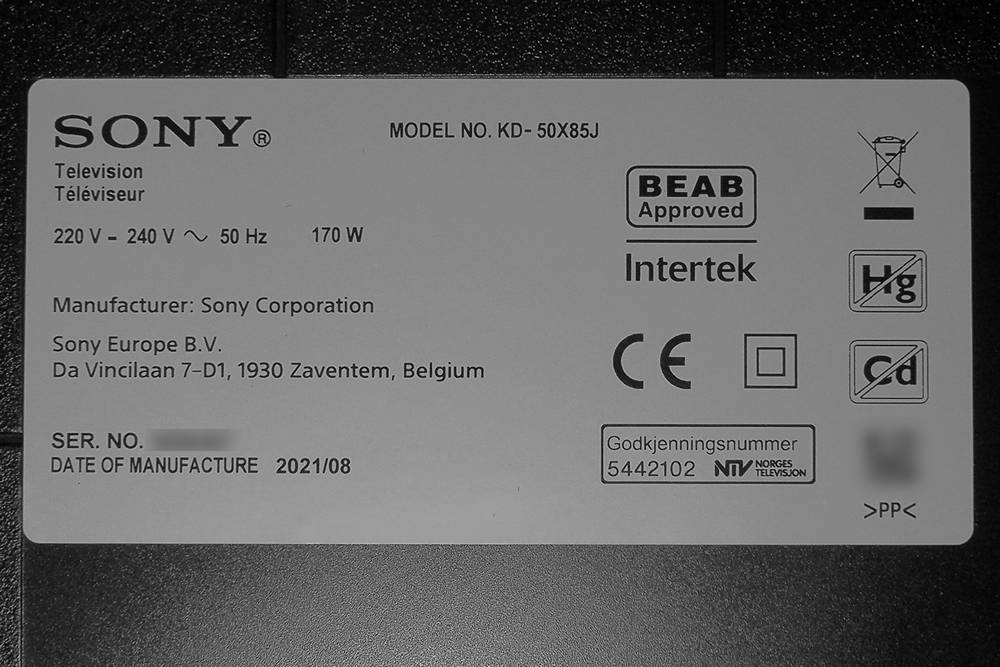

50"...[geex.x-kom.pl]...Sony KD-50X85J review...https://geex.x-kom.pl/recenzje/test-i-recenzja-telewizora-sony-50x85j/

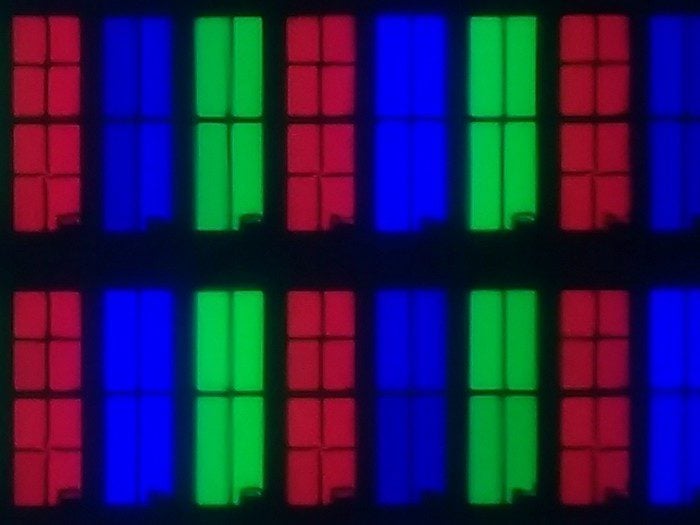

Type LCD :VA , RGB,vertical stripe, with almost identical subpixel structure as in the lower 50X80J model.

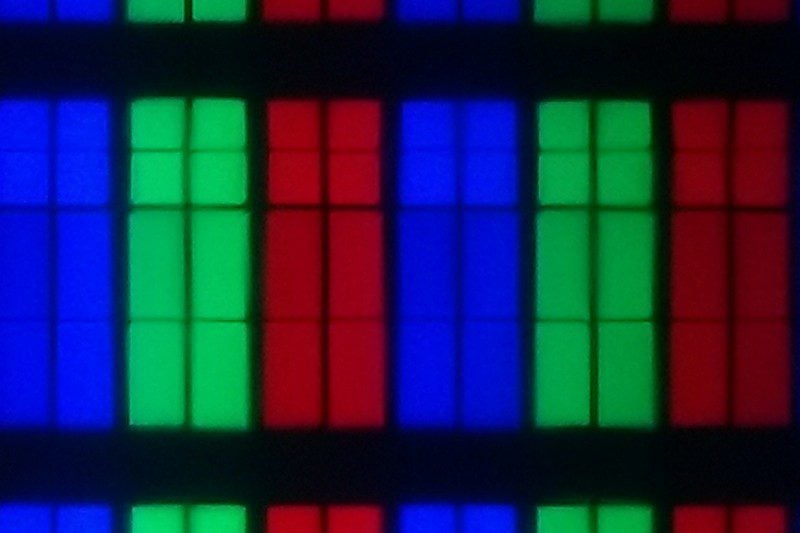

Note the eight-domain structure of red subpixels (a rarity in this class of diagonals), which will have a positive effect on color reproduction at an angle.

Backlight type: Direct LED (global dimming)
Wide color gamut DCI P3 coverage: yes
100/120Hz panel με MCFI+αναβόσβησμα του οπίσθιου φωτισμού.

ANSI contrast ratio 2614:1

HDR
In the User picture preset on a10% window, the maximum luminance after three minutes of measurement was stable and amounted to 431 nits.

[PDF]...Οδηγίες αποσυναρμολόγησης για χρήση από επαγγελματίες ανακύκλωσης (μόνο Αγγλικά)...https://www.sony.com/electronics/su...3d3874dd4750fbcc11d1559eecff731/98887964M.pdf



[xavito]

We analyse firmware update v6.4284 for Sony BRAVIA XR TVs including the A90J & A80J OLEDs, as well as X90J 4K LED LCD TV.
Besides adding the "Auto HDR Tone Mapping" & "Auto Genre Picture Mode" features advertised in the "Perfect for PS5" campaign, the new firmware also secretly improved picture quality in two ways.

Timestamp:
==========
0:00 New firmware with PS5
0:31 Secret improvement #1
1:57 Secret improvement #2
3:16 Auto HDR Tone Mapping
3:36 Why you shouldn’t trust it
5:34 Manual adjustments
6:00 Comparing Auto vs Manual
πηγή : hdtvtest.co.uk

-------

Sony rolling out "Perfect for PS5" features for 2021 TVs – VRR for X85J...https://www.flatpanelshd.com/news.php?subaction=showfull&id=1636013673

Sony firmware update v6.4284 – changelog
Firmware v.64284 download files:
- North America: coming soon
- Europe: Firmware v.64284
- Asia Pacific: Firmware v.64284
- Latin America: coming soon

Benefits and Improvements:
- Adds support for VRR (only for X85J_X86J_X89J series）
- Adds Features for PlayStation 5
- Adds support for the 360 Spatial Sound Personalizer (3D Sound Function for the SRS-NS7 Wireless Neckband Speaker). Note: Only for A80J_A83J_A84J, A90J, X90J_X92J_X93J_X94J, X95J, Z9J series

πηγή: flatpanelshd.com

----------------------------

Ενημέρωση υλικολογισμικού στην έκδοση v6.4284 (PKG6.4284.xxxx)
Ημερομηνία κυκλοφορίας: 04-11-2021

Πλεονεκτήματα και βελτιώσεις
Προσθέτει υποστήριξη VRR (μόνο για τις σειρές X85J_X86J_X89J)
Προσθέτει λειτουργίες για PlayStation 5
Προσθέτει υποστήριξη για 360 Spatial Sound Personalizer (λειτουργία ήχου 3D για το ασύρματο ηχείο λαιμού SRS-NS7)
Σημείωση: Μόνο για τις σειρές A80J_A83J_A84J, A90J, X90J_X92J_X93J_X94J, X95J, Z9J

Όνομα αρχείου zip: sony_atvotafull_2020_1604284100_eua_auth.zip
https://www.sony.gr/electronics/sup..._a83j_a84j-series/xr-55a80j/software/00269999



[xavito]

75"...[hdtvpolska.com]...Sony XR-75Z9J review...https://hdtvpolska.com/test-recenzja-telewizor-sony-z9j-8k-opinie/?showfull=1

Display technology : LCD
Type of LCD : VA + viewing angle compensation film+anti reflection coating
Backlight : Direct LED ,Full array local dimming ,The counted number of dimming zones is 399 (21 x 19).
Wide color gamut DCI-P3 coverage : yes,PFS phosphor
120Hz με MCFI+αναβόσβησμα του οπίσθιου φωτισμού

Soc

Sony XR-75Z9J graphic teardown



[xavito]

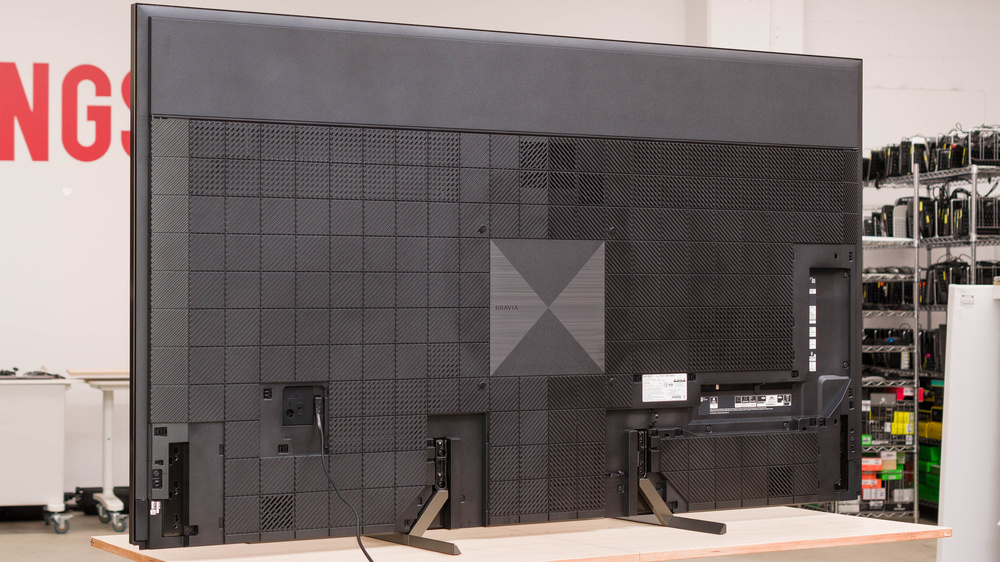

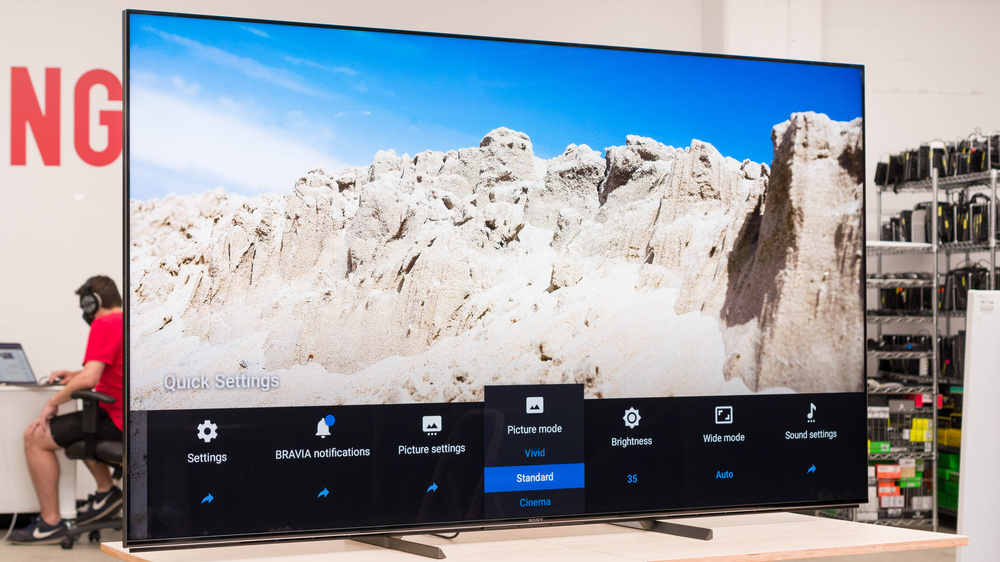

85"...[rtings.com]...Sony KD-85X91J (USA model only) review....https://www.rtings.com/tv/reviews/sony/x91j

It's closer to the Sony X900H than the Sony X90J

------------------



Google TV: καλύτερο από το Android TV, το πόσο... εξαρτάται...https://www.athinorama.gr/digital/h...to_android_tv_to_poso_eksartatai-2552069.html

πηγή : athinorama.gr



[xavito]

43"...[geex.x-kom.pl]...Sony KD-43X85J review...https://geex.x-kom.pl/recenzje/test-i-recenzja-telewizora-sony-43x85j/

KD-43X85J : VA panel ,RGB,vertical stripe,4-domain green & blue,8-domain red
Display technology : LCD
Backlight : Direct LED
wide color gamut DCI-P3 coverage : yes
120Hz panel με MCFI + αναβόσβησμα του οπίσθιου φωτισμού


I note the eight-domain structure of red subpixels (a rarity in this class of diagonals), which will have a positive effect on color reproduction at an angle.

HDR

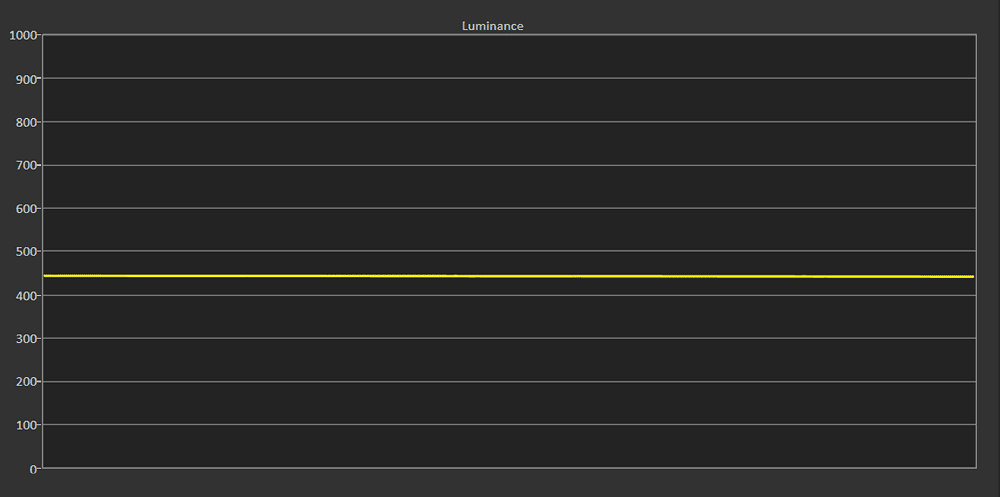

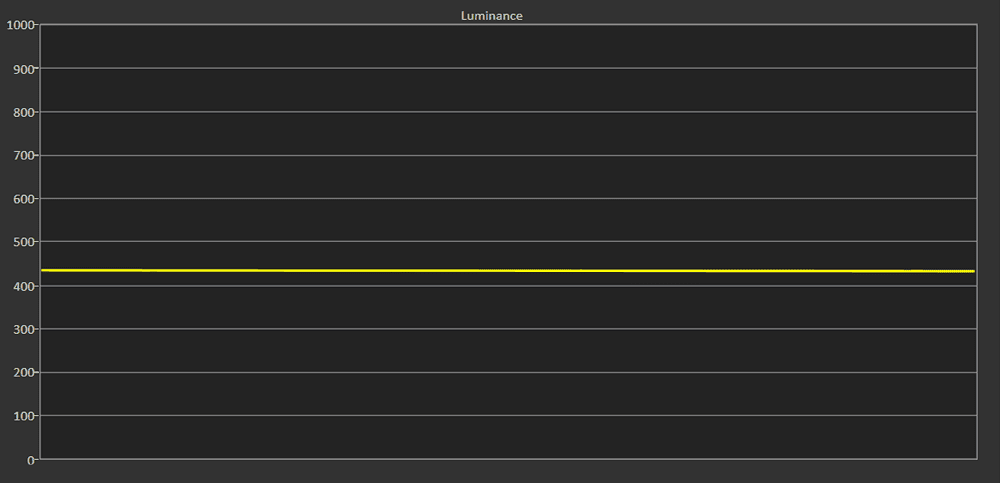

In user mode , the maximum luminance was 441 nits and was stable during the entire three-minute measurement.



[xavito]

Report: Samsung and Sony to launch first QD-OLED TVs at CES...https://www.hdtvtest.co.uk/n/Report-Samsung-and-Sony-to-launch-first-QD-OLED-TVs-at-CES

Samsung Electronics and Sony Corp. will both launch their first QD-OLED TVs at the Consumer Electronics Show 2022 in Las Vegas in January, multiple reports from South Korea say.

-------------------------------

HDTVtest 2021 tv shootout

After a lot of hard work calibrating & judging + video editing, I can now announce the results of the 2021 @HDTVTest TV shootout:

Best Home Cinema TV: Panasonic JZ2000
Best Living Room TV: Sony A90J
Best Gaming TV: LG G1
Best TV of 2021: Sony A90J

πηγή : hdtvtest.co.uk
------------------------------------------

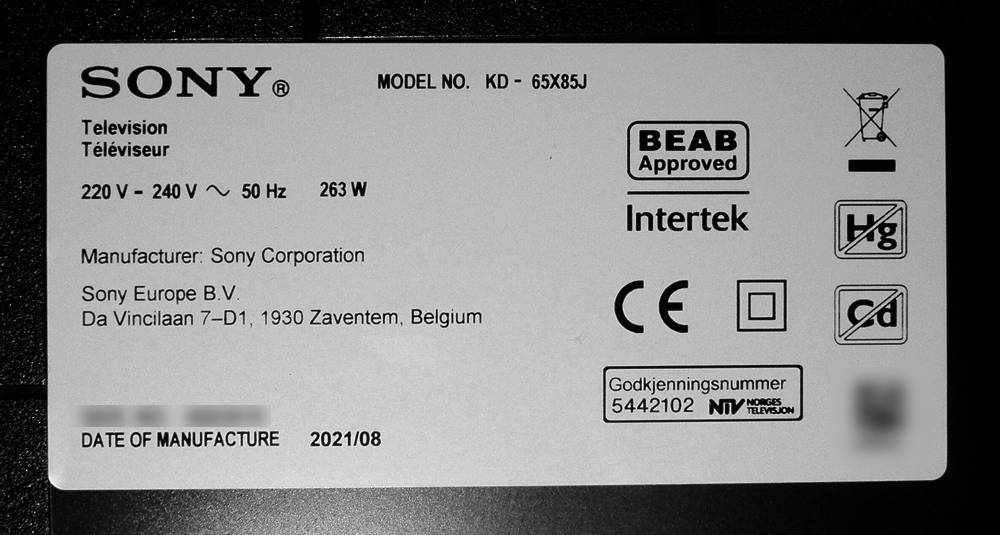

65"...[geex.x-kom.pl]...Sony KD-65X85J review...https://geex.x-kom.pl/recenzje/test-i-recenzja-telewizora-sony-65x85j/

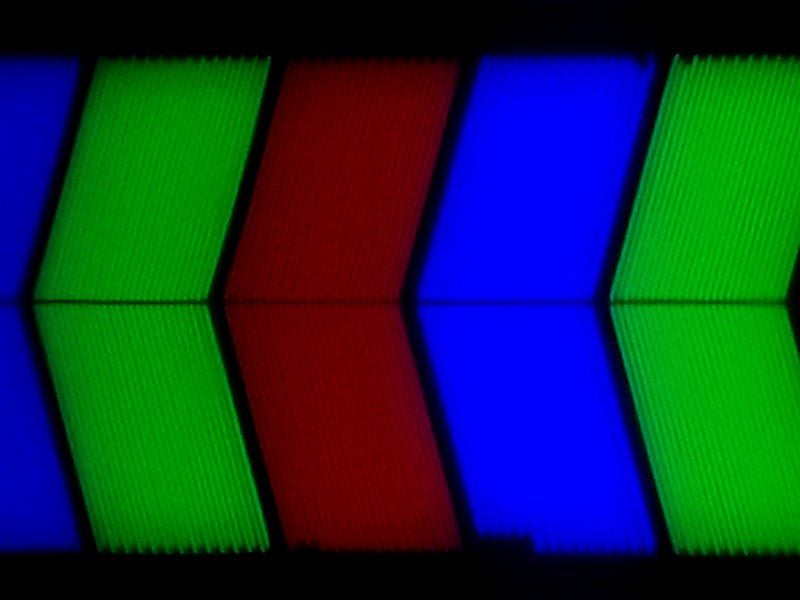

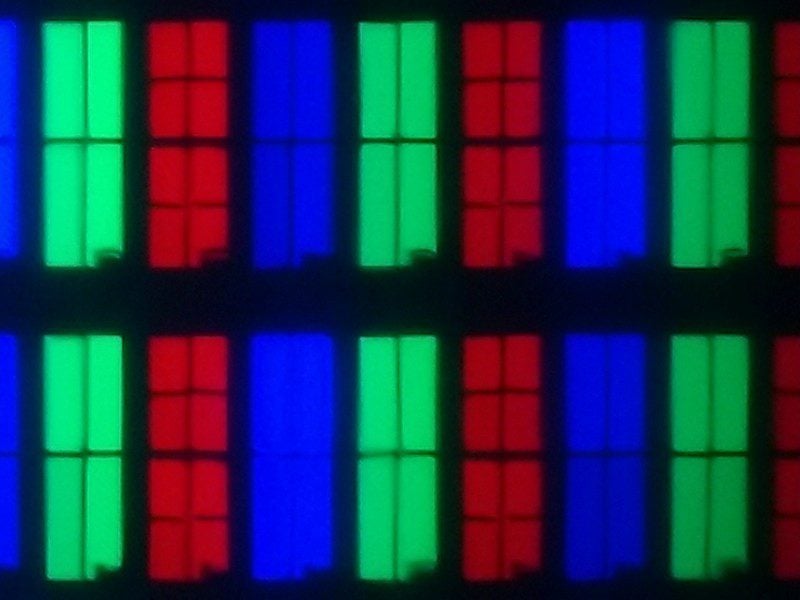

Panel type : VA , subpixel panel structure RGB,8-domain,vertical stripe
Panel technology : LCD
Backlight type : Direct LED
100/120Hz με MCFI + αναβόσβησμα του οπίσθιου φωτισμού
Wide Colour Gamut DCI-P3 coverage : 91%
ANSI Contrast Ratio : 5113:1

subpixel panel structure

HDR
In the own mode on the board 10%, the maximum luminance after three minutes of measurement was stable and amounted to 541 nits.



[xavito]

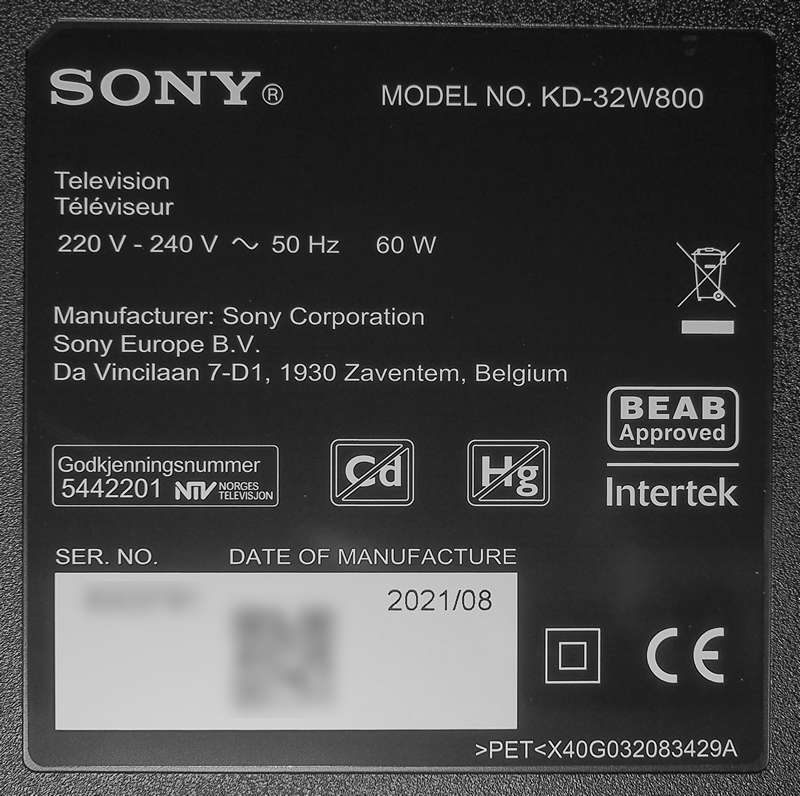

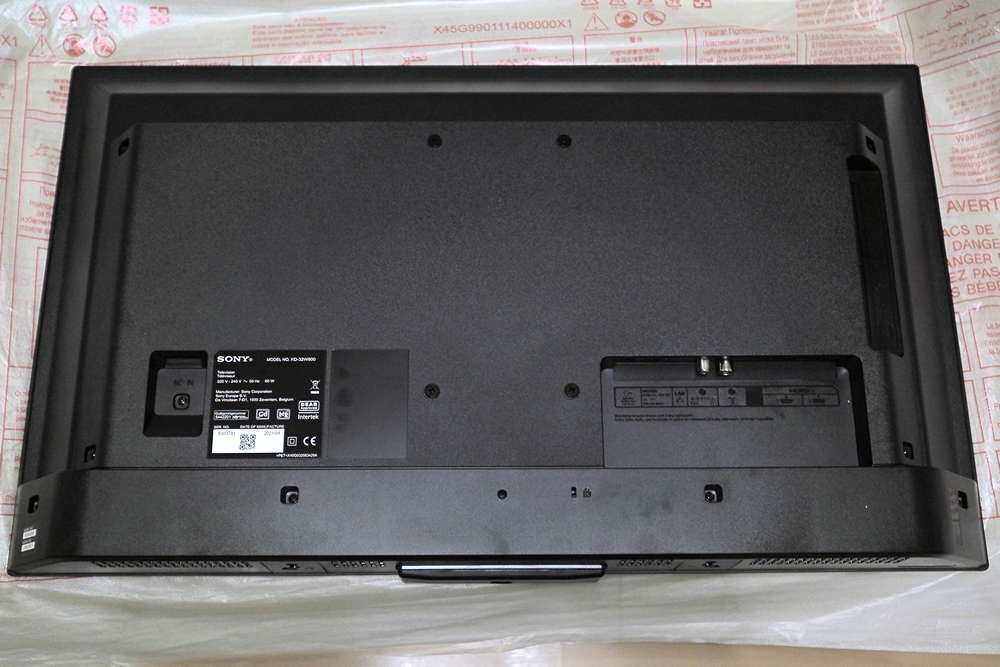

32"...[geex.x-kom.pl]...Sony KD-32W800 review...https://geex.x-kom.pl/recenzje/test-i-recenzja-telewizora-sony-32w800/

IPS panel LCD from LG Display
60Hz
Direct LED in the "economical" version (hence the very thick housing)
SoC

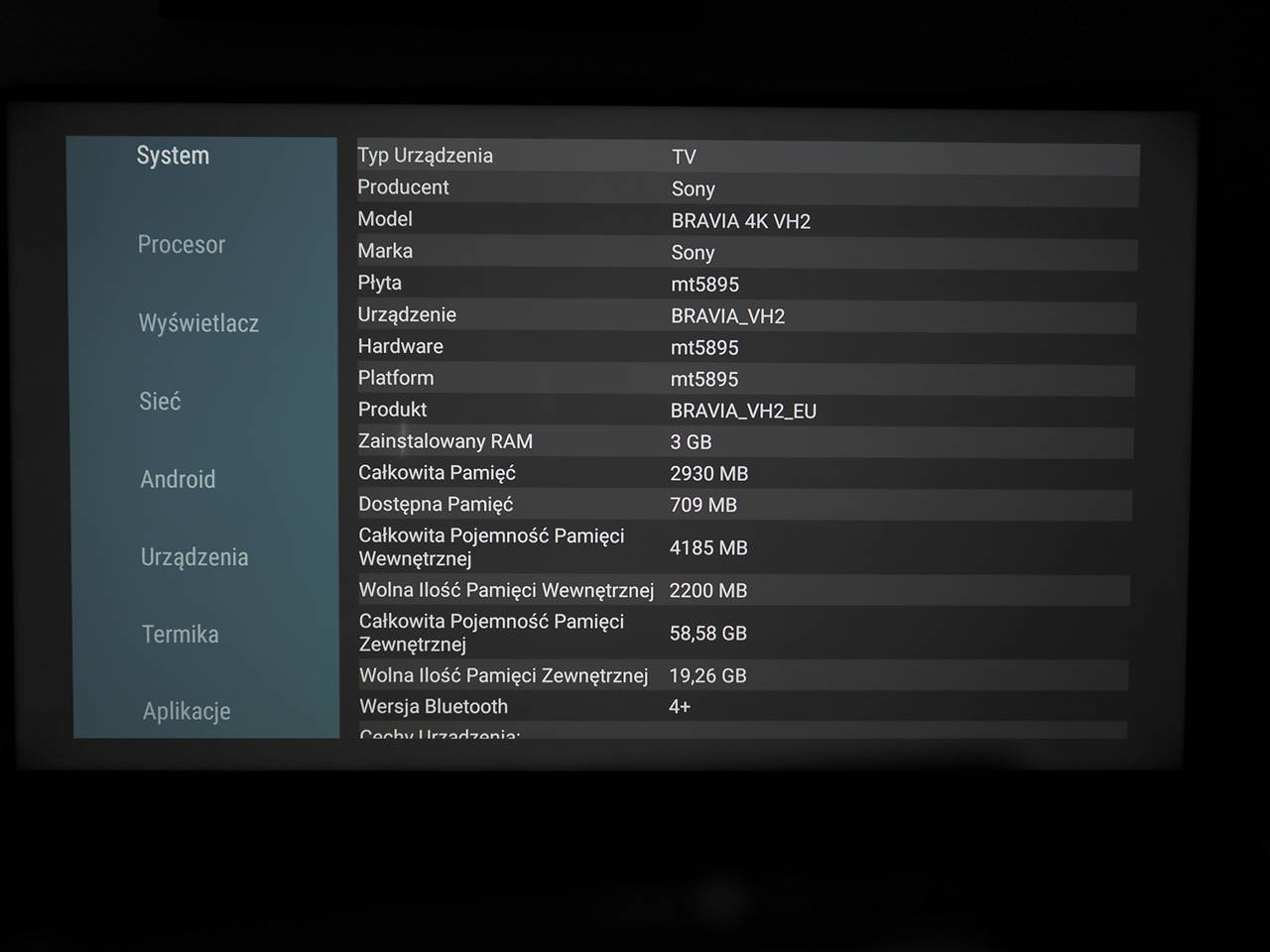

During the test, the TV was running software version 10007, it was produced in August 2021.

The TV is not an original Sony product, but was designed and manufactured by TPV (Philips).

ANSI contrast ratio was... 646:1, which is a very poor result (well, IPS panel)
UHDA-P3 (CIExy) space coverage was 75%

Recommended settings : movie mode (6665K).
It is worth noting that any attempt to change the options in any mode automatically throws us into user mode . This is a typical feature of Chinese TVs, not Bravia.

HDR
In the 10% board mode, the maximum luminance was 243nits, which is a very low result.

If we associate all this with the lack of not only a wide, but even an extended palette of colors, it will mean that, contrary to the manufacturer's declarations, the TV is simply not suitable for HDR content. Anyway, in this price class it is difficult to expect anything else.

Sony KD-32W800 teardown

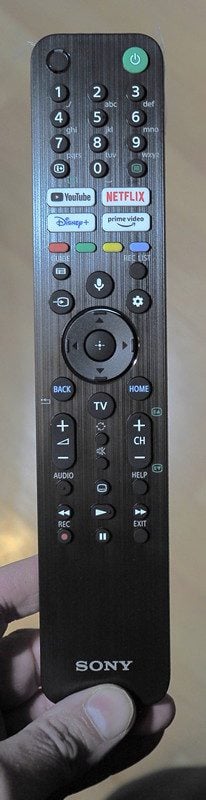

RMF-TX520E

---------------------

Sony KD-32W800 android tv review

πηγή :[Chris Collins]

Unboxing (00:00:00)
- accessories (00:11:44)
Setup / Setup (00:17:42)
- Kanalsuche (00:22:12)
- Netflix (00:27:49)
- Image Settings (00:28:51)
- PrimeTV (00:30:26)
- Disney Plus (00:32:04)
- APPs (00:35:08)
- Other APPs (01:02:03)
- YouTube (00:39:05)
- Settings (00:43:30)
- System update (00:43:57)
- Google Assistant (00:53:09)
- TV Umschaltzeit (00:54:29)
- Home / Home (00:56:11)
- Remote control function keys (00:58:12)
- Design & Perspective & Conclusion (01:05:53)
- Photos (01:11:11)

πηγή :[Test Fritz]



[xavito]

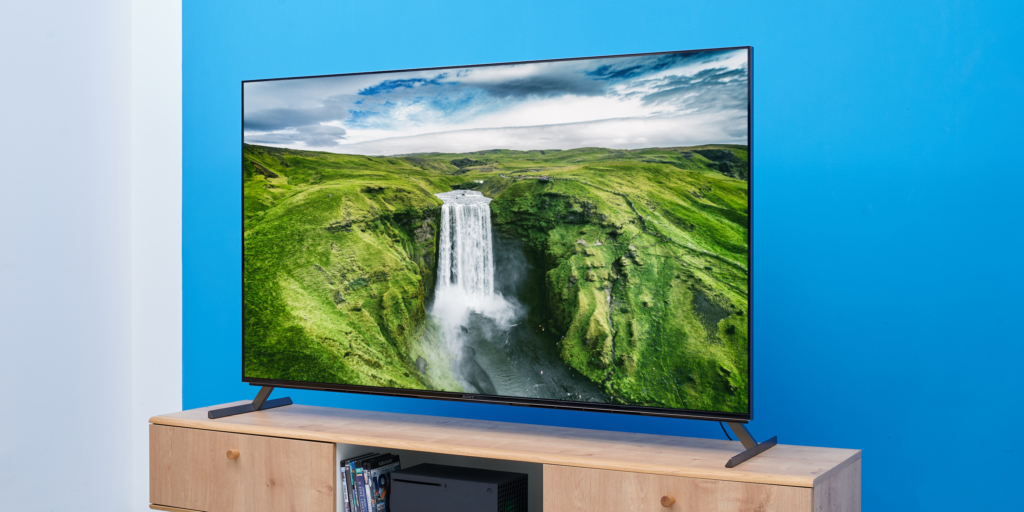

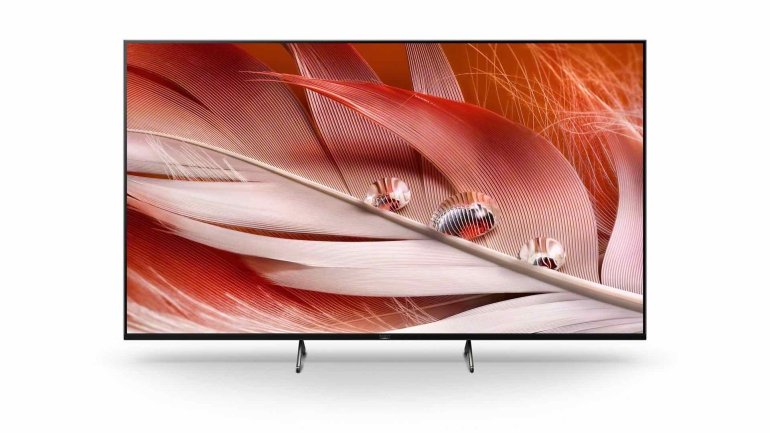

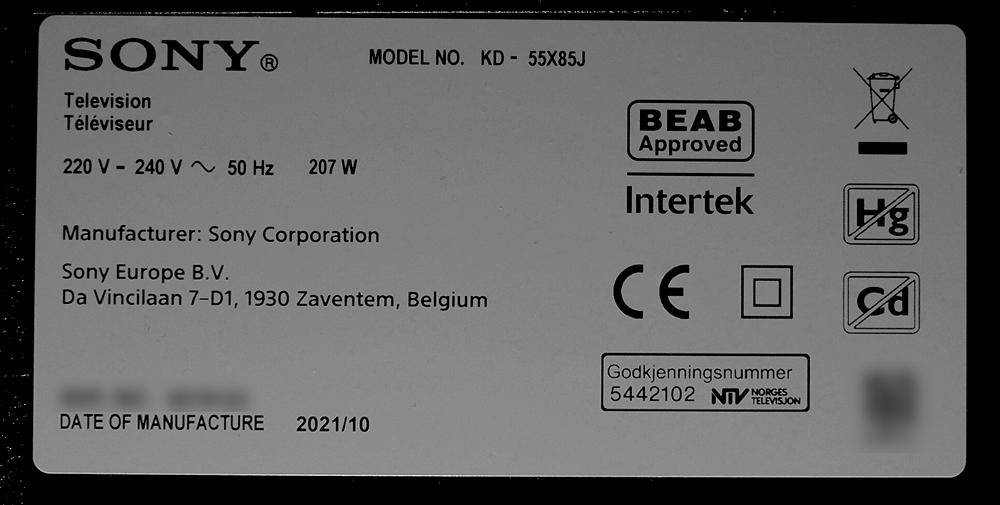

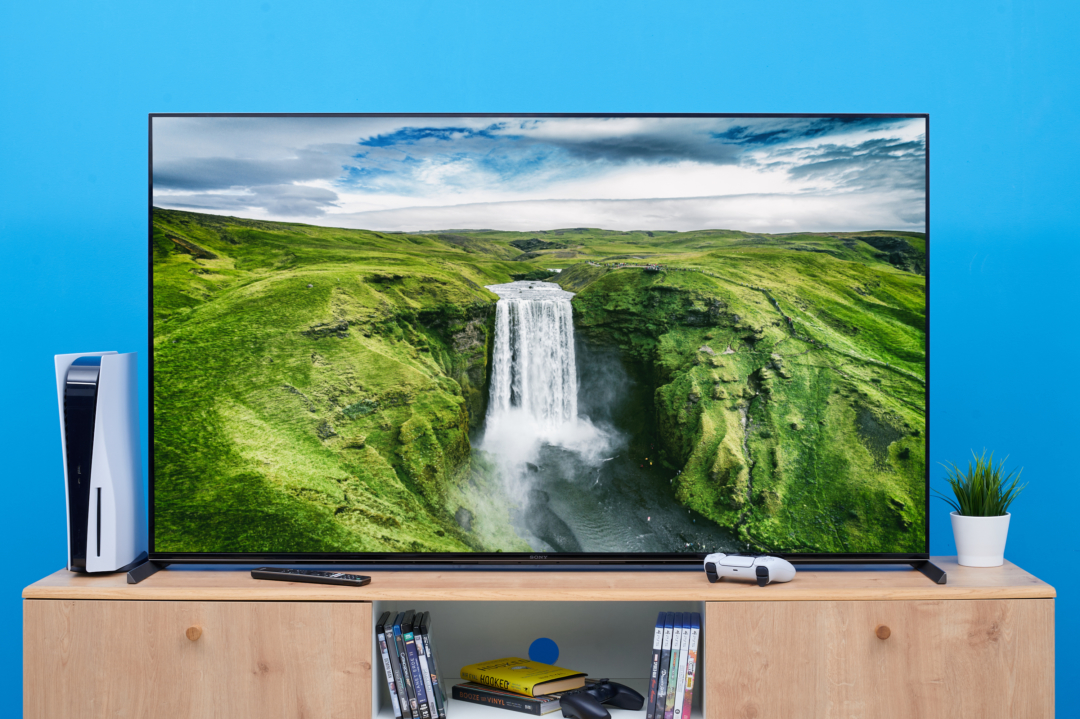

55"...[geex.x-kom.pl]...Sony KD-55X85J review...https://geex.x-kom.pl/recenzje/test-i-recenzja-telewizora-sony-55x85j/

During the test, it ran under the control of software version 6.4284.0521EUA

Panel type : VA , subpixel panel structure RGB,8-domain,vertical stripe
Panel technology : LCD
Backlight type : Direct LED
100/120Hz με MCFI + αναβόσβησμα του οπίσθιου φωτισμού
Wide Colour Gamut DCI-P3 coverage : 89%
ANSI Contrast Ratio : 4307:1

subpixel panel structure

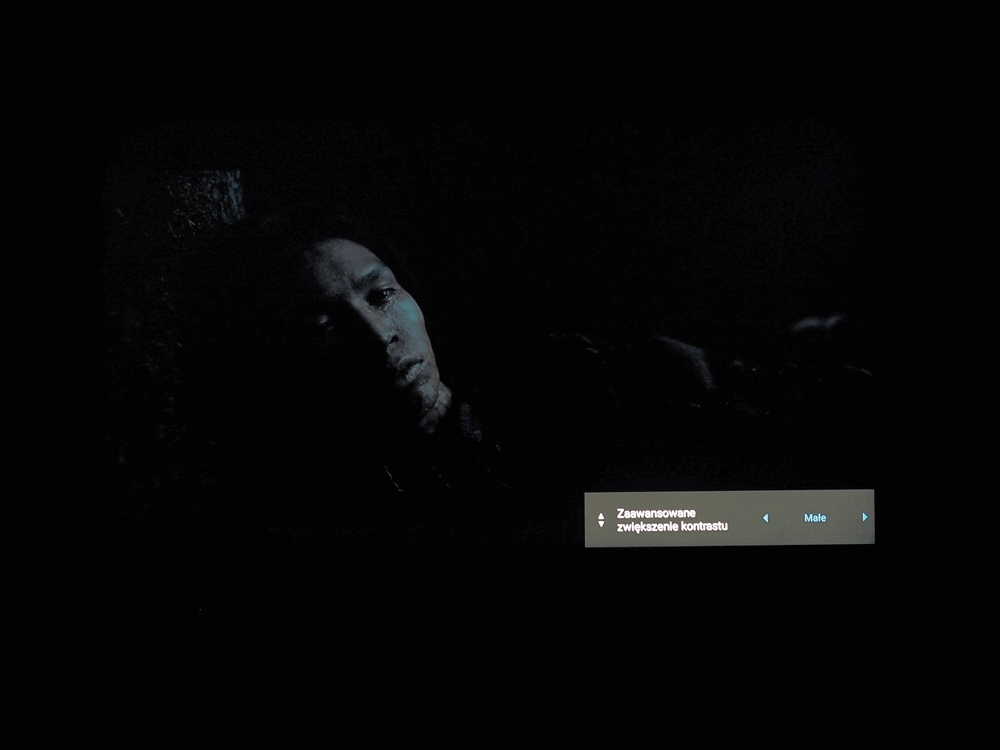

Advance Contrast Enhancer : off-low

HDR
In the own mode on the board 10%, the maximum luminance after three minutes of measurement was stable and amounted to 506 nits.
